Runva 13 EXPEDITION Winch | 13,000lb | 12V / 24V

Runva 13Expedition Winch with Synthetic Rope

Runva 13Expedition Winch with Synthetic Rope

by Runva

SKU 13EXPEDITION24V

$1,350.00 - $1,350.00

$1,350.00

$1,350.00 - $1,350.00

$1,350.00

Quantity

4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

13EXPEDITION Winch with Synthetic Rope by Runva

The Runva 13EXPEDITION delivers a 13,000lb (5,897kg) rated line pull for remote tracks, deep mud and steep climbs where dependable recovery power matters.

Runva has fitted the pulling capacity associated with the 13XP Premium into a more compact body designed to suit most winch-compatible bull bars. It is aimed at heavier 4WD builds, tradies and recovery operators who need extra pulling margin without the older model’s larger footprint.

A stainless steel rotary clutch, rechargeable wireless remote with built-in torch, heavy-duty wired remote and in-cab rocker switch make the winch practical to control in demanding conditions. The kit also includes essential recovery hardware for installation and use.

13,000lbRated line pull

5,897kgRated line pull

228:1Gear ratio

IP67Waterproof rating

Features

13,000lb (5,897kg) rated line pullSerious pulling power for heavier vehicles and tough recoveries.

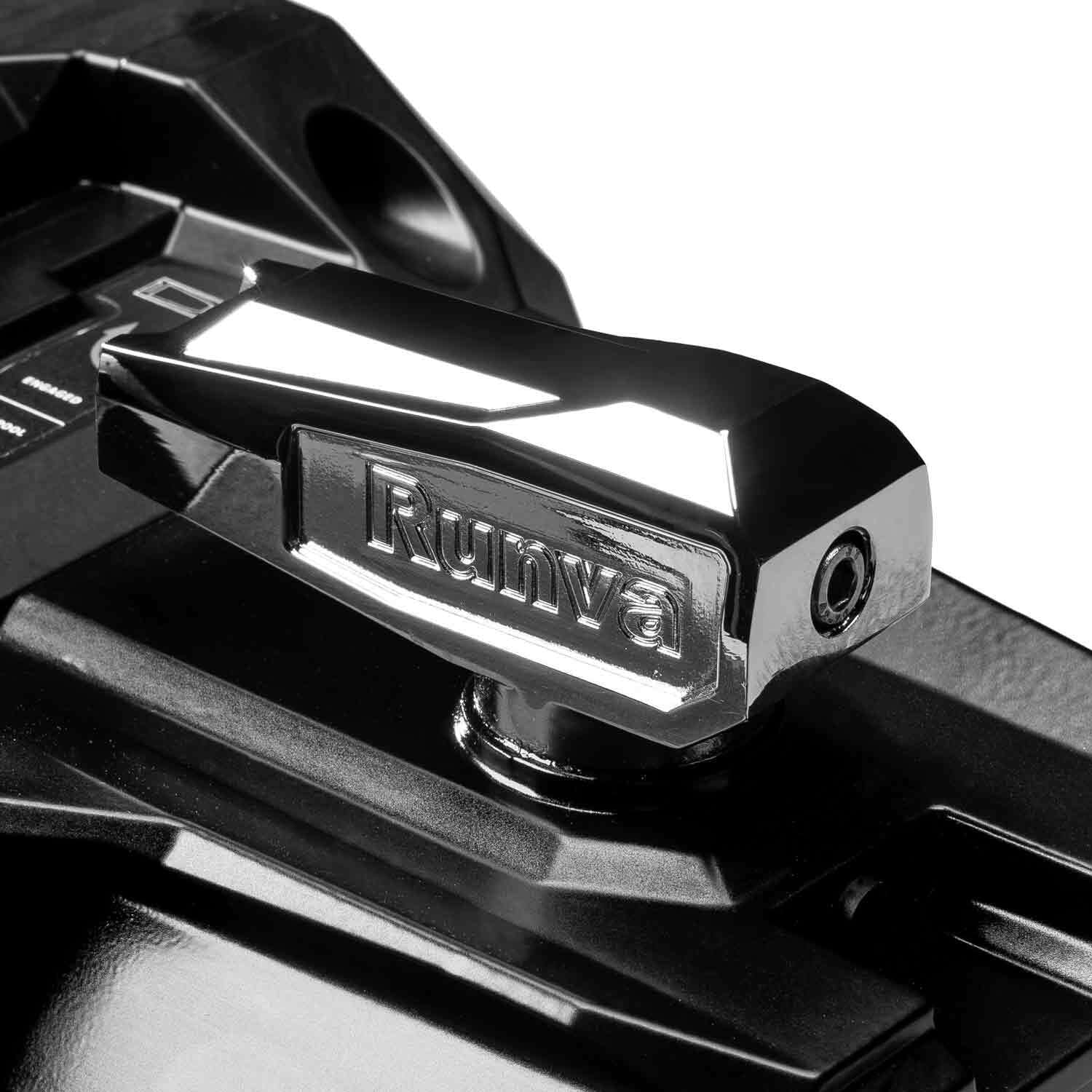

Stainless steel rotary clutchA low-profile design built for long-term reliability.

Fast line speedStrong recovery performance across the load range.

11mm Armortech synthetic ropeDouble-braided, lightweight and rated to 25,250lb.

Rechargeable wireless remoteIncludes a built-in torch for low-light recovery work.

Full steel three-stage planetary gearsProvides consistent and durable torque.

IP67 waterproof ratingDesigned to keep out water, mud and dust.

Compact mounting footprint254mm x 114.3mm mounting pattern for compatible bull bars.

Battery monitor with LED readoutShows voltage in real time.

12V or 24V optionsSupports standard and commercial electrical setups.

A closer look at the EXPEDITION winch, its controls and recovery-ready construction.

Specifications

Rated line pull13,000lb (5,897kg)
Motor5.0kW / 6.0kW (12V / 24V)
Gear trainFull steel three-stage planetary
Gear ratio228:1
ClutchStainless steel rotary
BrakeAutomatic ratchet load holding in gearbox
Rope11mm x 25m Armortech synthetic rope, rated to 25,250lb
Drum63mm x 217mm
Mounting pattern254mm x 114.3mm
Overall dimensions574mm x 160mm x 190mm
Weight31kg
Shipping weight41kg

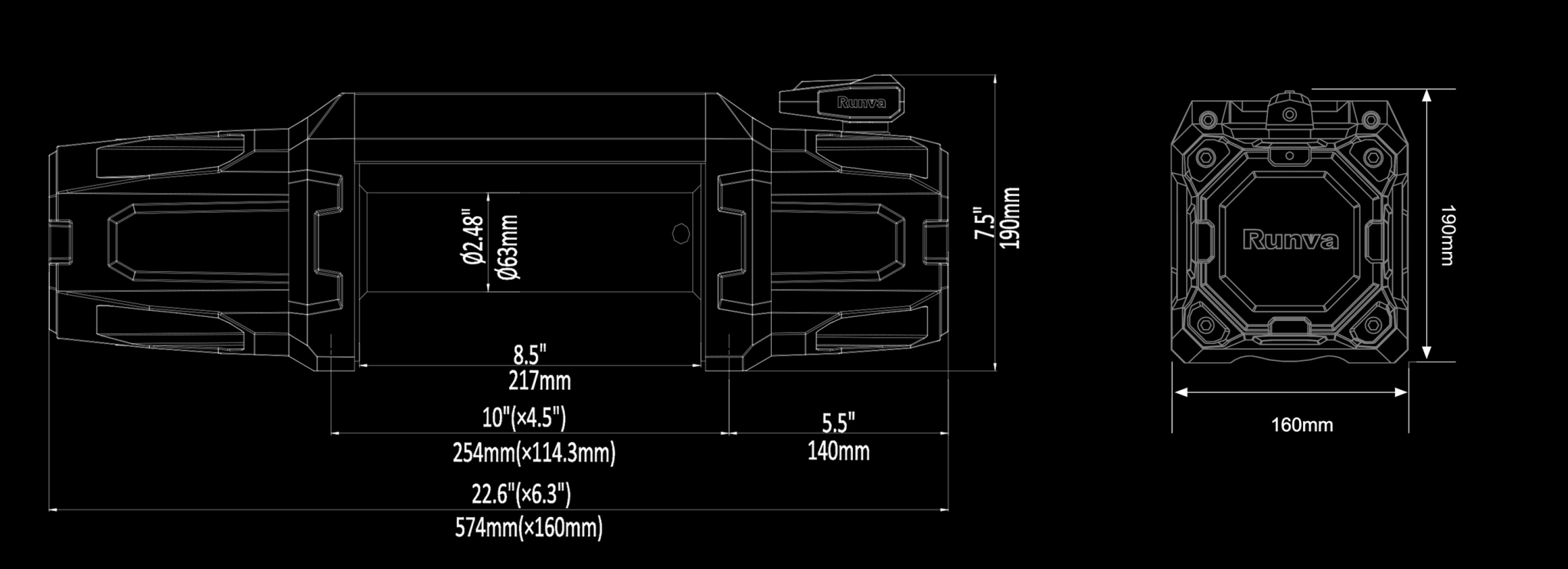

13EXPEDITION Winch with Synthetic Rope by Runva dimension drawing

Controls and finish

Remote controlEXPEDITION rechargeable wireless remote.

Battery leads2 x 1.8m heavy-duty leads.

FinishBlack powder coat.

Clutch handle positionGearbox can be rotated.

Performance

Line pull lb (kg)	12V speed ft/min (m/min)	24V speed ft/min (m/min)	12V current (A)	24V current (A)	Layer	Rated pull lb (kg)	Rope on drum ft (m)
0 (0)	34.4 (10.5)	36.7 (11.2)	55	40	1	13,000 (5,897)	16.1 (4.9)
4,000 (1,814)	11.8 (3.6)	12.8 (3.9)	185	100	2	10,204 (4,628)	36.4 (11.1)
8,000 (3,629)	6.6 (2.0)	7.9 (3.5)	290	185	3	8,398 (3,809)	60.0 (18.3)
13,000 (5,897)	3.6 (1.1)	4.9 (1.5)	420	245	4	7,135 (3,236)	83.7 (25.5)

Performance note: Maximum line pull capacity is based on the first layer of rope.

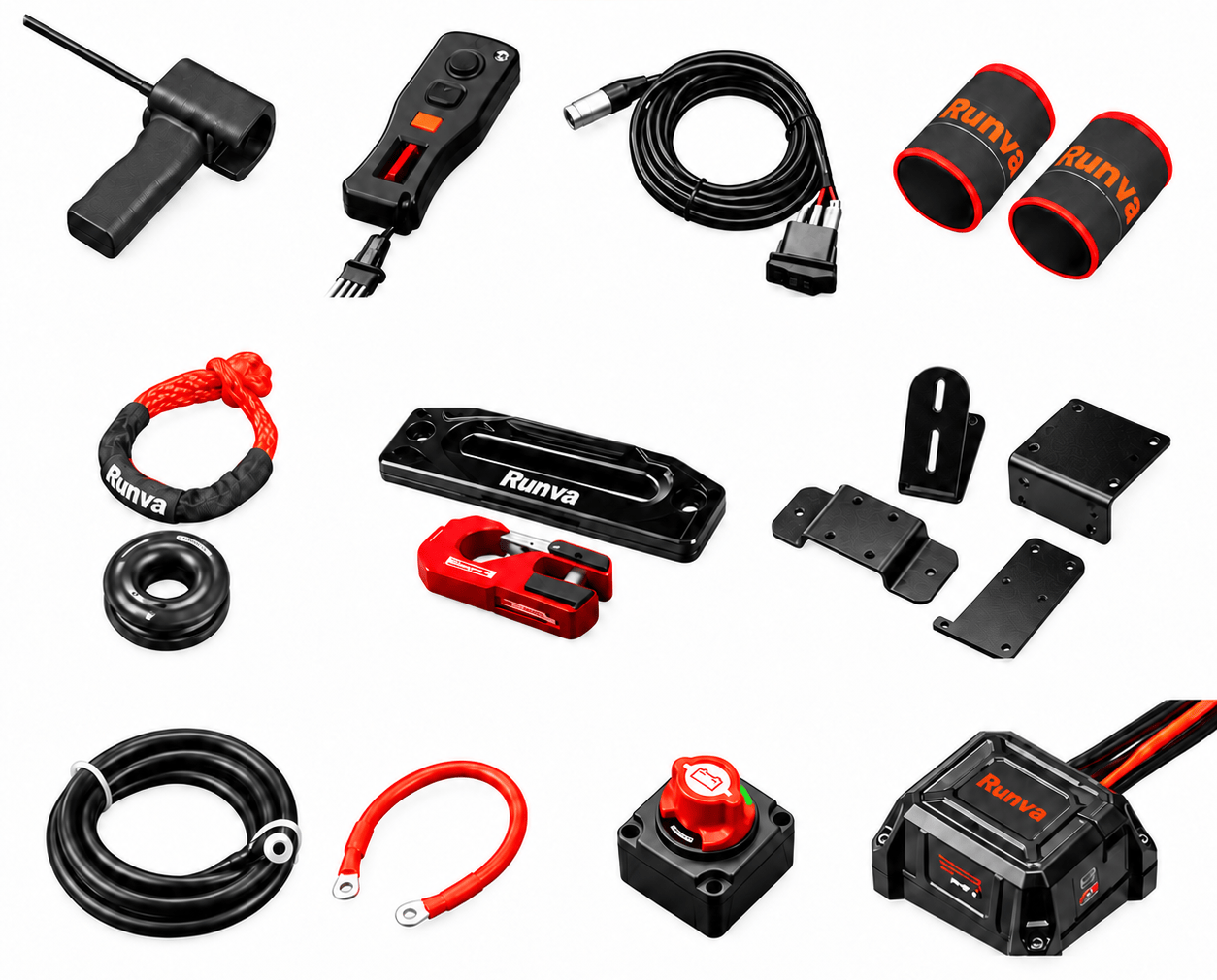

What is included with the 13EXPEDITION Winch with Synthetic Rope by Runva

What's in the box

Runva 13EXPEDITION winch, 12V or 24V
Winch control box and mounting brackets
11mm Armortech double-braided synthetic rope
Stainless steel EXPEDITION recovery hook with safety latch
Hybrid alloy and stainless fairlead
Rechargeable wireless remote and wired remote
Soft shackle
Recovery ring
In-cab rocker line and switch
Power isolator switch
Protective winch cover
All necessary wiring, nuts, bolts and fittings

Warranty

Limited five-year manufacturer warranty for electrical components and lifetime manufacturer warranty for mechanical components.

Frequently Asked Questions

What is the key advantage over the 13XP Premium?

The 13EXPEDITION retains a 13,000lb (5,897kg) rated pull in a more compact body intended to address the 13XP Premium’s fitment limitations. It also includes the rechargeable wireless remote, in-cab rocker switch, Armortech rope and stainless steel rotary clutch.

Will the 13EXPEDITION fit my bull bar?

It uses a 254mm x 114.3mm bolt pattern and measures 574mm x 160mm x 190mm. Confirm the available cavity size and mounting pattern before ordering.

What vehicles suit a 13,000lb winch?

The source positions this model for heavier 4WD builds, including vehicles carrying substantial aftermarket equipment and touring loads.

What rope is included?

The winch includes 11mm x 25m Armortech double-braided synthetic rope rated to 25,250lb.

What is the difference between 12V and 24V?

Both versions deliver the same rated pull. The 12V motor is 5.0kW and the 24V motor is 6.0kW. Choose the voltage that matches the vehicle electrical system.

What warranty applies?

A limited five-year manufacturer warranty applies to electrical components, with a lifetime manufacturer warranty on mechanical components.
