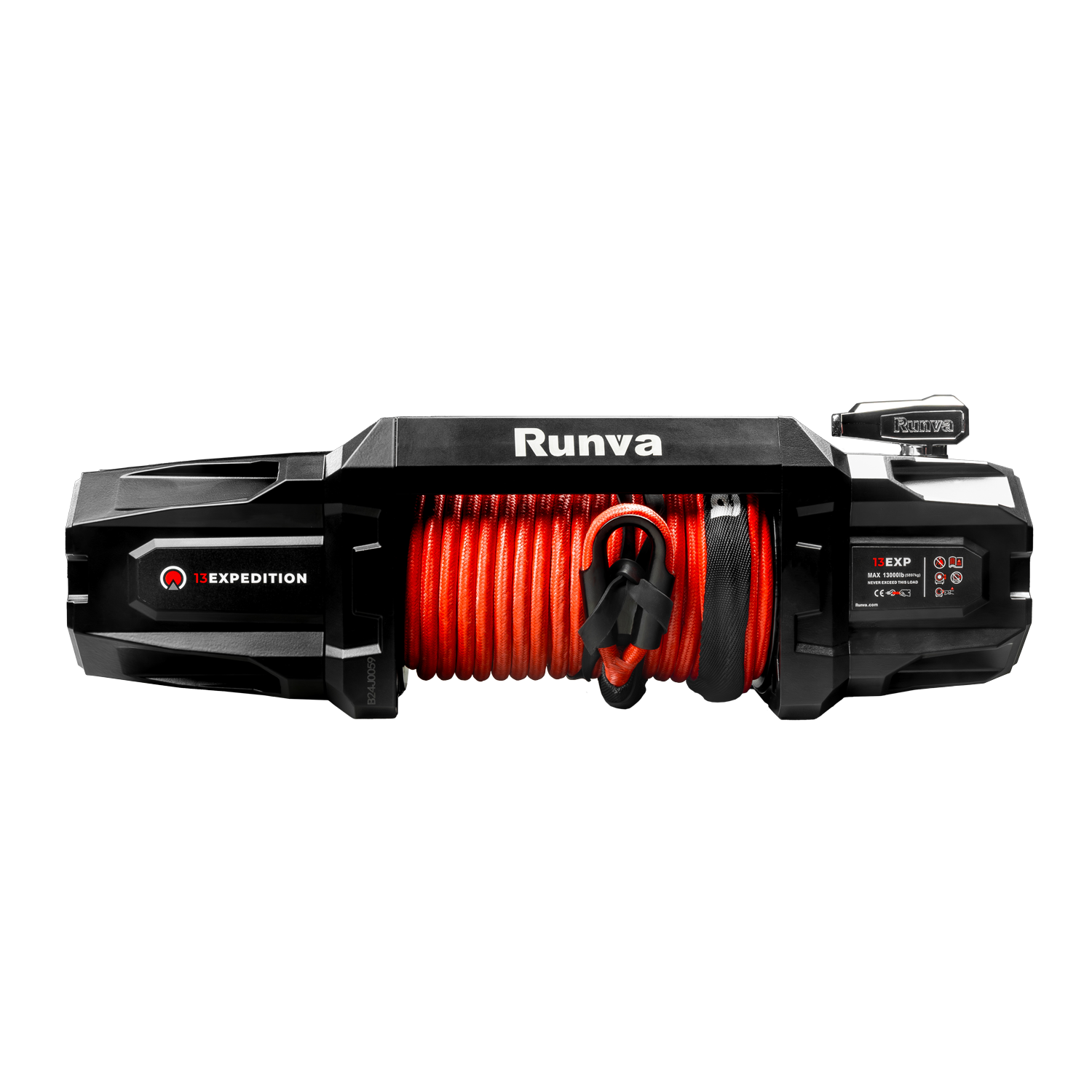

Built for Serious Recoveries - the Runva 13 EXPEDITION Winch with Synthetic Rope Will Keep You Moving
Get unstuck fast with the new Runva 13 EXPEDITION, delivering a huge 13,000lb of line pull (5,897kg) and serious torque, this heavy-duty winch is built for those who don’t back down from remote tracks, deep mud, or steep climbs.
The original Runva 13XP was known for it's exceptional reliability and raw strength, however due to it's larger physical size it often didn't fit in many bullbars. Now, with the new 13EXPEDITION, Runva have squeezed the same 13,000lb line pull capacity into a smaller body that will fit almost any winch compatible bar!
The 13 EXPEDITION has been designed with off-roaders, tradies and recovery operators in mind who need that extra bit of muscle. The winch combines brute strength with clever usability and a great design. Its rugged construction, faster line speed, and upgraded low-profile stainless steel clutch handle make it the go-to choice when recovery is non-negotiable. It’s compatible with most bull bars and features an ergonomic (and rechargeable!) wireless remote that won’t quit on you mid-pull.
On top of its rugged build and powerful performance, the Runva 13EXPEDITION also comes bundled with essential recovery gear to get you started straight out of the box.
As mentioned you’ll receive both a rechargeable wireless remote (now with built-in torch) and a heavy-duty wired remote for flexible winch control, plus an in-cab rocker switch and line for easy operation from the driver’s seat. A soft shackle and recovery ring are included for safe, effective recoveries, along with all the necessary wiring, nuts, bolts, and fittings for installation. And just for good measure, you’ll also get two stubbys to keep the drinks cold while you're busy.
This isn’t just another winch, it’s your insurance policy for when things get tough.
Key Features of the Runva 13Expedition Winch
-
13,000lb (5,897kg) Line Pull – Serious pulling power for tough recoveries
-

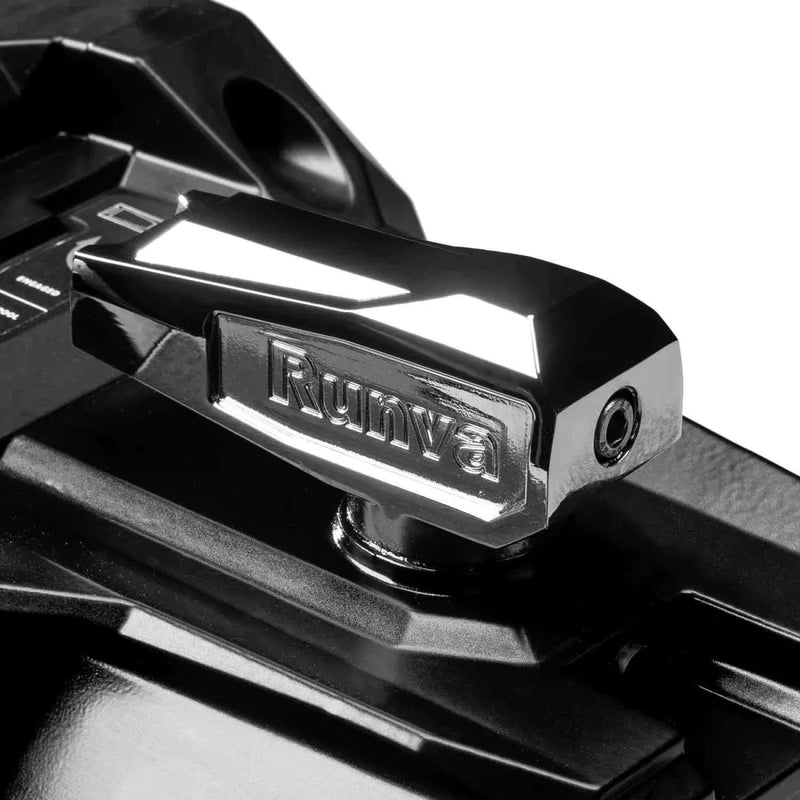

Stainless Steel Rotary Clutch – Built tough for long-term reliability
-
Fast Line Speed – Up to 6.6m/min under load for quicker recoveries
-

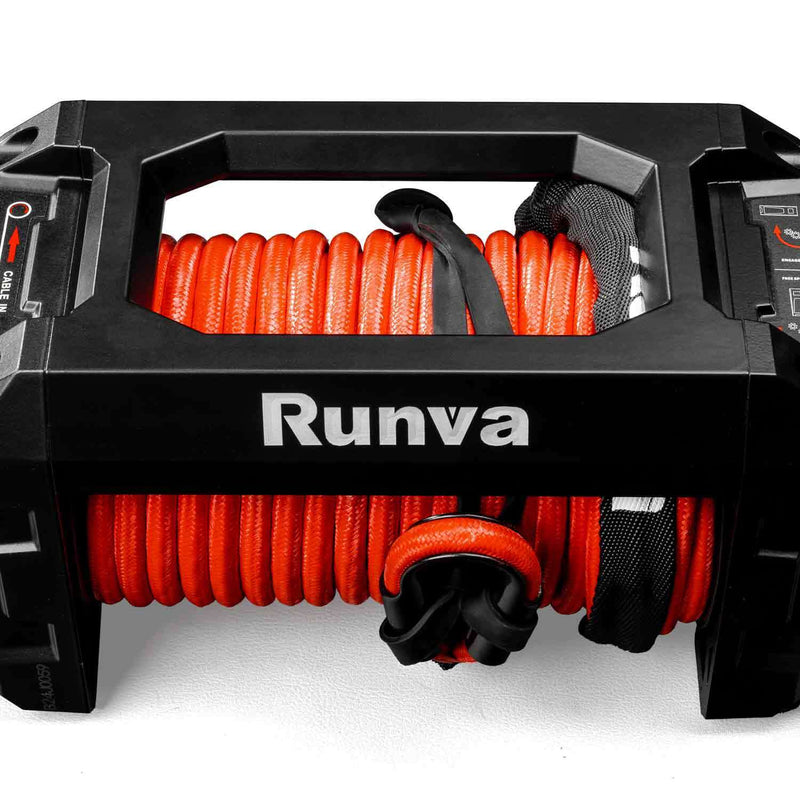

11mm Armortech Synthetic Rope – Lightweight, safe, and easy to handle
-
Wireless Rechargeable Remote with Built in Torch – Ergonomic, long-range control
-
Full Steel 3-Stage Planetary Gears – Consistent and durable torque
-
IP67 Waterproof Rating – Designed to keep out water, mud, and dust
-
Compact Mounting Footprint – Fits most bull bars and tray setups
-
Battery Monitor with LED Readout – Monitor voltage in real-time
-
12V or 24V Options – Suits standard and commercial setups

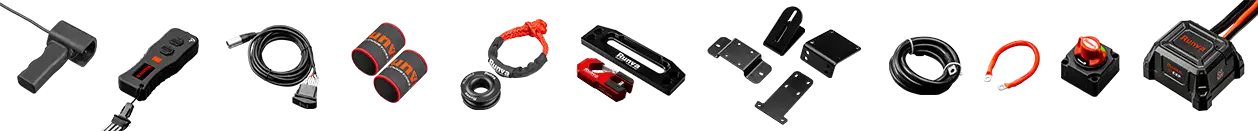

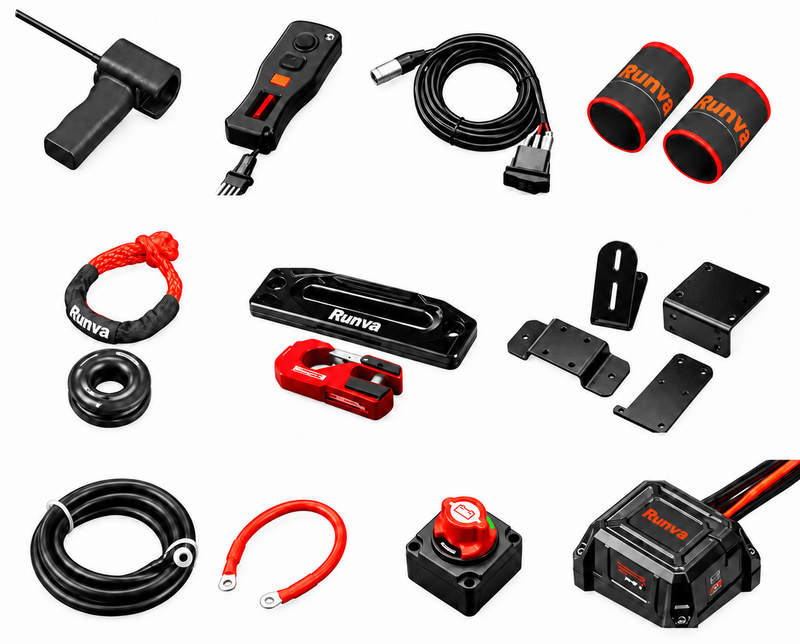

What’s Included
- Runva 13XPEDITION Winch (12V or 24V)

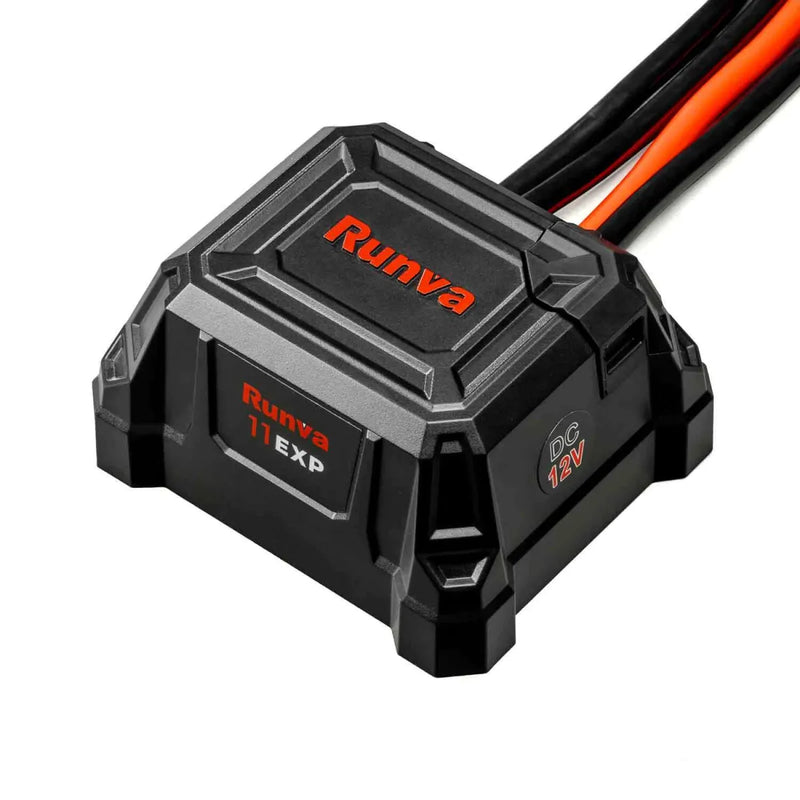

- Winch control box and mounting brackets
- 11mm Armortech double braided synthetic rope

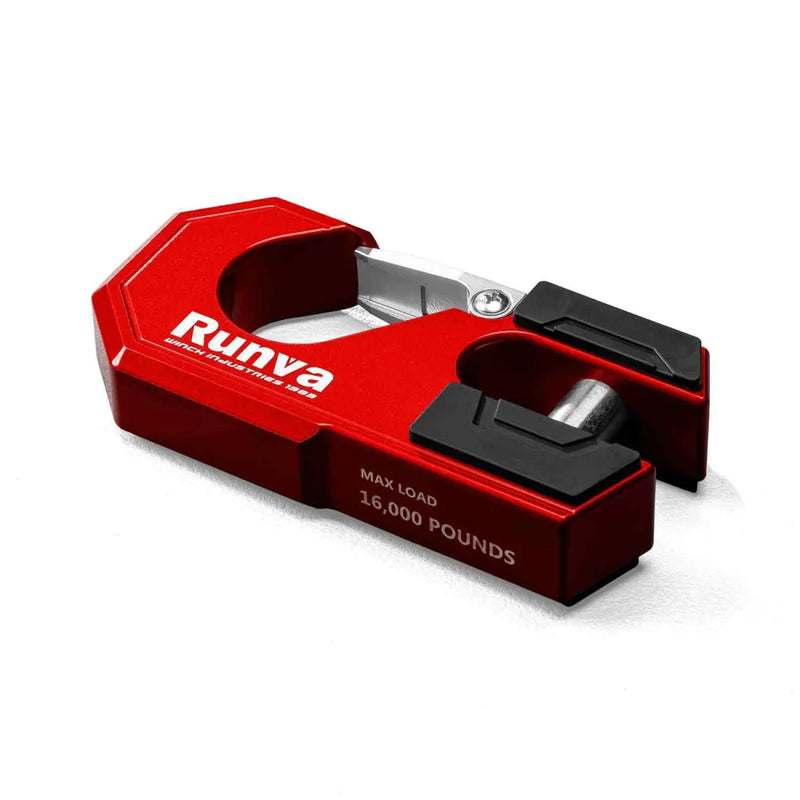

- Stainless steel Expedition Recovery hook with safety latch

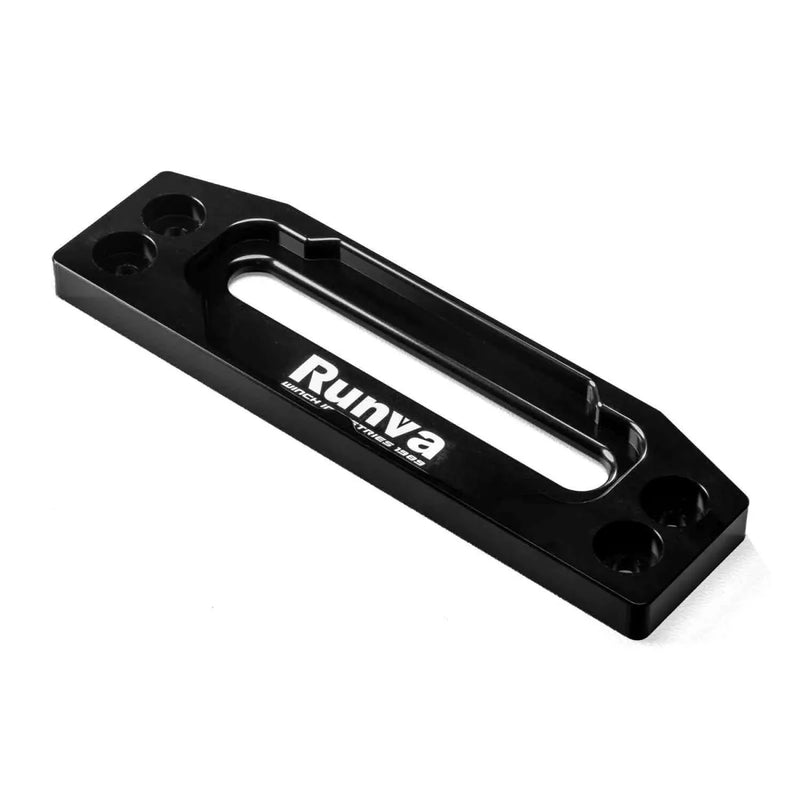

- Hybrid alloy + stainless fairlead
- Rechargeable wireless remote + wired remote
- Soft shackle
- Recovery ring
- In-cab rocker line and switch
- Power isolator switch
- Protective winch cover
- All necessary wiring, nuts, bolts, and fittings
Why Australian Off-Roaders Choose the 13EXPEDITION
- Proven performance in harsh, remote conditions
- Faster line speed = less time stuck
- 13,000lb line pull capacity is the ideal size for many heavier vehicles that require just that bit extra
- Backed by local Australian support and warranty
- Built to handle very serious recoveries without compromise
Specifications
-
SKU: 13EXPEDITION12V | 13EXPEDITION24V
-
Rated Line Pull: 13,000LB (5,897KG)
-
Motor (12V): 5.0KW / 6.7HP | Motor (24V): 6.0KW / 8.2HP
-
Gear Train: Full Steel 3-Stage Planetary
-
Gear Ratio: 228:1
-
Clutch Type: Stainless Steel Rotary Clutch
-
Clutch Handle Position: Gearbox Can Be Rotated
-
Brake: Automatic Ratchet Load Holding in Gearbox
-
Cable Type: Armortech Synthetic Rope
-
Cable Size: 17/16" x 82.0' (11mm x 25m) | 25,250LB Rating
-

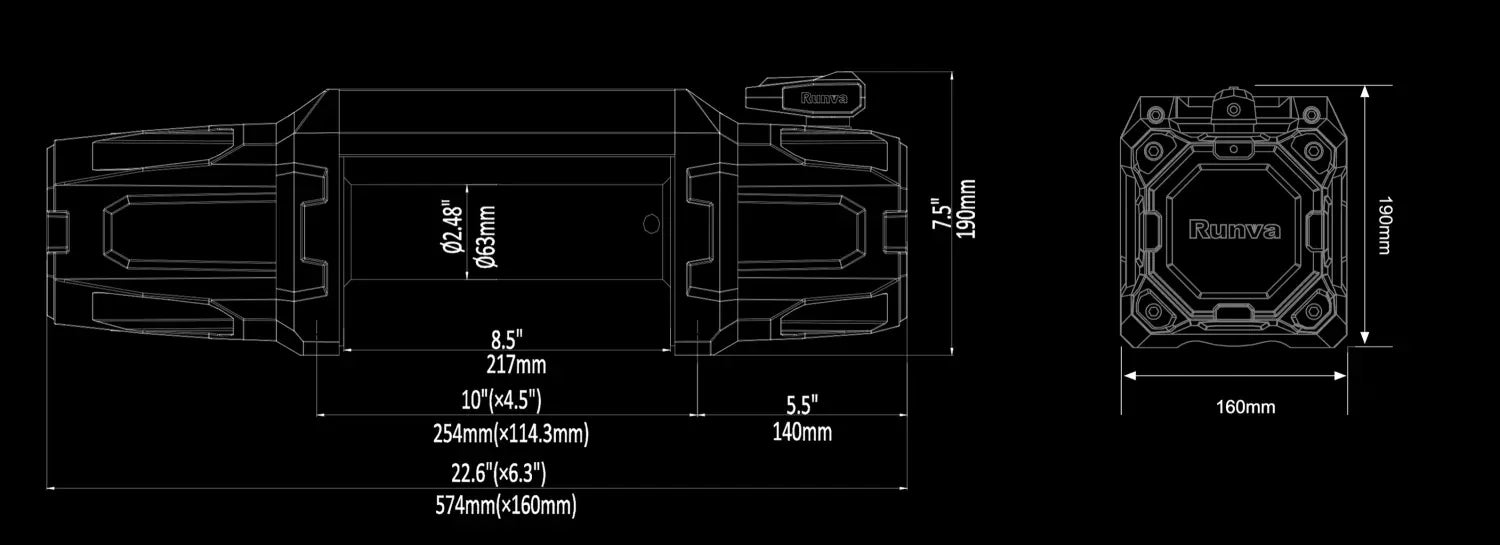

Drum Size: 2.48" x 8.5" (63mm x 217mm)
-
Mounting Bolt Pattern: 10" x 4.5" (254mm x 114.3mm)
-
Overall Dimensions: 22.6" x 6.3" x 7.5" (574mm X 160mm X 190mm)
-
Remote Control: Expedition Wireless Remote
-
Battery Leads: 2 x 1.8m Heavy Duty Leads
-
Finish: Black Powder Coat
-
Weight: 31kg
-
Shipping Weight: 41kg
| LINE PULL lb (kg)
|
LINE SPEED ft/min (m/min)
|
MOTOR CURRENT (amp)
|
LAYER OF CABLE |
RATED LINE PULL lb (kg)
|
TOTAL ROPE ON DRUM ft (m)
|
| |
12V DC |
24V DC |
12V DC |
24V DC |
|
|
|
| 0 (0) |
34.4 (10.5) |
36.7 (11.2) |
55 |
40 |
1 |
13,000 (5,897) |
16.1 (4.9) |
| 4,000 (1,814) |
11.8 (3.6) |
12.8 (3.9) |
185 |
100 |
2 |
10,204 (4,628) |
36.4 (11.1) |
| 8,000 (3,629) |
6.6 (2.0) |
7.9 (3.5) |
290 |
185 |
3 |
8,398 (3,809) |
60.0 (18.3) |
| 13,000 (5,897) |
3.6 (1.1) |
4.9 (1.5) |
420 |
245 |
4 |
7,135 (3,236) |
83.7 (25.5) |
(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
Warranty
- Limited 5 Year Manufacturer Warranty for Electrical
- Lifetime Manufacturer Warranty for Mechanical
Frequently Asked Questions
What's the key advantage of the 13EXPEDITION over the 13XP Premium?
Both deliver 13,000lb (5,897kg) rated pull. The critical improvement in the 13EXPEDITION is a more compact body that fits almost any winch-compatible bull bar — Runva specifically designed it to address the 13XP Premium's fitment issues with many bars due to its larger physical size. The 13EXPEDITION also comes with the rechargeable wireless remote with built-in torch, in-cab rocker switch, Armortech double-braided rope, and a stainless steel rotary clutch. If you've been unable to fit a 13XP Premium due to bull bar cavity size, this is the solution.
Will the 13EXPEDITION fit my bull bar?
The 13EXPEDITION uses a 254mm x 114.3mm bolt pattern with 4x M10 bolts and overall dimensions of 574mm x 160mm x 190mm — same footprint as the 11XP Premium. Runva states it fits most winch-compatible bull bars. If you've previously been told that a 13,000lb winch is too large for your bar, this is the model to check.
What vehicles suit a 13,000lb winch?
The 13EXPEDITION is aimed at heavier 4WD builds — fully loaded Landcruiser 200 Series, GXL 76 Series wagons, Patrol GUs with heavy setups, dual cabs with substantial tray and canopy builds, and vehicles carrying significant aftermarket gear and supplies. If your rig's GVM is approaching or above 3.5 tonnes, the extra pulling margin of 13,000lb over 11,000lb is meaningful.
What is the Armortech rope and how long is it?
The 13EXPEDITION ships with 11mm x 25m Armortech double-braided synthetic rope, rated to 25,250lb. Armortech offers better abrasion resistance than standard single-braid synthetic. The 11mm diameter and 25,250lb rope rating gives you a strong safety margin above the winch's 13,000lb pull.
What does the rechargeable wireless remote include?

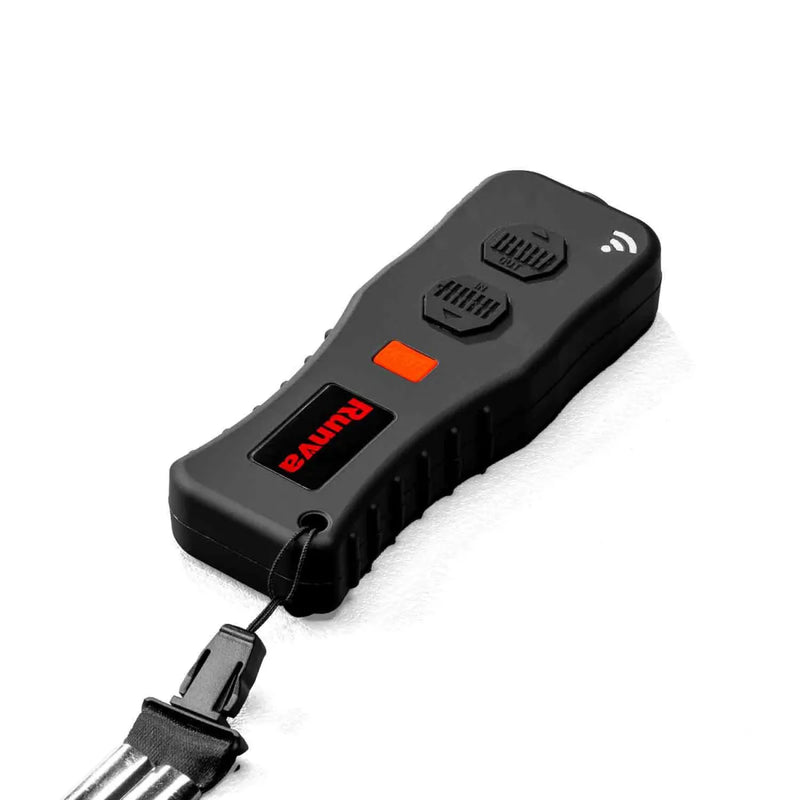

The EXPEDITION wireless remote charges via USB, includes a built-in LED torch for low-light recoveries, and shows a real-time battery voltage readout. A meaningful upgrade over disposable battery remotes — particularly on extended trips where carrying spare batteries or dealing with a dead remote mid-recovery is a real inconvenience. A conventional heavy-duty wired remote is also included as a backup.
What's the difference between the 12V and 24V versions?
Both deliver the same 13,000lb rated pull at the same price. The 12V motor is 5.0kW/6.7HP and the 24V is 6.0kW/8.2HP. Under no load the 13EXPEDITION pulls at 10.5m/min (12V) or 11.2m/min (24V). At full 13,000lb load on the first layer, speed drops to 1.1m/min (12V) or 1.5m/min (24V). Choose based on your vehicle's electrical system.
What accessories come in the kit?
Winch (12V or 24V), 11mm Armortech double-braided rope, control box and mounting brackets, stainless steel expedition recovery hook with safety latch, hybrid alloy and stainless fairlead, rechargeable wireless remote, wired remote, soft shackle, recovery ring, in-cab rocker switch and line, power isolator switch, protective winch cover, all required wiring, nuts, bolts and fittings, and two stubbies.
What warranty applies?
Limited 5-year manufacturer warranty on electrical components and a lifetime manufacturer warranty on all mechanical components.
