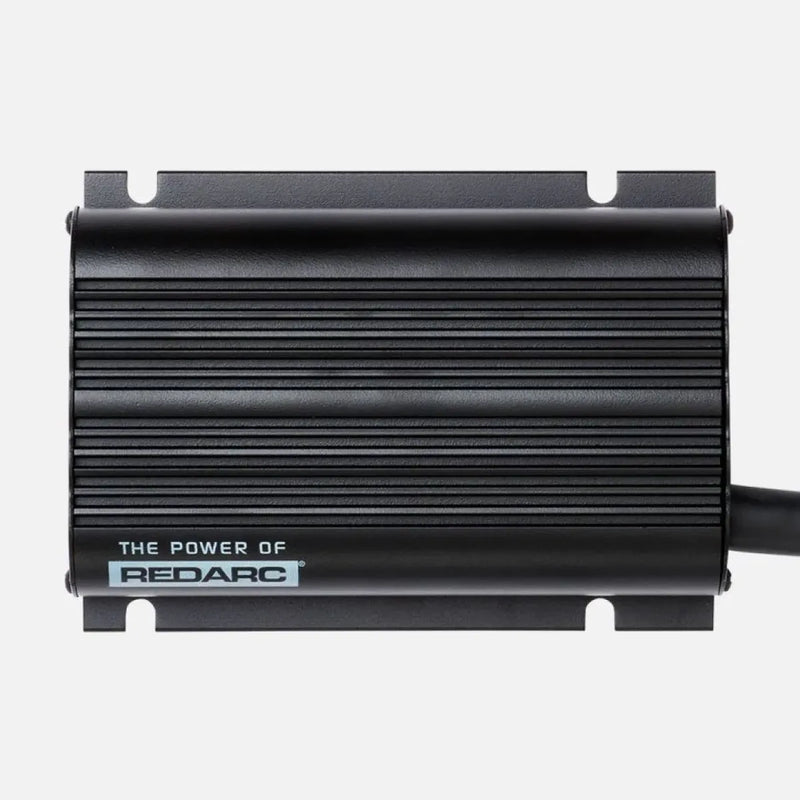

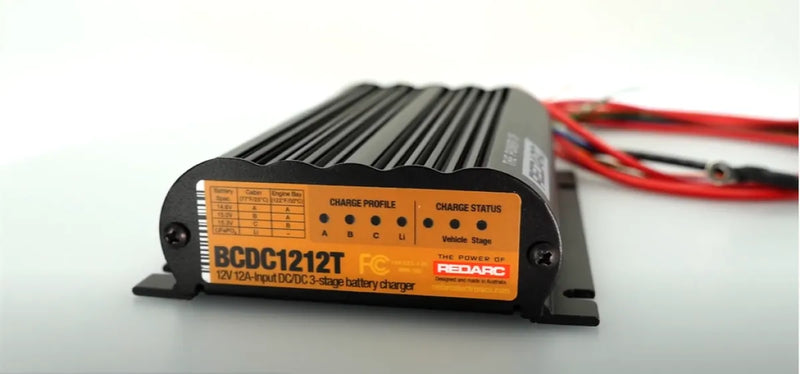

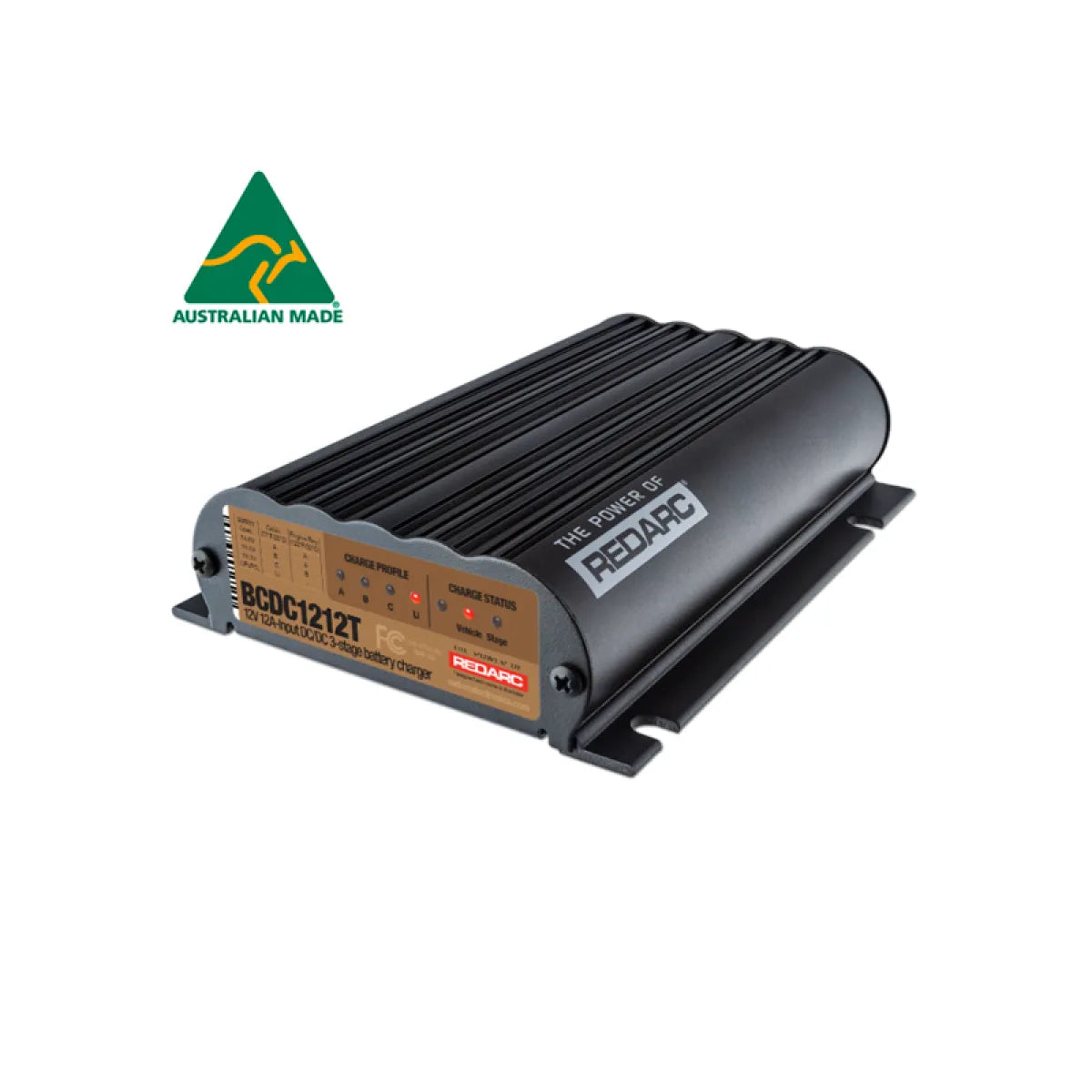

The REDARC BCDC1212T DC Battery Charger is a 12 volt, 12 amp, input current-limited, DC to DC battery charger, designed to charge liftgate and trailer auxiliary batteries to 100% state of charge while you’re on the move.
Always charged and ready to work
The BCDC1212T is the ideal battery charger for trailers - such as dump trailers, boat trailers, car trailers, liftgate trucks and camper vans - with electrical equipment and accessories (for example, hydraulic pumps, winches and fridges).
This 12 volt, 12 amp input-limited charger works in 12 and 24 volt vehicles. The BCDC1212T charges standard lead acid, calcium content, Gel, AGM and LiFePO4 batteries.
Multi-stage charging profile
The unique charging profile for each battery type allows the maintenance for your auxiliary battery. This DC battery charger keeps the secondary battery charged whilst driving to a proven 100% state of charge. It allows users to save time by powering the battery throughout the day and removes the dependence on AC mains charging ensuring you’re always charged and ready to work.
Built tough for all conditions
This BCDC1212T is moisture, dust, and mud resistant, designed and built by REDARC to be the highest quality and most reliable battery charger of its kind.
Made in Australia, the BCDC DC Battery Charger has undergone years of testing in some of the harshest conditions on the planet.
REDARC has been in business for over forty years and all our products are made tough enough to take anything nature can throw at them.
Accessories for high performance
REDARC offers a high quality 23 amp fuse kit (FK23) for input, 30 amp fuse kit (FK30) for the BCDC1212T output and a battery-to-fuse cable (KIT19) to ensure safe and efficient operation.
Output Voltage | 12V |
Input Charge | Vehicle only |
Installation Type | In-cabin or under bonnet |
Output Current Rating (Cont.) | 12A |
Output System Voltage | 12VDC |
Maximum Charging Voltage | 15.3V |
Input (Operating) Voltage | 9–32V |
Vehicle alternator voltage | 12V vehicle | 24V vehicle |
Boost Current (Max) | 11A | 20A |
Nominal Output Power | 147W | 294WCamera Battery Chargers |
Input Current (Max.) | 12A |
Standby Current Draw | <8mA |
Input Fuse Rating | 15A – 23A (FK23 recommended, not supplied) |
Output Fuse Rating | 30A (FK30 recommended, not supplied) |
Dimensions | 165 x 120 x 37mm |
Weight (kg) | 0.85 |
Warranty | 2 Year Manufacturer Warranty |
