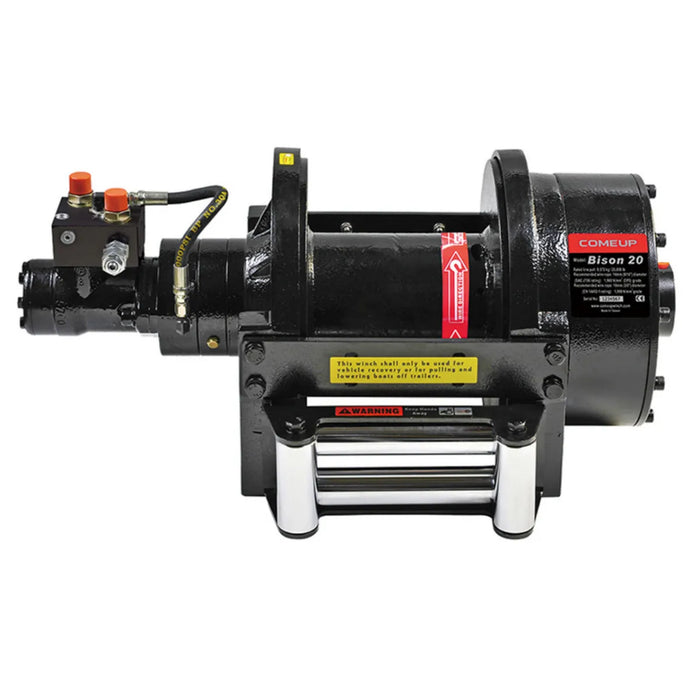

Bison 20 - 9.07 Tonnes (20,000lb) Hydraulic Recovery Winch by Comeup

Introducing the Comeup Bison 20 Hydraulic Recovery Winch, boasting an impressive 9.07-tonne line pull capacity. This powerhouse of the Bison Series is ideal for heavy-duty trailers, tilt-tray trucks, and commercial recovery applications, where strength and reliability are paramount.

Features

  • Highly Efficient PTO Driven Pump: Its motor, driven by a Power Take-Off unit, offers variable recovery speeds, ensuring a productive workflow.

  • Robust Motor: Featuring a 155.7 cm3/rev motor with constant operating torque, capable of handling loads of either 9,070 kg (20,000 lb) or 13,600 kg (30,000 lb).

  • Durable Planetary Gear Train: The hardened 2-stage planetary gear train provides a 30:1 gear ratio for the Bison 20 and a rapid 41:1 gear ratio for the Bison 30, ensuring swift line speeds.

  • Built-in Air Clutch: Facilitating rapid wire rope payout, the winch comes with a convenient built-in air clutch.

  • Multi-Disc Brake (MDB): A patented feature designed to securely hold a full load, adding an extra layer of safety.

  • Versatile Application: Tailored for heavy-duty trailers, tilt tray trucks, and various commercial recovery tasks.

  • Complete Package: The winch is equipped with a roller fairlead, cable tensioner, and a two-way counterbalance valve.

  • Safety Standards Compliance: Complies with SAE J706, CE machinery directive 2006/42/EC, or EN 14492-1:2006 Power Driven Winches, meeting stringent safety and quality standards.

  • Long Drum Version: Both the Bison 20 and Bison 30 are available in a long drum version, offering versatility to suit your specific needs.

  • Wire Rope Not Included: Please note that the wire rope is not included with the winch.

    Specifications

    • Part number: PN 682030 (Std. drum)
    • Rated line pull: 9,070 kg / 20,000 lb (SAE J706 & EN 14492-1 rating)
    • Line speed (at 1st layer of rope): 7.1 mpm at 60 l/min (23 fpm at 15.9 g/min)
    • Operation pressure: 175 bar / 2,540 psi
    • Max oil flow: 60 l/min (15.9 g/min)
    • Hydraulic motor: 155.7 cm3/rev (9.5 in3/rev)
    • Gear ratio: 2-stage planetary gear 30:1
    • Winch construction: Cast housings with steel drum
    • Clutch (Freespooling): Output shaft disengaged
    • Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
    • Rotation of winch: Wire rope shall be under-wound orientation only
    • Drum barrel diameter: 146 mm
    • Drum flange diameter: 314 mm
    • Distance between flanges: 203 mm - Std. drum
    • Mounting bolt pattern: 190.5 x 304.8 mm 266.7 x 304.8 mm - Std. drum
    • Winch weight: 135 kg - Std. drum
    • Gross weight: 165 kg - Std drum
    • Box dimension (L x D x H): 870 x 500 x 510 mm - Std. drum

    Wire rope recommended:

    • 16 mm x 30 m for Std. drum, 1,960 N/mm2 grade with a minimum breaking strength of 179 kN required for EN 14492-1 rating.
    • 9/16” x 141’ for Std. drum, EIPS grade with a minimum breaking strength of 30,472 lbf required for SAE J706 rating.
    COMPLIANT WITH EN 14492-1 REQUIREMENTS FOR RECOVERY WINCHES
    • The working coefficient for the first rope layer on the drum shall be at least 2.
    • The D/d ratio to the center of the rope shall be at least 10 for the drum.
    • Drum freeboard shall be at least 1.5 x rope diameter.

    Performance

    Comeup Bison 20 Hydraulic Recovery Winch | 9.07 Tonnes

    Warning

    • The winch is not intended to be used in any manner for the movement or lifting of personnel.
    • The rated line pull shown is based on the first layer of rope on the drum.
    • The rope winding on the drum shall remain 5 wraps from the drum.

    Warranty

    • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

    Accesorries Included

    • Roller fairlead
    • Counterbalance valve
    • Cable tensioner
