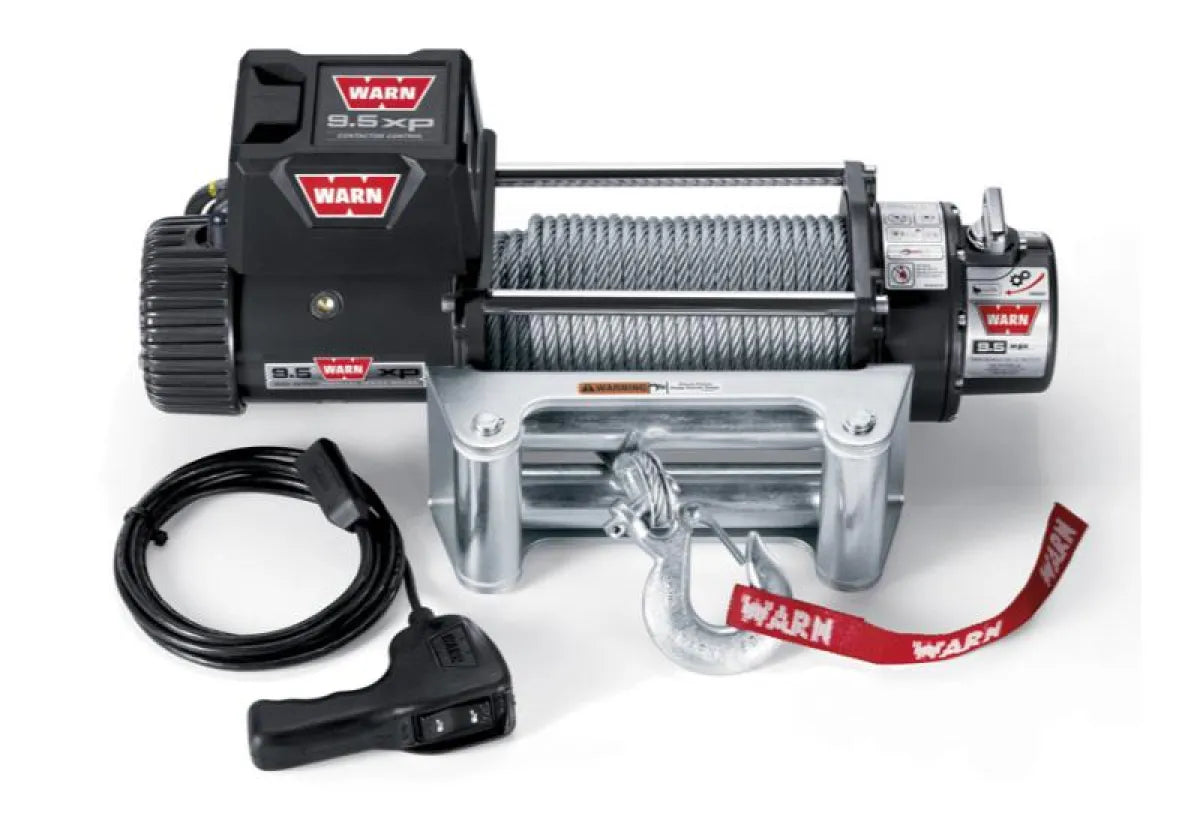

9.5XP 12v Self Recovery Winch with Steel Wire and Wireless Remote by Warn
Fast, powerful and reliable – for extreme conditions
The 9.5XP Extreme Performance winch is designed to offer the highest performance in the harshest conditions. From its fast line speeds and strong 4,310 kg pull rating, to its extreme-duty sealing and contactor control, the 9.5XP is the winch you want when the trail gets tough.
- Series-wound winch motor is powerful and reliable
- Extreme-duty winch sealing. Enables superior water resistance
- Exclusive brake design. Provides superior operator control when winching
- Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
- 3-stage planetary geartrain for fast, smooth, reliable operation
- Remote-mount control box allows for a variety of mounting configurations
- Includes both corded and wireless winch controls
- High-gloss, chip-resistant powder-coated finish provides superior corrosion resistance
- 100′ (30m) of steel
Warn 9.5XP Winch Specifications
- Part number: CE9500XP-86500
- Rated line pull: 9,500 lbs., (4310 kgs.) single-line
- Motor: 12V 6 hp (4.48kw), High output parallel series wound
- Electrical controls: Contactor
- Remote controls: Remote switch, 12′ (3.7m) lead and
- Geartrain: 3-stage planetary
- Gear ratio: 156:1
- Clutch (freespooling): Sliding ring gear
- Brake: Automatic direct drive cone
- Rope: Steel – 100′, 5/16″ diameter (30m, 8mm diam.)
- Fairlead: roller fairlead
- Recommended battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72″ (1.83m)
- Finish: High-gloss powder coat over primer undercoating
- Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
- Weight: 87 lbs. (39.5 kgs)
12V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)
|Pull by layer
|0||38 (11.6)||70 amps||1/9500 (4313)|
|2000 (910)||16.8 (5.1)||175 amps||2/8650 (3927)|
|4000 (1810)||12.8 (3.9)||262 amps||3/7920 (3595)|
|6000 (2720)||10.1 (3.1)||335 amps||4/7400 (3359)|
|8000 (3630)||8.8 (2.7)||425 amps||5/6940 (3150)|
|9500 (4310)||7.6 (2.3)||480 amps|
WARN 9.5XP WINCH DIMENSIONS
|Dimensions||22.7″ L. x 6.3″ D. x 7.7″ H.
(577mm L. x 160mm D. x 196mm H.)
|Mounting Bolt Pattern||10.0″ x 4.5″
(254mm x 114.3mm)
