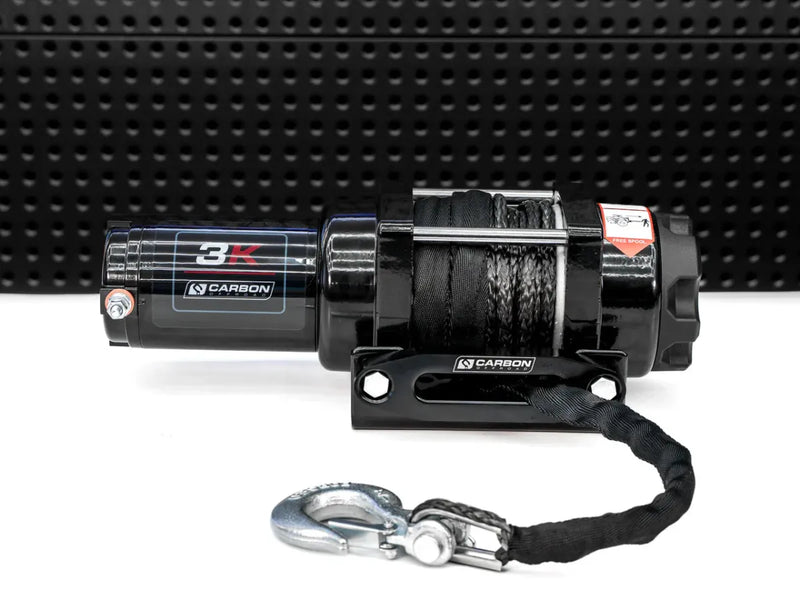

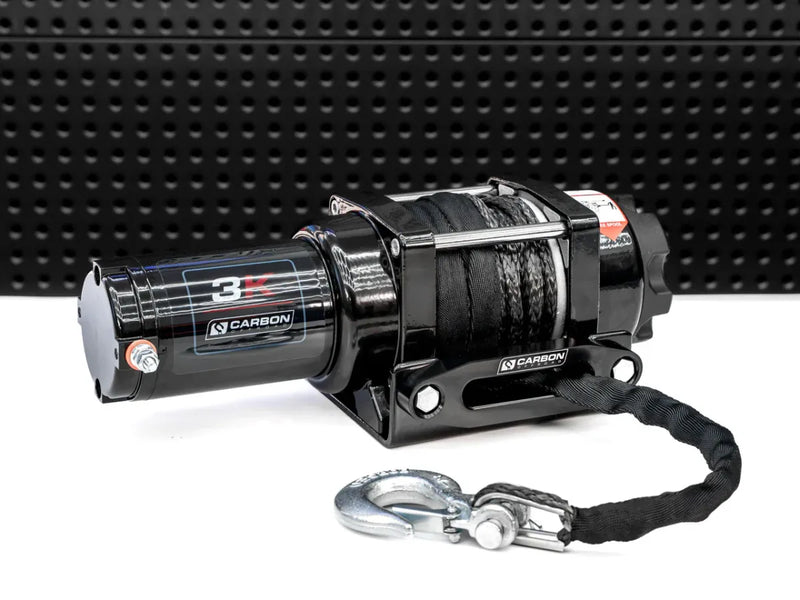

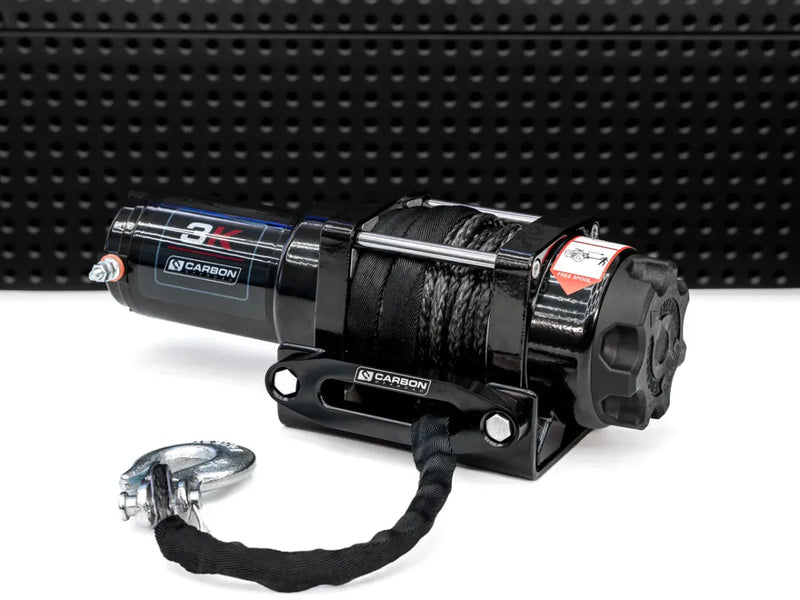

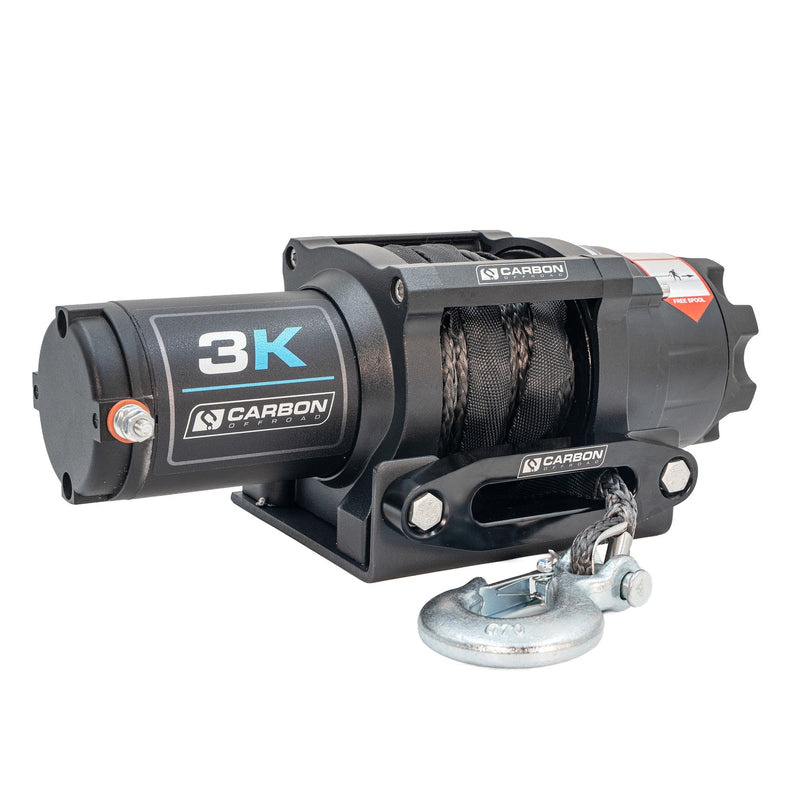

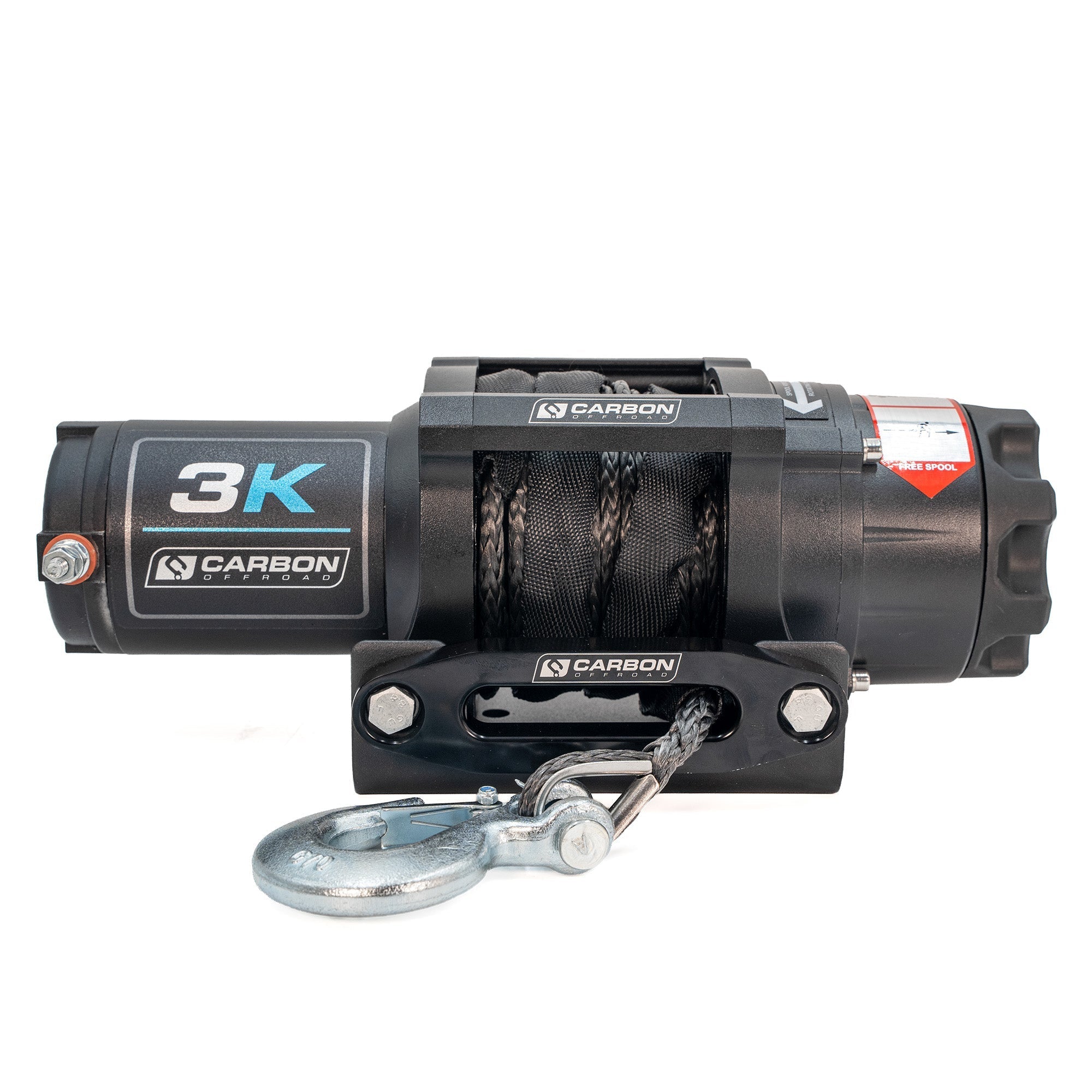

Carbon 3.0k 12v Trailer ATV Quad Bike Electric Winch with Synthetic Rope

SKU CW-3U
Original price $399.00 - Original price $399.00
Original price
$399.00
$399.00 - $399.00
Current price $399.00
Free Metro Shipping! 🚚
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

3.0k 3000lb Utility Trailer/ATV/Quad Bike Electric Winch by Carbon Offroad

The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it's one big value when you consider the reliability and the overall quality.

Built to handle lighter loads (up to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.

SPECIFICATIONS

  • Part number: CW-3U
  • Rated line pull: 3000lbs, (1360kg) single-line
  • Motor: 12V DC 1.5HP Permanent Magnet motor
  • Remote Control: Remote Switch, 12’ (3.7m) lead.
  • Wireless Remote Control: Included
  • Geartrain: Single Stage Planetary
  • Gear Ratio: 153:1
  • Clutch (freespooling): Split Ring Gear
  • Brake: Self-locking gear train ( Rated Load Holding
  • Drum Diameter/Length: 1.26’’/2.87’’ (32mm/73mm)
  • Synthetic  Rope: 43’, 3/16’’ diameter ( 13m, 4.8 diameter)
  • Fairlead: Roller
  • Mounting Bolt Pattern: 3.0’’ x 4.87’’ ( 76mm x 124mm )
  • Winch Dimensions ( L x W x H ): 12.2'' x 5.0'' x 5.0'' (310x 127 x 127mm )
  • Packing Dimensions( L x W x H ): 15.7’’x 7.9'' x 8.7'' ( 400 x 200 x 220mm )
  • Net Weight: 8kg
  • Shipping Weight: 10kg

12V DC PERFORMANCE SPECS (first layer of drum)

Line Pull
Lbs.(Kgs.)

Line Speed
FT./min(M/min.)

Motor
Current

Pull by layer
layer/Lbs(Kgs.)

0

20.4(6.2)

10Amps

1/3000(1360)

1000(453)

14.2(4.3)

65Amps

3/2725(1235)

2000(907)

10.9(3.3)

96Amps

3/2480(1125)

3000(1360)

7.7(2.4)

Frequently Asked Questions

Is 3,000lb enough line pull for my quad bike or light trailer?

The CW-3U is rated at 3,000lb (1,360kg) on the first layer of the drum, making it suited to quad bikes, light ATVs, and trailers carrying loads up to around 1,000-1,200kg. It drops to around 2,725lb at layer 3, so factor in that reduction when sizing the winch to your application. If you're regularly working with heavier loads, the CW-45 at 4,500lb is worth considering instead.

What remote control options are included with the CW-3U?

The CW-3U comes with both a wired hand remote with a 3.7m lead and a wireless remote control, included in the box at no extra cost. Both control power in and power out functions, giving you flexibility whether you're operating from the seat or on foot.

What are the mounting dimensions and will it fit my application?

The CW-3U has a mounting bolt pattern of 76mm x 124mm and overall dimensions of 310 x 127 x 127mm. It's a compact unit that fits most standard ATV, trailer and pedestal mounting locations. Measure your existing mount before ordering to confirm fit.

What rope comes with the CW-3U and how long is it?

The winch ships with 13m of 4.8mm diameter synthetic rope. Synthetic rope is lighter and safer to handle than steel wire and well suited to trailer and ATV applications. If your setup requires more length, aftermarket synthetic rope in this diameter is widely available.

What gear ratio does the CW-3U run and what does that mean for speed and pulling power?

The CW-3U has a 153:1 gear ratio through a single-stage planetary geartrain. Higher gear ratios deliver more pulling force at the expense of line speed, at no load the winch pulls at around 6.2m per minute, slowing as load increases. For the loads this winch is designed for, the speed is practical and the pulling effort is solid.

How does the braking system work and will the load hold if power is cut?

The CW-3U uses a self-locking gear train for rated load holding. When you release the remote, the geartrain mechanically locks the drum and holds the load without relying on any electrical component to keep it in place. It's a reliable, passive braking design suited to trailer and ATV use.

Can this winch run off my ATV or quad bike's standard 12V electrical system?

Yes. The CW-3U runs on 12V DC and draws around 65 amps at 1,000lb of line pull, rising at rated load. Most ATVs and quad bikes have a 12V system capable of driving this winch, but check your battery capacity and wiring gauge before installation, particularly if you plan to do repeated pulls.

What warranty does the Carbon CW-3U come with?

Covered by Carbon Offroad's Limited Lifetime Mechanical Warranty and a 5-year Electrical Warranty.
