BLUETTI Charger 1: 560W Alternator Charger for Off-Grid and 4WD Power Solutions

The BLUETTI Charger 1 is a 560W alternator charger designed to efficiently charge portable power stations using your vehicle's alternator while driving. It's particularly beneficial for road trips, RVing, and off-grid adventures, ensuring your power station remains charged without relying on traditional outlets.

🔎 Why Choose the BLUETTI Charger 1?

🔐 Advanced Safety Features

With adjustable voltage output, the Charger 1 seamlessly works with all BLUETTI power stations and 95% of other major brands. For added protection, you can pair it with optional DC input cables featuring a 60A circuit breaker—a smart safeguard against potential electrical hazards. (Cables sold separately)

🚗 Smart Auto On/Off

Using a clever voltage monitoring algorithm, the Charger 1 automatically powers on when your vehicle starts and shuts down when it stops—protecting your starter battery from unnecessary drain without you lifting a finger.

🌡️ Superior Temperature Control

While other chargers drop performance in the Aussie heat, the Charger 1 holds its own. Even at 40°C and beyond, it maintains a stable and reliable power output, keeping your gear charging at full pace regardless of the conditions.

⚡ 6x Faster Charging

Charge smarter, not longer. The BLUETTI Charger 1 delivers up to 560W of power, charging a 1kWh power station in just 2.5 hours—that’s up to 6 times faster than a standard car cigarette lighter charger. Perfect for powering up on the move, whether you're heading off-grid or towing the van.

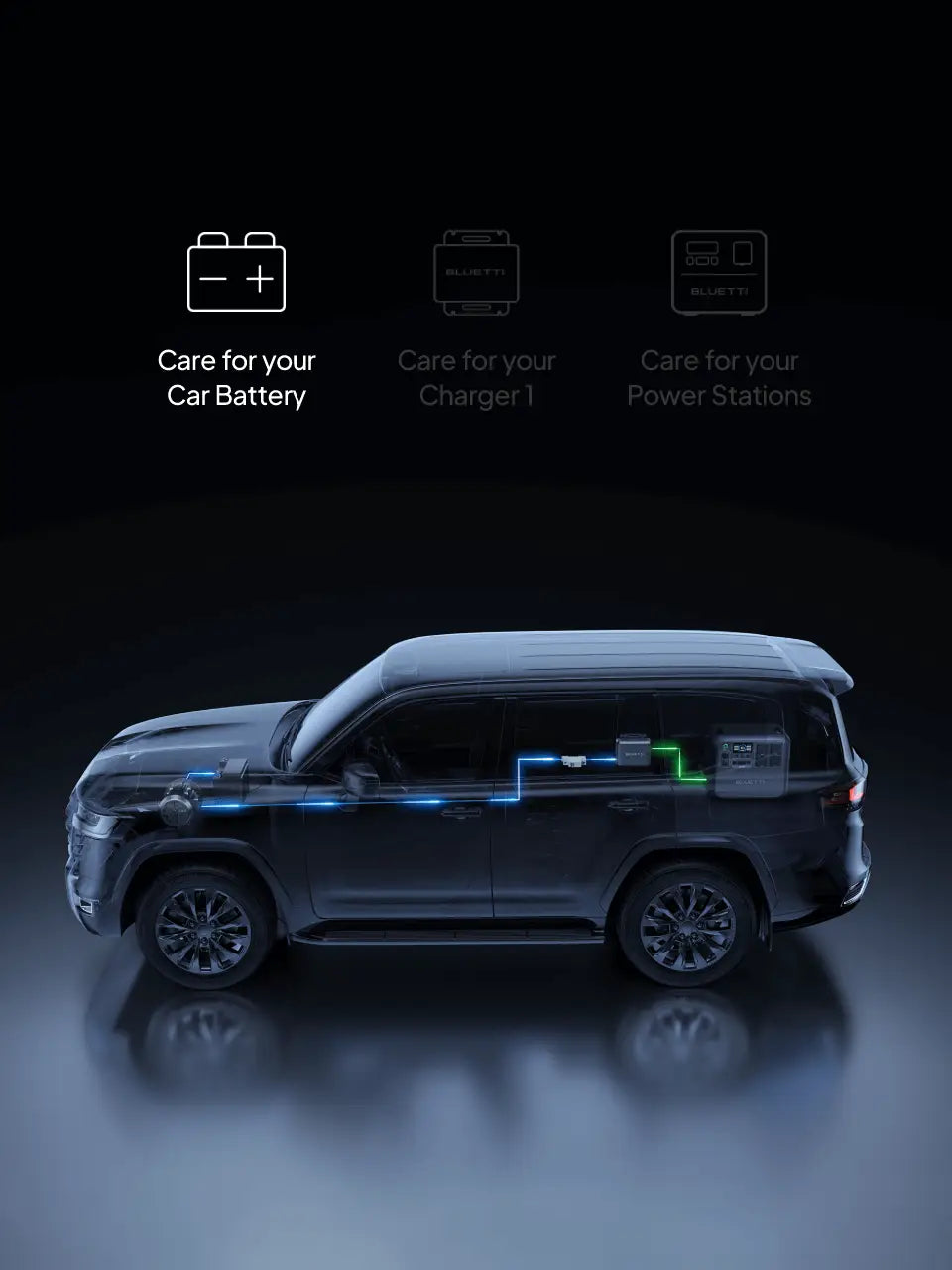

🛡️ Multi-Layer Protection with Every Charge

🚘 Protect Your Vehicle Battery

No more flat batteries. The Charger 1 is designed to prevent drain on your vehicle’s battery, so you're always ready to start—whether you're deep in the bush or parked at camp.

⚙️ Protect the Charger 1

Built-in smart circuitry and auto on/off functionality help maintain safe, efficient operation—extending the life of your charger and ensuring worry-free performance.

🔋 Protect Your Power Station

With customisable output voltage, the Charger 1 delivers the perfect charge tailored to your power station’s requirements—reducing wear and maximising lifespan.

📱 Monitor and Control on the Go

Stay in command while you drive. With the BLUETTI app, you can check charging status, adjust voltage settings, and monitor performance in real time—all from your smartphone. No pulling over, no guesswork.

Specification

🔌 OUTPUT

• Default Output Voltage: 27V
• Adjustable Voltage Range (12V Battery): 15.0V – 56.0V (via app)
• Adjustable Voltage Range (24V Battery): 27.0V – 56.0V (via app)
• Output Current: 10A
• Maximum Output Power: 560W

⚡ INPUT

• Input Voltage: 12V – 14V / 22.5V – 28V
• Input Current: 50A @ 12V / 25A @ 24V

🔧 GENERAL

• Function: Boosts voltage output for efficient power station charging
• Compatibility: Works with all BLUETTI power stations and 95% of other models on the market
• 🔒 Protection Features:
• • Short Circuit
  • Reverse Polarity
  • Under-voltage
  • Over-temperature
• ❄️ Cooling Method: Active fan cooling
• ⚡ Surge Protection: Optional 60A circuit breaker
• 🌡️ Operating Temperature: -20°C to 60°C / -4°F to 140°F
• 🔒 Protection Rating: IP20
• 🔊 Noise Level: ≤ 50dB
• ⚖️ Weight: Approx. 1.2kg / 2.65lbs
• 📏 Dimensions: 14.5 cm × 11 cm × 6 cm
• 🗓️ Warranty: 2 Year Manufacturer Warranty
• 📱 App Control: Bluetooth-enabled


📦 What's Included

• 1 x Charger 1 DC-DC Charger
• 1 x DC Input Cable
• 1 x MC4 Output Cable
• 4 x Hex Socket Screws
• 6 x Self-tapping Screws
• 1 x Hex Socket Wrench
• 1 x User Manual


📋 Installation Guide for BLUETTI Charger 1 | 560W Alternator Charger

Step 1: Prepare Your Installation

• ✅ Check Components: Ensure all components are in place, including a 6AWG DC input cable.
• 🛠️ Prepare Tools: Gather the necessary tools for installation.
• ⚡ Ready Your Equipment: Have your power station and solar charging cable ready.

Step 2: Connect to Charger 1

• 🔌 Switch Off the Circuit Breaker: Turn off the circuit breaker on the 6AWG DC input cable.
• 🔗 Connect Cables:
• • Plug the 6AWG input cable and MC4 output cable into the Charger 1.
  • Connect the output cable to your power station using the solar charging cable.

Step 3: Connect to Your Car Battery

• 🚗 Route the Input Cable: Run the input cable through your vehicle to the car battery.
• ⚡ Attach to Battery Terminals:
  • Connect the red cable to the positive terminal.
  • Connect the black cable to the negative terminal.

Step 4: Start Charging

• 🔋 Switch On the Circuit Breaker: Turn on the circuit breaker.
• 📱 Set the Proper Voltage: Adjust the voltage settings using the BLUETTI app before turning on the Charger 1.
• 🔒 Secure the Charger: Find a stable location to secure the Charger 1 within your vehicle.
