AC200MAX Expandable Power Station and B230 Expansion Battery Combo Deal from Bluetti
Meet the game-changing combo: the Bluetti AC200MAX Expandable Lithium Power Station and B230 Expansion Battery. This dynamic duo marks the beginning of a new era in portable power—modular, expandable, and ready to take on any adventure, on or off the grid.
Featuring a remarkable 2,200W AC Pure Sine Wave Inverter (with a jaw-dropping 4,800W Surge), the AC200MAX packs a serious punch to power up your devices with unmatched efficiency. With its 2,048Wh Capacity, this power station is built to keep your gadgets charged and ready for action.
Crafted with ultra-durable LiFePO₄ Battery cells, the AC200MAX boasts an impressive lifespan of 3,500+ Life Cycles to 80%. Get ready to rely on its long-lasting performance and explore the great outdoors with confidence.
But the magic doesn't stop there—the AC200MAX can be expanded to cater to your evolving energy needs! Add 1×B230 to elevate its capacity to 4,096Wh, or go all out with 2×B230 for an astonishing 6,144Wh. The choice is yours!
Recharging the AC200MAX is a breeze with 7 convenient ways: AC, Solar, Car, Generator, Lead Battery, Dual AC, and AC+Solar. Take advantage of up to 900W Max. Solar Input or opt for the 1400W Max. Fast Dual Charging with Solar + AC Adapter to replenish power in record time.
Empower yourself with full control through the BLUETTI App, offering Smart Control & Monitor. Connect via WiFi and Bluetooth to effortlessly manage your power usage and stay in charge wherever you go.
Whether you're exploring remote terrains, preparing for emergencies, or simply embracing a sustainable lifestyle, the AC200MAX Expandable Lithium Power Station and B230 Expansion Battery Combo Deal is your ultimate power solution. Energize your adventures with Bluetti's cutting-edge technology and seize the freedom of portable, expandable power at your fingertips!
- 2,200W AC Pure Sine Wave Inverter (4,800W Surge).
- AC200MAX 2,048Wh Capacity.
- LiFePO₄ Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 4,096Wh with 1×B230, or 6,144Wh with 2×B230
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1400W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
Features
Less To Spend, More To Love
- Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!
Get Charged In Anyway You Prefer
- The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).
Incomparable Outlet Versatility

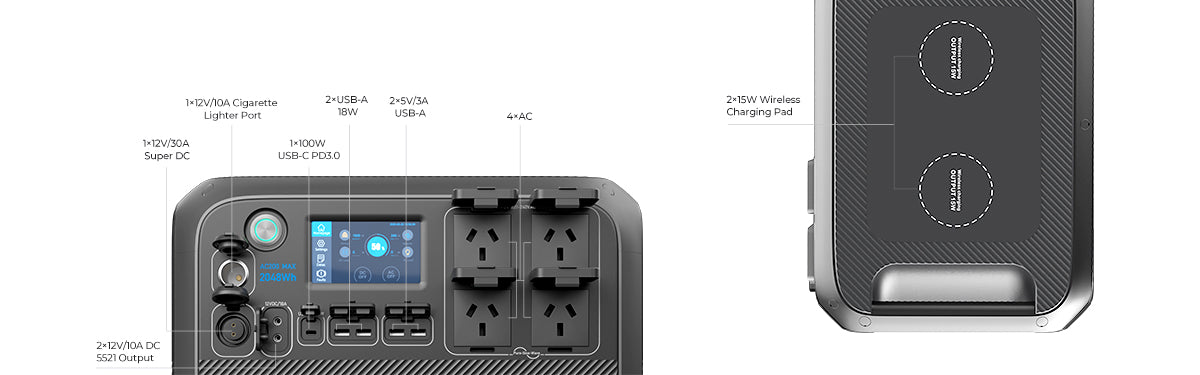

- With AC200MAX’s 15 outlets, you get to run all your needs simultaneously without breaking a sweat.
Give Your Devices More Runtime
- B230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.
Specifications
|
BLUETTI AC200MAX Expandable Power Station |
|
BATTERY INFO
|
Capacity:
|
2048Wh (51.2V,40Ah)
|
|
Cell Chemistry:
|
LiFePO4 (Lithium Iron Phosphate)
|
|
Lifecycle:
|
3,500+ Cycles to 80% Original Capacity
|
|
Shelf-life:
|
Recharge to 80% Every 3-6 Months
|
|
Management System:
|
MPPT Controller, BMS, etc
|
OUTPUT
|
AC Output:
|
4 x 220V-240V,2200W In Total
|
|
Inverter Type:
|
Pure Sine Wave
|
|
Surge Power:
|
4800W
|
|
USB-C Port:
|
1 x 100W Max.
|
|
USB-A Port:
|
2 x 5V/3A USB-A
2 x 18W USB-A |
|
12V DC Outlets:
|
1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
*All Regulated. |
|
Wireless Charging Pad:
|
2 x 15W Max. (For Each)
|
INPUT
|
AC Adapter Input:
|
500W
|
|
Solar Input:
|
900W Max.OCV 10-145VDC, 15A
|
|
Car Input:
|
12/24V from Cigarette Lighter Port
|
|
Max Input:
|
1,400W, with AC+Solar Input
|
RECHARGE TIMES
|
AC Adapter (500W):
|
≈5.5~6 Hours
|
|
Solar (900W):
|
≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
|
|
12V/24V Car Outlet (100W/200W):
|
≈10 or 20 Hours
|
|
AC Adapter + Solar (1400W):
|
≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
|
|
Dual AC Adapters (1000W):
|
≈3~3.5 Hours (Extra adapter is REQUIRED)
|
| GENERAL |
Scalability:
|
Expandable w/ Up to 2 x B230 or 2 x B300
|
|
Pass-through Charging:
|
Yes |
|
Weight:
|
28.1kg |
|
Dimensions (LxWxD):
|
42 x 28 x 38.65cm |
|
Operating Usage Temperature:
|
-4-104℉ (-20-40℃)
|
|
Storage Temperature:
|
14-113℉ (-10-45℃)
|
|
Certification:
|
UL2743, UKCA, TELEC, RCM, FCC ID, CE, PSE, NTC
|
|
Warranty:
|
4 Year Manufacturer Warranty |
|
BLUETTI B230 Expansion Battery |
|
BATTERY INFO
|
Capacity:
|
2,048Wh (51.2V,40Ah)
|
|
Cell Chemistry:
|
Lithium Iron Phosphate (LiFePO4)
|
|
Lifecycle:
|
3,500+ Cycles to 80% Original Capacity
|
|
Shelf-Life:
|
Recharge to 80% Every 3-6 Months
|
|
Management System:
|
MPPT Controller, BMS, etc.
|

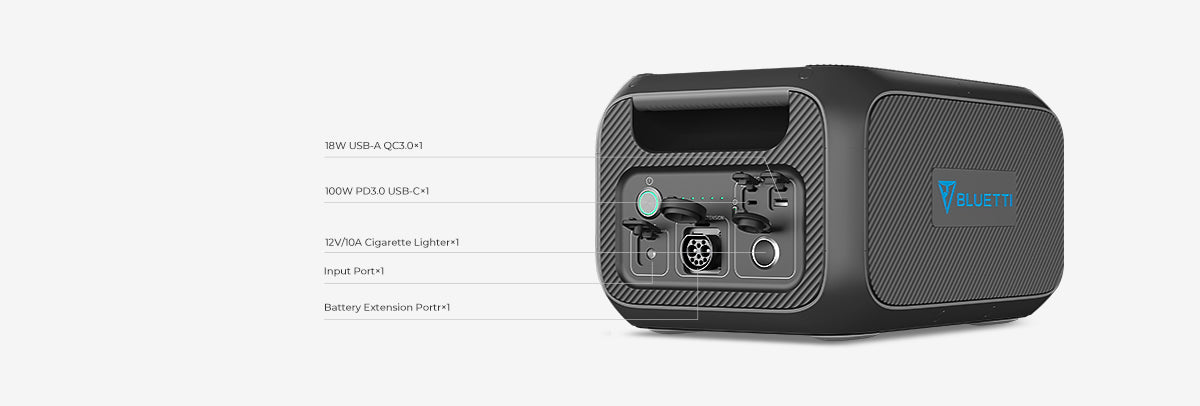

OUTPORTS
|
USB-C Port:
|
1 x 100W Max.
|
|
USB-A Port:
|
1 x 18W USB-A
|
|
12V DC Outlets:
|
1 x 12V/10A (Car Outlet)
|
INPUT
|
AC Input:
|
500W Max.
|
|
Solar Input:
|
500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)
|
|
Car Input:
|
12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
|
|
Lead-acid battery:
|
12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
|
|
Max Input:
|
500W |
RECHARGE TIME
|
AC Adapter (500W):
|
≈5.5~6 Hours
|
|
Solar Panel(500W):
|
≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)
|
|
12V/24V Car Outlet (100W/200W):
|
≈10 or 20 Hours
|
GENERAL
|
Compatibility:
|
AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)
|
|
Pass-through Charging:
|
Yes |
|
Weight:
|
21.8kg |
|
Dimensions (LxWxD):
|
42 x 28 x 22.75cm |
|
Operating Temperature:
|
32°F-104°F (0-40°C)
|
|
Storage Temperature:
|
-4-104℉(-20-40℃)
|
|
Certification:
|
UL2743, UKCA, RCM, PSE, FCC, CE
|
|
Warranty:
|
4 year Manufacturer Warranty |
Package Includes
- 1 X AC200MAX Power Station
- 1 X T400 AC Adapter and Cable
- 1 X PV Charging Cable (MC4 to XT90)
- 1 X Car Charging Cable (XT90- Cigarette Lighter Port)
- 1 X XT90 to Aviation Plug (Input)
- 1 X B230 Extension Battery
- 1 X Capacity Fusion Cable (P090D)
- 1 X QC Pass
- User Manual
- Warranty Card
