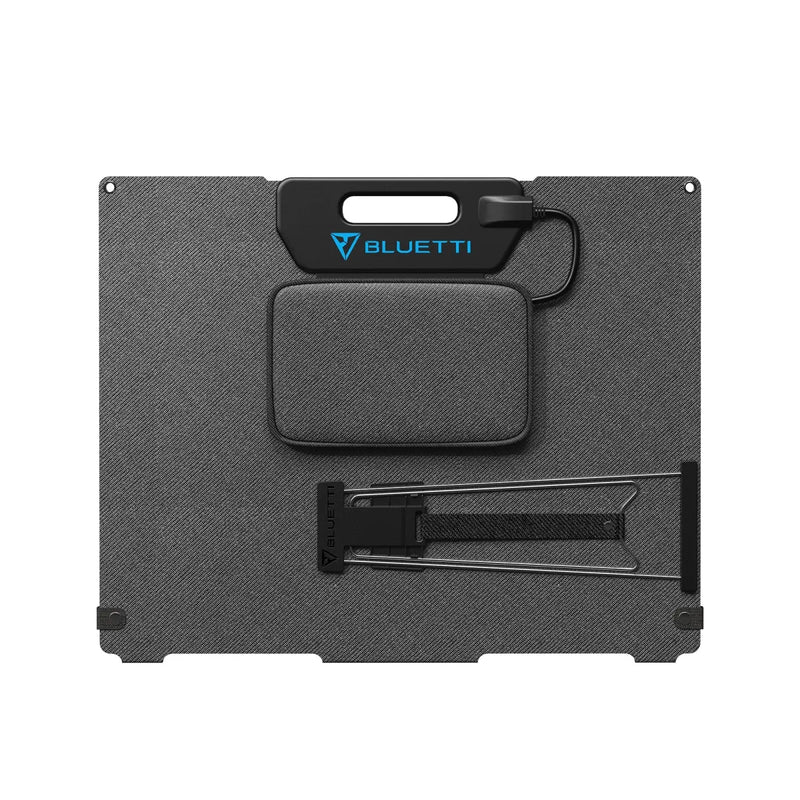

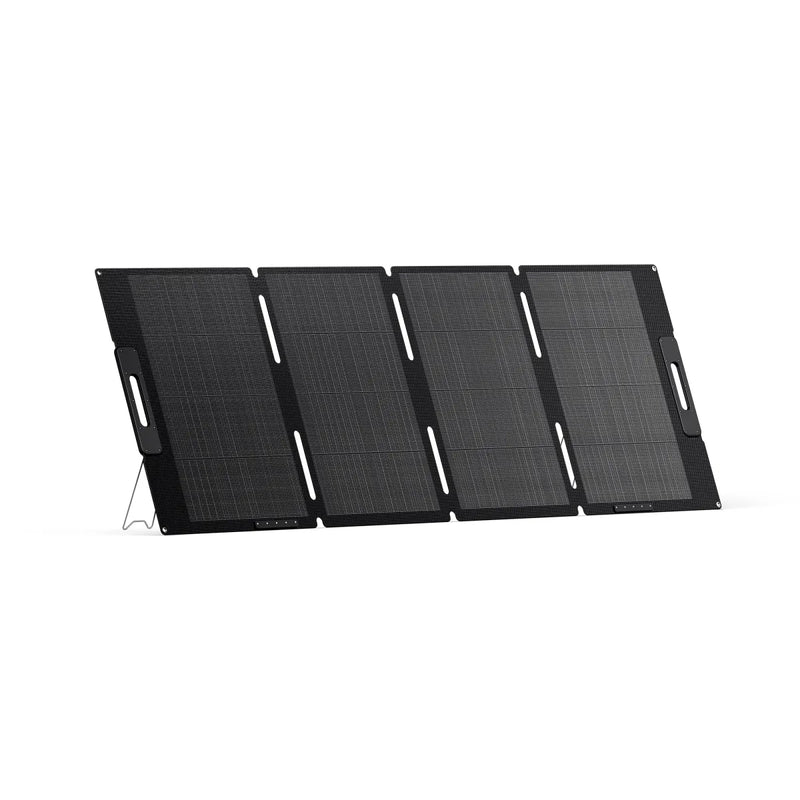

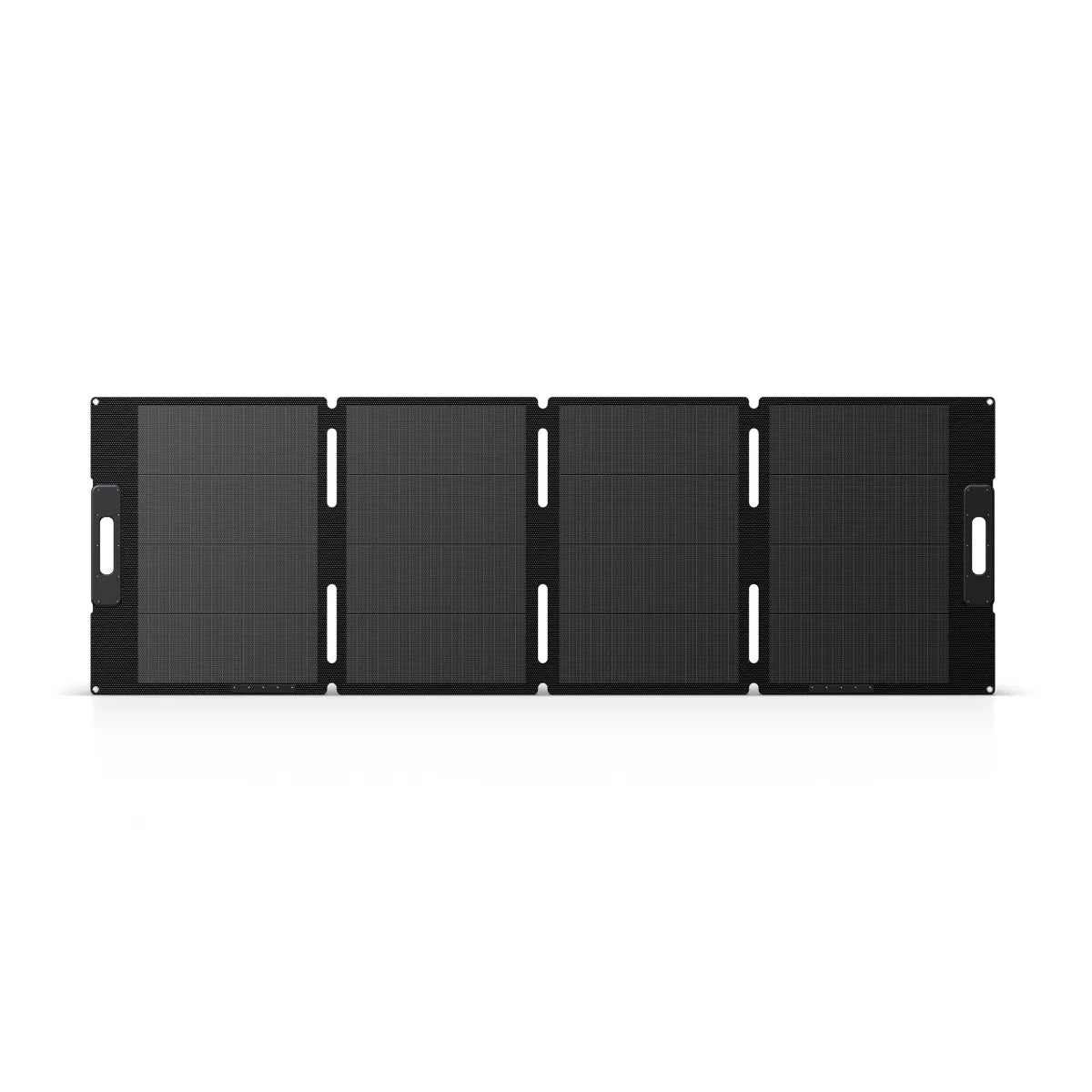

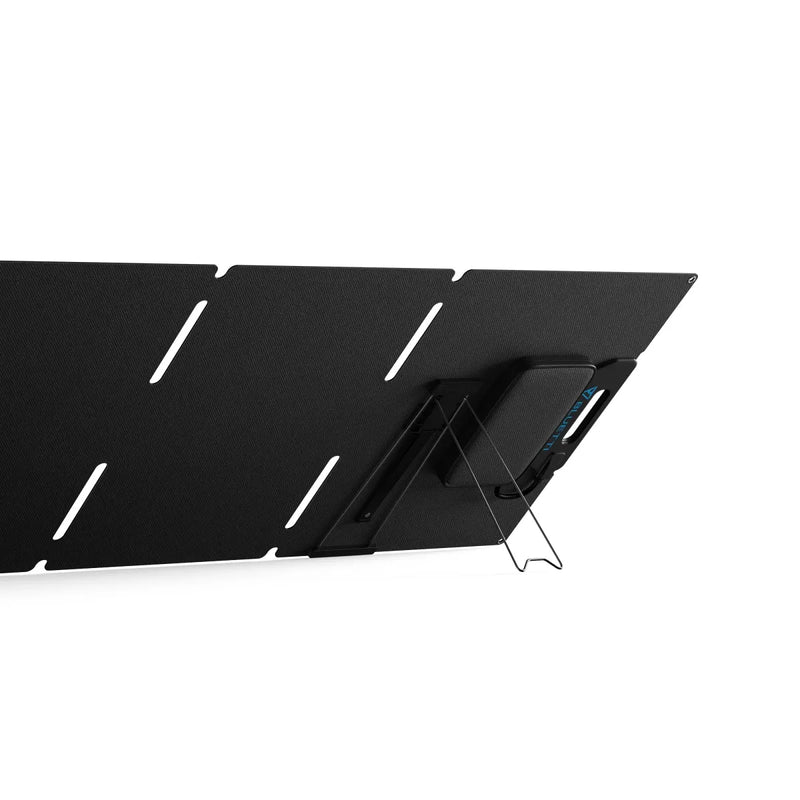

Designed with easy portability in mind, this sleek and foldable 200W solar panel lets you tap into the sun's energy wherever you roam. Whether you're hiking through the wilderness, camping under the stars, or exploring off-the-grid destinations, the MP200 ensures a constant stream of power always on call.

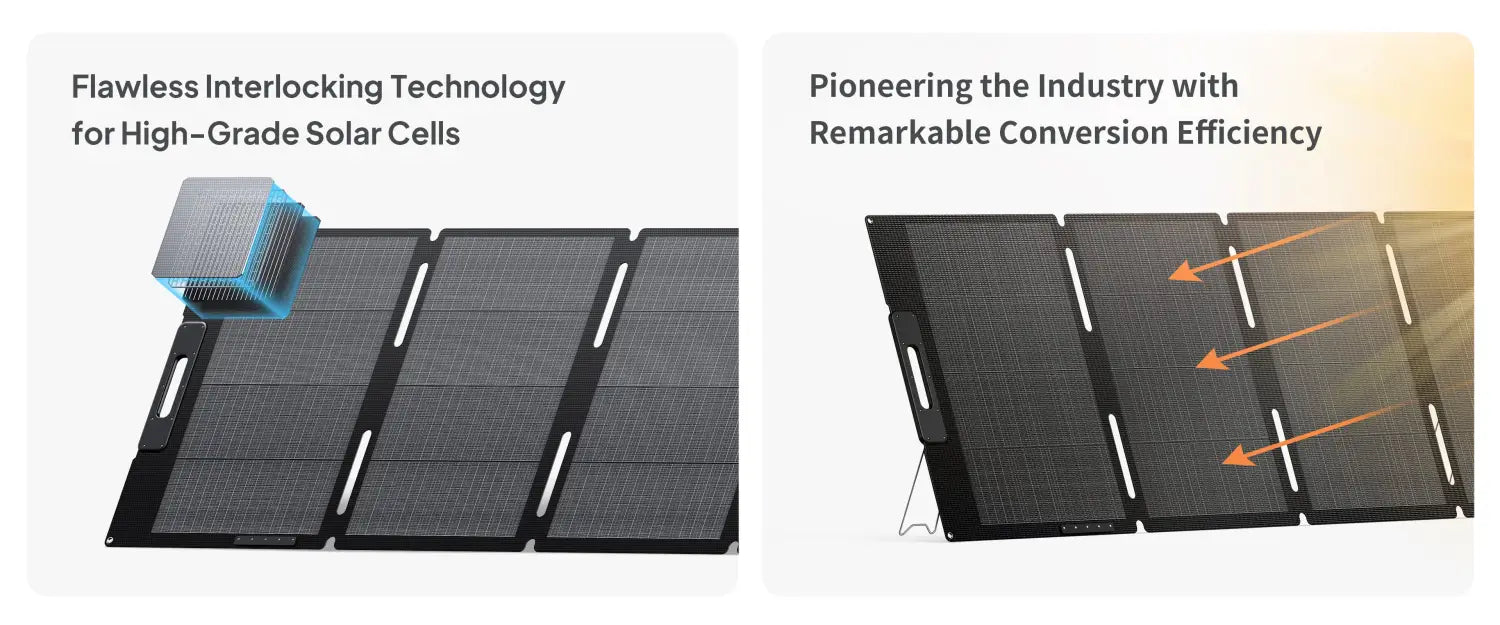

Boasting an exceptional 24% conversion efficiency, the MP200 solar panel maximizes the capture of solar rays, converting them into usable power faster than ever before. Say goodbye to endless waiting and hello to rapid charging that keeps pace with your on-the-go lifestyle.

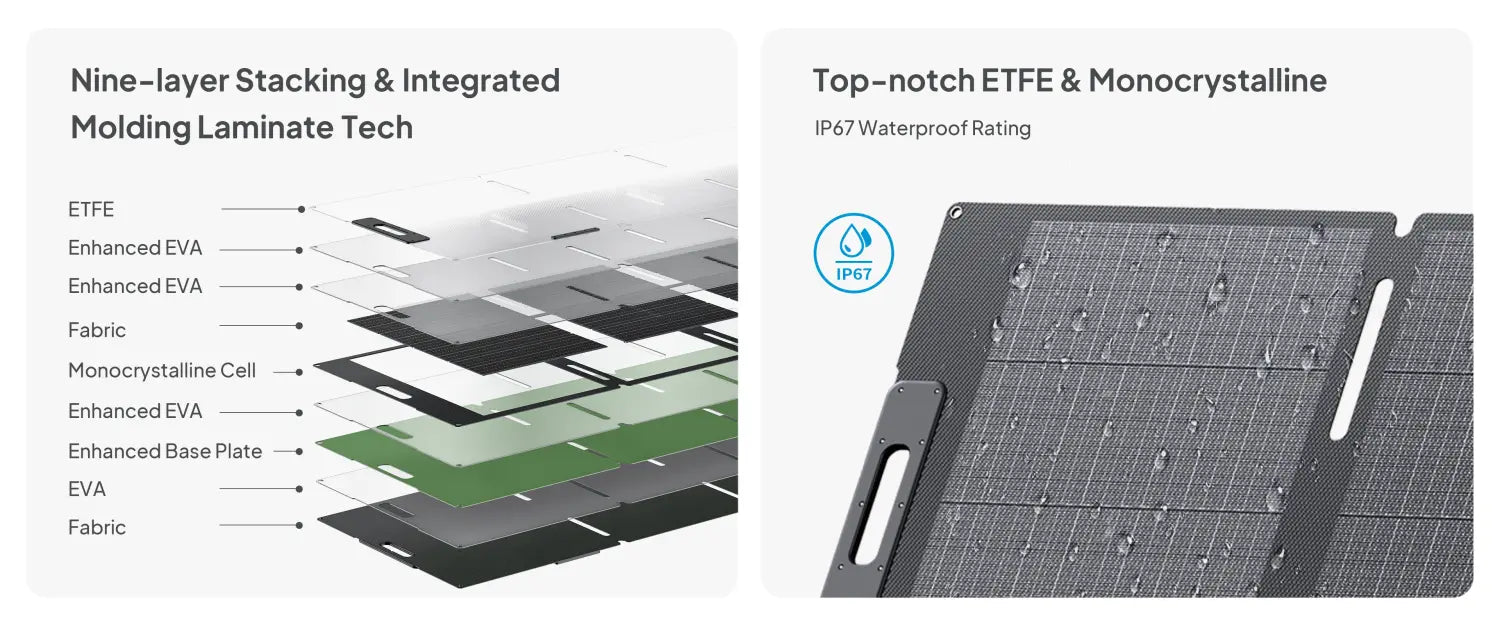

MP200 is built with advanced lamination technology that allows remarkable transparency, heat endurance, and IP67 waterproof rating. Plus, the PET materials on the surface make it easy to clean and durable even in rugged terrains and challenging weather conditions. Now you can explore the great outdoors without any hesitation.

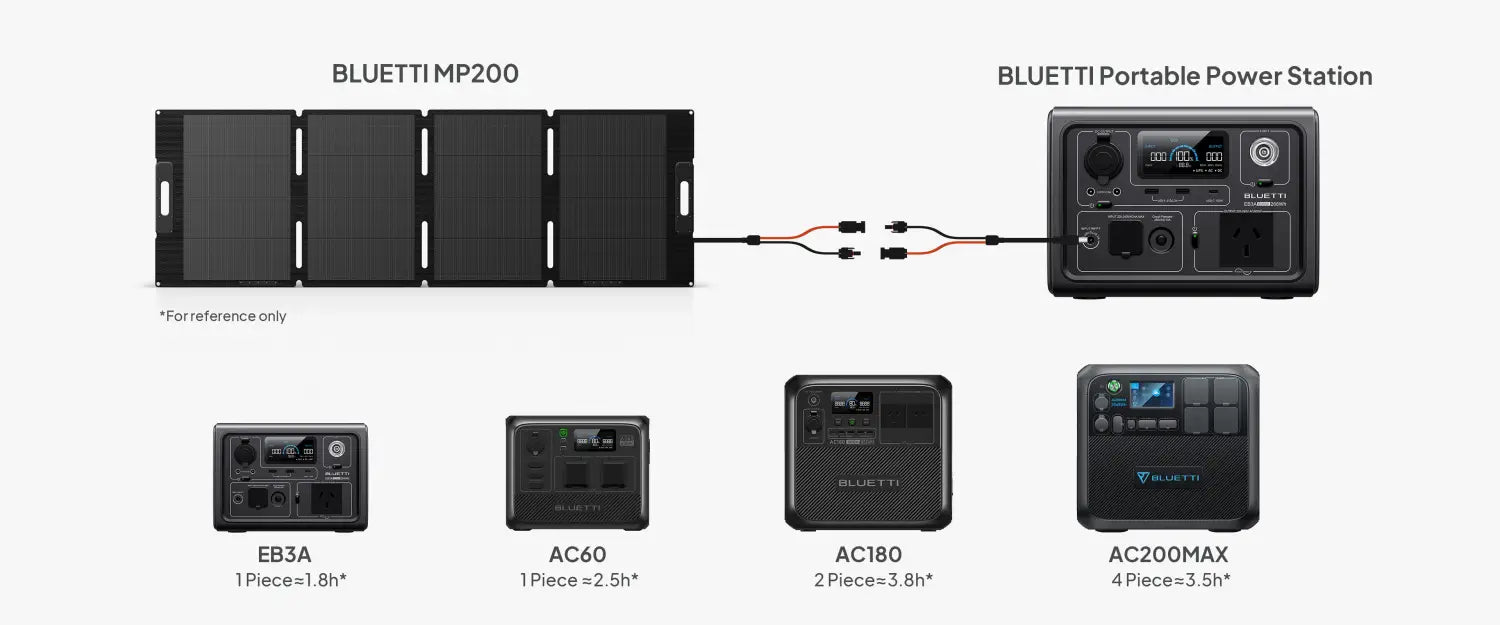

With the inclusive MC4 cable, MP200 offers unparalleled compatibility with a wide array of solar generators in the market, and perfectly works with BLUETTI power stations - EB3A/ AC60/ AC180/ AC200MAX. Note: Please ensure the total voltage of solar panels is under the power station's input voltage limit.
Specification | Detail |
---|---|
Power | 200W |
Lamination | ETFE (Ethylene tetrafluoroethylene) |
Cell Type | Monocrystalline Silicon |
Cell Efficiency | Up to 24% |
Open Circuit Voltage (OCV) | 22.9V |
Short Circuit Current (Isc) | 11A |
Specification | Detail |
---|---|
Power | 200W |
Lamination | ETFE (Ethylene tetrafluoroethylene) |
Cell Type | Monocrystalline Silicon |
Cell Efficiency | Up to 24% |
Open Circuit Voltage (OCV) | 22.9V |
Short Circuit Current (Isc) | 11A |
Connector | Standard MC4 Connector |
Weight | 19.1lbs (8.7kg) |
Dimensions (Unfolded) | 81.6*26.8*1.3in (2075*681*35mm) |
Dimensions (Folded) | 26.8*21.7*2.5in (681*553*65mm) |
Operating Temperature | 14-149℉ (-10-65℃) |
Best Working Temperature | 77℉ (25℃) |
Cable Length | 118in (3m) |
Warranty | 12 Months |
Can I use BLUETTI Solar Panel to charge the third-party power station?
Answer: Yes, you can. As long as they
Is the MP200 Solar Panel waterproof?
Answer: The MP200 has undergone enough reliability tests and offers an IP67 water resistance rating. However, to get an even longer lifespan in the right environment, we don’t suggest putting them in direct contact with rain for too long.
Can it be installed directly onto the roof of my house?
Answer: No.
Can I mix different types of solar panels?
Answer: No. Mixing different solar panels is not encouraged in general.
To get the maximum efficient solar panel system, we recommend you use solar panels of the same type and from the same vendor. For example, two MP200 charging BLUETTI AC200P is acceptable, while one PV200+ one MP200 is not suggested.
What are the factors that affect a solar panel's efficiency?
Answer: Multiple factors play roles in limiting a solar panel's ability to convert the sunlight it receives, like weather, sun intensity, shading, panel orientation, temperature, location, etc
How do I maximise the efficiency of the solar panel?
Answer: You can get more out of your solar panel by following these tips:
