ATEM POWER 12V 200W Solar Panel Kit with Solar Charge Controller

by ATEM Power
SKU VASPZHI-3H-SUN-R2
$228.00 - $228.00
$228.00
$228.00 - $228.00
$228.00
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

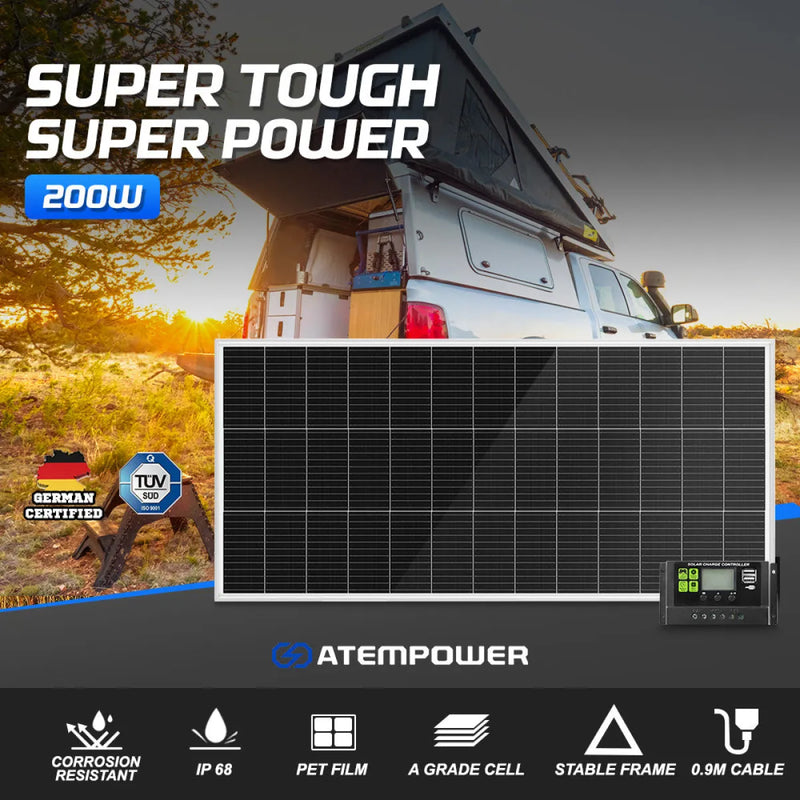

12V 200W Solar Panel Kit with PWM Controller by ATEM Power

Step up to 200W and you're in proper weekend-touring territory. It's enough to keep a 12V fridge, lighting and your devices charged without babysitting the battery. At 1485 x 30 x 668mm and 10.5kg, it's a good middle-ground size for a caravan roof, camper trailer, or 4WD canopy.

The monocrystalline cells are rated at 23.5% efficiency, with a maximum power current of 8.9A and open-circuit voltage of 26.3V. It ships with a PWM solar charge controller compatible with lithium, AGM, gel, calcium and flooded batteries, plus a USB port for charging devices straight off the controller. Reverse current protection stops the battery draining back through the panel once the sun goes down.

Tempered glass and an aluminium frame handle the weather, and the panel's rated from -40°C to +85°C, so temperature extremes on either end of an Aussie trip aren't a concern.

Features

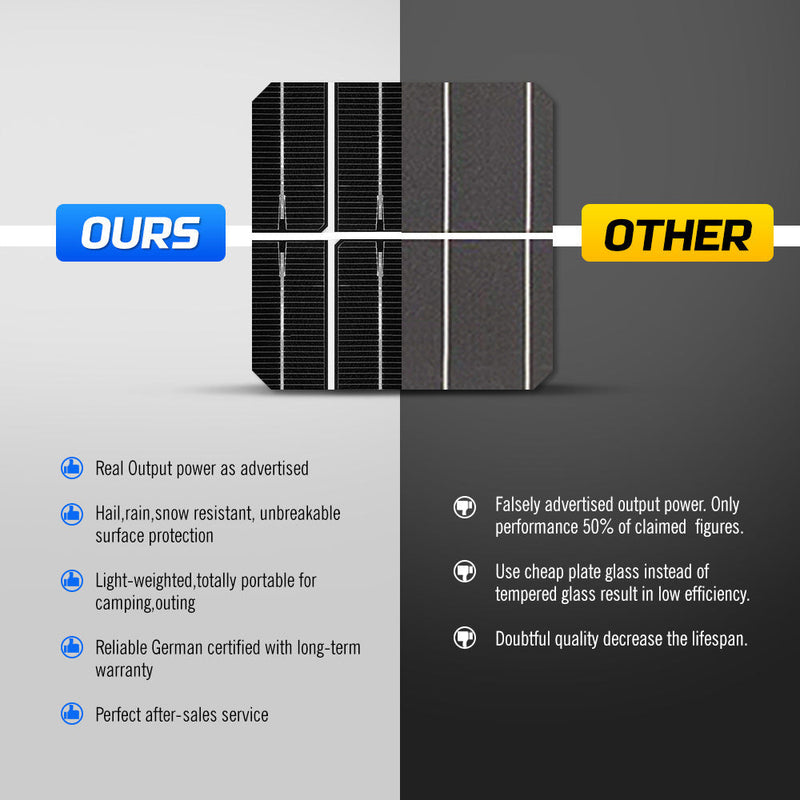

  • A-grade monocrystalline cells rated at 23.5% efficiency
  • PWM charge controller compatible with lithium, AGM, gel, calcium and flooded batteries, for 12/24V systems
  • USB port on the controller for direct device charging
  • Reverse current protection and automatic reconnection after an interruption
  • Tempered glass face and aluminium frame
  • CE certified

Specifications

Maximum Power 200W
Open-Circuit Voltage (VOC) 26.3V
Short-Circuit Current (ISC) 9.4A
Maximum Power Voltage (VMP) 22.5V
Maximum Power Current (IMP) 8.9A
Material Monocrystalline Solar Cell
Maximum System Voltage 1000VDC
Temperature Range -40°C to +85°C
Power Tolerance ±3%
Colour Black
Weight 10.5kg

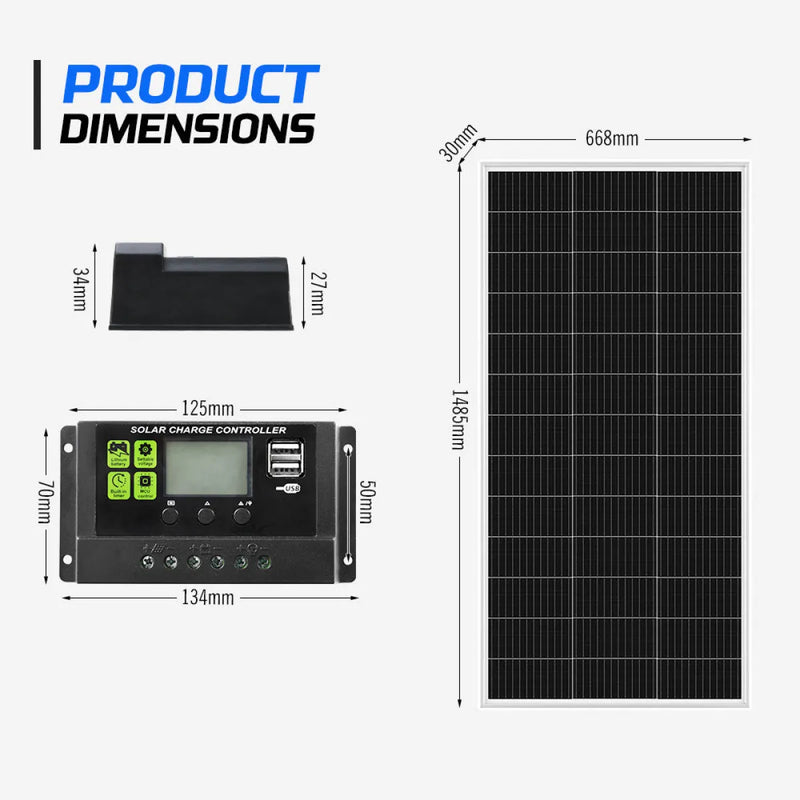

Product Size 1485 x 30 x 668mm

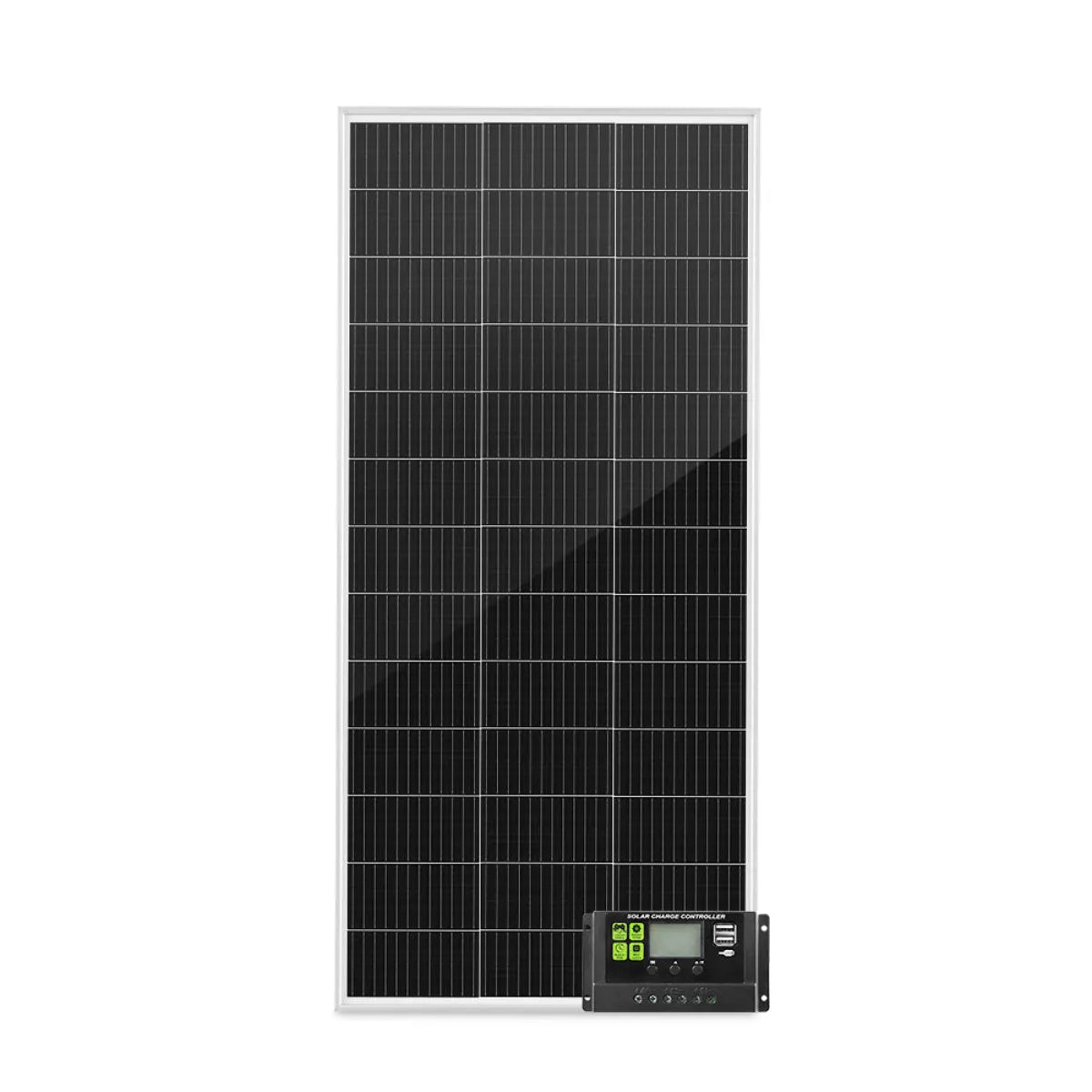

What's Included

  • 1 x 200W Monocrystalline Solar Panel
  • 1 x PWM Solar Charge Controller
  • 1 x User Manual

Warranty

12-month manufacturer warranty.

Frequently Asked Questions

How much power does this 200W panel produce?

It's rated at up to 8.9A at 22.5V at its maximum power point, with an open-circuit voltage of 26.3V.

How long will it take to charge a 100Ah battery?

It depends on the battery's state of charge, sun hours and any other loads running at the same time. As a rough guide, at its rated ~8.9A output in full sun this panel can put a meaningful dent in a partially depleted 100Ah battery over a full day. Exact timing varies with weather and panel angle.

Can this panel charge a 12V battery?

Yes, provided you're using the included PWM controller and a compatible battery type (lithium, AGM, gel, calcium or flooded).

What controller does it come with?

A PWM solar charge controller for 12/24V systems, with a USB port for direct device charging.

What size and weight is the panel?

1485 x 30 x 668mm, 10.5kg.

What's in the box?

The panel, a PWM solar charge controller, and a user manual.

What temperature range is it rated for?

-40°C to +85°C.

Does it come with a warranty?

Yes, a 12-month manufacturer warranty.
