Zeon XD 10-S 10,000lbs 12V Electric Winch with Spydura Synthetic Rope from Warn

The ZEON XD 10-S is the ultimate recovery winch for mid-sized 4WDs and touring rigs that demand reliable pulling power without the bulk. With a 10,000lb pull rating and 30 metres of Spydura synthetic rope, it’s ready to get you out of strife—whether you’re bogged on the beach or stuck on a steep trail.

It also comes equipped with the WARN HUB wireless receiver, giving you over 30 metres of range when paired with the WARN HUB app on your phone, plus a corded waterproof remote for old-school control.

Please Note: You’ll need a compatible bullbar or winch cradle for proper fitment.

The ZEON XD series has been completely overhauled for performance and toughness. Backed by an industry-best warranty, lightning-fast line speed, and premium waterproof sealing, this winch is the dependable recovery partner every 4WD adventurer should have on board.

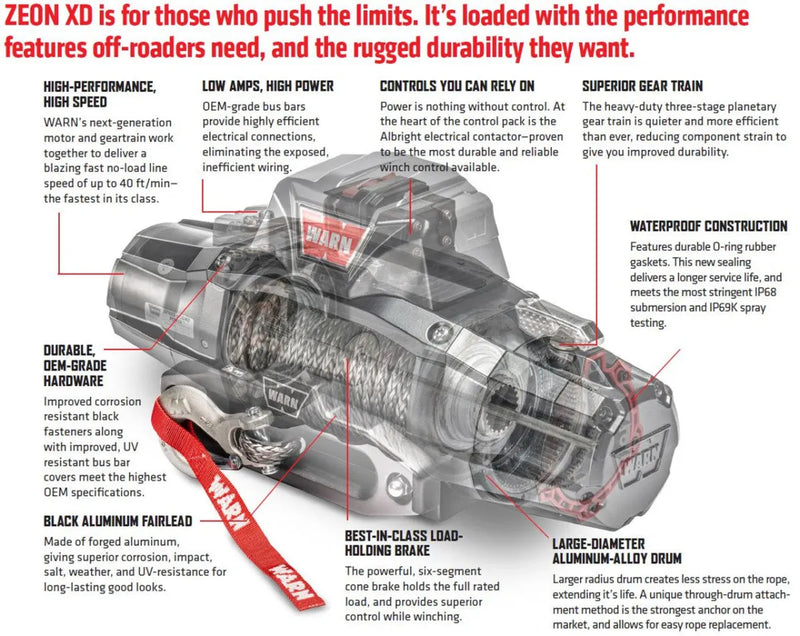

Key Features

  • 10,000lb capacity – ideal for dual-cabs, mid-size 4WDs and tourers
  • Engineered and assembled in the USA – tested tough in Clackamas, Oregon
  • 40ft/min no-load line speed – class-leading for fast recoveries
  • IP68K & IP69K rated – sealed against deep water and high-pressure spray
  • O-ring sealed full metal housing – shields internals from mud, dust and impact
  • Corrosion-resistant black hardware – built for Australia’s harsh coastal and outback environments
  • Spydura synthetic rope (100ft, 3/8") – lightweight, heat-resistant, and easy to manage
  • Forged black 6061-T6 aluminum fairlead – strong, salt-resistant and sleek
  • Albright contactor and robust bus bars – ensures reliable electrical performance
  • Corded remote with 12ft lead + HUB receiver – full control your way
  • Limited lifetime mechanical & 7-year electrical warranty – backed by a global network

Warn Zeon XD 10-S 12V 10,000lbs Electric Winch with Spydura Synthetic Rope

Warn Zeon XD 10-S 12V 10,000lbs Electric Winch with Spydura Synthetic RopeWarn Zeon XD 10-S 12V 10,000lbs Electric Winch with Spydura Synthetic Rope

Specifications

Rated Line Pull (Single Line) 10,000lbs (4536 kg)
No Load Line Speed 40 ft/min (12.19m/min)
Rated Load Line Speed 5 ft/min (1.52m/min)
No Load Motor Current 64 Amps
Rated load motor current 458 Amps
Motor 12V DC, series wound (exclusive WARN high-performance design)
Zeon Electrical controls Contactor
Wiring Automotive OE-grade buss bars
Zeon Corrosion Resistance 408 hour salt spray
Zeon Ingress Protection IP68 submersion and IP69K spray testing (entire unit)
Remote Control Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver
Drum diameter/Length 3.15”/9.0” (80mm/229mm)
Geartrain 3-stage planetary
Zeon Gear Ratio 141:1
Zeon Clutch (freespooling) Rotating ring gear with stainless steel clutch lever. Manual lever operation.
Brake Automatic, six segment mechanical cone
Rope 3/8” x 100’ (9.52mm x 30m) Spydura synthetic
Fairlead Black anodized, forged aluminum hawse
Recommended Battery 650 CCA minimum for winching
Battery leads 2 gauge, 72” (1.83m)
Zeon Finish Satin-black powder coat
Final point of assembly Warn facility in Clackamas, Oregon, USA
Warranty Limited lifetime mechanical, 7 years electrical
Weight 85lbs (in box)
