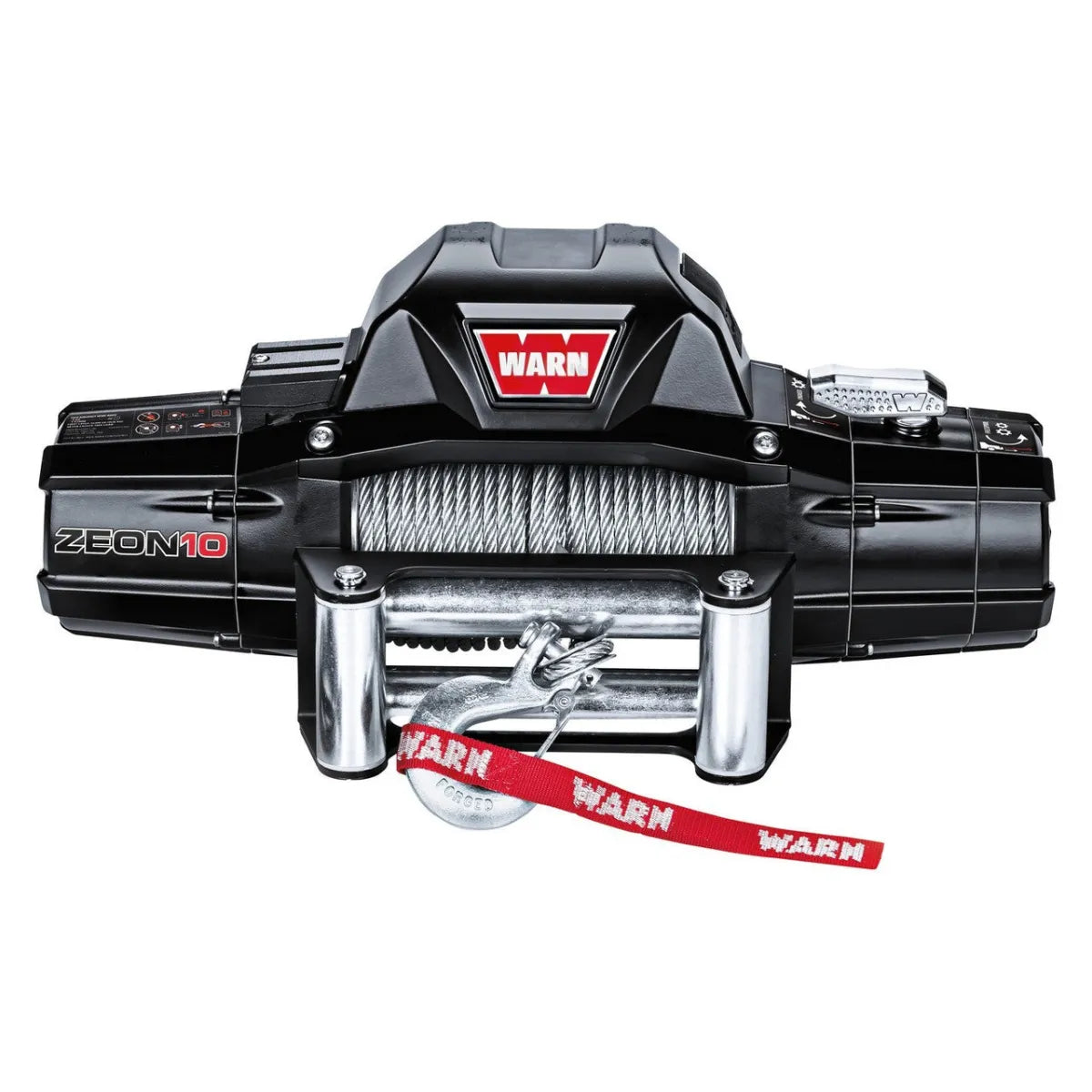

Zeon 10 10,000lb 12v Winch with Steel Wire by Warn

Advanced technology, Ultimate Performance winch, with steel rope and a 10,000 lb. pulling capacity

This Warn Industries ZEON (R) 10 12 volt electric Winch is vehicle mounted and has a pull capacity of 10,000 pound. It has a 80 feet wire rope. Note: This Winch will require winch mount for proper installation.

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck busting sealing keeps out everything but the good times. Add a hyper durable cast aluminum housing, satin black finish, and 10,000 Pounds. Single line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

 FEATURES

  • Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks

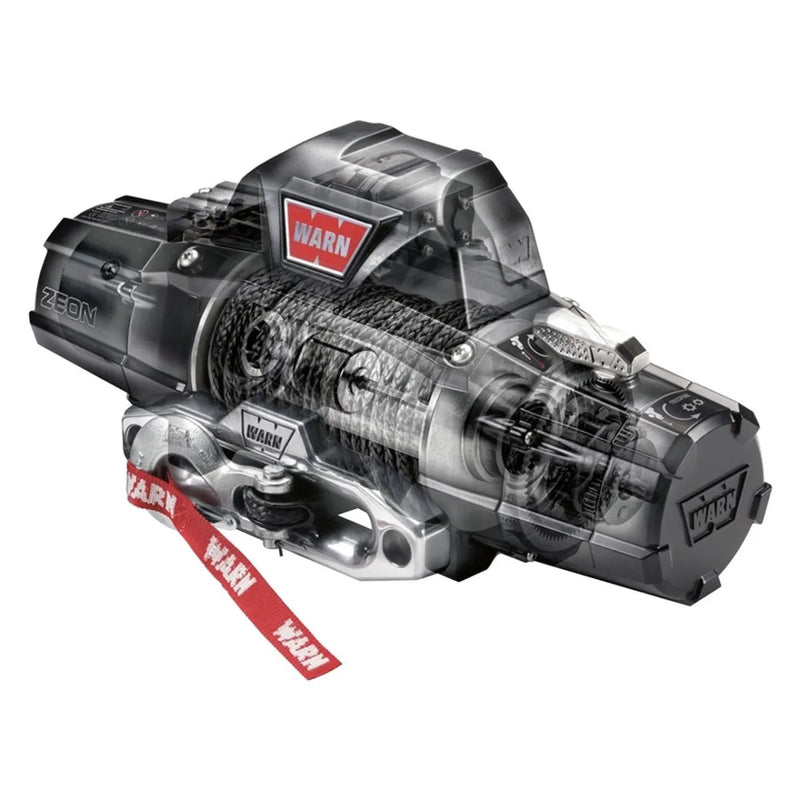

  • New Design Planetary Gear Train And Series Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
  • Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
  • Improved Winch Sealing To Keep The Elements Out
  • Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
  • Includes 80 Foot Of 3/8 Inch Galvanized Steel Wire Rope
  • 10,000 Pounds Single Line Pulling Capacity
  • Limited Lifetime Warranty

This model requires a Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

Zeon 10 12v Winch Specifications

  • Part number: ZEON-10-89650 (12V)
  • Rated line pull: 10,000 lbs. (4536 kg) single-line
  • Motor: series wound, 12V DC, 24V DC
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12′ (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 216:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic mechanical cone
  • Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)
  • Weight (kit shipping): 98 lbs. (44 kg)
  • Rope: 3/8″ x 80′ (9.52mm x 24.38m) steel
  • Fairlead: Roller
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72″ (1.83m)
  • Finish: Satin-black powder coat

Zeon 10 12v DC Performance Specifications (1st layer of drum)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 33 (10.27) 62 amps 1/10000 (4536)
2000 (910) 14.9 (4.5) 144 amps 2/8245 (3740)
4000 (1810) 11.2 (3.4) 215 amps 3/7014 (3181)
6000 (2720) 8.5 (2.6) 280 amps 4/6103 (2768)
8000 (3630) 6.5 (2.0) 353 amps
10000 (4536) 4.8 (1.5) 409 amps

Zeon 10 12v Winch Dimensions

Integrated configuration 24.25″ L x 7.15″ D x 10.52″ H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration 24.25″ L x 7.15″ D x 7.84″ H
(615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern 10.0″ x 4.5″
(254mm x 114.3mm)

Warn Warranty

4x4 Down Under is happy to assist with all manufacturer warranty claims to the best of our ability. Warn warranty claims are handled in Australia by ATECO Pty Limited.

Product covered by this warranty:

  • WARN® Branded Winch for Jeep, Truck and SUV

Warn will, at its option, repair, replace or refund the purchase price of a defective Product or component. The Warranty Period is not extended if Warn repair or replace the Product or its defective electrical component(s).

Items covered by this Warranty:

  • Electrical components covered by the seven (7) year Limited Warranty: motor, contactor, solenoid, handheld remote controls, wireless remote controls, wiring.
  • All other mechanical components are covered by the Limited Lifetime Warranty except as listed below.
  • Items not covered by this Warranty:
  • The removal or reinstallation of the Product.
  • Wire or synthetic rope.
  • Product finish.
  • Components damaged by accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation, or improper service.
  • Normal wear and tear or loss of functionality due to the normal ageing of the Product including, bearings, bushings, seals, O-rings, gaskets, brake material, motor brushes, electrical cables.

Actions that void the Warranty:

  • The removal or defacement of any WARN serial number or date code that was on the Product when sold.
  • Commercial or industrial use or application, or any hoisting application of the Product.

The warranty set forth above is the only express warranty. There are no other express warranties.

Any implied warranty which by law may not be excluded is limited in duration to one (1) year from the date of original retail purchase of the product.

Warn shall not be liable for special,indirect,incidental or consequential damages (including, but not limited to, lost profits,down time or loss of use) under any legal theory, even if warn was advised of the possibility of such damages.

WARN reserves the right to change Product design without notice. In situations in which WARN has changed a Product design, WARN and 4x4 Down Under shall have no obligation to upgrade or otherwise modify previously manufactured Products.


To obtain warranty service:

  • Email 4x4 Down Under at orders@4x4downunder.com.au with a detailed description of the warranty claim and original order number.
  • Make the claim within the Warranty period.
  • Attach your name, address, telephone number, a description of the problem, and a copy of your order to the email.

All return shipping fees are for the customers account.
