Warn M8274 12v 10000lb High Mount Winch with Steel Cable - Electric Winch

Warn M8274 12v 10000lb High Mount Winch with Steel Cable

by Warn
SKU M8274-70-106170
Save $402.00 Save $402.00
$3,748.00
$3,748.00 - $3,748.00
$3,748.00
$3,346.00
$3,346.00 - $3,346.00
$3,346.00
4x4 Down Under Buy Now Pay Later Options

    WHY SHOP WITH US?
  • ✔ Fast Shipping with Tracking and Insurance
  • ✔ Australian Owned and Operated
  • ✔ 256Bit SSL Website Encryption for Safe and Secure Shopping
  • ✔ Expert Before & After Sales Service
  • ✔ Easy Returns & Full Warranty Support

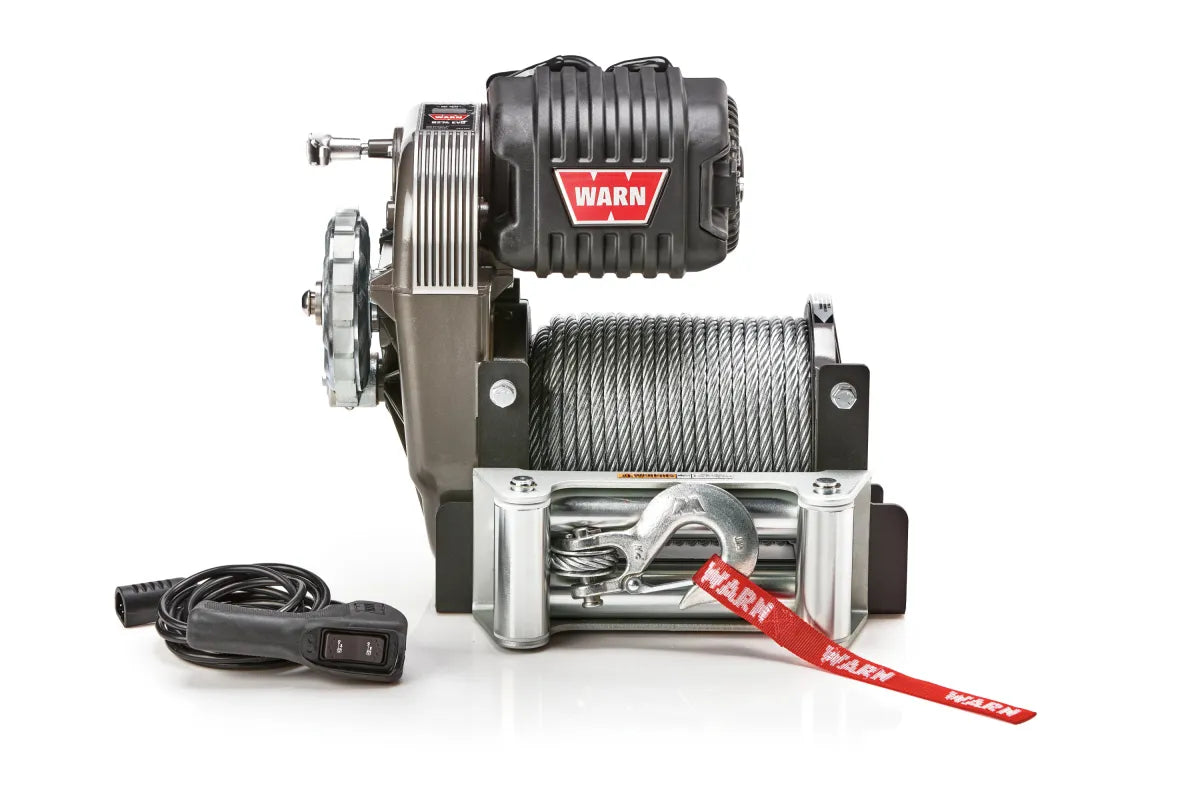

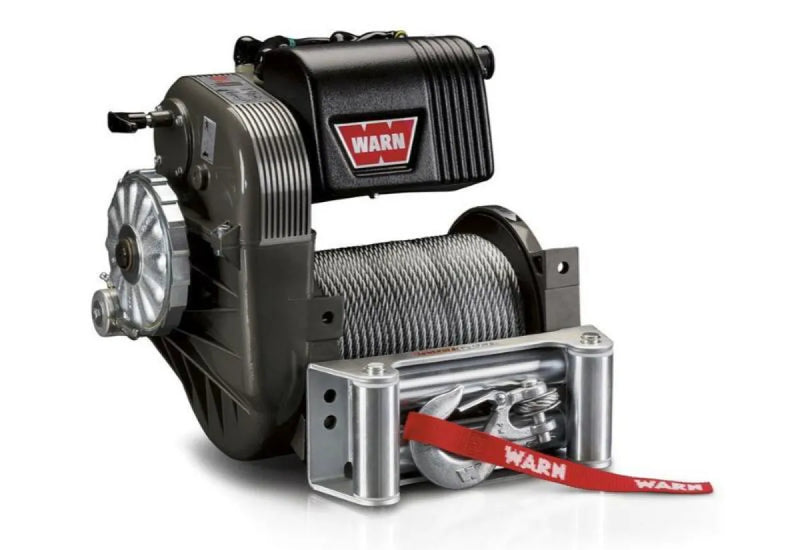

M8274 High Mount 12v Winch with Steel Cable by Warn

Fastest line speed. Longest synthetic rope. Legendary performance.

One of the fastest winches on the market, the Warn M8274 has a reputation that truly precedes it. This is the latest generation M8274, which means Warn took their most iconic winch and added more performance and more features. It is still the fastest of any WARN winch and has the longest steel cable length (38m/125ft), but now with even more power courtesy of a 6hp motor, a 10,000 lb. capacity, contactor control, and aircraft-grade steel winch cable. The legend continues.

The M8274 maintains all the things buyers love about the product: speed, durability, and its famous shape, but they’ve added more performance and more features. It comes with 38 meters of 9.5mm diameter aircraft-grade steel cable

  • Rugged spur-gear drive train and unique upright design
  • Automatic disc braking system delivers smooth operation with superior heat dissipation
  • Roller fairlead, remote control, free spool clutch, and battery cables are included.

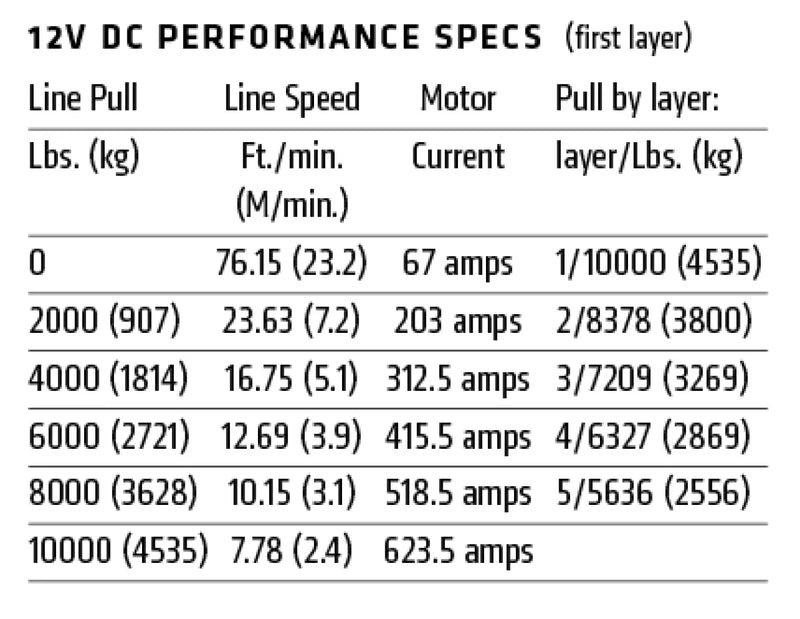

Warn M8274 12V Winch Specifications

Part Number: M8274-70-106170
Rated Line Pull: 10,000 lbs. (4536 kg) single-line
Motor: 12V DC, 6HP Series Wound
Electrical Control: Contactor
Remote control: Remote switch, 12’ (3.7m) lead
Geartrain: 3-stage Spur Gear
Gear ratio: 134:1
Clutch (freespooling): Sliding motor pinion gear
Brake: Automatic disc type

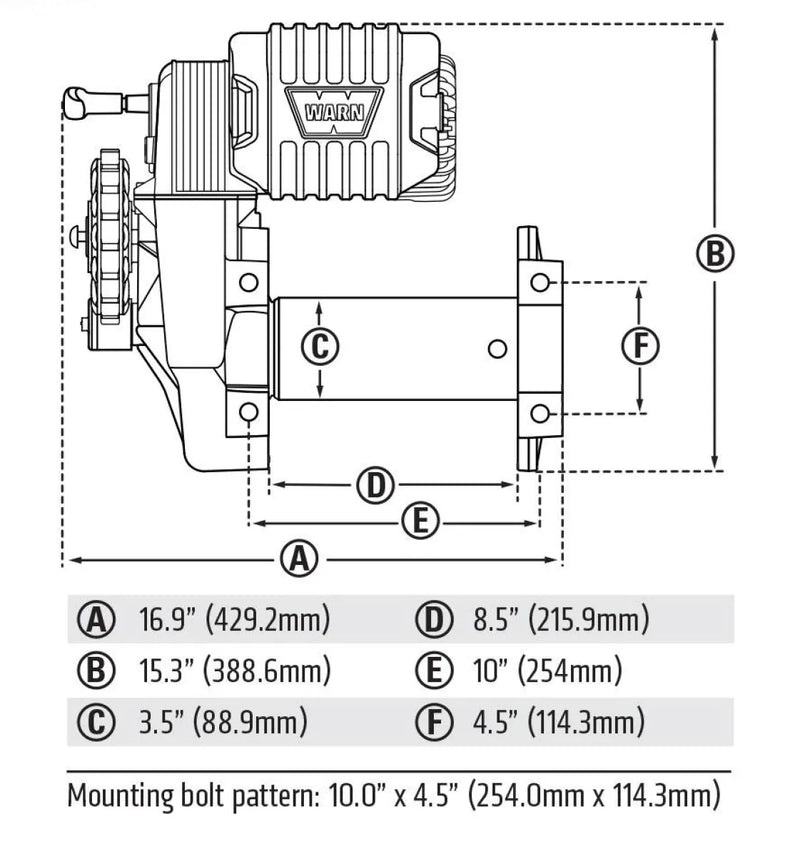

Drum Diameter/Length: 3.5”/8.5” (9cm/22cm)
Wire rope: 9.5mm x 38M (3/8″ x 125′)
Fairlead: Roller Fairlead
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in. (1.83m)
Finish: Powder coat with clear coat
Weight: 110lb (50kg)
Warranty: Limited Lifetime Mechanical Warranty with 7 Year Electrical Warranty)
