Warn Axon 35 3500lb Powersport ATV Winch

by Warn
SKU AXON-35-S-101130
Original price $1,099.00 - Original price $1,189.00
Original price
$1,099.00 - $1,189.00
Current price $1,189.00
4x4 Down Under Buy Now Pay Later Options

  • Fast Shipping with Tracking and Insurance
  • Australian Owned and Operated
  • 256Bit SSL Website Encryption for Safe and Secure Shopping
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

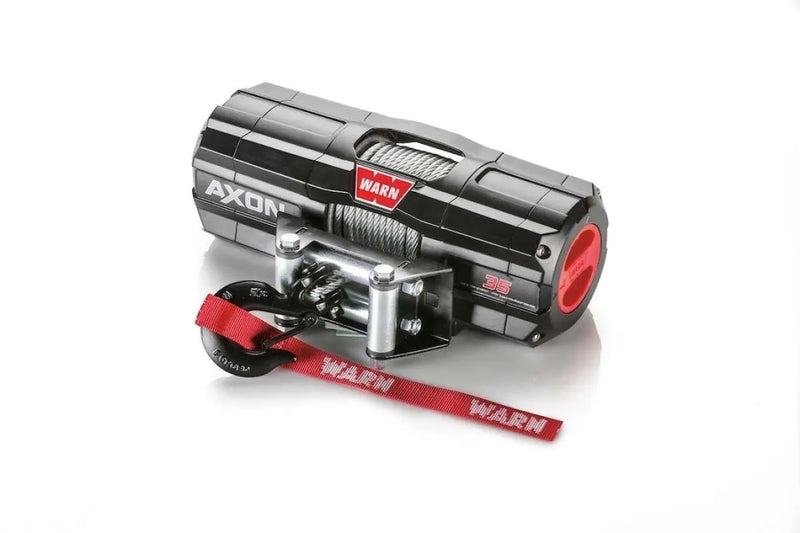

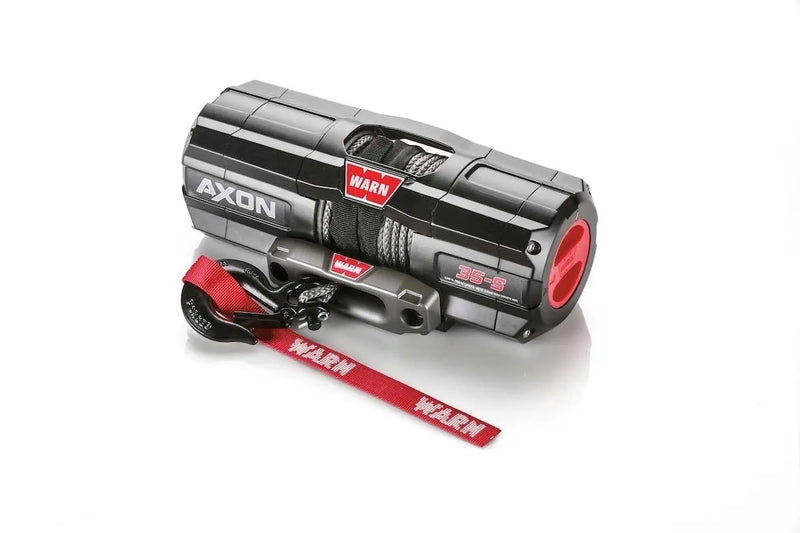

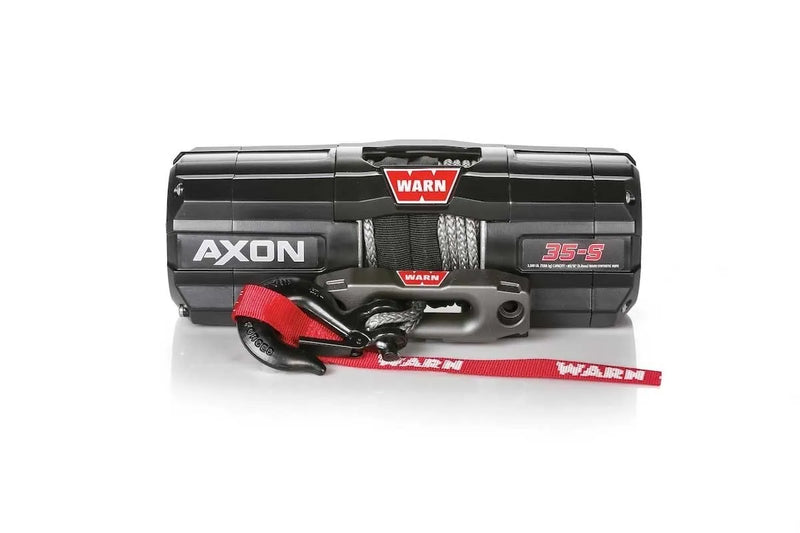

Introducing the 3500lb AXON 35 Powersport ATV Winch, with Synthetic Rope or Steel Cable

The Warn AXON 35 Powersport ATV Winch with Spydura Rope is a game-changer in ATV winching technology. It's been designed to elevate your off-road ATV experience by introducing a range of functionality and innovation not seen in other models.

At the heart of this winch lies the Motactor, an unparalleled fusion of a powerful motor and a cutting-edge digital contactor. This revolutionary integration ensures exceptional performance and offers enhanced feedback to the user. With the 3500lb AXON 35 on your ATV, you'll have unrivalled power at your fingertips.

Designed and built with durability in mind, this winch boasts an all-metal construction that can withstand the harshest conditions. Its IP68 waterproof-sealing ensures reliable operation even in the most challenging environments, providing you with peace of mind during your off-road adventures.

The AXON 35 is built to tackle extreme terrains, offering increased structural rigidity for optimal performance. Whether you're conquering mud, rocks, or steep inclines, this winch is up to the task, delivering the reliability and strength you need.


  • Includes 15m x 6.3mm synthetic rope/steel cable, hawse or roller fairlead, and black hook.
  • Stout 3,500 lb. capacity for riders who push the limits.
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance.
  • Digital control offers never-before seen levels of reliability and user feedback, including load and temperature info.
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity.
  • IP68 waterproofing keeps water and the elements out.

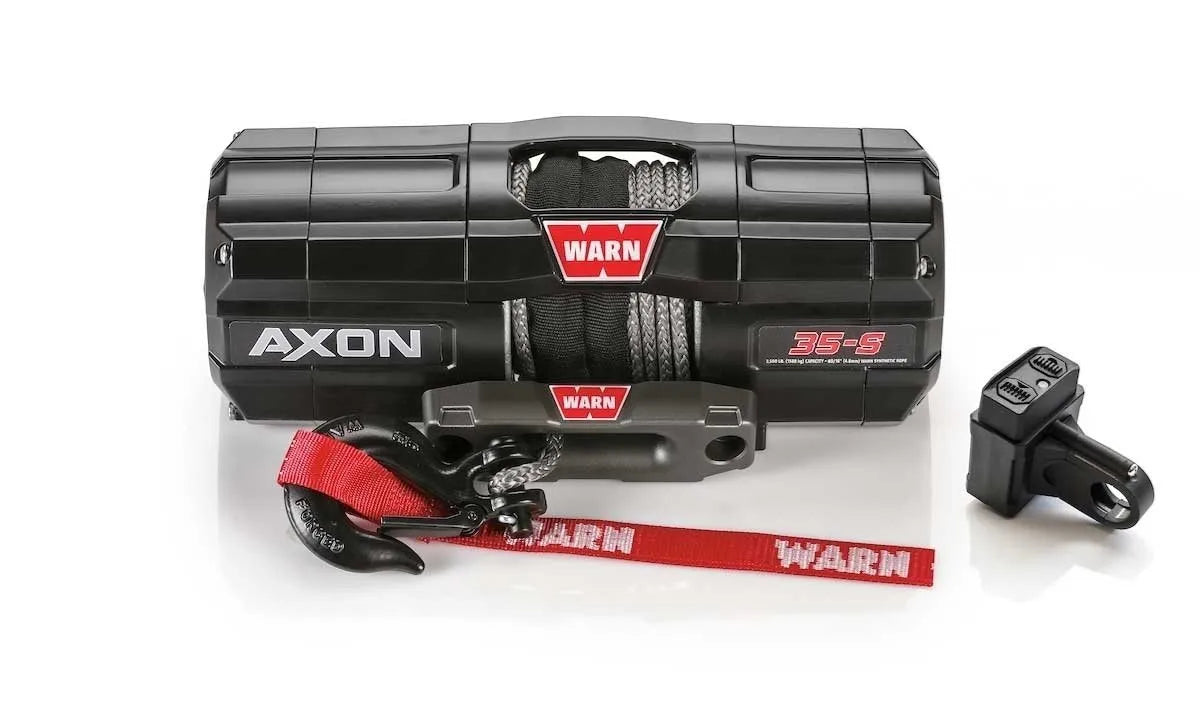

  • Rockerbar digital control switch with handlebar mount adaptor.
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance.
  • New clutch design based on legendary Warn 4WD hub lock know-how.
  • Load-holding brake for great control.
  • Smooth and reliable all-metal three-stage planetary gear train.

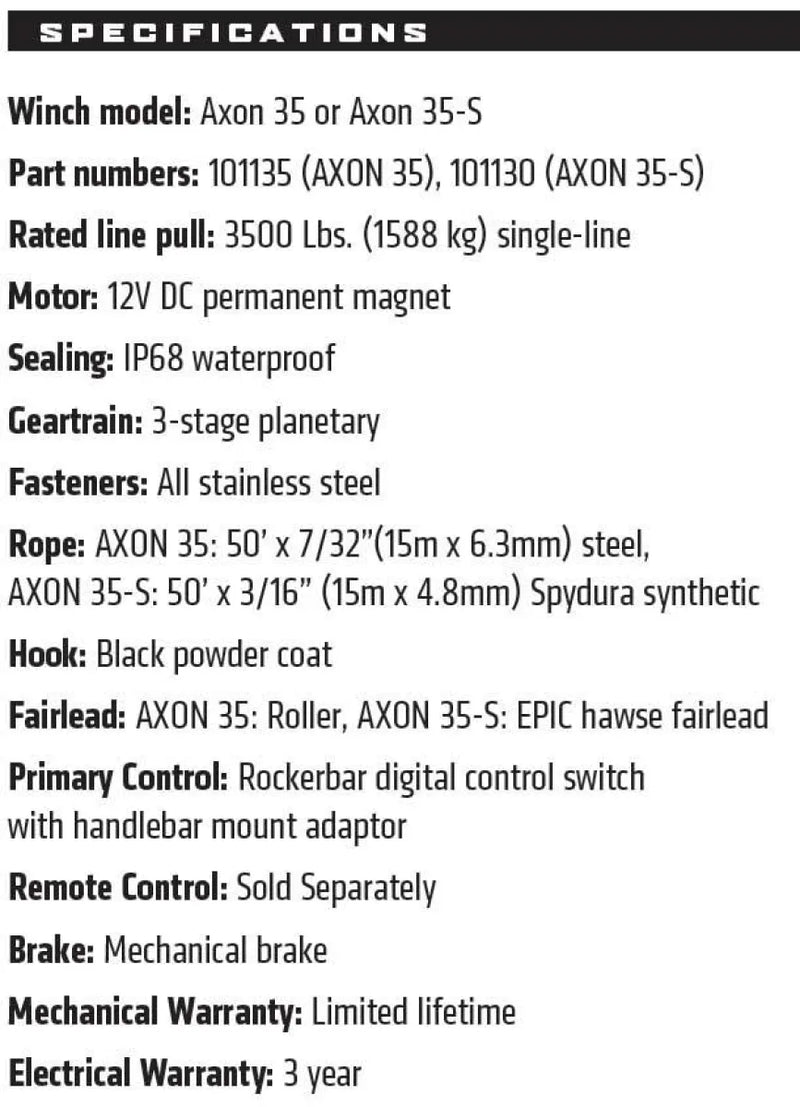

  • Winch model: AXON 35-S
  • Part Number: 101130
  • Rated line Pull: 3500lbs (1588kg) single-line
  • Motor: 12V DC permanent magnet
  • Sealing: IP68 waterproof
  • Geartrain: 3-stage planetary
  • Fasteners: All stainless steel
  • Rope: 15m x 4.8mm Spydura Synthetic Rope or Steel Cable
  • Hook: Black Powder Coat
  • Fairlead: EPIC Hawse fairlead
  • Primary Control: Rockerbar Digital Control Switch with handlebar mount adaptor
  • Remote Control: Sold Separately
  • Brake: Mechanical brake
