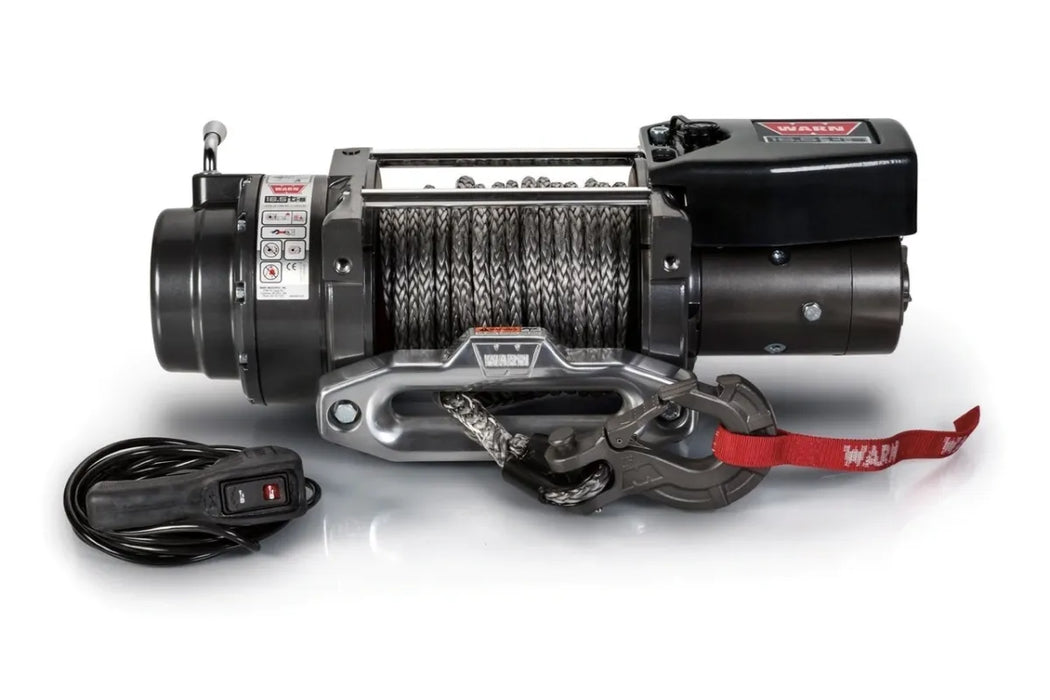

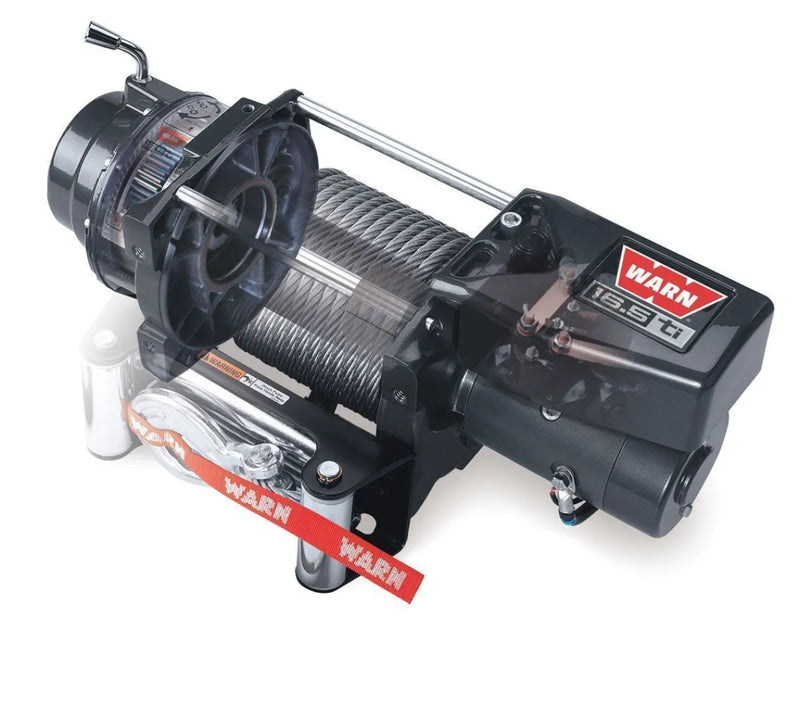

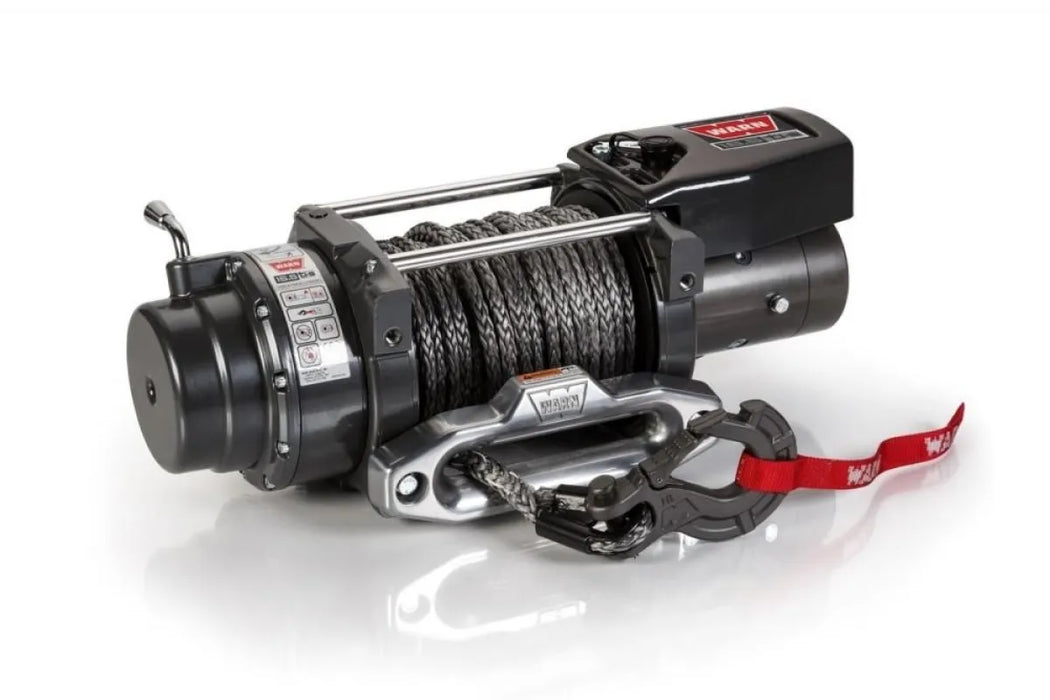

Large Frame 16.5TI-S 12V Thermometric Winch with Spydura Pro Synthetic Rope from Warn

The Warn Industries 16.5ti-S 12 volt electric winch is a powerful, super-duty level winch that offers a formidable pull capacity of approximately 7,484 kilograms (16,500lb). This winch is the ideal solution for those who need a strong and reliable winching system for demanding vehicle recovery situations.

The 16.5TI-S is equipped with approximately 24 meters (80 feet) of 9.5mm (3/8") Warn Spydura® Pro synthetic rope, known for its lightweight, easy-to-handle characteristics. The rope is heat-treated to ensure maximum tensile strength, providing durability and reliability in challenging conditions. Additionally, a temperature-resistant sleeve on the first layer of the rope offers extra heat protection, safeguarding it during intense winching operations.

A key feature of this winch is its thermometric indicator LED, which offers real-time feedback to the operator during the winching process. This feature is especially useful for handling heavy vehicles in both on-road and off-road conditions.

Features

High Capacity: Approximately 7,484 kg (16,500 lb.) pulling capacity for heavy-duty applications.
Spydura Pro Rope: Includes approximately 24 meters (80') of 9.5mm (3/8") Spydura Pro synthetic rope, praised for its strength and heat resistance.
Heavy-Duty Hook: Comes with a Warn EPIC hook with a capacity of approximately 8,165 kilograms (18,000 lb).
Thermometric Indicator: LED provides crucial operator feedback during use.
Design: Large-frame architecture with feet-forward mounting for stability.
Reliable Electronics: Contactor control ensures dependable electronic operation.
Powerful Motor: Efficient series-wound motor for robust performance.
Gear Train: Durable and smooth three-stage planetary gear train.
Advanced Braking: Best-in-class cone brake for superior control.
Warranty: Limited Lifetime Warranty for Mechanical Components and a seven-year warranty for Electrical Components.

The Warn Industries 16.5TI-S Electric Winch represents the pinnacle of winching technology, ready to take on the challenges of any heavy-duty recovery situation with its impressive strength and advanced features.

16.5TI Specifications

Part Number: 97740
Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
Motor: 12V 4.6 hp, Gen II, Series Wound
Electrical Control: Solenoid Control Pack
Remote control: Remote switch, with LED indicator - 3.7m lead
Geartrain: 3-stage planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Synthetic rope: 9.5mm x 24.3M
Fairlead: Aluminium hawse
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 1.83m
Finish: Ardent gray powder coat
Drum diameter/length: 9cm/21cm
Weight: 47kg

12V DC Performance Specifications

Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	23.6(7.20)	68 amps	1/16500(7484)
2000(907)	12.07(3.68)	138 amps	2/15279(6930)
4000(1814)	9.22(2.81)	189 amps	3/12672(5748)
6000(2721)	7.37(2.25)	240 amps	4/10824(4910)
8000(3628)	6.08(1.85)	291 amps
10000(4536)	5.12(1.56)	342 amps
12000(5443)	4.40(1.34)	393 amps
14000(6350)	3.86(1.18)	444 amps
16000(7257)	3.38(1.03)	494 amps
16500(7484)	3.24(0.99)	507 amps

Winch Dimensions

Dimensions	628mm L. x 216mm D. x 247mm H.
Mounting Bolt Pattern	254mm x 114.3mm

Frequently Asked Questions

What vehicles actually need a winch of this capacity?

The 16.5TI-S is built for heavy-duty applications: large frame 4WDs, motorhomes, tow trucks, and recovery operators running loaded vehicles above 5,000kg GVM. It is overkill for a standard dual-cab ute. If your vehicle is under 4,500kg, the Zeon XD or VR Evo range will serve you better.

What is the thermometric indicator and why does it matter?

The thermometric indicator is a dedicated LED that provides real-time feedback on motor and component heat levels during winching. When recovering a heavy vehicle across multiple pulls, heat build-up is the primary cause of failure. This indicator tells you when to pause and let the winch cool down before it becomes an issue.

What is Spydura Pro rope and how does it differ from standard synthetic?

Spydura Pro is Warn's premium synthetic rope, heat-treated for maximum tensile strength and fitted with a temperature-resistant sleeve on the first layer for extra protection during intense winching. It is tougher and more heat-resistant than standard synthetic rope, which matters when pulling heavy loads repeatedly.

What does 'feet-forward mounting' mean for installation?

The 16.5TI-S uses a large-frame design with feet-forward mounting, meaning the mounting feet are positioned at the front of the winch body rather than underneath. This provides a stable, rigid connection to heavy-duty bull bars and winch cradles designed for large frame winches.

Will this winch fit a standard bull bar?

The 16.5TI-S uses the standard 254mm x 114.3mm mounting bolt pattern. However, given its weight of 47kg and 16,500lb pulling capacity, your bull bar must be rated and designed for a winch of this class. Many standard light truck bars are not suitable.

What hook is included with the 16.5TI-S?

The 16.5TI-S comes with a Warn EPIC hook rated to approximately 8,165kg (18,000lb), which comfortably exceeds the winch's rated line pull.

What battery does this winch require?

A minimum 650 CCA battery is specified, but given the high current draw at full load (up to 507 amps), we recommend a quality deep-cycle or AGM battery, and ideally a dual battery setup for sustained recovery operations.

What warranty does the 16.5TI-S carry?

The 16.5TI-S is covered by a limited lifetime warranty on mechanical components and a seven-year warranty on electrical components. We stock genuine Warn products, so warranty claims are handled through the authorised Australian distribution network.
