TAG 4x4 Recovery Towbar for LDV T60 & T60 Max Styleside (07/2017 - on)

TAG 4x4 Recovery Towbar for LDV T60 & T60 Max Styleside (07/2017 - on)

by TAG
SKU TXR868
$1,359.00 - $1,359.00
$1,359.00
$1,359.00 - $1,359.00
$1,359.00
Shipping Calculator
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

4x4 Recovery Towbar for LDV T60 & T60 Max Styleside (07/2017 - on) by TAG

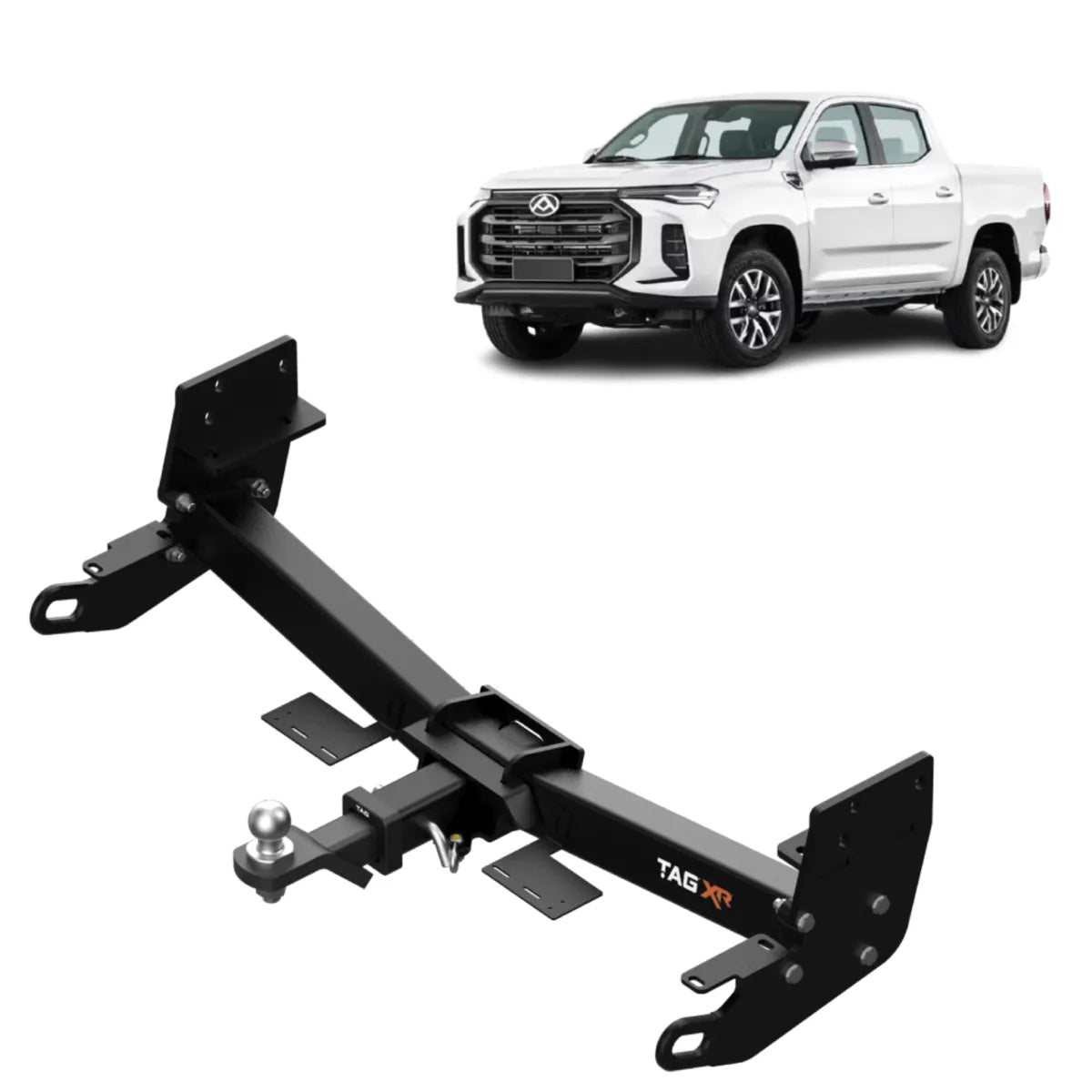

The TAG Extreme Recovery (XR) Towbar for the LDV T60 and T60 Max Styleside is built in Australia and rated to 3500kg towing capacity and 350kg ball weight, with ADR compliance engineered into the design. It suits every T60 Styleside variant, including the Megatub, and pairs a heavy-duty crossbar with a flush, chassis-mounted profile that keeps ground clearance and departure angles close to standard.

Two WLL 4000kg load-rated recovery points are built into the 3-piece side-arm design, with bevelled edges suited to soft-shackle recovery gear. That makes this a genuine rated recovery point, not just a hitch with a tow ball bolted on, which matters if a trip goes sideways and you need a safe, load-tested anchor point rather than a guess.

This listing covers the towbar on its own. If you also need the wiring harness for trailer or caravan lights, TAG's plug-and-play kit is sold separately and matched to your T60's build date, linked below.

Features

  • Fits all T60 and T60 Max Styleside variants, including the Megatub
  • Rated and ADR compliant for 3500kg towing capacity and 350kg ball weight
  • Extreme Duty Reinforced Crossbar
  • Two WLL 4000kg load-rated recovery points with bevelled edges suited to soft-shackles
  • Flush chassis-mounted profile for improved departure angles and offroad clearance
  • Textured powder coated finish
  • Dual top-mounted trailer and Anderson plug mounts
  • Class 4 towbar with 50mm square hitch receiver
  • TAG Limited Lifetime Warranty

A towbar is a safety-critical item and fitment can vary between vehicles even within the same model. We recommend having your towbar and any wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Specifications

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity [kg]: 3500
  • Ball Weight [kg]: 350
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045TXR
  • Coating: Textured Powder Coated
  • Exposure: Partially concealed
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: No
  • Fitting Time [min.]: 60

What's Included

  • TAG 4x4 Recovery Towbar
  • Zinc Tow Ball & Extreme Duty Drop Hitch, rated 3500kg towing capacity / 350kg ball weight
  • Pin & Clip
  • D-Shackles
  • Spacers to suit the 2024 model

Documentation

Already have this towbar and need the wiring? See the matching kits: 07/2017-03/2024 tub models or 03/2024-on tub models.

Vehicle Applications

This towbar is listed against the following 10 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make Model From To Body Series Engine Variant Drivetrain
LDV T60 07/2022 - Ute SK8C 0.0L | Electric – RWD
LDV T60 09/2021 - Ute SK8C SC20M218Q5 | 2.0L | Diesel DTT AWD
LDV T60 09/2021 - Ute SK8C SC20M218Q5 | 2.0L | Diesel DTT RWD
LDV T60 01/2020 - Ute SK8C SC20M163Q5 | 2.0L | Diesel – AWD
LDV T60 01/2020 - Ute SK8C SC20M163Q5 | 2.0L | Diesel – RWD
LDV T60 01/2020 - Ute – D20 | 2.0L | Diesel TRAILRIDER 2 Automatic/Manual 4WD
LDV T60 10/2017 - Ute – SC28R150Q5 | 2.8L | Diesel LUXE, PRO, TRAILRIDER, Automatic/Manual 4WD
LDV T60 10/2017 - Ute – SC28R150Q5 | 2.8L | Diesel Pro| Luxe 4WD
LDV T60 07/2017 - Ute SK8C SC28R150Q5 | 2.8L | Diesel – RWD
LDV T60 07/2017 08/2021 Ute SK8C SC28R150Q5 | 2.8L | Diesel – AWD

Frequently Asked Questions

Does this towbar come with the wiring harness?

No, this listing is for the towbar only. TAG's plug-and-play wiring kit is sold separately and is matched to your T60's build date: the 07/2017-03/2024 kit or the 03/2024-on kit.

What's the rated towing capacity and ball weight?

This towbar is rated and ADR compliant for 3500kg towing capacity and 350kg ball weight.

Is this towbar rated as a recovery point?

Yes. It has two WLL 4000kg load-rated recovery points built into the side-arms, with bevelled edges suited to soft-shackles. That's a genuine rated recovery point, not just a standard tow ball, so it's designed for use with rated recovery gear under normal conditions.

Does fitting this towbar require removing the rear bumper?

Yes, the rear bumper is removed during fitment on the Styleside. No bumper cut-out is required.

Will this towbar fit my LDV T60 Max?

Yes, it fits all T60 and T60 Max Styleside variants, including the Megatub. Check the vehicle applications table below for your specific build date and drivetrain.

How long does fitting typically take?

Typical fitting time is around 60 minutes for an experienced installer. We recommend professional installation given this is a safety-critical item.

Do I need to tell my insurer I've fitted a towbar?

Check with your insurer and your state's transport authority, as requirements vary. Some insurers ask you to declare towing accessories, particularly if you plan to tow regularly.

Can I tow a caravan with this towbar?

Yes, within the towbar's 3500kg towing capacity and 350kg ball weight rating. Your vehicle's own towing capacity, as set by the manufacturer, may be lower, so check your compliance plate or owner's manual and stay within whichever figure is lower.
