TAG Extreme Recovery Towbar & Direct Fit Wiring Kit For Isuzu MU-X (07/2021 - on)

TAG Extreme Recovery Towbar & Direct Fit Wiring Kit For Isuzu MU-X (07/2021 - on)

by TAG
SKU TXR832-K201
$1,545.00 - $1,545.00
$1,545.00
$1,545.00 - $1,545.00
$1,545.00
Shipping Calculator
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

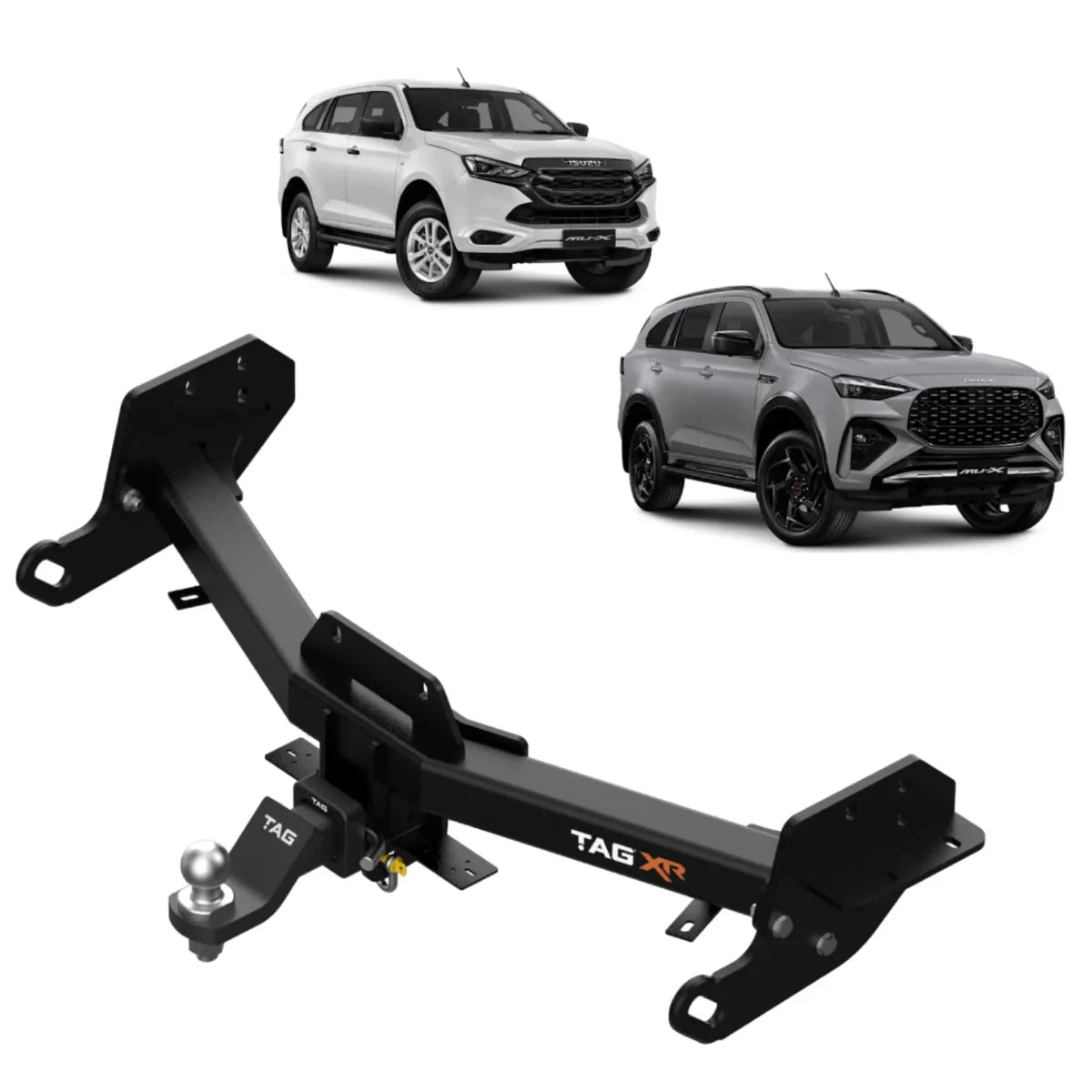

Extreme Recovery Towbar & Direct Fit Wiring Kit For Isuzu MU-X (07/2021 - on) by TAG

The TAG Extreme Recovery Towbar & Direct Fit Wiring Kit gives Isuzu MU-X (07/2021 onward) owners a complete, ready-to-fit package: towbar, direct fit ECU wiring and a 7 pin flat socket in one kit. It's built in Australia for trade, fleet and touring use, and for anyone who wants genuine recovery capability rather than a hitch bolted on for show.

The towbar carries a 3500kg towing capacity and 350kg ball weight, backed by two WLL 4000kg load-rated recovery points built into the 3-piece side-arm design with bevelled edges for soft shackles. Its flush chassis-mounted profile keeps departure angles clear for off-road work, and the direct fit wiring needs no diagnostic coding.

Features

  • Updated design to suit larger tyres, fitting 265/70R17
  • 65mm x 65mm Extreme Duty Reinforced Crossbar
  • Two WLL 4000kg load-rated recovery points, bevelled to suit soft shackles
  • Flush chassis-mounted profile for maximum offroad clearance and improved departure angles
  • Highly durable, textured Extreme Duty Powder Coated Finish
  • Dual top-mounted Trailer & Anderson Plug Mounts
  • Class 4 Towbar, 50mm Square Hitch Receiver
  • TAG Limited Lifetime Warranty
  • Fitting instructions include a bumper cut template

Towbar Specifications

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity [kg]: 3500
  • Ball Weight [kg]: 350
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045STXR
  • Coating: Textured Powder Coated
  • Exposure: Partially concealed
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: Yes
  • Fitting Time [min.]: 90

Wiring Specifications

  • Wiring Type: Direct Fit
  • Includes Trailer Plug: Yes
  • Diagnostic Coding: Not Required
  • CAN Bus Support: No
  • Reverse Sensor Cut-Off: Automatic
  • Reed Switch: Normally Open Circuit

What's Included

  • TAG 4x4 Recovery Towbar
  • TAG Towbar Wiring Direct Fit - ECU
  • TAG 7 Pin Flat Socket, vehicle side
  • Zinc Tow Ball
  • Extreme Duty Drop Hitch, rated at 3500kg towing capacity / 350kg ball weight
  • Pin & Clip
  • D-Shackles

If you already have a compatible wiring harness, this towbar is also available on its own. See the TAG 4x4 Recovery Towbar for Isuzu MU-X (TXR832).

Vehicle Applications

This towbar is listed against the following 6 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make Model From To Body Series Engine Variant Drivetrain
Isuzu MU-X 11/2023 - SUV TFS/TFR (UCR/UCS) RZ4E-TC | 1.9L | Diesel Ddi AWD
Isuzu MU-X 11/2023 - SUV TFS/TFR RZ4E-TC | 1.9L | Diesel Ddi RWD
Isuzu MU-X 07/2021 - SUV RJ 4JJ3-TCX | 3.0L | Diesel LS-M, LS-T, LS-U Automatic 4WD
Isuzu MU-X 07/2021 - SUV RJ 4JJ3-TCX | 3.0L | Diesel LS-M, LS-T, LS-U Automatic RWD
Isuzu MU-X 06/2021 - SUV TFS/TFR 4JJ3-TCX | 3.0L | Diesel Ddi 4WD
Isuzu MU-X 06/2021 - SUV TFS/TFR 4JJ3-TCX | 3.0L | Diesel Ddi RWD

Frequently Asked Questions

What does this TAG towbar and wiring kit include?

The towbar itself plus a direct fit ECU wiring harness and a 7 pin flat socket on the vehicle side, along with the tow ball, drop hitch, pin & clip and D-shackles.

Is the wiring harness direct-fit or universal, and does it need ECU coding?

It's a direct fit harness and does not require diagnostic coding.

Does the wiring kit affect the reversing sensors?

The reverse sensor cut-off is automatic. The tow ball mount also needs to be removed for the auto boot sensor to work correctly.

What tow ball weight and towing capacity does this kit support for the Isuzu MU-X?

350kg ball weight and 3500kg towing capacity. Confirm this against your specific MU-X model's own rating before towing.

Does this kit include a trailer plug?

Yes, a 7 pin flat socket on the vehicle side.

Does the wiring kit support CAN bus vehicles?

No, CAN bus support isn't listed for this kit.

What is the recovery rating of the built-in recovery points?

Two WLL 4000kg load-rated points, bevelled for soft shackles.

Is professional installation recommended?

Yes, we recommend having the towbar and wiring installed by a qualified towbar or auto electrical fitter.
