San Hima 12V 360W Foldable Solar Blanket Kit

12V 360W Folding Solar Blanket Kit from San Hima

You know that moment when your campsite is set up, everything’s perfect… but your gear is running low on power? That’s where the San Hima solar blanket steps in. It’s not just another fold-up solar panel—it’s built to actually keep your devices, batteries, and accessories charged, wherever you roam. Whether you’re camping in the bush, on a road trip, or out with the caravan, this blanket makes sure the sun’s energy works for you, not the other way around.

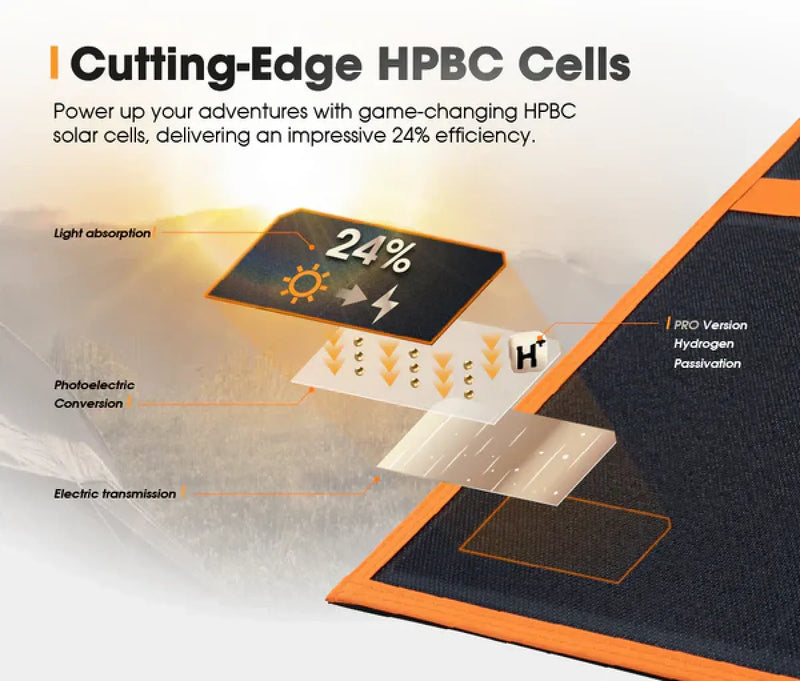

What makes it different? It uses Hybrid Passivated Back Contact (HPBC) cells. That’s a fancy way of saying the metal contacts are on the back, so nothing shades the panel, and it grabs more sunlight. Even on hot days, it stays efficient and durable, giving you consistent power. Add in an ETFE coating that resists dirt, stains, and corrosion, plus a flexible anti-crack film, and you’ve got a solar blanket that’s tough enough to handle the outdoors without being a pain to pack up.

The included MPPT controller makes charging a breeze. It works with all major battery types—Lead Acid, AGM, GEL, Calcium, and LiFePO4—and keeps your USB-powered devices ticking along. Everything you need is neatly packed into a compact, carry-friendly design so you can hit the road without overthinking it.

Features

• Hybrid Passivated Back Contact (HPBC): Back-mounted contacts capture more sunlight, achieving up to 24% conversion efficiency, even in challenging conditions.

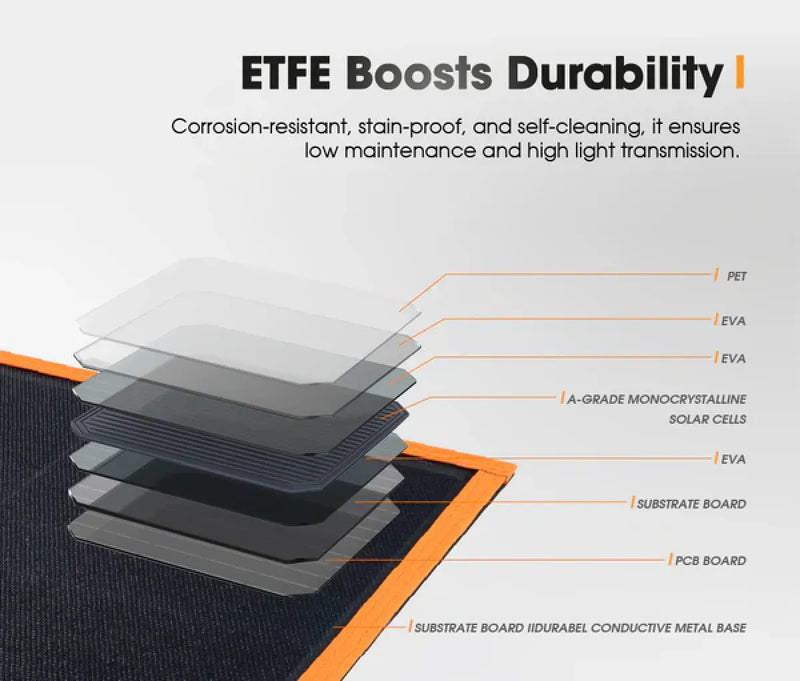

• ETFE Protective Film: Non-stick, self-cleaning surface resists corrosion and stains, maximising sunlight absorption.

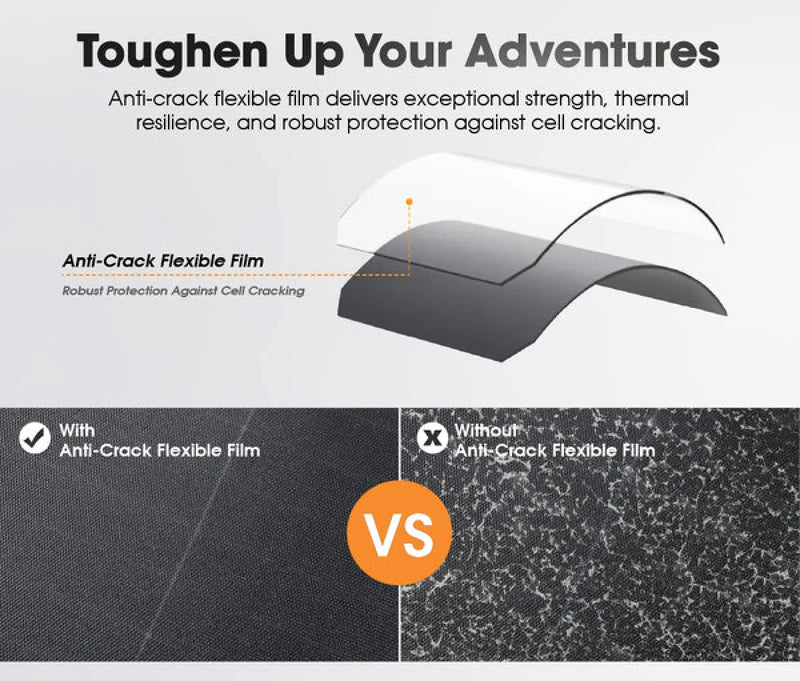

• Anti-Crack Flexible Film: Tough, bendable, and resilient—reduces cell breakage and handles the knocks of outdoor use.
• MPPT Controller Included: Efficiently charges your batteries, powers 12V accessories, and wakes sleeping LiFePO4 batteries.

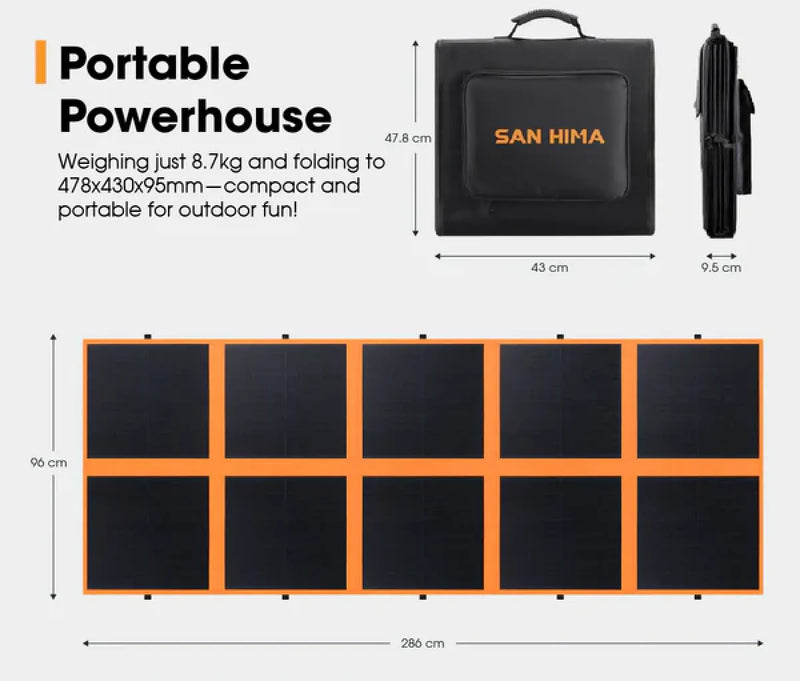

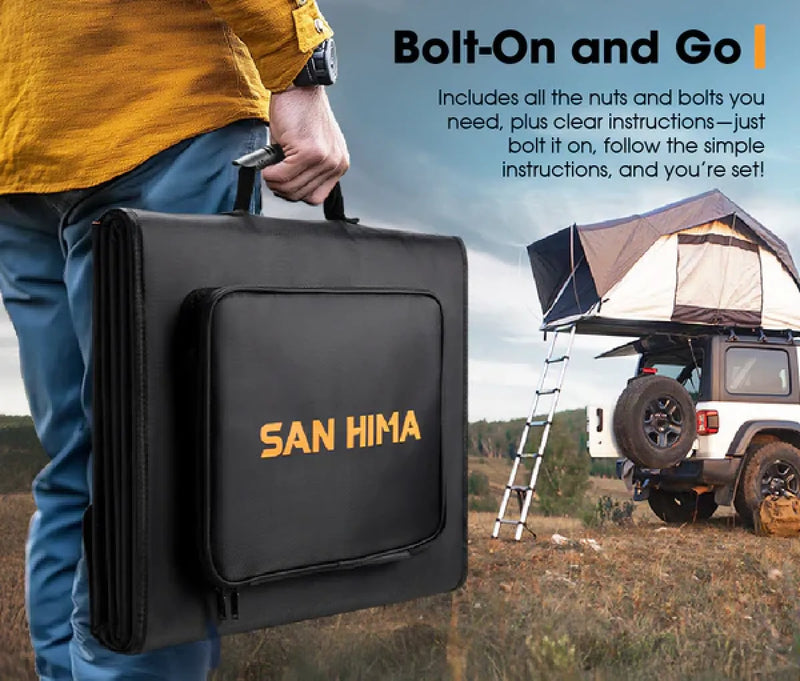

• Portable Design: Weighs 8.7kg and folds into a 478x430x95mm carry bag, making it easy to store or transport.
• Electrical Safety: Built-in protection against reverse polarity, overcurrent, undervoltage, overvoltage, and short circuits.

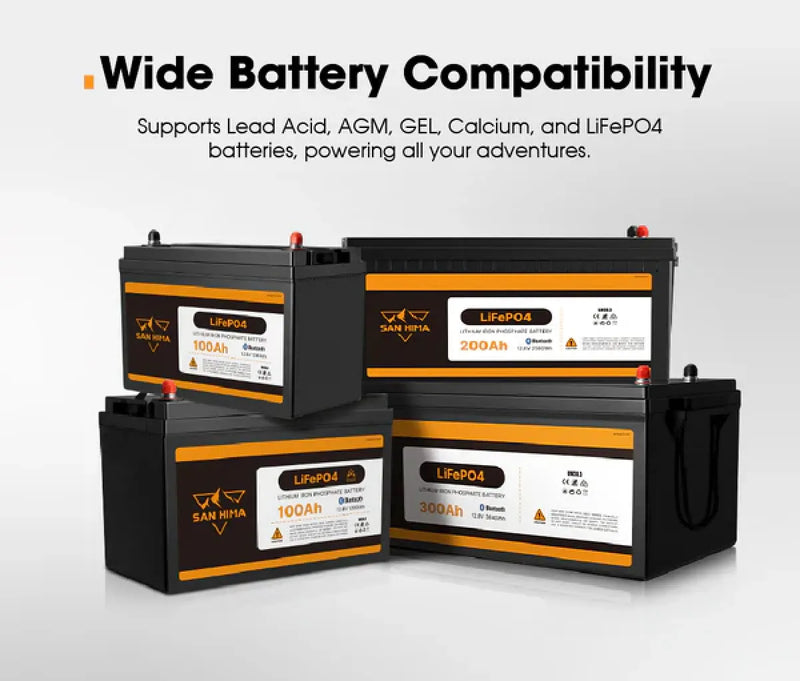

• Versatile Battery Support: Compatible with Lead Acid, AGM, GEL, Calcium, and LiFePO4 batteries—ideal for camping, caravanning, and RVing.
• USB Charging On-the-Go: Keep phones, tablets, and other devices powered while off-grid.

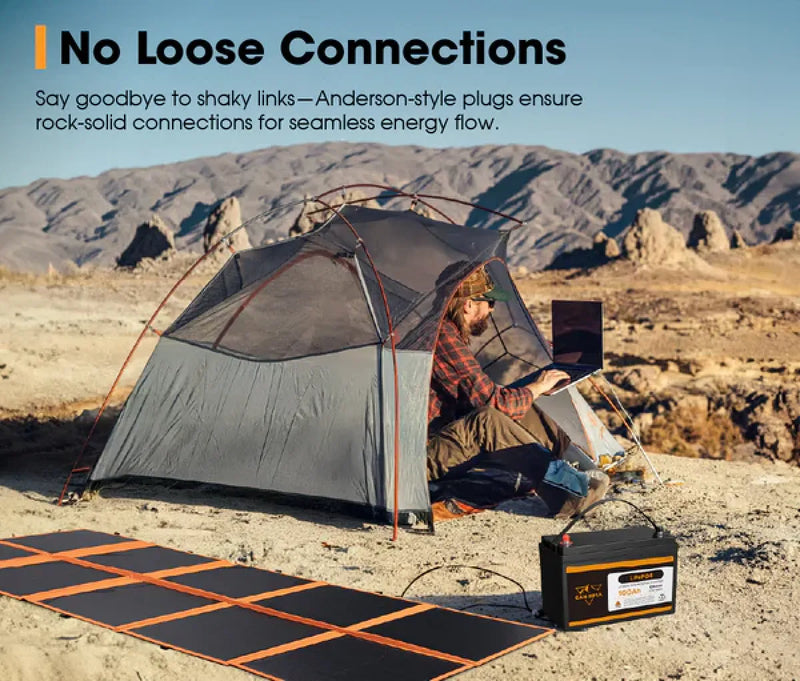

• Secure Connections: Anderson-style plugs ensure reliable, plug-and-play power.
• User-Friendly Setup: Carry handle, front pocket for essentials, and hanging loops make it simple to deploy anywhere.

Specifications

Solar Panel

• Product Dimensions (Open): 2,860 x 960 x 5 mm

• Product Dimensions (Closed): 478 x 430 x 95 mm

• Cell Type: HPBC (Hybrid Passivated Back Contact)

• Cell Coating: ETFE

• Backing Material: Nylon

• Conversion Effieiency: 24%

• Max. Power (PM): 360W

• Open Circuit Voltage (VOC): 28.5V

• Short Circuit Current (ISC): 17.9A

• Max. Power Voltage (VMP): 21.3V

• Max. Power Current (IMP): 16.9A

• Max. System Voltage: 42V

• Power Tolerance: ±5%

• Operating Temperature:-40℃~85℃

• Connector Type:    Anderson-style Plug

• Certifications: CE

• Product Weight: 8.7kg

MPPT Controller

• Battery Voltage Range: 12V/24V

• Max. PV Open Circuit Voltage: 50V

• Max. Solar Input Voltage: 50V

• Rated Charge Current: 20A

• Rated Discharge Current: 20A

• Max. PV Input Power: 500W

• Discharge Circuit Voltage Drop: ≤0.3V

• Self Consumption: ≤8ma

• No Load Current: ＜10ma

• Standby Current Draw: ≤4ma

• Nominal Current Draw: ≤10ma

• USB Output: Type A+Type C; 5V/2.4A

• Operation Temperature: -20℃~50℃

• Storage Temperature: -30℃~70℃

• Relative Humidity: ≤90%

• Package Size: 51cm(L) x 46.8cm(W) x 13.5cm(H)

• Package Weight: 9.4kg

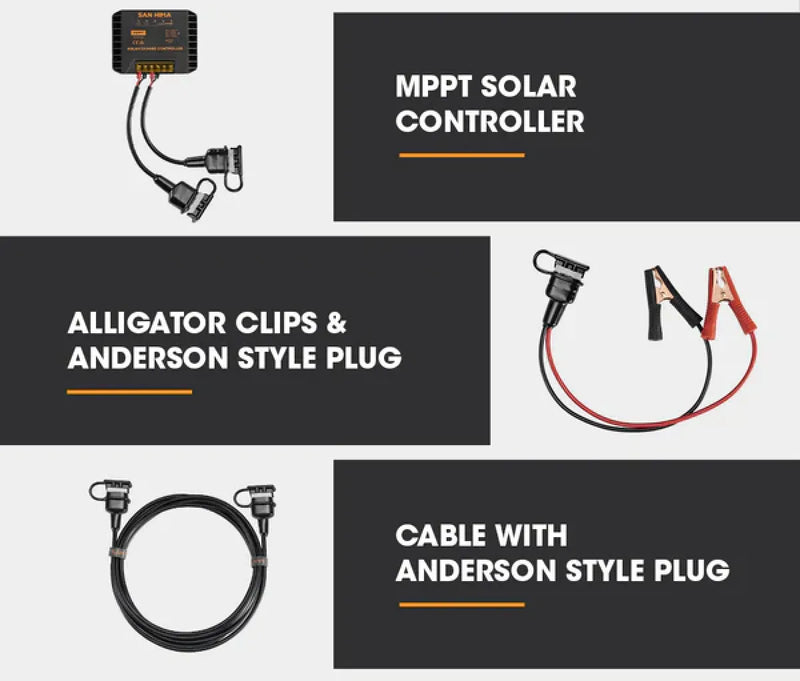

What’s Included

• 1 x San Hima 360W Solar Blanket

• 1 x San Hima 20A MPPT Solar Charge Controller with Anderson Style Plugs

• 1 x 4.5m Extension Cable with Anderson Style Plugs

• 1 x Cable with Alligator Clips and Anderson Style Plug

• 1 x User Manual
