Safari Snorkel Kit for Volkswagen Amarok (09/2016 - on) | SS1410HP

Sold out
Original price $639.00 - Original price $639.00
Original price
$639.00
$639.00 - $639.00
Current price $639.00

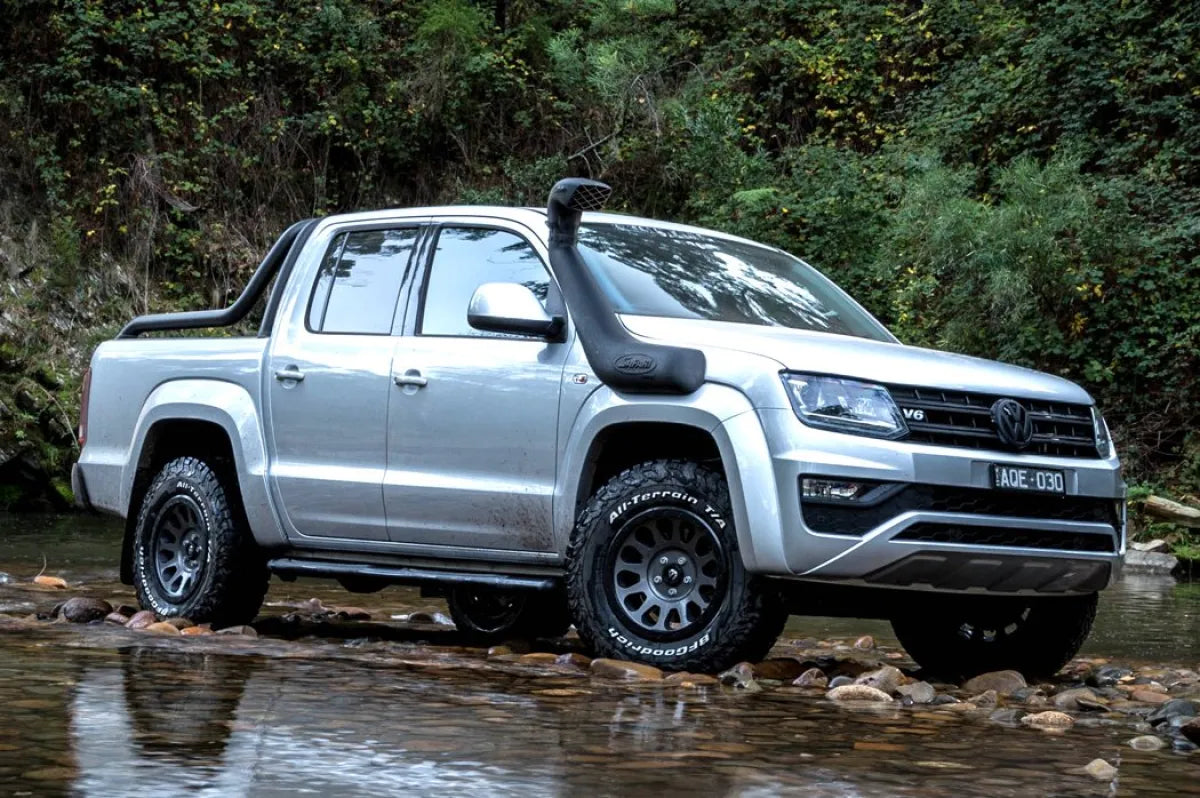

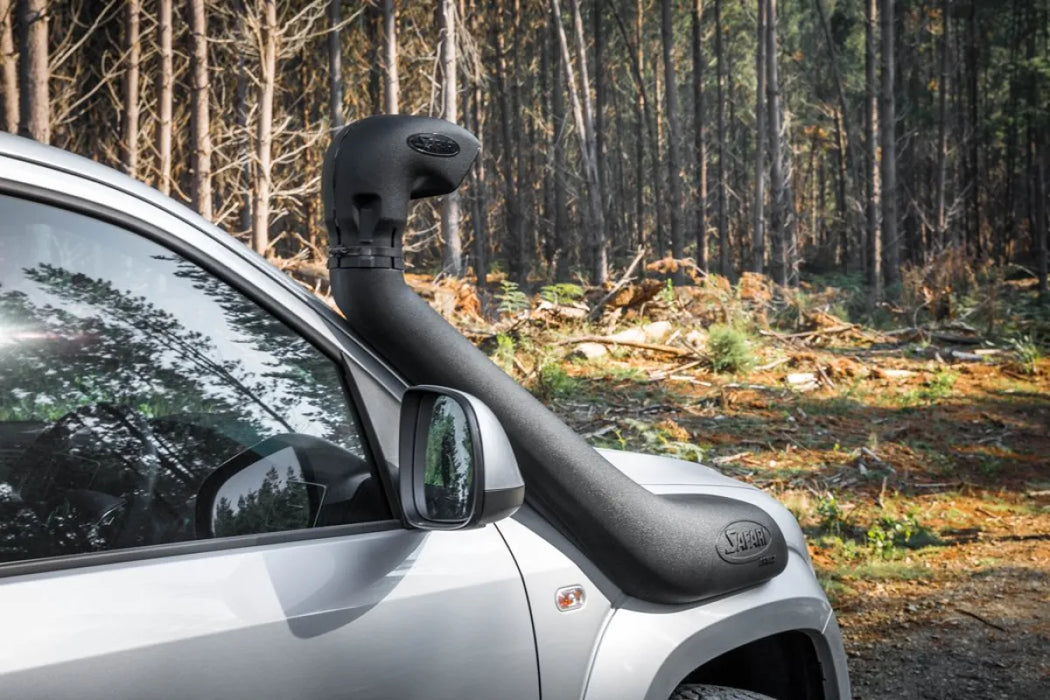

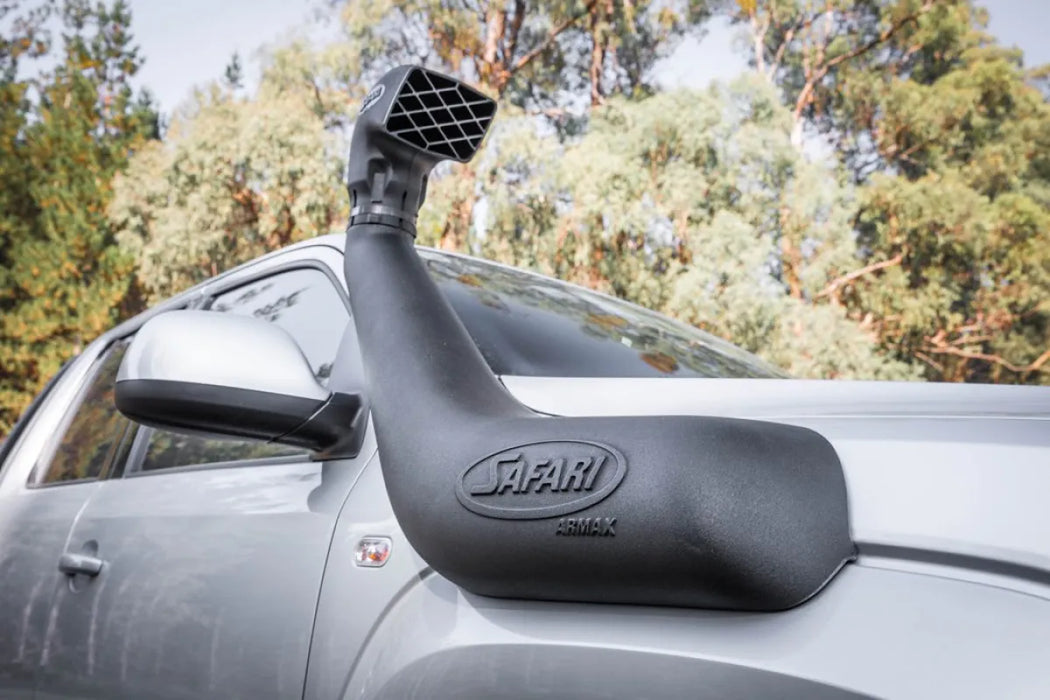

This Safari 4x4 Armax Snorkel Kit has been Designed to suit the Volkswagen Amarok V6 (09/2016 - on)

The SS1410HP Volkswagen Amarok V6 TDi550 4x4 Snorkel is designed to deliver up to 50% more air than the OE air intake for Amarok V6 engines.

With the popularity of performance upgrades using engine management and larger exhausts, Safari 4x4 Engineering took the decision to design a snorkel system that not only raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner, but also would be able to deliver the necessary volume of air into the engine, therefore maximising the performance enhancements potential.

Huge air flow is but one aspect of the ultimate in snorkel Volkswagen Amarok design. The Safari ARMAX snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari ARMAX air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

Safari ARMAX Volkswagen Amarok V6 Snorkel Features

  • Up to 50% increased airflow for your Amarok V6 engine
  • Safari’s rounded style Air Ram; however with minimum 4” (101.6mm) neck and an optimised air flow, low restriction grill
  • Australian designed, moulded and manufactured
  • Design and flow tested by our in house engineers for maximum performance
  • Development and verification in conjunction with other soon to be released ARMAX™ performance enhancement products.
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Volkswagen Amarok 3.0L Diesel V6 4WD Snorkel fitting guide with an accurate template for installation.
  • Lifetime warranty

The Safari ARMAX™ Snorkels Feature

  • Safari’s own Industrial Spec UV Stabilised Polyethylene
  • Safari’s rounded style Air Ram; however with minimum 4” (101.6mm) neck and an optimised air flow, low restriction grill
  • A Life Time warranty
  • Design and flow tested by our in house engineers for maximum performance
  • Development and verification in conjunction with other soon to be released ARMAX™ performance enhancement products.
These snorkels are all new designs, tested on a custom built flow bench, to flow 25% to 70% more air than the stock air cleaner housing flows from the vehicle manufacturer, whilst still providing a watertight raised air intake.

Snorkel kit only fits on models with factory flares fitted. Only suits DDXC (V6 Turbo Diesel) engines.

SAFARI 4X4 SNORKEL INSTALLATION GUIDE FOR VW AMAROK V6



Specifications

  • Fits vehicle year to: Present
  • Fits vehicle year from: 2016
  • Fits vehicle year from month: 09
  • Style: ARMAX
  • Fitment side: Drivers Side
  • Material type: UV Stabilised Polyethylene
  • Fitting time aprox: 3.5 Hr

VEHICLES

Make Model Series Year From Year To Body Engine Engine Capacity Variant Drivetrain Cylinders
VOLKSWAGEN AMAROK 2H 2016 Present Ute DDXC 3.0L V6 TDI550 6
VOLKSWAGEN AMAROK 2H 2016 Present Ute DDXC 3.0L V6 TDI550 6
