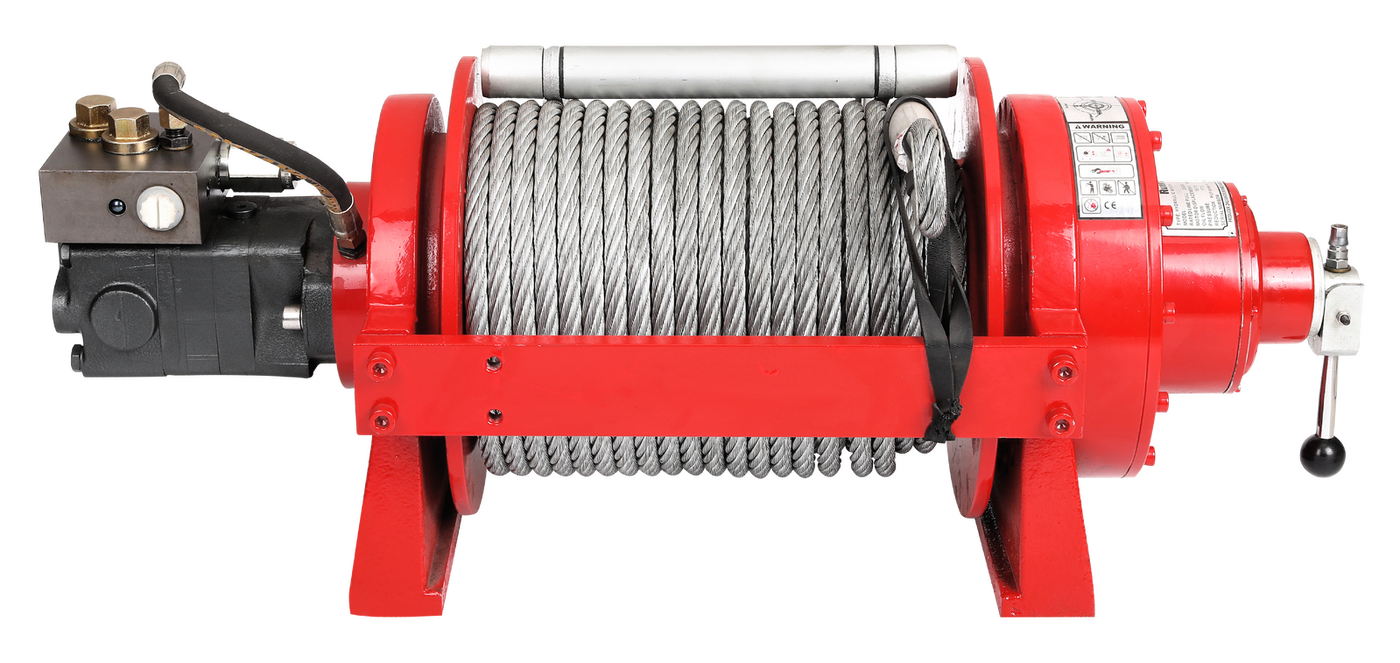

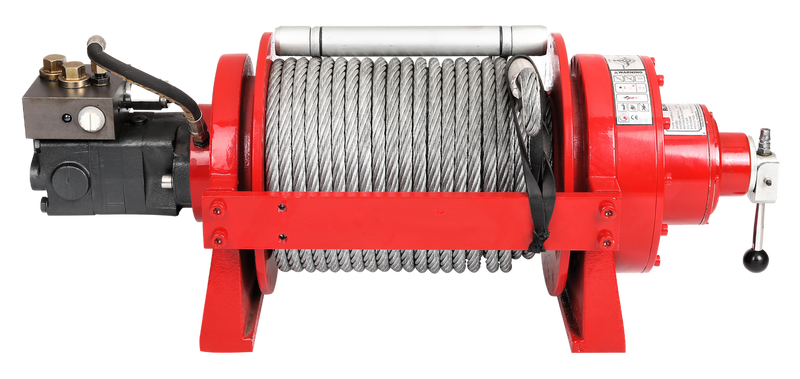

The Industrial HWP20000Y2P Hydraulic Winch with Steel Cable by Runva
Runva's Industrial HWP20000Y2P Hydraulic Winch with Steel Cable stands as their flagship among its commercial-grade hydraulic winches and caters to diverse industries and applications. This powerhouse boasts an impressive 20,000lb line pull capacity, supported by 48 meters of robust 14MM steel cable wound on its drum, making it a reliable choice for the most demanding recovery tasks.
The HWP20000Y2P operates as a single-speed winch complemented by a dual-mode clutch system, allowing for manual or air-powered operation. Its braking power is delivered through an automatic wet-type hydraulic disc brake, ensuring safe and efficient control during operation. The gearbox's robustness and efficiency are attributed to Runva's patented two-stage planetary setup.
Engineered with full IP67 ingress protection, this winch is unyielding even in the harshest of environments. The HWP20000Y2P finds its niche in a wide array of applications, from tow trucks and recovery vehicles to expeditionary machines like Unimog and Iveco Daily, log splitters, portable hydraulic equipment, marine use, and beyond.
For those seeking remote control options, an optional accessory kit is available, comprising a handheld remote (with wireless functionality as an option), a directional control valve (available in 12V or 24V), and a valve block to enhance the winch's usability and versatility.
Included
- Winch With Steel Cable
- Mounting Bolts
Specifications
-
Rated Line Pull 20000lb (9072kg)
-
Motor Displacement 100ml/r
-
Oil Flow 25-75L/min
-
Pressure 17.5MPa
-
Gear Train Full Steel 2 Stage Planetary
-
Gear Ratio 39:1
-
Clutch Type Manual + Air
-
Clutch Handle Position Side of winch
-
Brake Automatic Load Holding Hydraulic Disc
-
Cable Type Steel Cable
-
Cable Size 14mm x 48m
-
Drum Size 138mm x 316mm
-
Mounting Bolt Pattern 431mm x 64mm x 192mm (8x M14 Bolts)
-
Overall Dimensions 835mm x 390mm x 320mm
-
Finish Red Powder Coat
-
Shipping Weight 163kg (includes packaging)
-
Warranty Limited 18 Months Commercial Warranty
Performance
| LINE PULL LB (KG)
|
PRESSURE MPA (PSI)
|
FLOW G/MIN (L/MIN)
|
LINE SPEED FT/MIN (M/MIN)
|
LAYER OF CABLE |
RATED LINE PULL LB (KG)
|
TOTAL ROPE ON DRUM FT (M)
|
| 0 |
2.5 (362.6) |
4.0 (15) |
5.9 (1.8) |
|
|
|
| 4,000 (1,814) |
4.2 (609.1) |
7.9 (30) |
11.8 (3.6) |
1 |
20,000 (9,072) |
33.8 (10.3) |
| 8,000 (3,629) |
8.5 (1,232.8) |
13.2 (50) |
19.7 (6.0) |
2 |
16,889 (7,661) |
73.8 (22.5) |
| 15,000 (6,804) |
14.0 (2,030) |
15.9 (60) |
23.6 (7.2) |
3 |
14,615 (6,630) |
117.8 (35.9) |
| 20,000 (9,072) |
17.5 (2,538.1) |
19.9 (75) |
29.5 (9.0) |
4 |
12,881 (5,843) |
157.5 (48.0) |
Note: The maximum line pull capacity is based on the first layer of cable/rope.
Frequently Asked Questions
What's the key difference between the HWP20000Y2P and the HWP20000YP?
Both models share the same 20,000lb rated line pull and 14mm x 48m steel cable, but differ in gearbox and clutch design. The HWP20000Y2P is a single-speed model with a dual-mode clutch, operated either manually or via compressed air. The HWP20000YP is a two-speed model with a manual-only clutch. The two-speed YP allows faster retrieval of lighter loads, while the Y2P's air clutch suits applications where reaching the clutch lever manually is difficult or time-consuming.
What's included with the HWP20000Y2P out of the box?
The HWP20000Y2P ships with the winch unit, 14mm x 48m steel cable pre-wound on the drum, and mounting bolts. A remote control is not included, handheld and wireless remote options are available as an optional accessory kit, which also includes a directional control valve (12V or 24V) and valve block.
What hydraulic oil flow and pressure does this winch require?
The HWP20000Y2P requires an oil flow of 25-75 L/min and a working pressure of up to 17.5MPa. Your vehicle's hydraulic system, whether a PTO pump, steering pump tap-off, or dedicated hydraulic power pack, needs to meet these requirements for the winch to operate at rated capacity. Confirm your hydraulic circuit specifications with a qualified hydraulic technician before installation.
What does IP67 ingress protection cover on this winch?
IP67 is designed to protect against temporary water immersion up to 1 metre depth under normal operating conditions. For a commercial winch used on recovery vehicles and expedition builds, this means it's intended to handle rain, river crossings, and wash-down without ingress, provided seals and fittings remain intact. Inspect seals periodically, particularly after use in silty or salt water.
What industries and vehicle applications is this winch suited to?
The HWP20000Y2P is designed for commercial and industrial applications including tow trucks, recovery vehicles, Unimog and Iveco Daily expedition builds, log splitters, portable hydraulic equipment, and marine use. The 20,000lb line pull and IP67 protection make it suited to demanding environments where a standard 4WD electric winch wouldn't have the capacity or duty cycle required.
Is the air clutch function built in, or is it an add-on?
The air clutch capability is built into the HWP20000Y2P, both manual and air-powered clutch operation are included as standard, which is one of the key distinctions from the manual-only clutch on the YP model. To use the air clutch, your vehicle or equipment needs a suitable compressed air supply connected to the clutch actuator. Consult the installation documentation or a qualified installer for your specific application.
What warranty does the HWP20000Y2P carry?
The HWP20000Y2P carries a limited 18-month commercial warranty. Coverage is subject to correct installation and operation within rated specifications.
How heavy is this winch, and what mounting does it require?
The HWP20000Y2P has a shipping weight of 163kg (including packaging) and overall dimensions of 835 x 390 x 320mm. It mounts via 8 x M14 bolts in a 431 x 64 x 192mm pattern. Given the size and weight, professional installation by a qualified mechanic or fabricator is strongly recommended to ensure the mounting structure can handle the load and all hydraulic connections are correctly made.
