EWB20000 20,000lb Winch with Aircraft Grade Steel Cable by Runva

The Runva EWB20000 Premium with steel cable is a 20,000lb (9072kg) extreme duty electric winch spooled with 26.5m of 12mm aircraft grade steel cable. Runva builds it for recreational and commercial work, from expedition Unimogs and Iveco Dailys to tow trucks, marine and military applications, and it's available in 12V or 24V.

Every part of it is IP67 rated, so the whole winch is sealed against water, dust and dirt ingress, not only the motor. Drive comes through a full steel three-stage planetary gear train with a 370:1 ratio, and an automatic ratchet brake inside the gearbox is designed to hold the load when you stop winching. Runva fits the same brake to its vertical lifting winch, and it works without brake pads.

Rated pull depends on how much cable is on the drum. Runva rates the EWB20000 at 20,000lb (9072kg) on the first layer, 16,129lb (7316kg) on the second and 11,628lb (5274kg) on the fourth, when all 26.5m is wound on. On the electrical side, the 24V motor draws 253A at full load compared with 430A for the 12V. Most Unimogs and tow trucks run a 24V system, and on those rigs the 24V version is the natural fit.

The stainless steel rotary clutch freespools the drum, and the gearbox rotates so you can put the clutch handle where it's easiest to reach. For in-cab control, it's compatible with the optional Runva Air Clutch. Runva also offers an optional cable tensioner for commercial applications. Private use is covered by a limited 5 year electrical and lifetime mechanical warranty, and commercial use by a limited 18 month warranty.

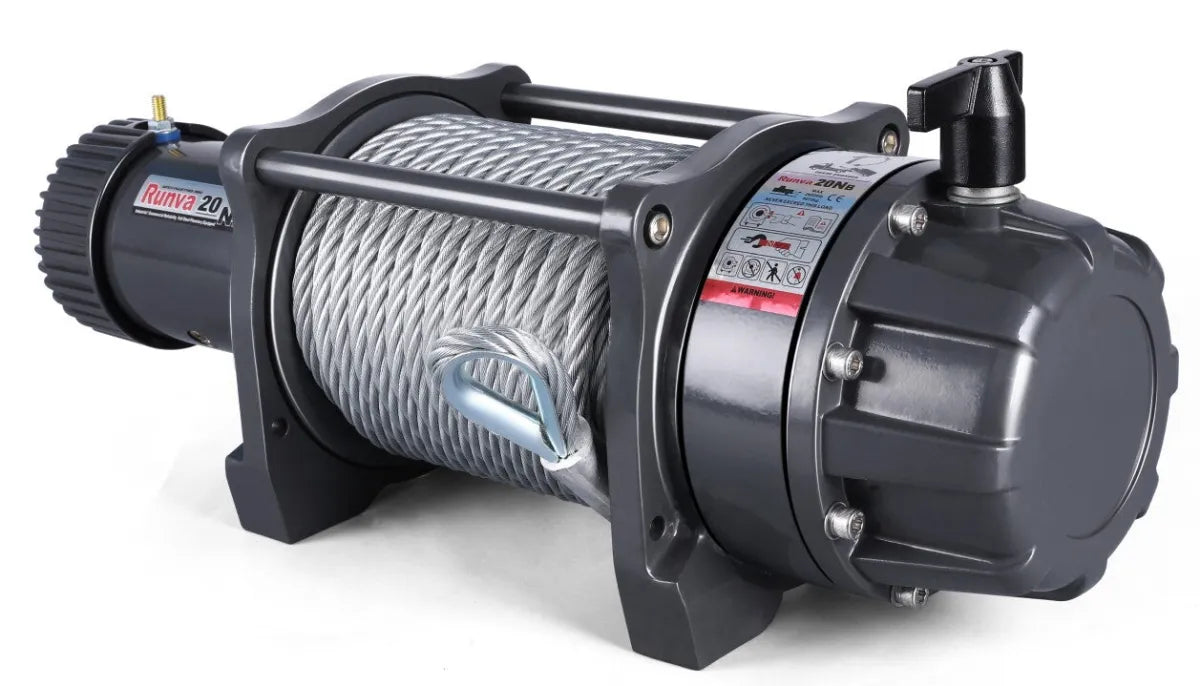

Runva EWB20000 Premium winch with steel cable, angled three-quarter view
20,000lb (9072kg) Rated Line Pull
370:1 Gear Ratio
IP67 Ingress Rating
12mm x 26.5m Steel Cable

Features

20,000lb (9072kg) rated line pull on the first layer of cable
12mm x 26.5m aircraft grade steel cable
Choice of 12V (5.5kW/7.4HP) or 24V (6.1kW/8.2HP) series wound motor
IP67 rating across the entire winch
Full steel three-stage planetary gear train with a 370:1 ratio
Automatic ratchet load-holding brake in the gearbox, with no brake pads
Stainless steel rotary clutch, with a gearbox that rotates to position the clutch handle
Compatible with the optional Runva Air Clutch for in-cab freespool
Stainless steel roller fairlead included
Handheld and wireless remotes both included

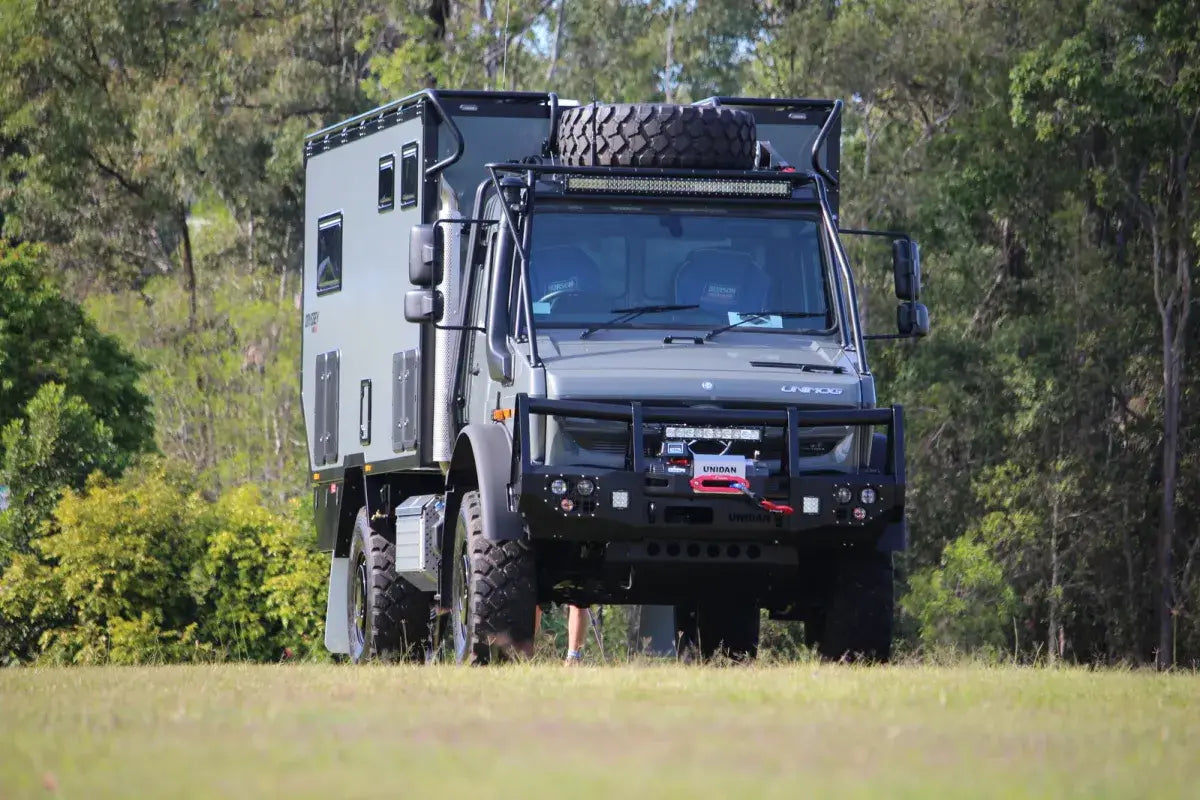

Runva EWB20000 Premium winch fitted to the front bar of an expedition camper truck

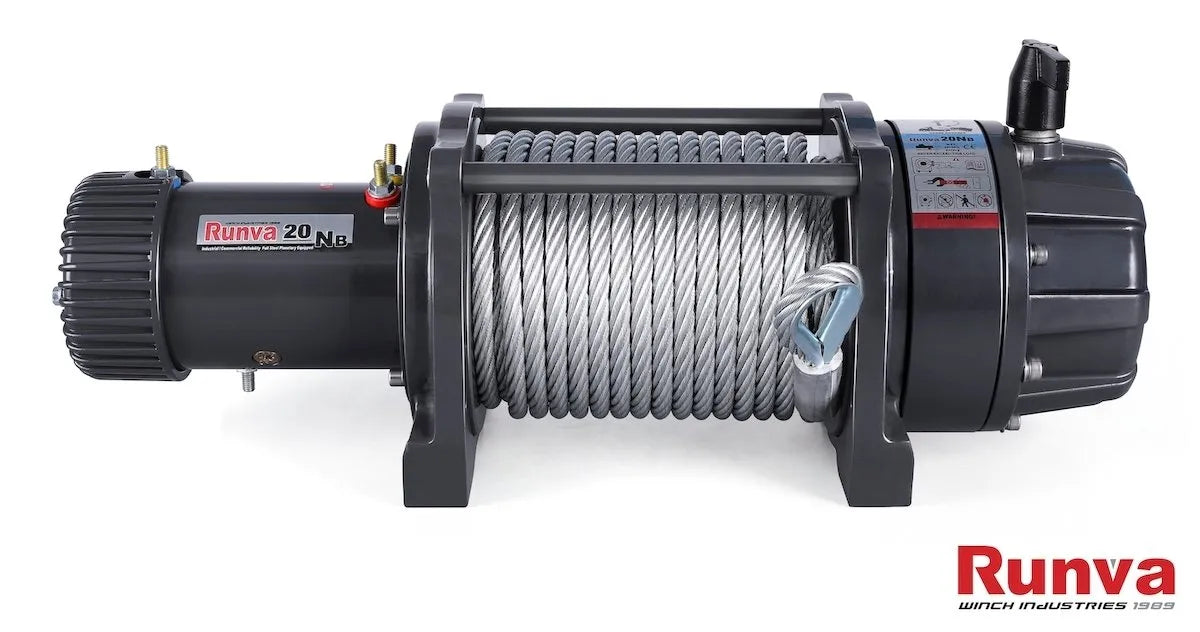

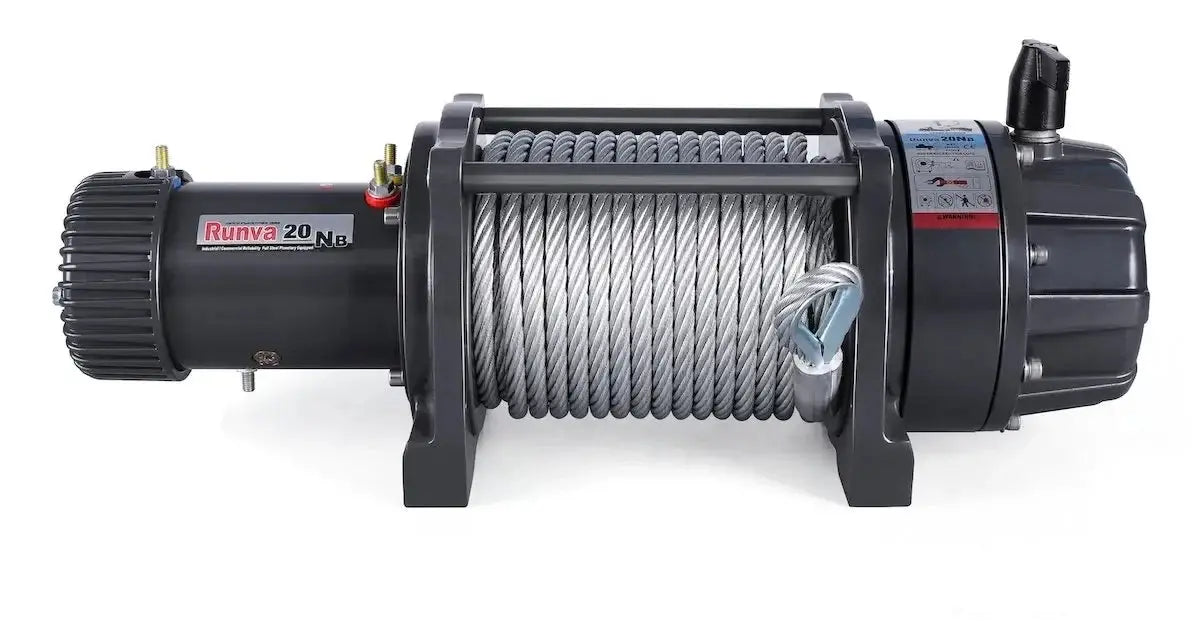

Runva EWB20000 Premium winch with steel cable, front view

The EWB20000 Premium on the front bar of an expedition camper truck, and the steel cable winch from the front.

Runva EWB20000 Premium 12V/24V Steel Cable Winch Specifications

  • Rated Line Pull 20,000lb (9072kg)
  • Motor Series Wound (12V) 5.5kW/7.4HP | (24V) 6.1kW/8.2HP, IP67 Rated
  • Gear Train Full Steel 3 Stage Planetary
  • Gear Ratio 370:1
  • Clutch Stainless Steel Rotary Clutch (gearbox can be rotated for clutch handle position)
  • Brake Automatic Ratchet Load Holding in Gearbox
  • Steel Cable Aircraft Grade, 12mm x 26.5m
  • Drum Size 88mm x 217mm
  • Mounting Bolt Pattern 254mm x 114.3mm; 254mm x 165.1mm (8x M12 Bolts)
  • Overall Dimensions 636mm x 214mm x 252mm
  • Remote Control 3.7m Heavy Duty Handheld/Wireless Remote
  • Battery Leads Included. 2 x 1.8m Heavy Duty Leads
  • Finish Grey Powder Coat
  • Shipping Weight 70kg
  • Shipping Dimensions 720mm x 360mm x 330mm
  • Warranty Limited 5 Year Electrical and Lifetime Mechanical Warranty; Limited 18 month Commercial Use Warranty

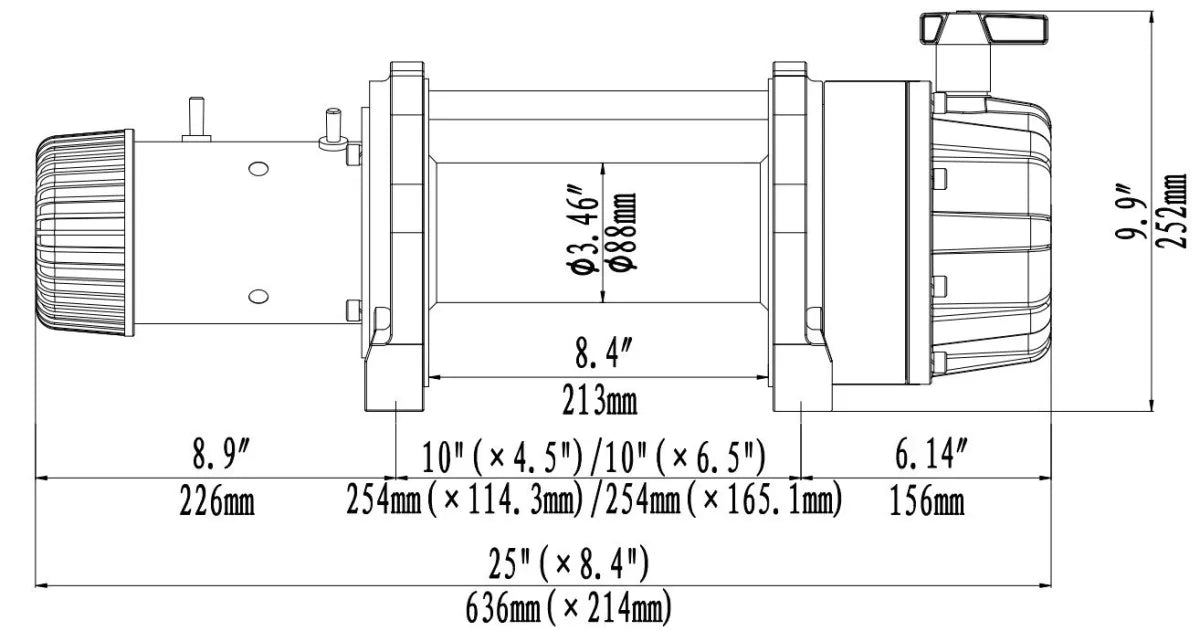

Runva EWB20000 Premium dimensions diagram showing 636mm overall length and dual bolt patterns

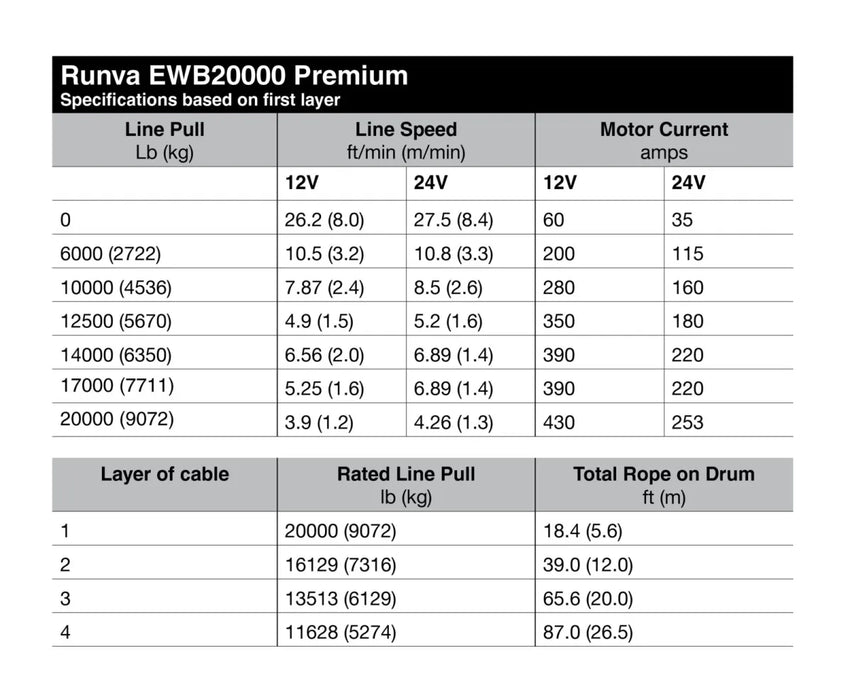

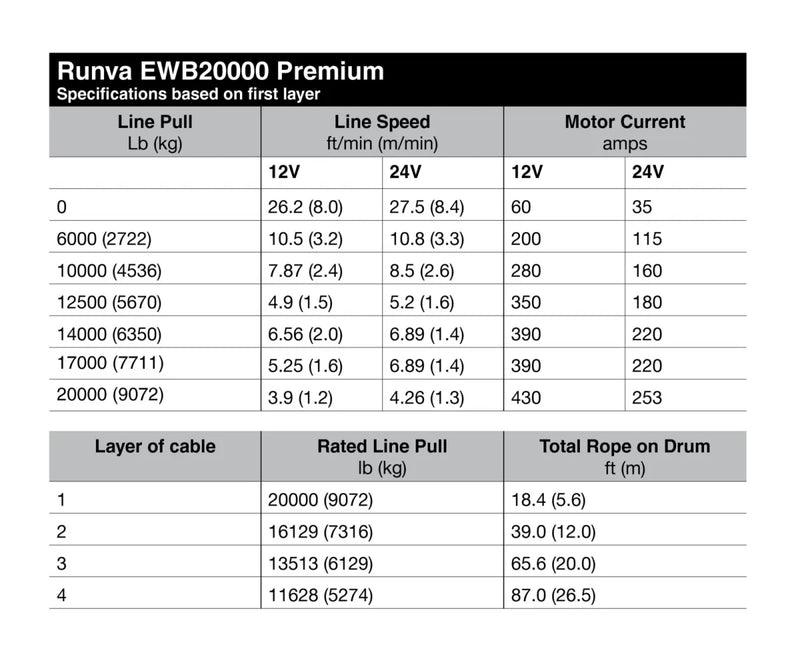

Performance on the First Layer

Line Pull lb (kg) Line Speed 12V m/min Line Speed 24V m/min Motor Current 12V (A) Motor Current 24V (A)
0 (no load) 8.0 8.4 60 35
6,000 (2722) 3.2 3.3 200 115
10,000 (4536) 2.4 2.6 280 160
17,000 (7711) 1.6 1.4 390 220
20,000 (9072) 1.2 1.3 430 253

Rated Line Pull by Cable Layer

Cable Layer Rated Line Pull lb (kg) Total Cable on Drum (m)
1 20,000 (9072) 5.6
2 16,129 (7316) 12
3 13,513 (6129) 20
4 11,628 (5274) 26.5

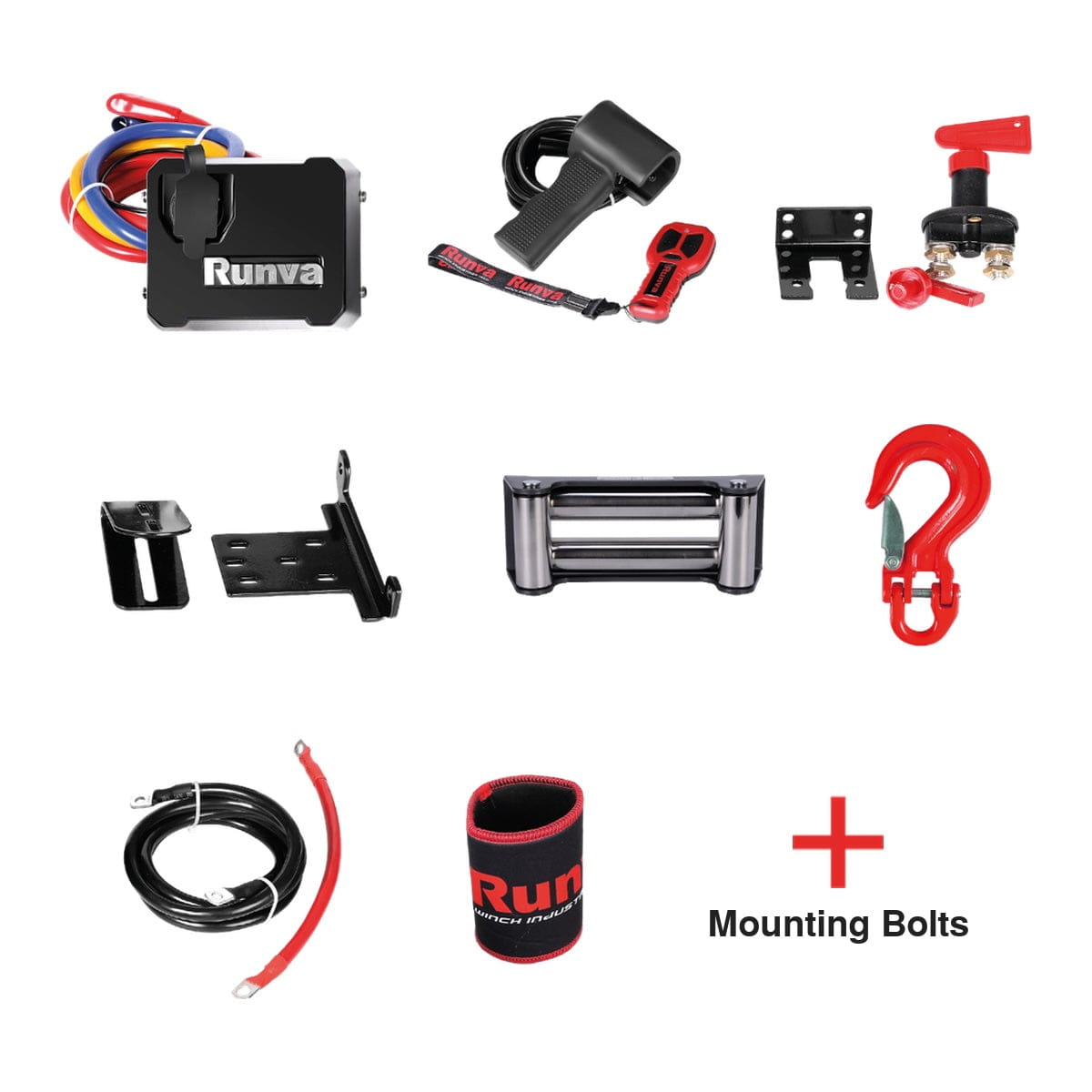

Runva EWB20000 Premium kit: control box, remotes, isolator, brackets, fairlead, hook, leads and mounting bolts

What's Included

  • Winch with Steel Cable
  • Control Box With Power Cables + Multiple Brackets For Easy Fitting
  • Handheld + Wireless Remotes
  • Large Recovery Hook
  • Stainless Steel Roller Fairlead
  • Power Isolator Switch + Bracket + Power Cable
  • Mounting Bolts

Note: The wireless remote control includes an A23 battery.

Frequently Asked Questions

What's the difference between the steel cable and synthetic rope EWB20000?

The winch itself is the same: 20,000lb (9072kg) rated line pull, 12V or 24V motors, the 370:1 gearbox, the ratchet brake and full IP67 sealing. This version carries 12mm x 26.5m aircraft grade steel cable and comes with a stainless steel roller fairlead. The synthetic version carries 12mm x 25m synthetic rope and comes with an aluminium hawse fairlead.

Should I choose the 12V or 24V EWB20000 steel cable winch?

Both are rated to 20,000lb (9072kg). The 12V motor is 5.5kW/7.4HP and the 24V motor is 6.1kW/8.2HP, and at full rated load Runva lists 430A on 12V against 253A on 24V. Choose the voltage that matches your vehicle's electrical system, and have a qualified auto electrician confirm your battery and charging setup before installation.

How much does the line pull drop on the outer cable layers?

Runva rates the EWB20000 at 20,000lb (9072kg) on the first layer, 16,129lb (7316kg) on the second, 13,513lb (6129kg) on the third and 11,628lb (5274kg) on the fourth. Spooling more cable off the drum keeps you closer to the full rating on heavy pulls. Refer to the manufacturer's instructions for rigging your specific recovery.

What is the line speed of the Runva EWB20000?

On the first layer with no load, Runva lists 8.0m/min on 12V and 8.4m/min on 24V. At the full 20,000lb (9072kg) rating it's 1.2m/min on 12V and 1.3m/min on 24V.

Is the whole EWB20000 IP67 rated?

Yes. Runva rates the entire EWB20000 Premium to IP67, a dust-tight rating with protection against temporary immersion in water, rather than sealing the motor alone.

How does the ratchet brake hold the load?

The EWB20000 uses an automatic ratchet load-holding brake inside the gearbox instead of brake pads. It's the same brake Runva uses in its vertical lifting winch and is designed to hold the load when you stop winching. Inspect the winch and cable before each use.

What bolt pattern does the EWB20000 steel cable winch use?

Two patterns, 254mm x 114.3mm and 254mm x 165.1mm, both with 8 x M12 bolts. The winch measures 636mm x 214mm x 252mm overall. Consult a licensed mechanic or engineer to confirm your bar or carrier is rated for a winch of this capacity.

What warranty comes with the Runva EWB20000 Premium?

A limited 5 year electrical and lifetime mechanical warranty for private use, and a limited 18 month warranty for commercial use. Full terms are set by Runva.

Prefer synthetic rope? The same EWB20000 Premium is also listed with synthetic rope in 12V or 24V. You can also compare it with our other heavy duty truck winches or browse the full 4x4 winch range.

Product Bundles

If you'd like a discount price on a bundle of items not displayed below please contact us here and we'll give you our best price.
Description

EWB20000 20,000lb Winch with Aircraft Grade Steel Cable by Runva

The Runva EWB20000 Premium with steel cable is a 20,000lb (9072kg) extreme duty electric winch spooled with 26.5m of 12mm aircraft grade steel cable. Runva builds it for recreational and commercial work, from expedition Unimogs and Iveco Dailys to tow trucks, marine and military applications, and it's available in 12V or 24V.

Every part of it is IP67 rated, so the whole winch is sealed against water, dust and dirt ingress, not only the motor. Drive comes through a full steel three-stage planetary gear train with a 370:1 ratio, and an automatic ratchet brake inside the gearbox is designed to hold the load when you stop winching. Runva fits the same brake to its vertical lifting winch, and it works without brake pads.

Rated pull depends on how much cable is on the drum. Runva rates the EWB20000 at 20,000lb (9072kg) on the first layer, 16,129lb (7316kg) on the second and 11,628lb (5274kg) on the fourth, when all 26.5m is wound on. On the electrical side, the 24V motor draws 253A at full load compared with 430A for the 12V. Most Unimogs and tow trucks run a 24V system, and on those rigs the 24V version is the natural fit.

The stainless steel rotary clutch freespools the drum, and the gearbox rotates so you can put the clutch handle where it's easiest to reach. For in-cab control, it's compatible with the optional Runva Air Clutch. Runva also offers an optional cable tensioner for commercial applications. Private use is covered by a limited 5 year electrical and lifetime mechanical warranty, and commercial use by a limited 18 month warranty.

Runva EWB20000 Premium winch with steel cable, angled three-quarter view
20,000lb (9072kg) Rated Line Pull 370:1 Gear Ratio IP67 Ingress Rating 12mm x 26.5m Steel Cable

Features

20,000lb (9072kg) rated line pull on the first layer of cable 12mm x 26.5m aircraft grade steel cable Choice of 12V (5.5kW/7.4HP) or 24V (6.1kW/8.2HP) series wound motor IP67 rating across the entire winch Full steel three-stage planetary gear train with a 370:1 ratio Automatic ratchet load-holding brake in the gearbox, with no brake pads Stainless steel rotary clutch, with a gearbox that rotates to position the clutch handle Compatible with the optional Runva Air Clutch for in-cab freespool Stainless steel roller fairlead included Handheld and wireless remotes both included
Runva EWB20000 Premium winch fitted to the front bar of an expedition camper truck Runva EWB20000 Premium winch with steel cable, front view

The EWB20000 Premium on the front bar of an expedition camper truck, and the steel cable winch from the front.

Runva EWB20000 Premium 12V/24V Steel Cable Winch Specifications

  • Rated Line Pull 20,000lb (9072kg)
  • Motor Series Wound (12V) 5.5kW/7.4HP | (24V) 6.1kW/8.2HP, IP67 Rated
  • Gear Train Full Steel 3 Stage Planetary
  • Gear Ratio 370:1
  • Clutch Stainless Steel Rotary Clutch (gearbox can be rotated for clutch handle position)
  • Brake Automatic Ratchet Load Holding in Gearbox
  • Steel Cable Aircraft Grade, 12mm x 26.5m
  • Drum Size 88mm x 217mm
  • Mounting Bolt Pattern 254mm x 114.3mm; 254mm x 165.1mm (8x M12 Bolts)
  • Overall Dimensions 636mm x 214mm x 252mm
  • Remote Control 3.7m Heavy Duty Handheld/Wireless Remote
  • Battery Leads Included. 2 x 1.8m Heavy Duty Leads
  • Finish Grey Powder Coat
  • Shipping Weight 70kg
  • Shipping Dimensions 720mm x 360mm x 330mm
  • Warranty Limited 5 Year Electrical and Lifetime Mechanical Warranty; Limited 18 month Commercial Use Warranty
Runva EWB20000 Premium dimensions diagram showing 636mm overall length and dual bolt patterns

Performance on the First Layer

Line Pull lb (kg) Line Speed 12V m/min Line Speed 24V m/min Motor Current 12V (A) Motor Current 24V (A)
0 (no load) 8.0 8.4 60 35
6,000 (2722) 3.2 3.3 200 115
10,000 (4536) 2.4 2.6 280 160
17,000 (7711) 1.6 1.4 390 220
20,000 (9072) 1.2 1.3 430 253

Rated Line Pull by Cable Layer

Cable Layer Rated Line Pull lb (kg) Total Cable on Drum (m)
1 20,000 (9072) 5.6
2 16,129 (7316) 12
3 13,513 (6129) 20
4 11,628 (5274) 26.5
Runva EWB20000 Premium kit: control box, remotes, isolator, brackets, fairlead, hook, leads and mounting bolts

What's Included

  • Winch with Steel Cable
  • Control Box With Power Cables + Multiple Brackets For Easy Fitting
  • Handheld + Wireless Remotes
  • Large Recovery Hook
  • Stainless Steel Roller Fairlead
  • Power Isolator Switch + Bracket + Power Cable
  • Mounting Bolts

Note: The wireless remote control includes an A23 battery.

Frequently Asked Questions

What's the difference between the steel cable and synthetic rope EWB20000?

The winch itself is the same: 20,000lb (9072kg) rated line pull, 12V or 24V motors, the 370:1 gearbox, the ratchet brake and full IP67 sealing. This version carries 12mm x 26.5m aircraft grade steel cable and comes with a stainless steel roller fairlead. The synthetic version carries 12mm x 25m synthetic rope and comes with an aluminium hawse fairlead.

Should I choose the 12V or 24V EWB20000 steel cable winch?

Both are rated to 20,000lb (9072kg). The 12V motor is 5.5kW/7.4HP and the 24V motor is 6.1kW/8.2HP, and at full rated load Runva lists 430A on 12V against 253A on 24V. Choose the voltage that matches your vehicle's electrical system, and have a qualified auto electrician confirm your battery and charging setup before installation.

How much does the line pull drop on the outer cable layers?

Runva rates the EWB20000 at 20,000lb (9072kg) on the first layer, 16,129lb (7316kg) on the second, 13,513lb (6129kg) on the third and 11,628lb (5274kg) on the fourth. Spooling more cable off the drum keeps you closer to the full rating on heavy pulls. Refer to the manufacturer's instructions for rigging your specific recovery.

What is the line speed of the Runva EWB20000?

On the first layer with no load, Runva lists 8.0m/min on 12V and 8.4m/min on 24V. At the full 20,000lb (9072kg) rating it's 1.2m/min on 12V and 1.3m/min on 24V.

Is the whole EWB20000 IP67 rated?

Yes. Runva rates the entire EWB20000 Premium to IP67, a dust-tight rating with protection against temporary immersion in water, rather than sealing the motor alone.

How does the ratchet brake hold the load?

The EWB20000 uses an automatic ratchet load-holding brake inside the gearbox instead of brake pads. It's the same brake Runva uses in its vertical lifting winch and is designed to hold the load when you stop winching. Inspect the winch and cable before each use.

What bolt pattern does the EWB20000 steel cable winch use?

Two patterns, 254mm x 114.3mm and 254mm x 165.1mm, both with 8 x M12 bolts. The winch measures 636mm x 214mm x 252mm overall. Consult a licensed mechanic or engineer to confirm your bar or carrier is rated for a winch of this capacity.

What warranty comes with the Runva EWB20000 Premium?

A limited 5 year electrical and lifetime mechanical warranty for private use, and a limited 18 month warranty for commercial use. Full terms are set by Runva.

Prefer synthetic rope? The same EWB20000 Premium is also listed with synthetic rope in 12V or 24V. You can also compare it with our other heavy duty truck winches or browse the full 4x4 winch range.
