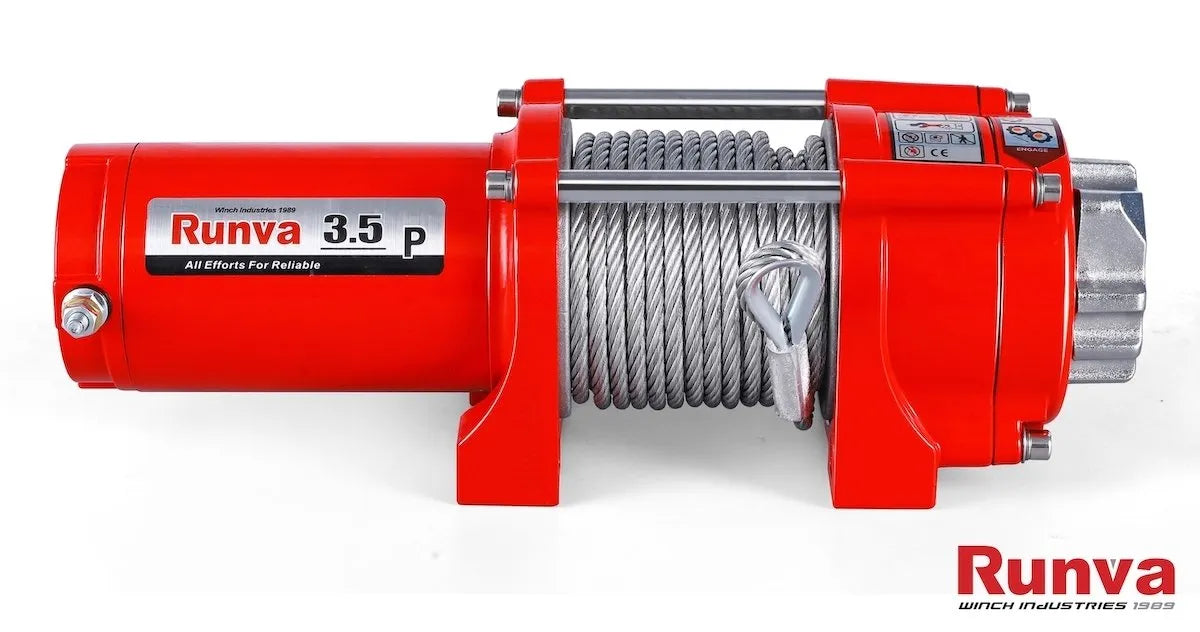

3.5P 12V ATV/Utility Winch with Steel Cable by Runva
This neat and compact 3500lb ATV 12v Runva winch is tough, versatile and can be used for a wide variety of purposes. Whether you need it for your boat trailer, to open and close a horse carriage door, for your ATV vehicle, or any other requirement, this Runva 3.5P winch will do a fantastic job.
It has full stop-start pull-release control and is available with steel cable or Dyneema synthetic rope.

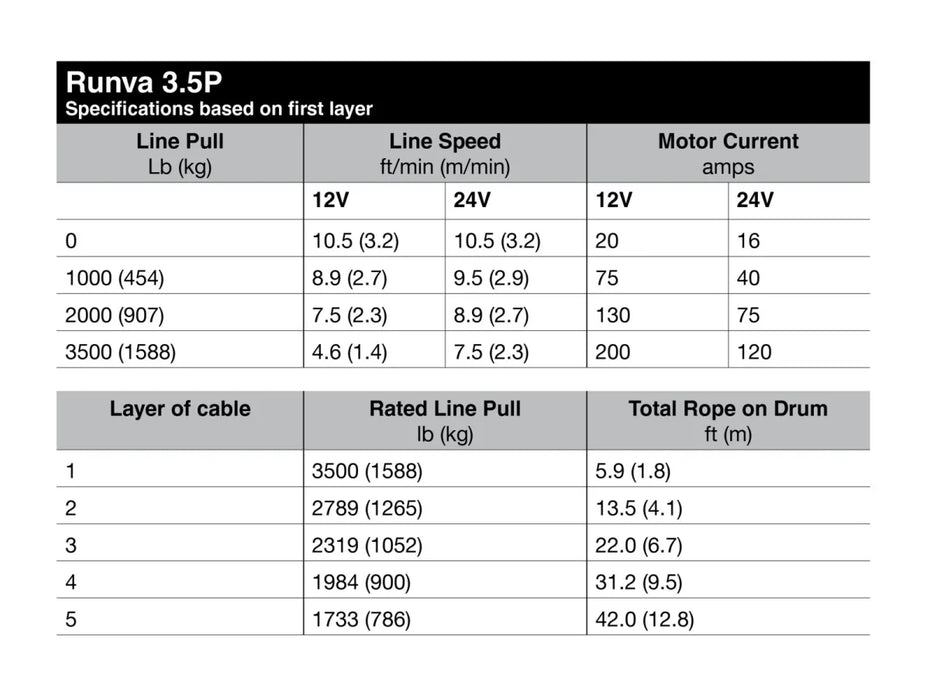

Runva 3.5P 12V Winch with Steel Cable Specifications
- Rated Line Pull 3500lb (1588kg)
- Motor Permanent Magnet (12V) 2.4kW/3.2HP
- Gear Train Full Steel Planetary
- Gear Ratio 170:1
- Brake Automatic Load Holding
- Steel Cable 5.4mm x 12.8m

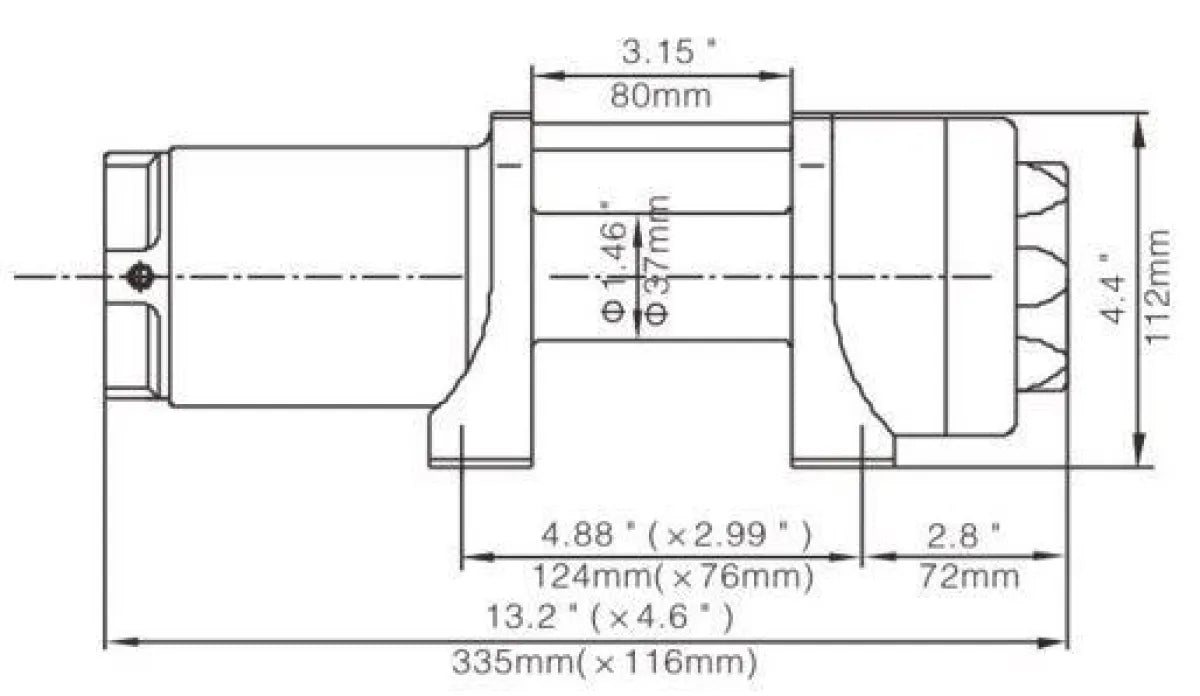

- Drum Size 37mm x 80mm
- Mounting Bolt Pattern 79mm x 124mm
- Overall Dimensions 335mm x 116mm x 112mm
- Remote Control 2.3m Handheld Remote/Rocker Switch
- Battery Leads Included. 2 x 2.3m Leads (200A)
- Finish Red Powder Coat
- Net Weight 10kg
- Gross Weight 11kg (includes packaging)
- Warranty Limited Lifetime (5 years electrical, lifetime mechanical)

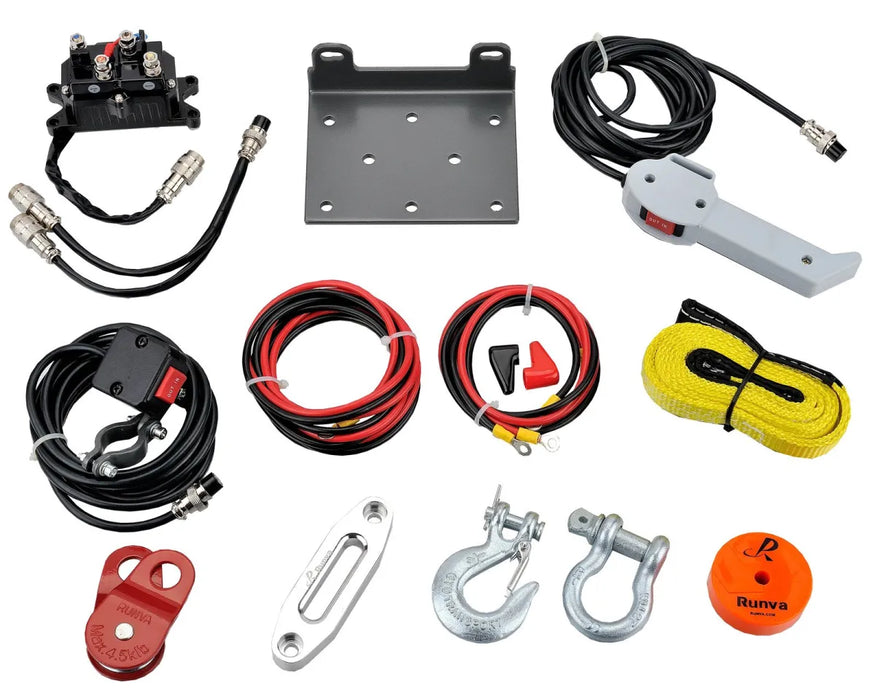

Does this Runva winch include everything I need for installation?
Unless you're purchasing a specific part, or accessory, Runva winches come in packs ready for installation. This will typically include everything you require for a standard installation to get up and running (leads, bolts, control box, remotes, cable etc). This also includes setup instructions and manual.
Does the Runva warranty cover me for water damage?
Yes. The Runva warranty explicitly states: "Our warranty covers your winch against ingress of these elements under normal use. We do exclude the use of high pressure jets on the winch, please do not waterblast your winch.”
I have an ARB Bull Bar, will my winch fit?
How do I know if the winch will fit my vehicle?
What’s the difference between the Runva EWX9500, the EWX9500-Q and the EWX9500-Q EVO winch?
The difference between the three EWX9500 winches lies in their gear ratios. The EWX9500 is the entry level 9500lb winch. This winch has a gear ration of 230:1, while the EWX9500-Q has a lower gear ratio of 110:1, and the EVO (short for Evolution) has a extra low gear ration of 80:1. Simply put the lower the gear ratio the faster the winch. The -Q and EVO models are ideal for winching applications requiring pulling power with a little (or a lot) more speed.
Click below to view:
Can I rotate the gearbox on the Runva EWX9500 Winch?
Yes, the gearbox can be rotated on all EWX Winch models, as well as all 11XP Winch models.
What does the IP67 rating of a winch mean?
The IP rating of a winch (or any item really) is a technical term that indicates how water resistant the winch is. Without going into great detail an IP67 rating means the item is waterproof up to 1m below the surface and entirely sealed from dust and dirt. An IP66 rating means it’s resistant to heavy showers or spraying and entirely sealed from dust and dirt. Due to the nature of a winch and the fact that it’s very purpose is to get dirty and most likely wet, always look for a high IP rating, generally IP66 and above is good.
What battery do I need to run my winch?
The minimum battery size to run a 4x4 electric winch from is a 650CCA. A poor power supply could prevent your winch from working and could also cause damage to the winch motor.
I want to install a Runva 11XP Winch on my D40 Navara with XROX Bullbar, do I need an offset fairlead?
Yes. This bar will require an offset fairlead. Click here to view the 2in1 fairlead.
Can both the 11XP or 13XP Premium winches can have the solenoid box fitted inside an ARB bar on a Hilux SR5 2017?
The Runva 11XP and the 13XP Premium Winches are supplied with a bracket kit which allows you to mount the control in 3 different positions. There should be a way to hide the control box if required and if you find this can’t be hidden in the bar itself we have had previous customers extend the control box cables and remote mount this under the bonnet.
What are the Runva 9.5XS and 11XS Compact Winches for?
The Runva 9.5XS and 11XS are compact winches, which means they have a smaller size profile than a traditional 4x4 winch. They're primarily designed for use as large boat trailer winches. They won't fit most standard bull bars. Please check and confirm mounting bolt pattern and overall dimensions prior to purchase and installation.
How often do I need to service my Runva winch?
We strongly recommend that you service your winch at least once a year especially if the winch is submerged quite often during use. Servicing your winch will help make it last for many years of trouble free use. If you are not able to service it yourself, any auto electrician or 4WD service agent will be able to do this.
How do I make a warranty claim?
The first step is to go through the Trouble Shoot Guide as the problem may be non-warranty related and easily resolved.
If you are still having problems you can make a warranty claim by emailing a copy of your receipt along with the full fault description to firstname.lastname@example.org. If you need any assistance with your warranty claim please reach out to us at 4x4 Down Under, we're here to help.
Why Choose a Runva Winch?
Runva is a large international brand with an extensive distributor network set up in over 50 countries. Pioneers in winch manufacturing, the factory was established in 1997. Runva was the first professional winch manufacturer in China which has earned them a wealth of knowledge and experience. The large 36,000m2 factory is equipped with its own advanced Research and Development centre for careful testing and product development.
All winches are manufactured under strict quality control guidelines. With nearly 20 years experience in winch manufacturing Runva is the brand that can offer your customer a reliable winch solution.
A lot of other new brands which are surfacing around Australia claim to be reliable and the toughest on the market. Unfortunately you can't accurately make that statement until your product has been used for many years by thousands of happy customers. Runva can confidently say that their brand is well and truly tested and proven to be reliable.
Runva is known for
- Extremely low product failure rate
- Constant research and development for product improvement
- You know the brand you are buying, not just another cheap rebranded winch
- Reputation for excellent service
- Huge product range
- One of the first companies to offer a 5 Year Electrical and Lifetime Mechanical Warranty
- Water ingress is NOT excluded from the warranty. (Some conditions apply)
- 20 Years of Winch Manufacturing Experience
- Loved by thousands of users worldwide
Some of Runva's product certifications include:
ROHS, ISO9001:2000, CE, EWN14492-1, IP67, TUV
