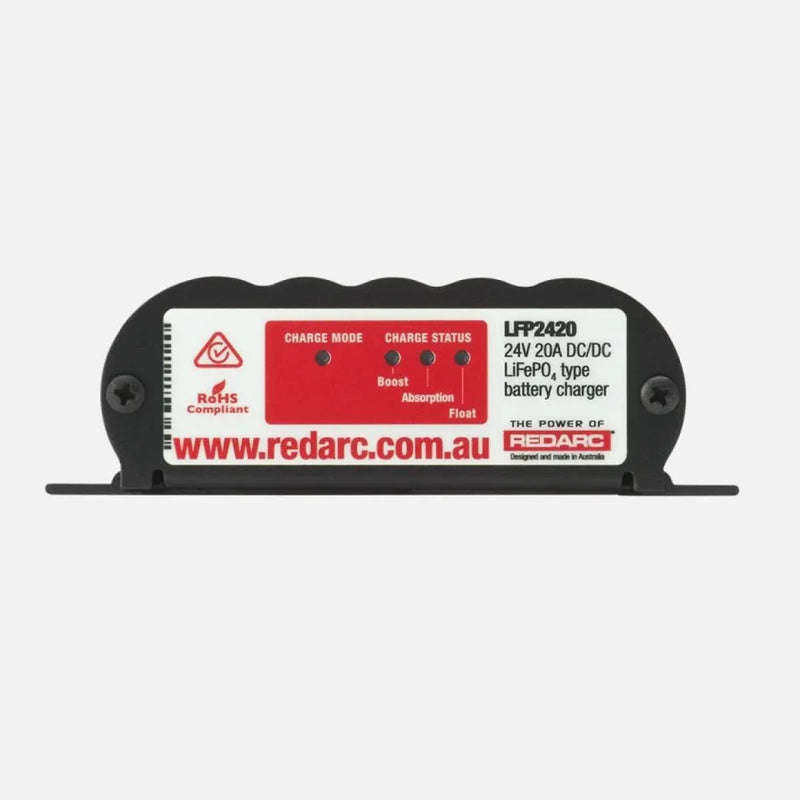

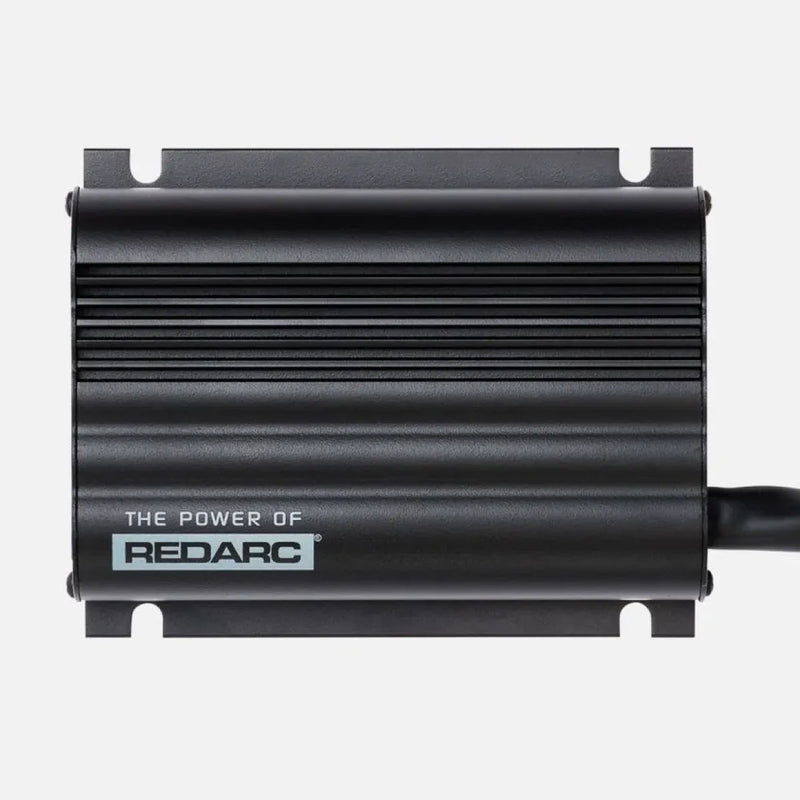

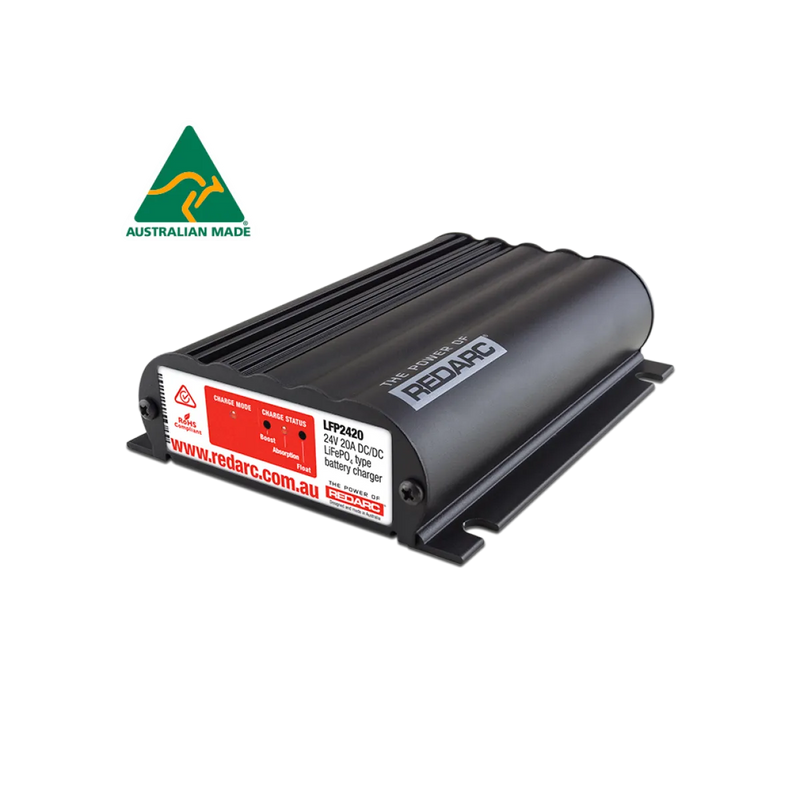

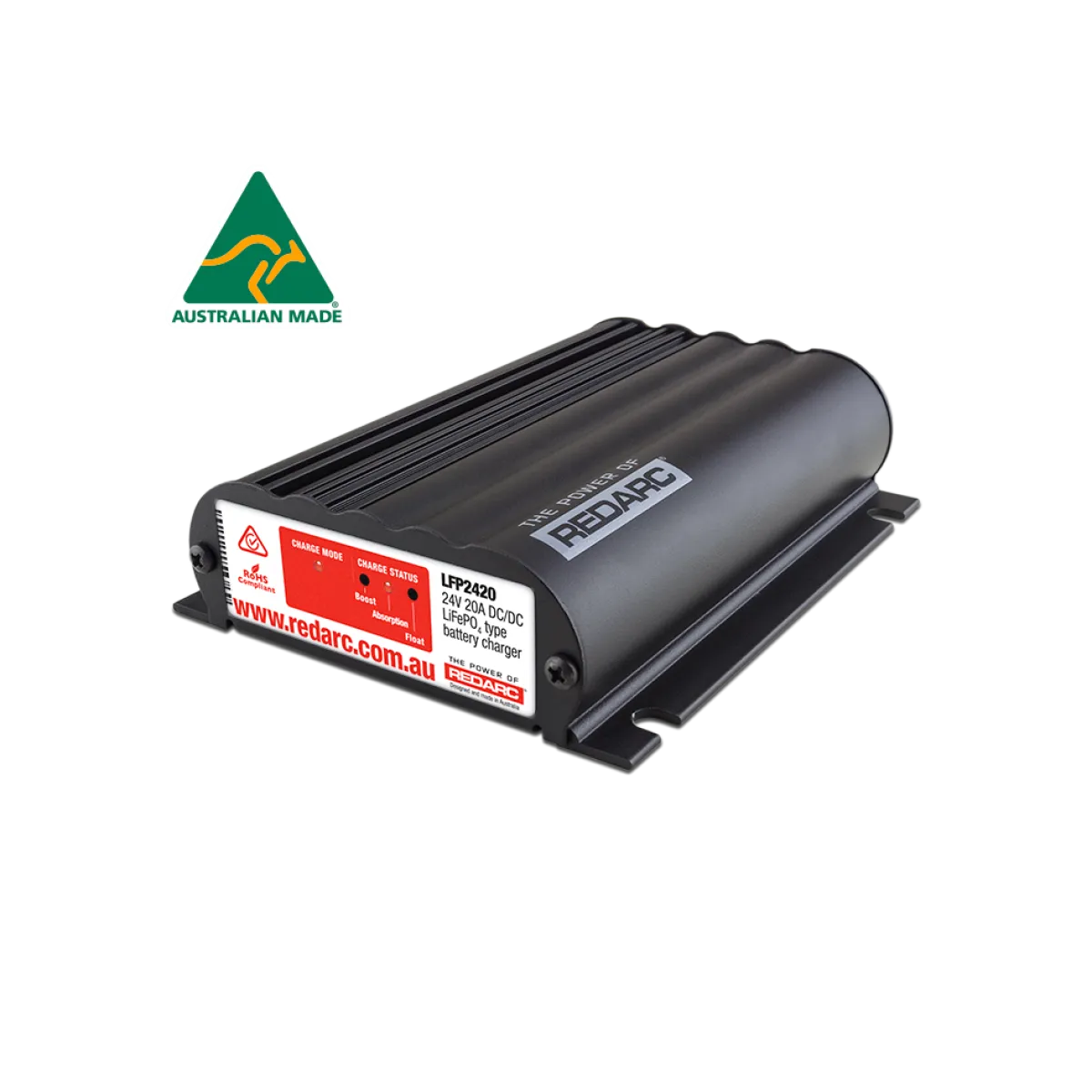

The REDARC LFP2420 In-vehicle battery charger is a 24 Volt 20 Amp, three stage DC to DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge Lithium Iron Phosphate (LiFeP04) batteries to their optimal level with chemistry specific battery charging algorithms.
The LFP2420 features a three stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.
The LFP2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.
Input Charge | Vehicle or solar |
Installation Type | In-cabin or under bonnet |
Output Current Rating (Cont.) | 20A |
Current Rating (Continuous 20°C) | 20A |
Input Fuse Rating | 60A/40A (Not supplied) |
Output Fuse Rating | 30A (Not supplied) |
Output Power | 600W |
Output System Voltage | 24VDC |
Input (Operating) Voltage | 9-32V |
Open Circuit Voltage | 17.5V-32.0V |
Battery Type | LiFePO4 |
Absorption Stage Voltage Level | 28.8V |
Float Stage Voltage Level | 27.2V |
No Load Current | <100mA |
Standby Current Draw | <8mA |
Ambient Temperature | -20ºC to +80ºC |
Minimum O/P Battery Volts | 4.2V |
Weight (kg) | 0.68 |
Main Unit Dimensions | 150x120x37mm |
Warranty | 2 Years |
Type Approval | CE, C-Tick, AS/NZS CISPR11:2004 |
