Narva 9" EX2 Driving Light Kit | 12V/24V | Pair

The 9" pair throws light 700m at 1 lux versus 460m for the 7", and spreads 60m wide versus 45m. Raw output is 27,200 lumens for the 9" against 16,620 for the 7". If you regularly drive outback highways at 100km/h or faster, or spend time on fast open tracks, the 9" gives a genuine, meaningful step up in reaction time and peripheral coverage. For slower tracks, tighter scrub work, or rigs with limited bull bar clearance, the 7" is still an excellent option. The 9" is heavier at 2,620g per pair, so mounting bracket strength matters.

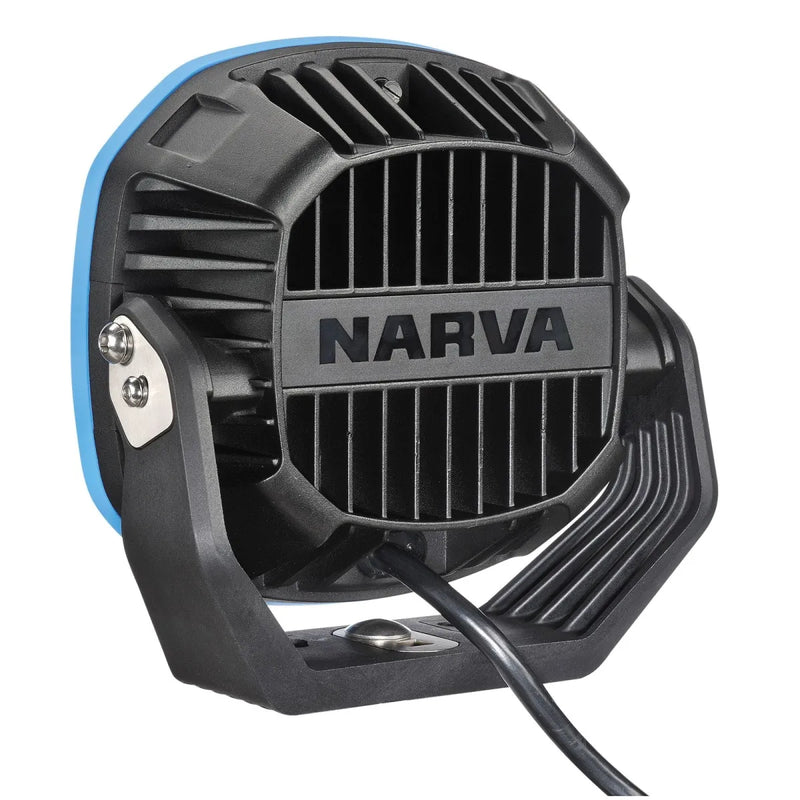

The 9" uses a 3-bolt mounting configuration with nylon + 30% glass-filled brackets that are corrosion-proof and UV-resistant. Aim is adjustable via Allen key. Most aftermarket bull bars with 9" round light positions will suit. Confirm your bar's bolt pattern and clearance for the 102mm housing depth and 2,620g weight per pair before ordering, bracket compatibility varies between bar manufacturers.

Yes. A wiring harness lead is included. The EX2's internal switching system means on most positively-switched vehicles you connect directly to the high beam circuit, no relay or under-dash wiring through the firewall required. For negatively-switched vehicles, an external relay is needed.

Yes. The EX2 connects to the high beam trigger circuit, not to the alternator directly, so smart alternator compatibility is not an issue. The 9-33V DC input range also handles the voltage fluctuations common in modern vehicle electrical systems without causing problems.

Yes. Both NSW and QLD require an in-cabin switch for aftermarket driving lights. Narva notes this in the product documentation. Factor in the cost and installation of a switch when planning your setup if you are in either of these states.

At 1 lux, your eyes can detect an object with sufficient contrast, so 700m is where the beam becomes just detectable. In real-world outback night driving, you are getting strong, usable light well beyond 300-400m. You will see roos, cattle, and road obstacles with significantly more reaction time than stock headlights provide, particularly at outback highway speeds.

Two black ABS lens protectors are included, one per light. They do reduce output slightly compared to running uncovered, but protect the polycarbonate lenses from stone chips and scrub damage. Many 4WDers run them on bush tracks and remove them for highway driving where maximum output is needed.

The kit includes 2 x 9" driving lights, 2 x black lens protectors, 1 x Electric Blue colour trim (fitted), 1 x Slate Grey colour trim, a wiring harness lead, stainless steel hardware, and product instructions. Bull bar-specific mounting brackets or light cups from your bull bar manufacturer are not included and need to be sourced separately. A relay may also be needed on negatively-switched vehicles.
