Ignite LED Headlight with Indicator Lamp | High/Low Beam | Black Face

by Ignite
SKU IHL4BI
Original price $399.00 - Original price $399.00
Original price
$399.00
$399.00 - $399.00
Current price $399.00
4x4 Down Under Buy Now Pay Later Options

    WHY SHOP WITH US?
  • Fast Shipping with Tracking and Insurance
  • Australian Owned and Operated
  • 256Bit SSL Website Encryption for Safe and Secure Shopping
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

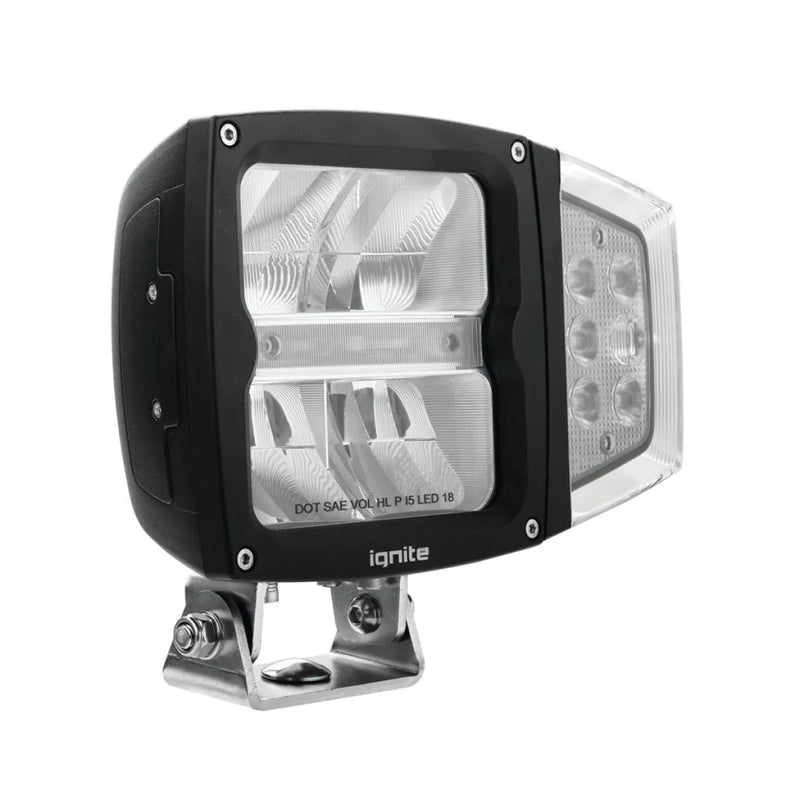

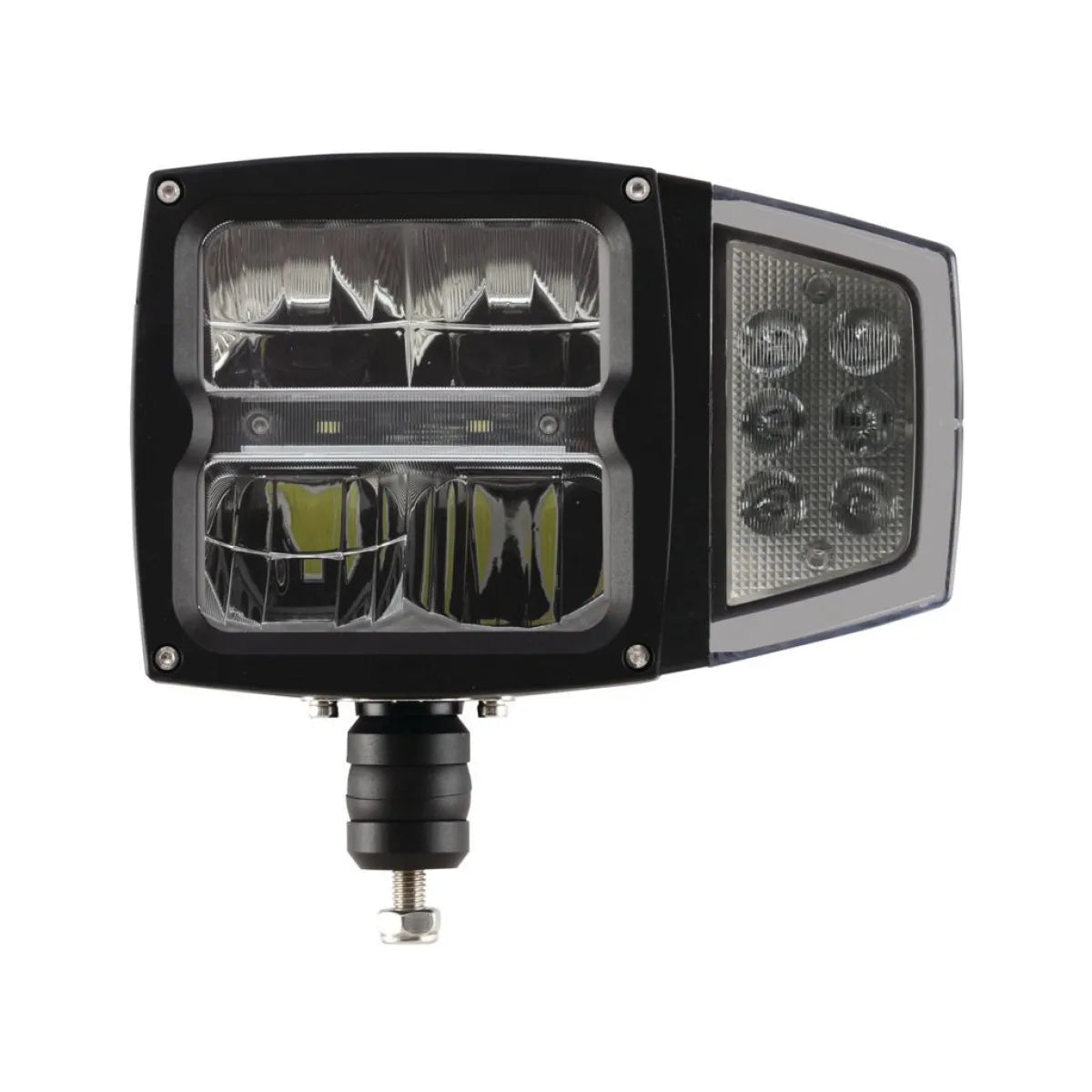

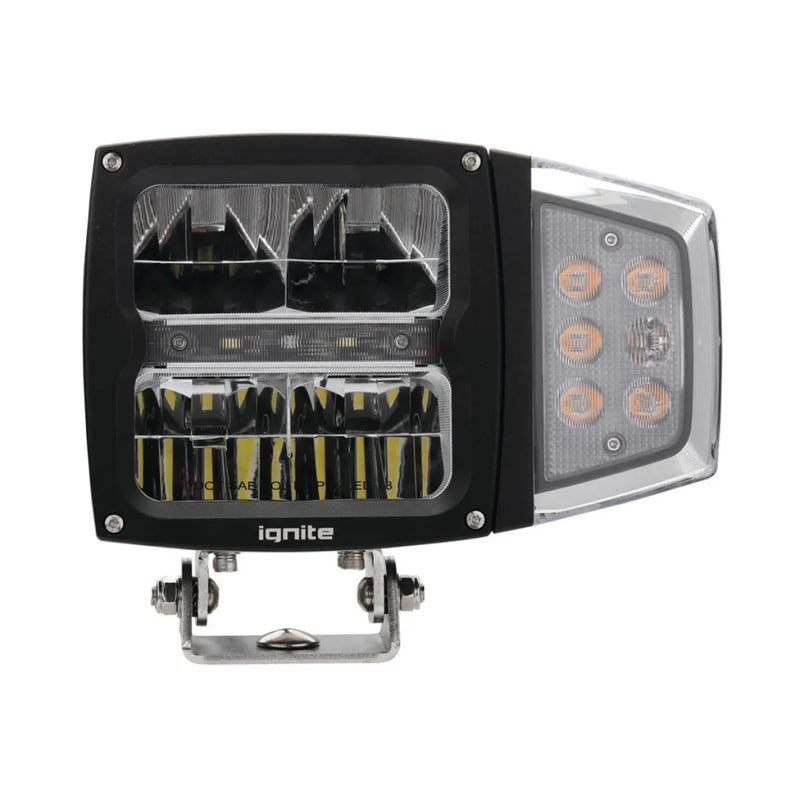

Square Combined LED Headlight and Indicator Lamp by Ignite

Ignite Square Combined LED Head and Indicator Lamp 10 - 30 Volt 80 Watt

Features

  • 227.5mm x 150mm - Black Fascia
  • High / Low Beam, Position and Indicator Lamps
  • 2 x 10 Watt High Intensity ETI LED's for Low Beam
  • 4 x 10 Watt High Intensity ETI LED's for High Beam
  • 5 x 5 Watt High Intensity Prolight Amber LED's for Indicator Lamp
  • 2 x 1 Watt LumiLEDs LED's for Position Lamp
  • Polycarbonate Free Form Optical Reflector Technology for Low and High Beam Lamps
  • Polycarbonate Lens assembly
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent

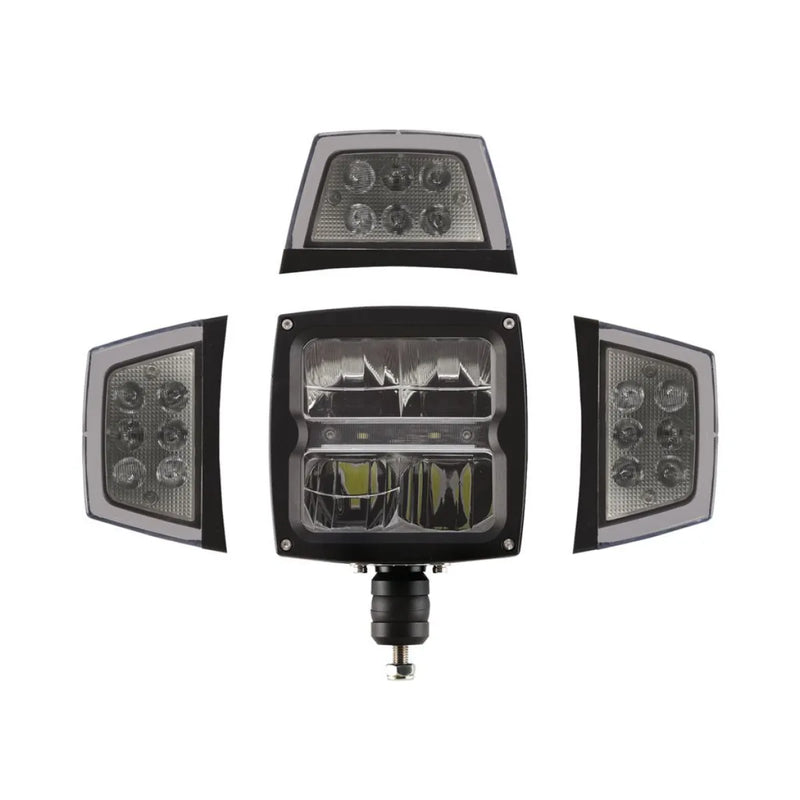

  • Indicator Lamp has multi-directional mounting allowing it to be mounted on the Left Hand side, Right Hand side or
  • on top of the Headlamp housing providing diversity of mounting options
  • Stainless Steel Single Bolt Mount Bracket and Hardware
  • 400mm Lead with 4 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R6, R7, R10, DOT and CE Approved
  • IP68 and IP69K Rating

Specifications

  • Beam Type: High/Low Beam
  • Depth (mm): 85
  • Height (mm): 150
  • Shape: Square
  • Type: LED
  • Voltage: Multivolt
  • Width (mm): 227
  • Weight: 1.5kg
  • Environment Temperature: -40°C ~ +60°C
  • Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 5,700K
  • High Beam: 3,600 Raw Lumens and 3,060 Effective Lumens and 5,700K
  • Indicator Lamp: 400 Raw Lumens and 340 Effective Lumens and 2,200K
  • Position Lamp: 160 Raw Lumens and 130 Effective Lumens and 5,700K
  • Current Draw: 6.7amp @ 12 Volt and 3.31amp @ 24 Volt

Warranty

  • 5 Year Manufacturer Warranty
