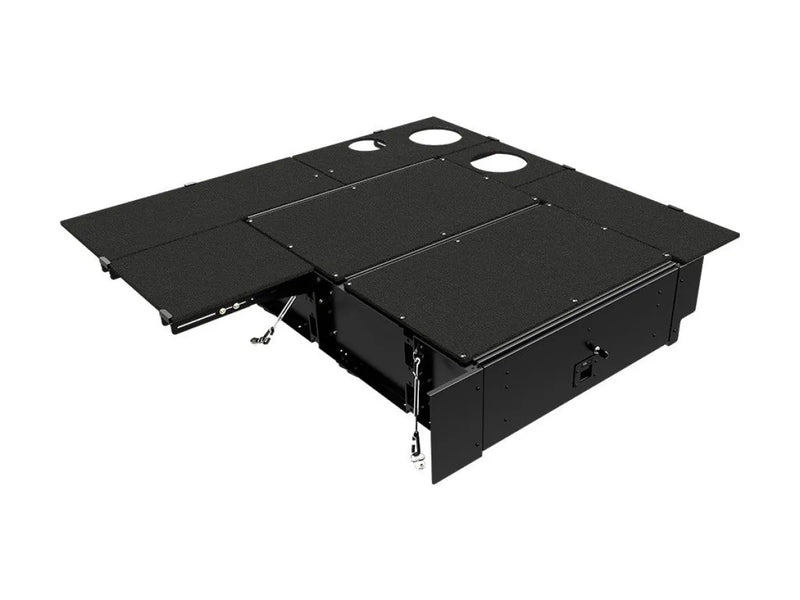

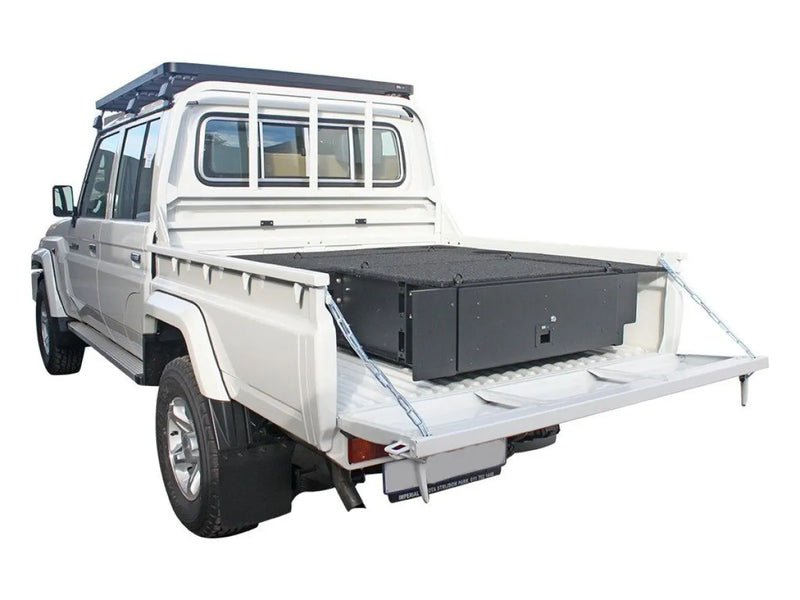

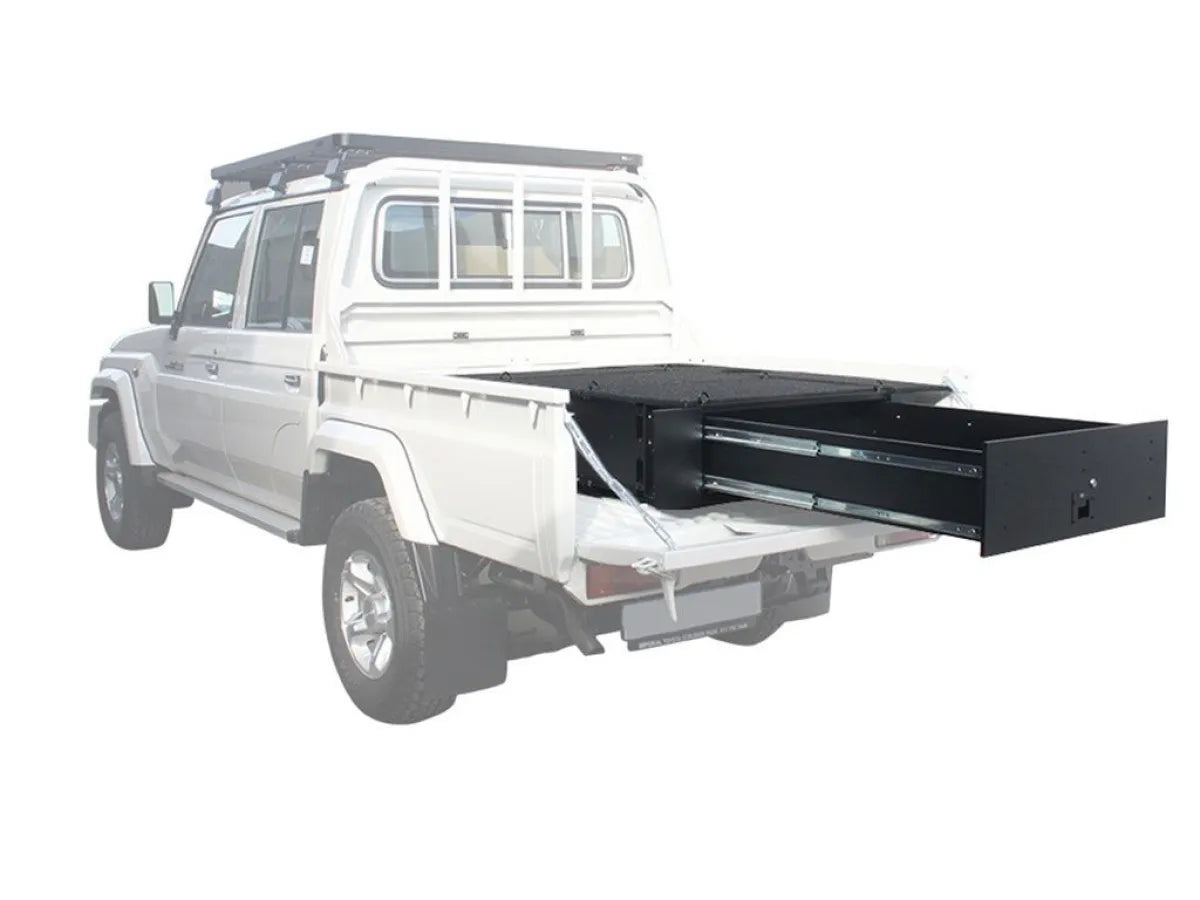

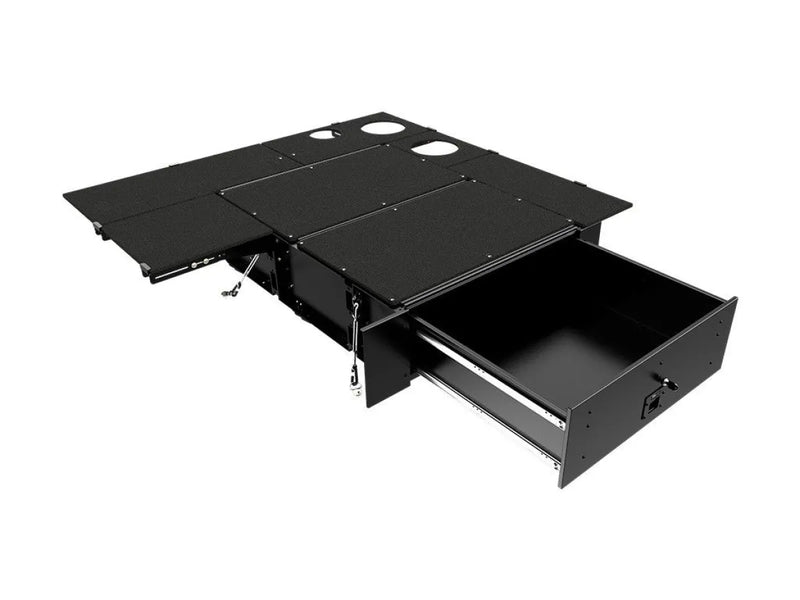

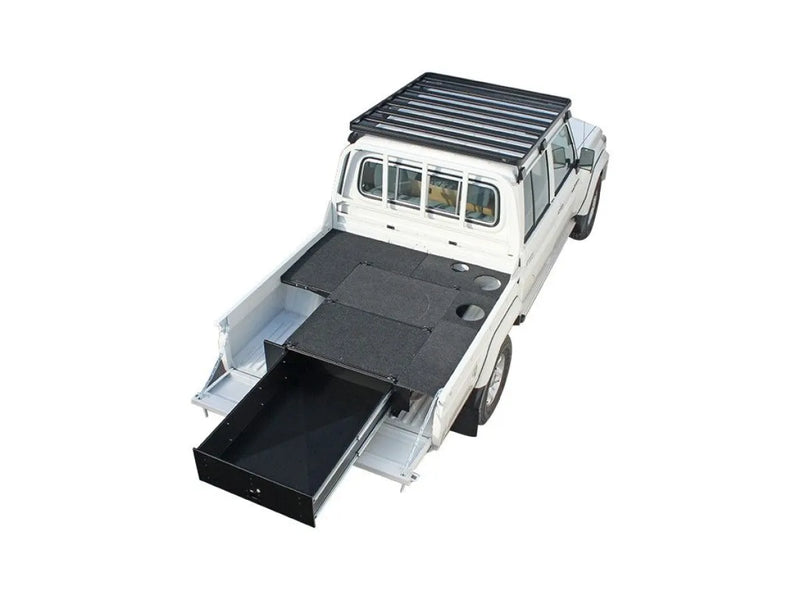

Front Runner Touring Drawer Kit for Toyota Land Cruiser 79 DC

Toyota Land Cruiser 79 DC Touring Drawer Kit by Front Runner

Make storing and organizing gear and valuables a no-brainer. This lockable drawer with fitted decks and faceplates have been designed specifically for the Toyota Land Cruiser 79 DC. Hide contents from prying eyes while creating more usable and easily accessible storage space in your vehicle. Engineered tough for both on and off-road travel.

This drawer kit has 1 lockable drawer, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.

• 180kg drawer load carrying capacity.
• Hold open feature: drawer "locks" open while parked on uneven surfaces.
• High-strength bearing slides allow the drawer to extend nearly 100% from the anchored base.
• Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear.
• The flat deck incorporates three cargo attachment channels and 6 Tie Down Rings / Eye Nuts For Drawer System.
• Customize your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminum boxes and other storage containers to the top deck using Stratchits or other straps.
• The deck above the drawers can also be used to mount Front Runner Cargo / Fridge Slides.
• A fridge (footprint of 750mm x 425mm or smaller) can be installed on the left hand side of the drawer for access through a gullwing style window.
• The right rear deck and back right side deck each have a cut out (215mm in diameter) to fit and secure a gas/propane bottle or similar shaped object.
• The side decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
• To create a removable box option, use Cub Pack or Flat Pack inside the drawers. The Cub Pack or Flat Pack can be used to further organize and easily move gear in and out of a vehicle.
• The deck is covered with a durable, UV resistant nylon pile black carpet detailed to complement the vehicle’s interior contours.
• The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
• Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.
• This drawer kit can be easily installed in minutes by securing the drawers via 3 channels and supplied hardware. Drilling is required to fit the 3 securing channels into the Toyota Land Cruiser 79 load bed.

Please Note: Cub Packs and Flatpack Storage Boxes are not included when purchasing this Drawer System and are sold separately.

Note: The Deck Completion Set for this drawer kit requires modification when installed with an existing plastic load liner.

Specifications

Consists of:

• 1 x Front Runner Drawer unit (SSDR012)
• 1 x Toyota Land Cruiser 79 DC Drawer Deck Completion Set (SSDS107)
• 1 x Wing Set (SSWS004)
• 1 x Push to Close latch with 2 keys per lock
• 3 x Accessory Channels
• 6 x Eye Nuts for Accessory Channels
• Installation Hardware
• Fitting Instructions

Materials used:

• Aluminum - Accessory Channels
• Black powder coated steel - Drawer Bins, Frame and Mounting Channels
• Carpeted and Laminated plywood - Top Deck and Deck Sets

Product Dimensions:

Overall Closed Dimensions:

• 1510mm L x 1574mm W x 335mm H

Drawer Internal Dimensions:

• 1100mm L x 747mm W x 208mm H

Weight:

• 80.5kg

Load Rating:

• 180kg
