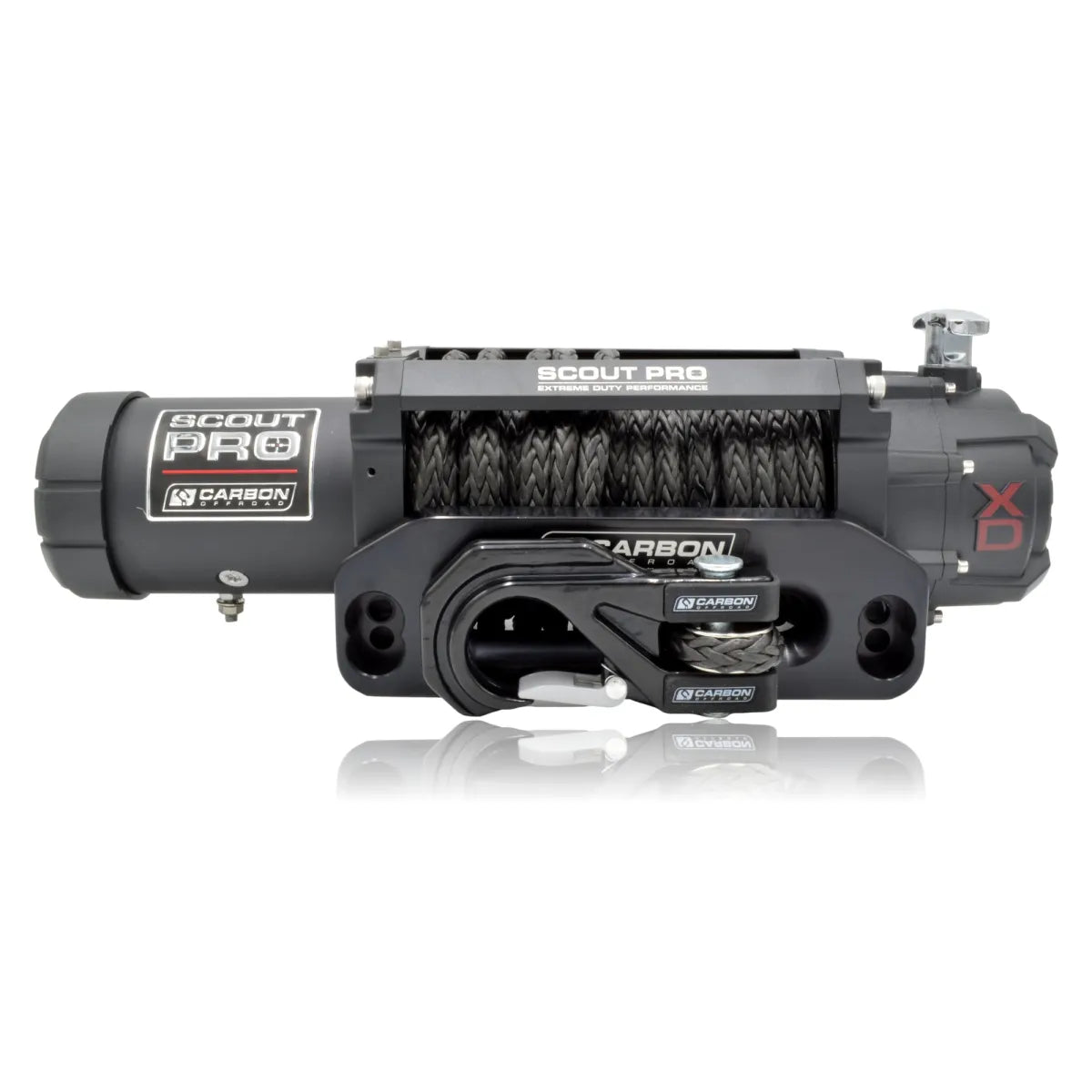

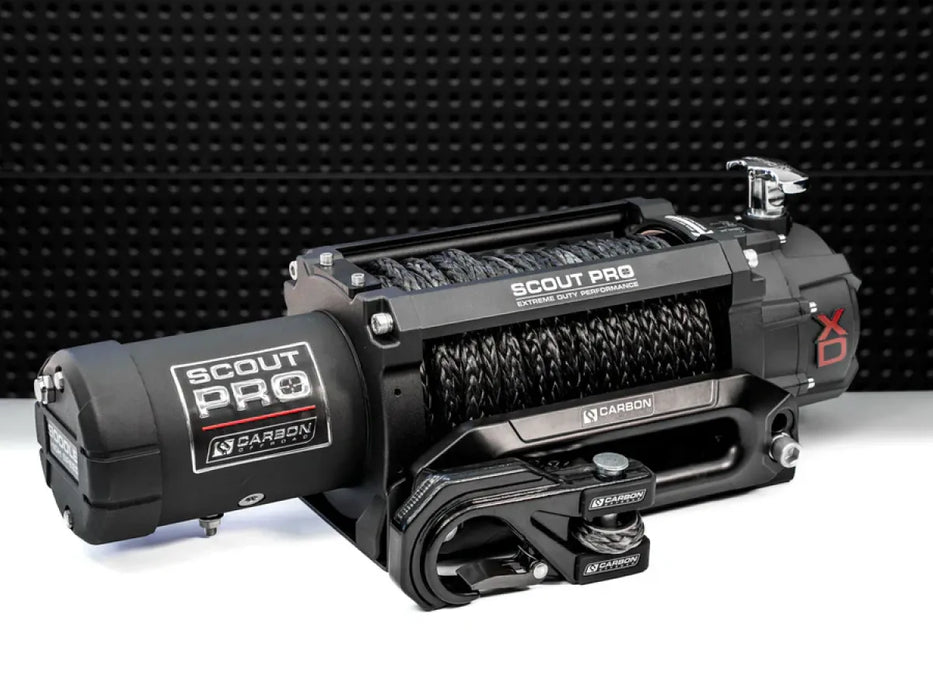

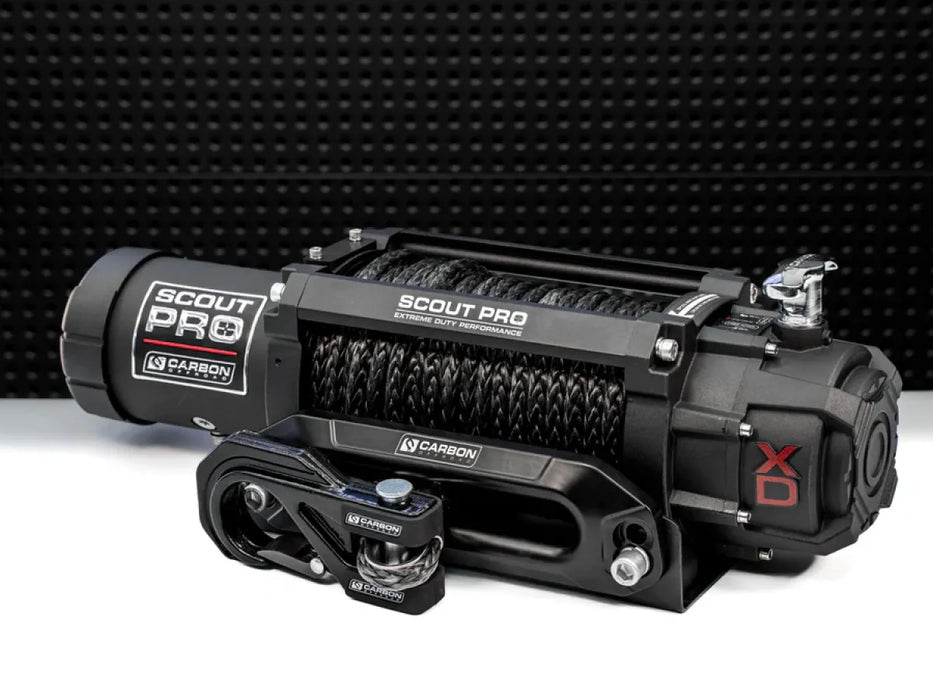

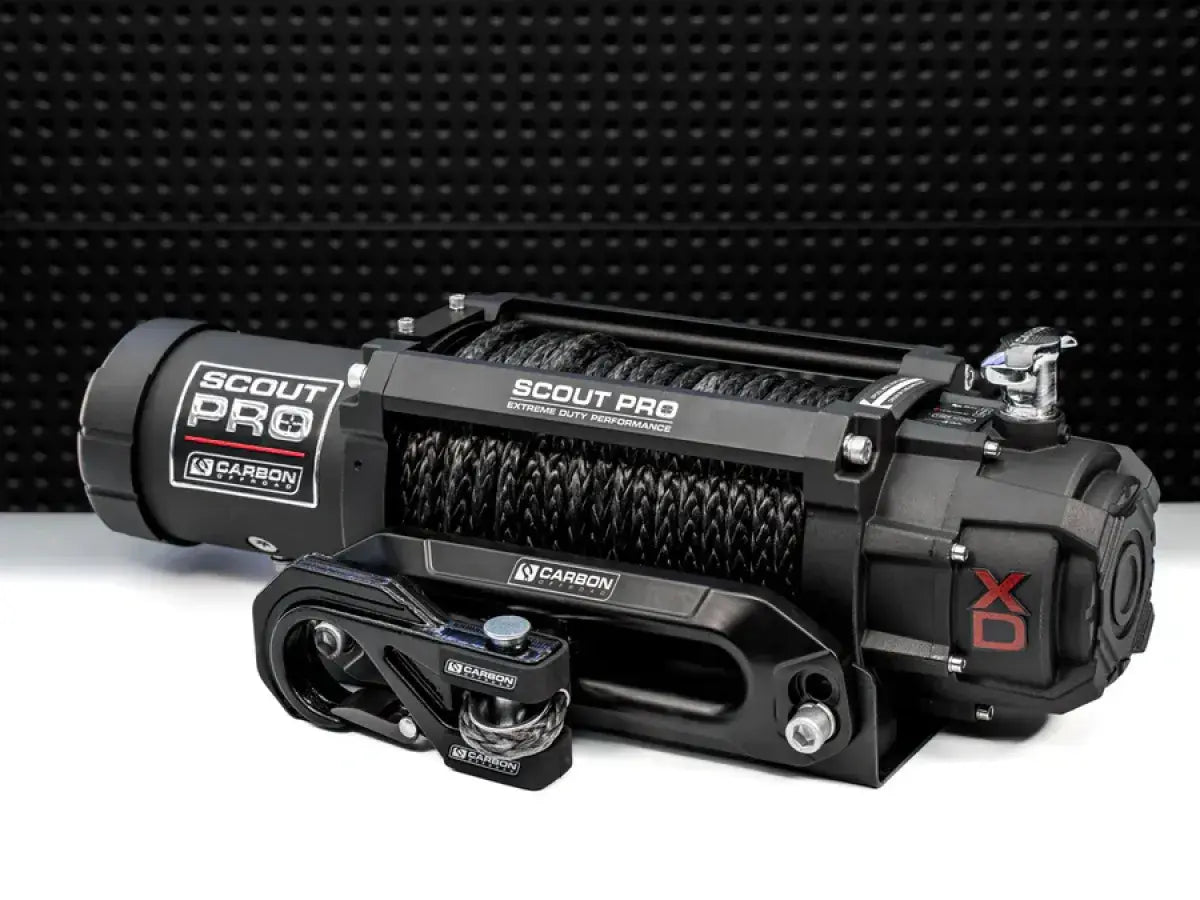

Carbon Offroad Scout Pro 15,000lb Winch – Extreme Power for Heavy-Duty Rigs
The Carbon Scout Pro 15K is built to fill the gap between standard UTE-sized winches and heavyweight truck options. With a massive 15,000lb (6,803kg) pulling capacity, this beast delivers serious grunt without the bulk of a 20K truck winch.
Under the hood, the CW-XD15 packs a punch with a 7.0 HP series-wound motor, oversized modulus gearsets, and a heavy-duty solenoid rated 100 amps higher than our 12K model — ensuring consistent, hard-hitting performance for tough recoveries.
Whether you're hauling a slide-on camper, towing heavy trailers through sand, or piloting a fully loaded 79 Series, RAM 1500, or LandCruiser wagon that’s pushing past 12K limits — the Scout Pro 15K is the solution for those needing extra muscle without overcommitting to a truck-class winch.
Designed for regular offroad use, the Scout Pro Extreme Duty Performance Series is ideal for serious 4WDers operating in demanding conditions or driving heavily modified/towing rigs.
Tech Tip: “Modulus” refers to gear size, measured by the ratio of a gear’s reference diameter to its number of teeth — the larger the modulus, the stronger the gear.

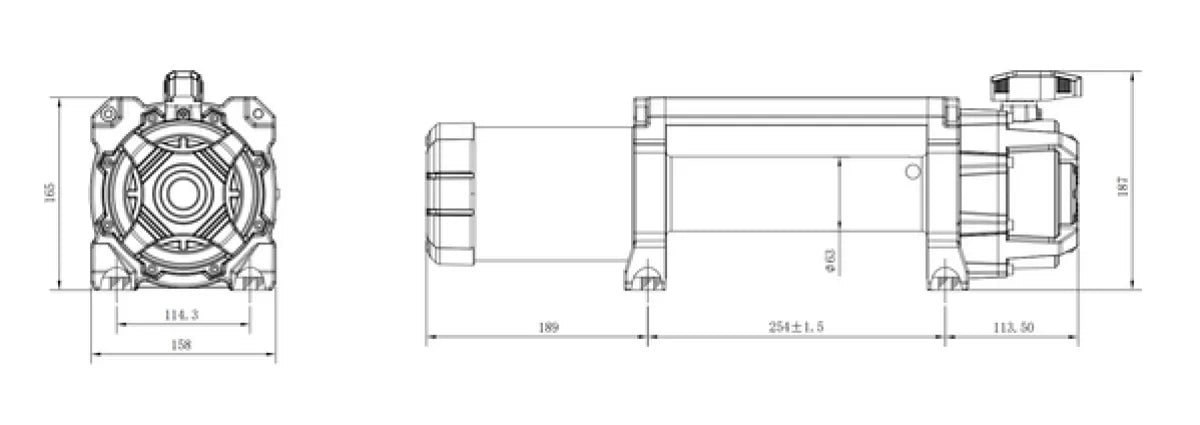

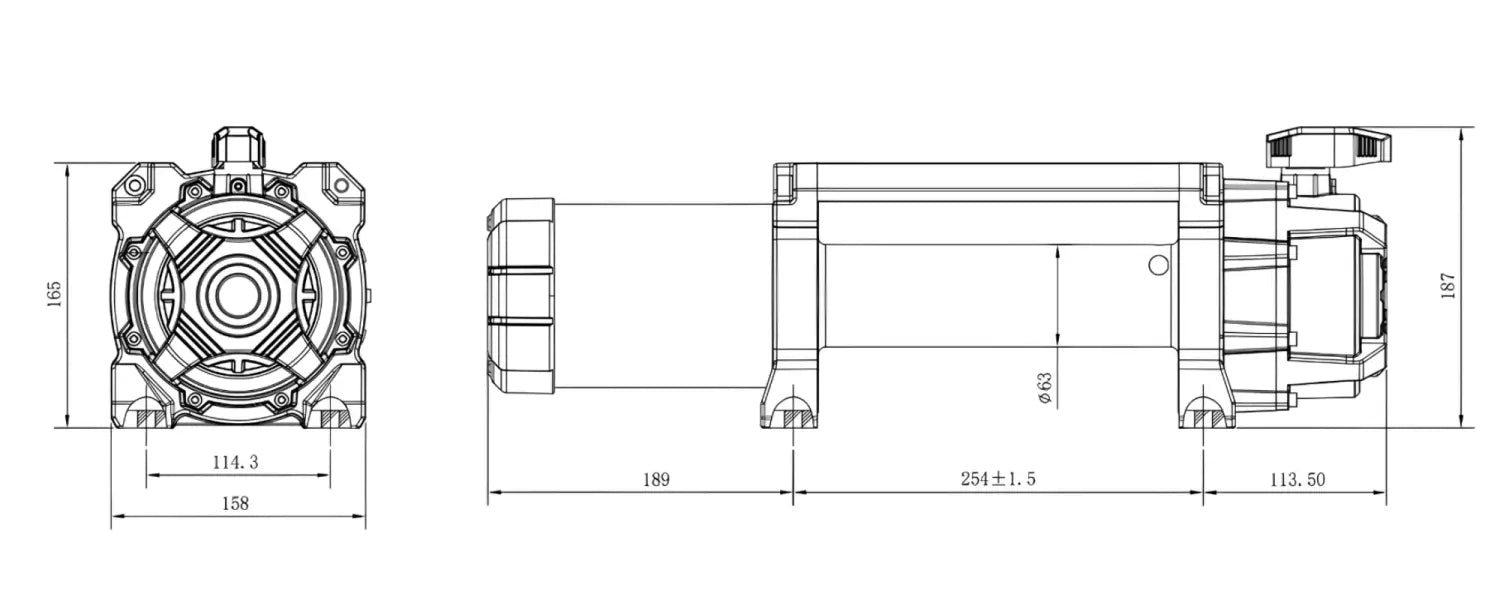

The Scout Pro 15K shares the same updated 2023 V3 chassis as our trusted 12K model, making it suitable for most larger 4WD utes and wagons. Note: due to the longer motor, check the technical drawings for clearance before fitting — especially if you're installing in a dual cab, 70/200 Series, or similar. Larger vehicles like RAM, Silverado, and F-Truck generally have no issues.
Technical Features
- Part Number: CW-XD15
- Rated Pull: 15,000lbs (6,803kg), single-line
- Motor: 12V DC 7.0 HP series wound (24V option available)
- Control: Wired remote (3.6m lead) + Wireless remote included
- Geartrain: 3-Stage planetary with 218:1 ratio & rotating ring gear
- Brake: Automatic in motor bracket

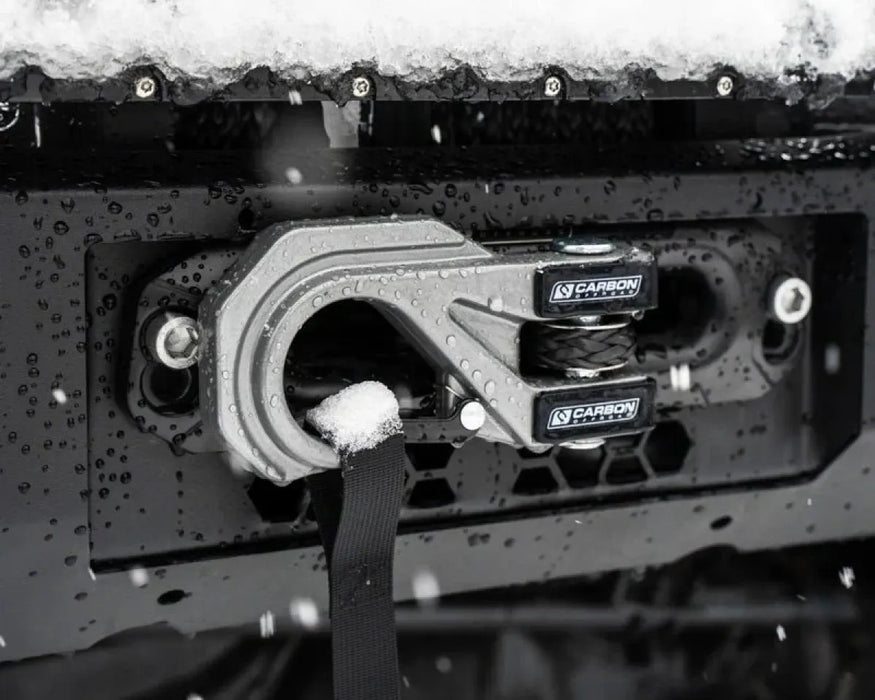

- Fairlead: CNC billet, hard anodised multi-position

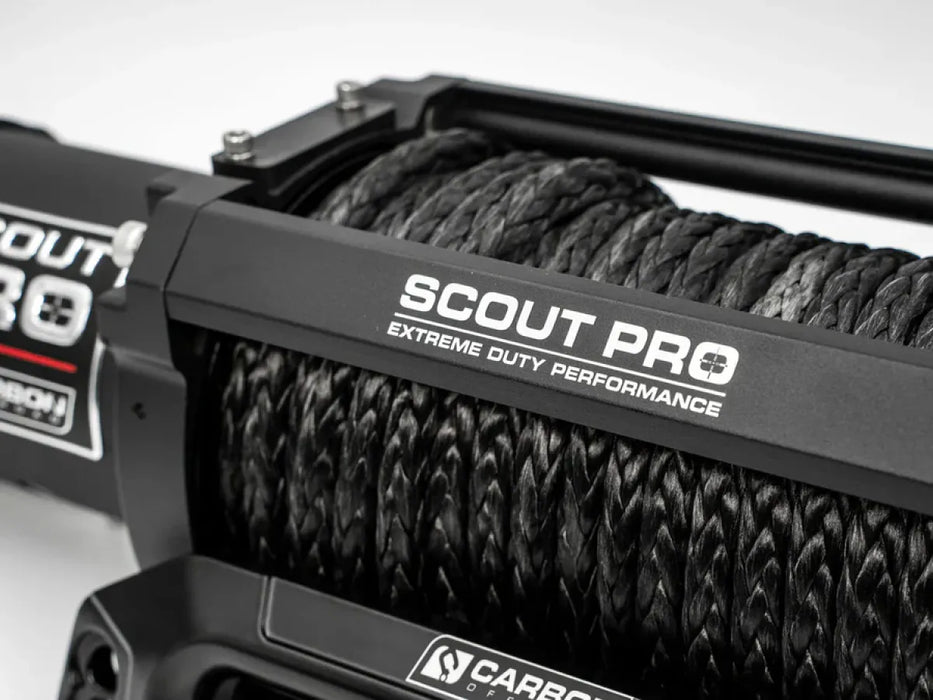

- Synthetic Rope: 24m x 11mm UHMWPE (9000kg MBS)
- Drum Size: 63.5mm diameter x 224mm length
- Mounting Bolt Pattern: 254mm x 114.3mm
- Winch Dimensions: 535 x 158 x 187mm
- Packed Dimensions: 580 x 200 x 220mm
- Weight: 26.7kg (with rope, control box, cables, bolts, and fairlead)
- Recommended Battery: Minimum 650 CCA for optimal performance
Performance Specifications
| Line Pull lbs(kgs) |
Line Speed ft/min(m/min) |
Motor Current (Amps) |
Rated line pull lbs(kgs) |
| 0 |
27.9(8.5) |
65 |
1/15000(6810) |
| 2000(910) |
11.8(3.6) |
120 |
2/12700(5765) |
| 6000(2720) |
9.5(2.9) |
160 |
3/10770(4890) |
| 10000(4540) |
6.6(2.0) |
215 |
4/9130(4145) |
| 13000(5900) |
4.6(1.4) |
265 |
|
| 15000(6818) |
3.6(1.1) |
380 |
