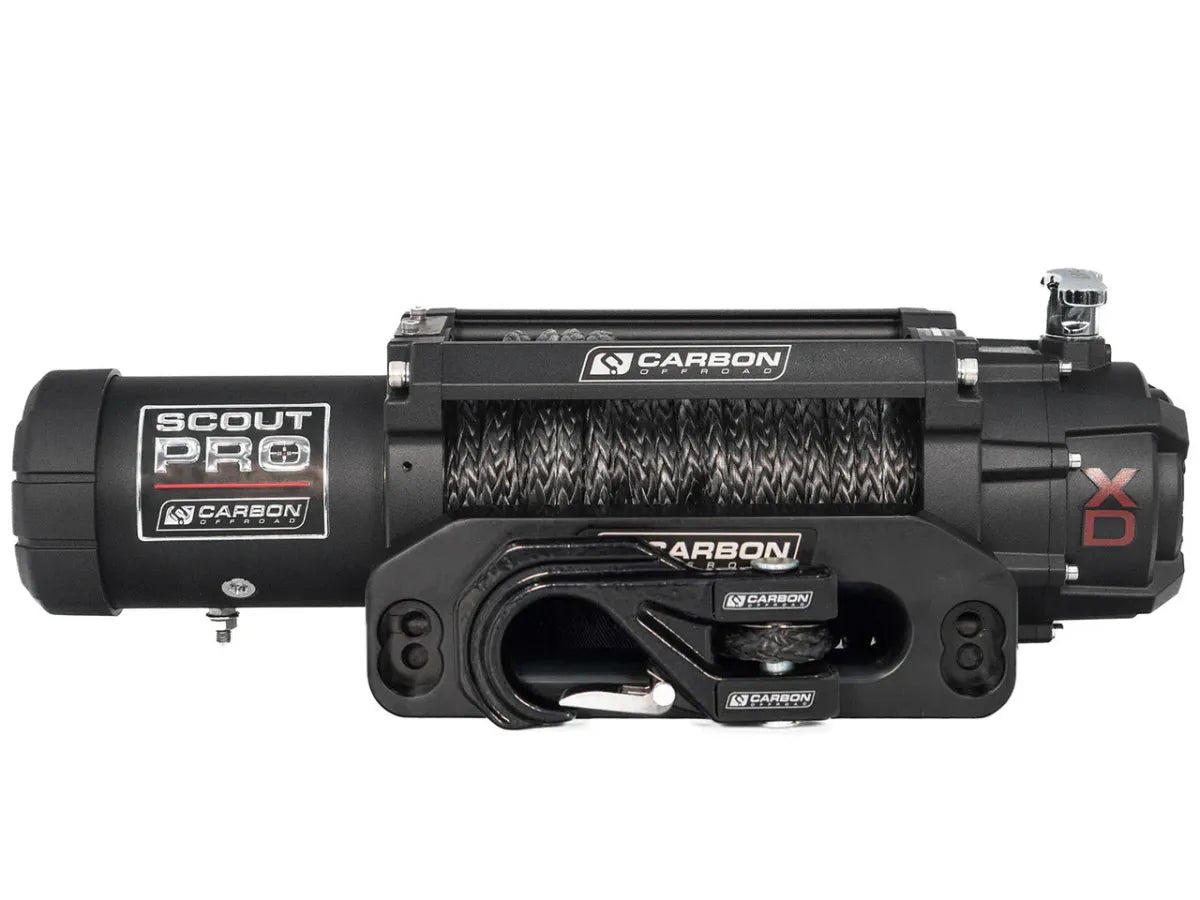

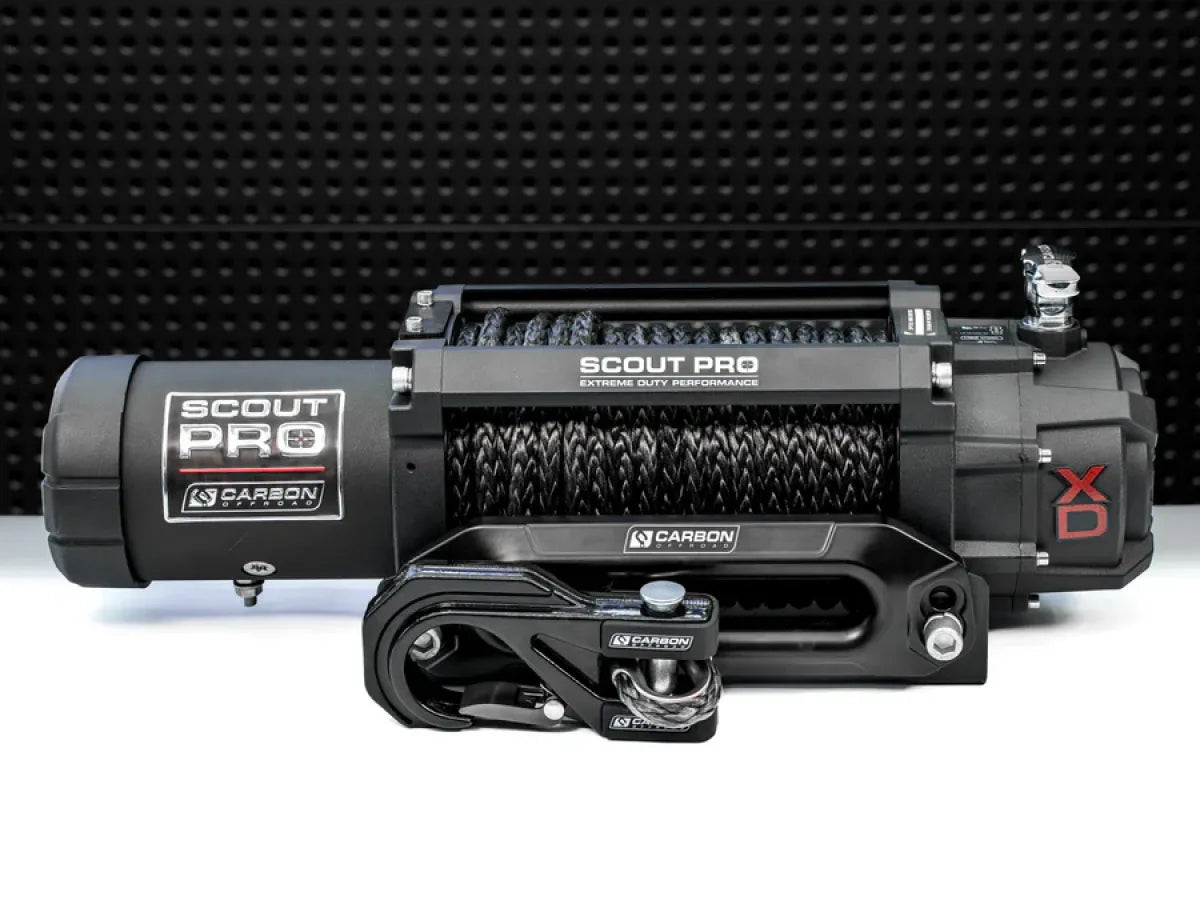

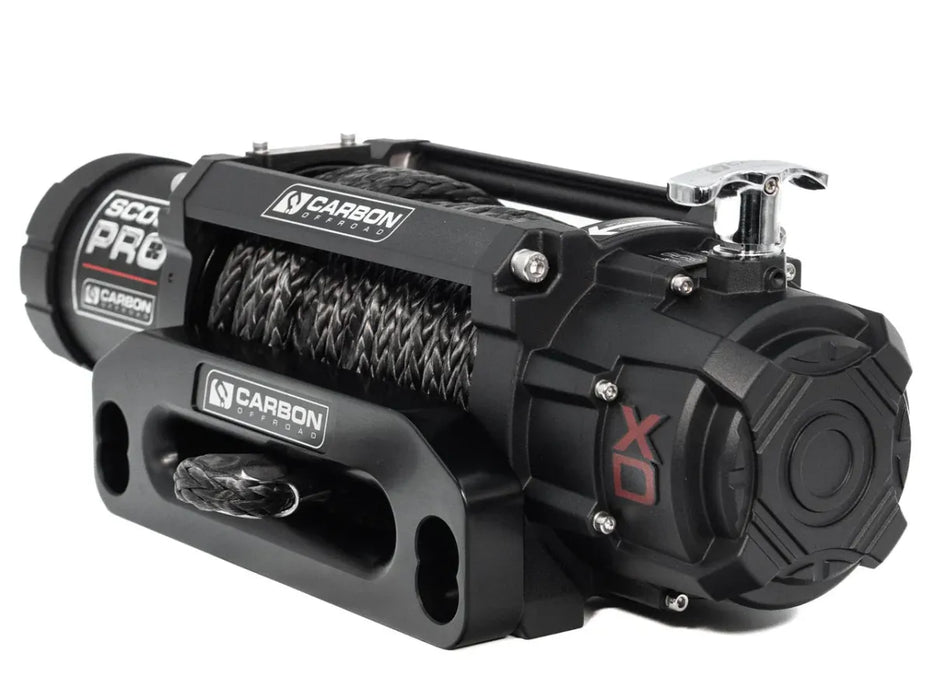

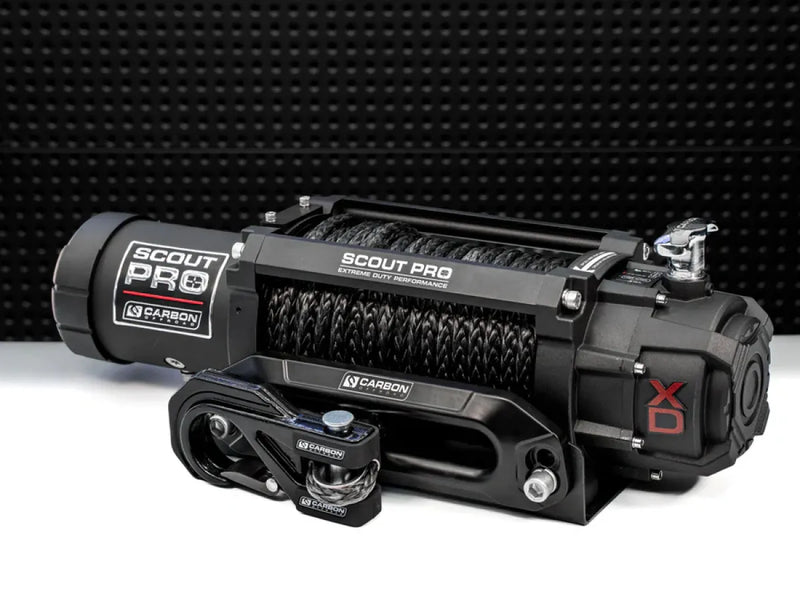

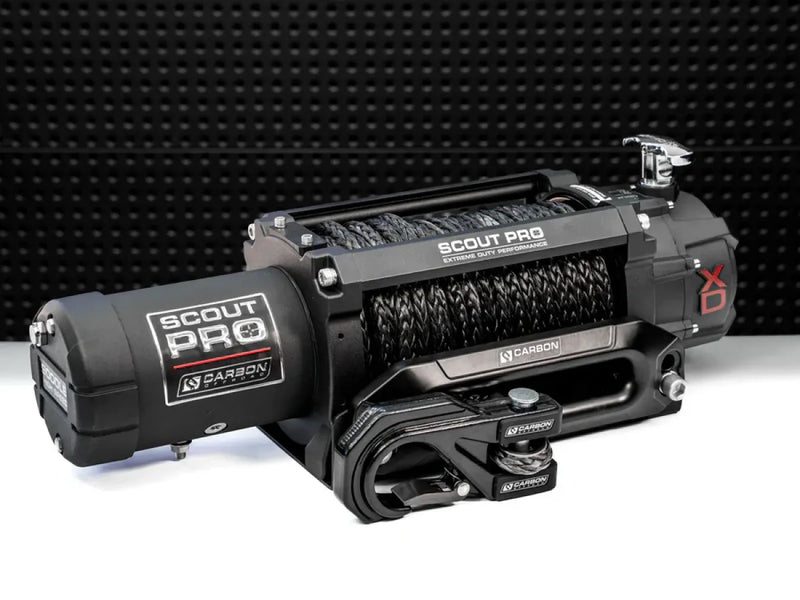

The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.

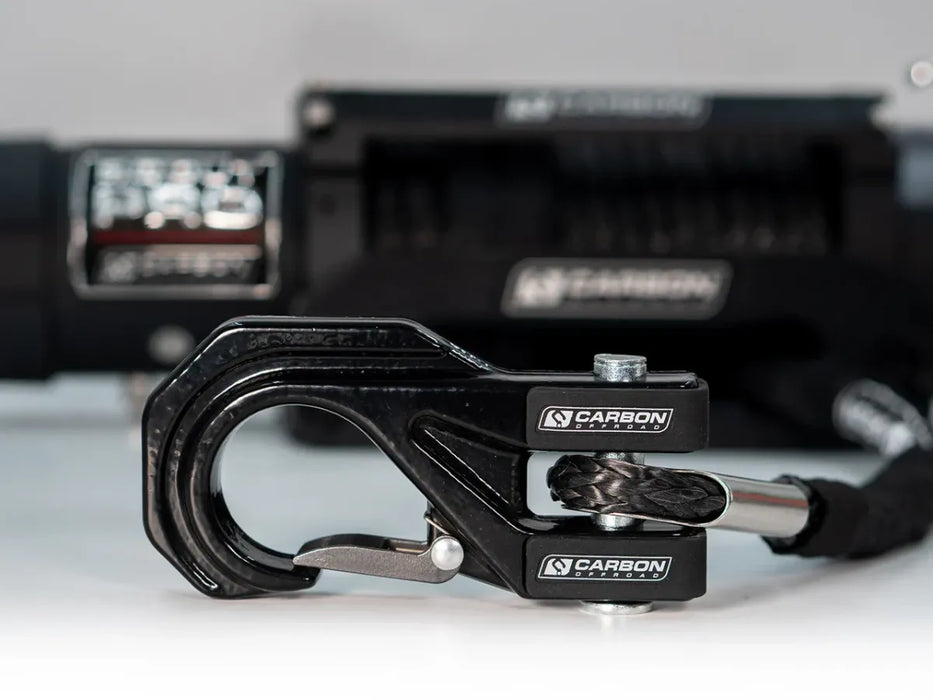

With larger modulus gearsets, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.

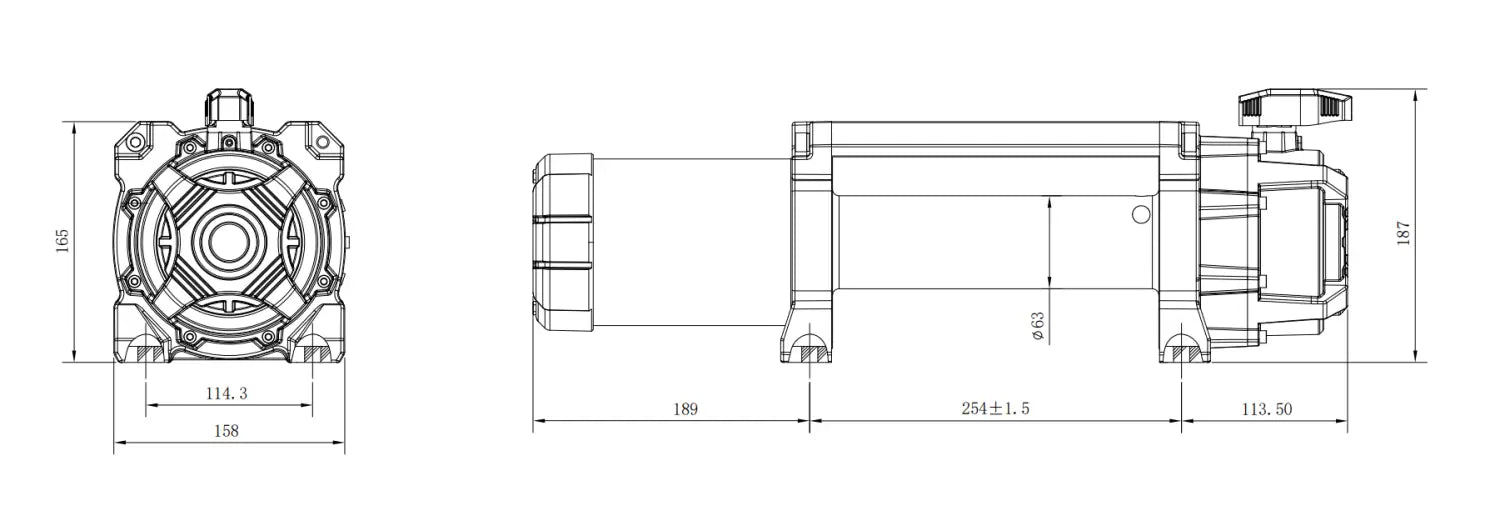

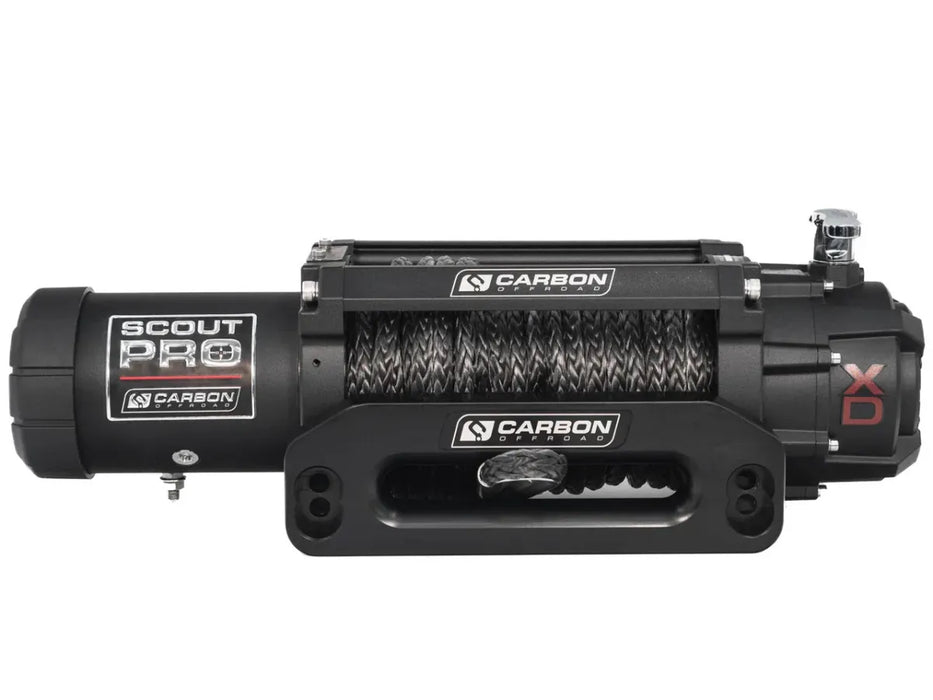

The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.

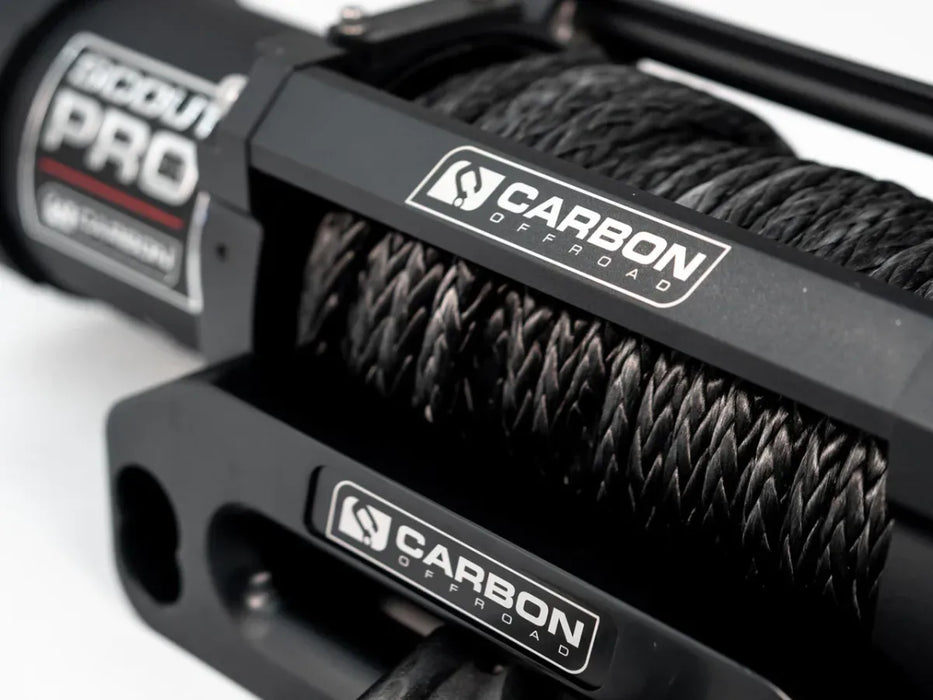

The 9000lb winch comes with 10mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
CW-XD9V3 | |||
12V DC performance specs (first layer of drum) | |||
Line Pull | Line Speed | Motor | Pull by layer |
Lbs.(Kgs.) | FT./min(M/min.) | Current | layer/Lbs(Kgs.) |
0 | 62.3(19) | 80 amps | 1/9,000 (4090) |
2000 (910) | 17.4(5.3) | 150 amps | 2/7,625 (3,460) |
4000 (1810) | 15.1(4.6) | 220 amps | 3/6,460 (2930) |
6000 (2720) | 13.4(4.1) | 280 amps | 4/5,480 (2,490) |
8000 (3630) | 11.5(3.5) | 350 amps | |
9000 (4090) | 10.5(3.2) | 380 amps |
