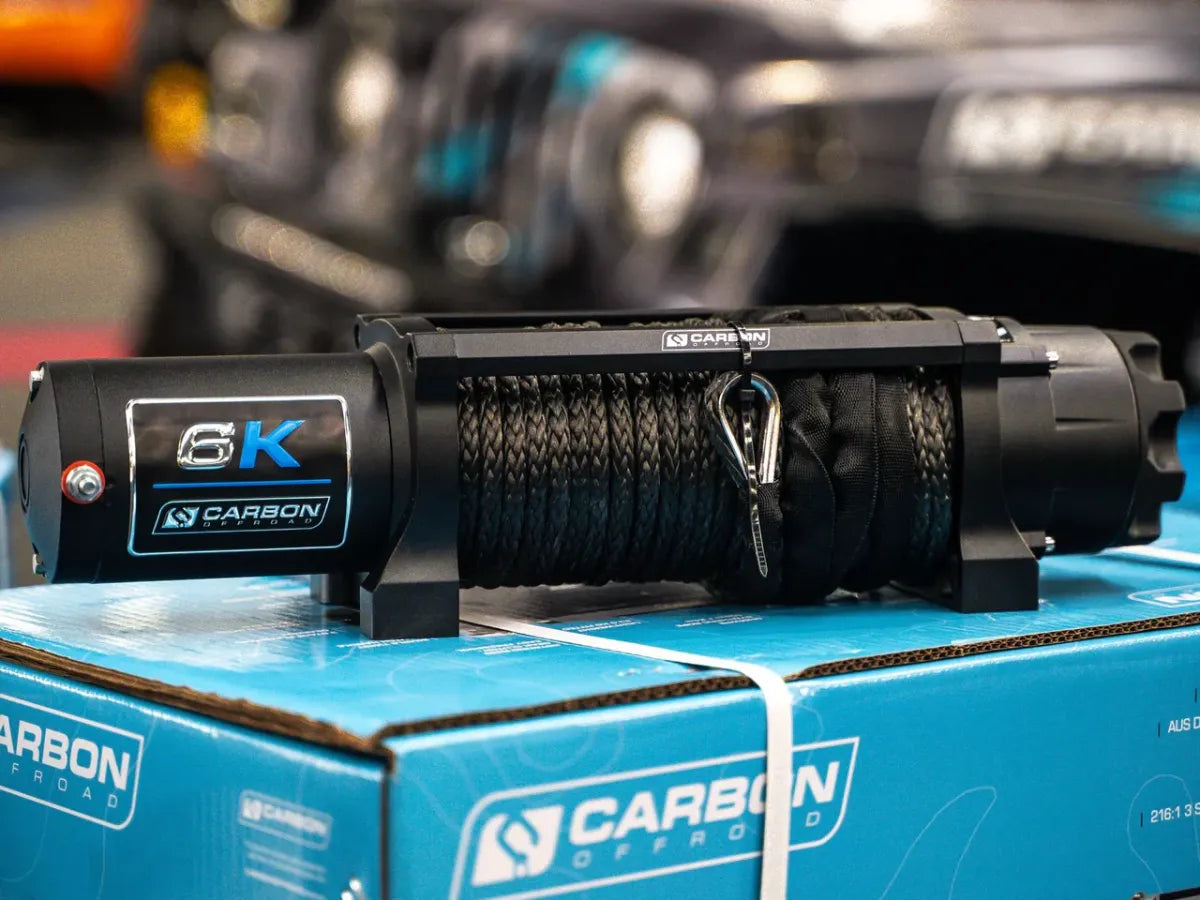

Carbon Offroad 6000lb Compact ATV Winch | Long Drum

SKU CW-XD6L
Original price $699.00 - Original price $699.00
Original price
$699.00
$699.00 - $699.00
Current price $699.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

Experience the power of this small but mighty 6000lb (2725kg) ATV winch, with long drum by Carbon Offroad!

Tough jobs just got easier with this compact yet powerful winch! Designed with a long drum and 26m of rope, it’s a perfect fit for mounting onto an existing pedestal on a trailer or integrating into a small form factor bar.

Whether you're loading heavy gear into the back of a van, hauling a tinny onto a trailer, or even opening cattle gates on a livestock truck, this winch gets the job done with ease.

It comes with both wireless and wired remote controls included at no extra cost, giving you complete flexibility. Ideal for small cars, equipment trailers, and even getting your Jimny or trailer out of the bog when the tracks turn muddy!

Features

  • Sealed motor & geartrain – Keeps out dust, water, and mud for reliable performance in extreme conditions.
  • Permanent magnet motor – Delivers serious pulling power when you need it most.
  • Cam-action clutch – Enables near-silent free-spooling for smooth operation.
  • Mechanical & dynamic brake system – Prevents rollback and gives you total control.

Technical Specifications

  • Part number: CW-XD6L
  • Rated line pull: 6000 lbs, (2725kg) single-line
  • Motor: 12V DC 2.5 HP permanent magnet
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 147:1
  • Clutch: Roller disc full load automatic
  • Brake: Automatic brake in the motor bracket
  • Aluminium hawse
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
  • Synthetic Rope: 26m x 6.5mm diameter
  • Drum Diameter/Length: 51mm x 208mm
  • Mounting Bolt Pattern: 254mm x 76mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 473 x 125 x 120mm
  • Packing Dimensions (L x W x H): 530 x 170 x 230mm
  • Winch weight with synthetic rope attached: 8.3kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg

12V DC Performance Specs

Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 13.8(4.2) 15 1/6000(2725)
2000(1814) 9.5(2.9) 125 2/5350(2430)
4000(3629) 7.2(2.2) 190 3/4780(2170)
6000(5443) 4.6(1.4) 240 4/4270(1940)

Frequently Asked Questions

What makes the long drum version different from a standard compact 6K winch?

The CW-XD6L uses a longer drum (208mm versus 122mm on the standard CW-XD6), which lets it hold 26m of 6.5mm rope versus the standard model's 16m. That additional 10m of rope gives you significantly more reach to anchor points, useful on trailers, boat launches, or recovery situations where anchors are further away. The rated line pull, motor, geartrain and warranty are identical across both models.

What's the rated line pull and what applications is the CW-XD6L suited to?

The CW-XD6L delivers 6,000lb (2,725kg) of rated line pull on the first layer of the drum. It's suited to ATVs, small 4WDs, trailers, boat trailers, and similar light to medium duty applications. It's been used to load gear into vans, haul tinnies onto trailers, and operate cattle gates on livestock trucks. The compact form factor and integrated mounting plate make it adaptable to a wide range of mounting situations.

How much rope comes with the CW-XD6L and what diameter is it?

The CW-XD6L ships with 26m of 6.5mm diameter synthetic rope, 10 metres more than the standard CW-XD6. That extra length is the key reason to choose this model when you need greater reach. Synthetic rope is the right choice here: lighter than steel wire, safer to handle, no risk of snap-back like wire rope, and it floats.

What IP rating does the CW-XD6L have and is it suitable for wet or muddy conditions?

The CW-XD6L is rated IP66 for the winch body and solenoid (the remote control and switch are excluded from this rating). IP66 means fully protected against dust and against strong water jets from any direction, which covers rain, water crossings and muddy conditions. It's not rated for prolonged submersion, so avoid fully submerging the winch for extended periods.

What remote control options come with the CW-XD6L?

Both a wireless remote control and a handlebar mini-rocker switch are included at no extra cost. The mini-rocker is ideal for fixed ATV or handlebar mounting applications, and the wireless gives you the flexibility to operate from a distance. Both remotes control power in and power out functions.

What's the mounting bolt pattern and will it fit my trailer pedestal or bar?

The CW-XD6L uses a 254mm x 76mm mounting bolt pattern with an integrated mounting plate. Note this is a longer bolt spacing (254mm) than the standard CW-XD6 (167mm), so measure your existing mount if you're swapping between models. The longer drum also increases overall length to 473mm, so confirm clearance at your mounting location before ordering.

What warranty does the Carbon Offroad CW-XD6L come with?

The CW-XD6L carries a lifetime mechanical warranty and a 5 year electrical warranty, the same terms as Carbon's full-size 4x4 winch range. If you run into any issues, get in touch with us and we'll sort it out.

How heavy is the full kit for the CW-XD6L?

The winch with synthetic rope attached weighs 8.3kg, and the full kit including rope, control box, cables, mounting bolts and fairlead comes in at 11.2kg. It's a genuinely compact and light package, easy to handle during installation and kind to your front axle load or trailer nose weight.
