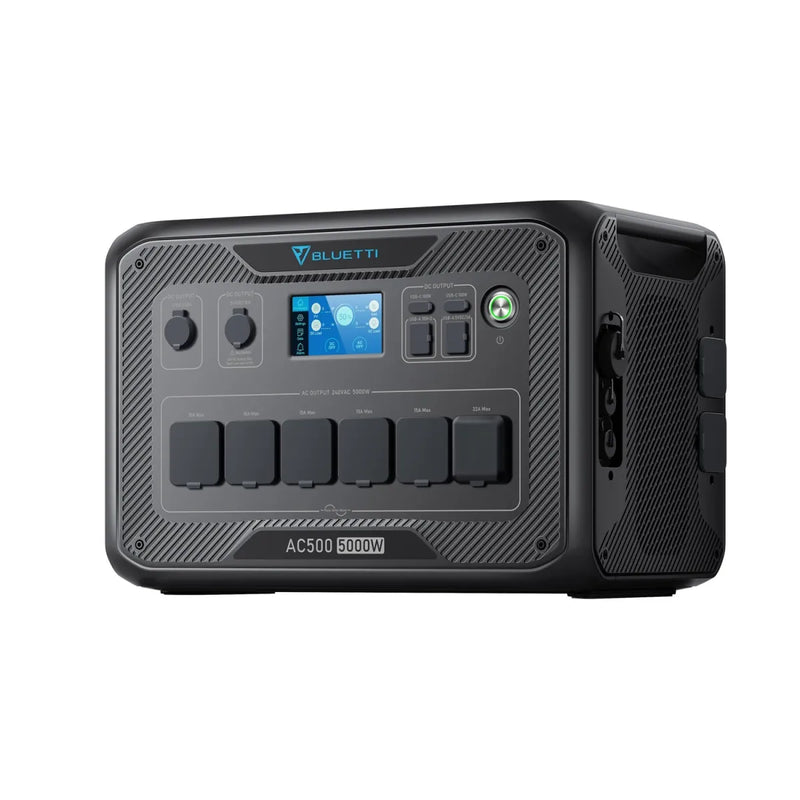

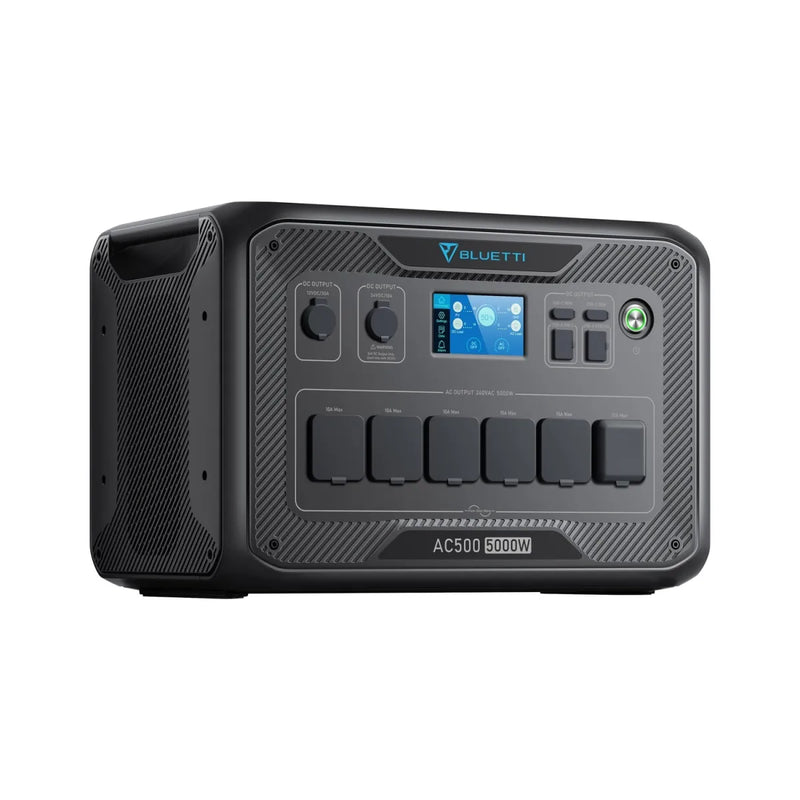

5000W AC500 Pure Sine Inverter Module Generator by Bluetti (Requires B300S/B300)
Whether you're camping, RVing, preparing for power outages, or living off-grid, the Bluetti AC500 is the ultimate power-packed solution. This versatile generator handles a multitude of tasks with ease, making it the go-to choice for various applications.
Key Features
- 🏕️ Camping and RVing: Keep your adventure charged with the AC500, providing reliable power for your laptops, phones, lights, and other devices. Need more? It can even handle running a small air conditioner or refrigerator, ensuring your camping experience is both comfortable and convenient.

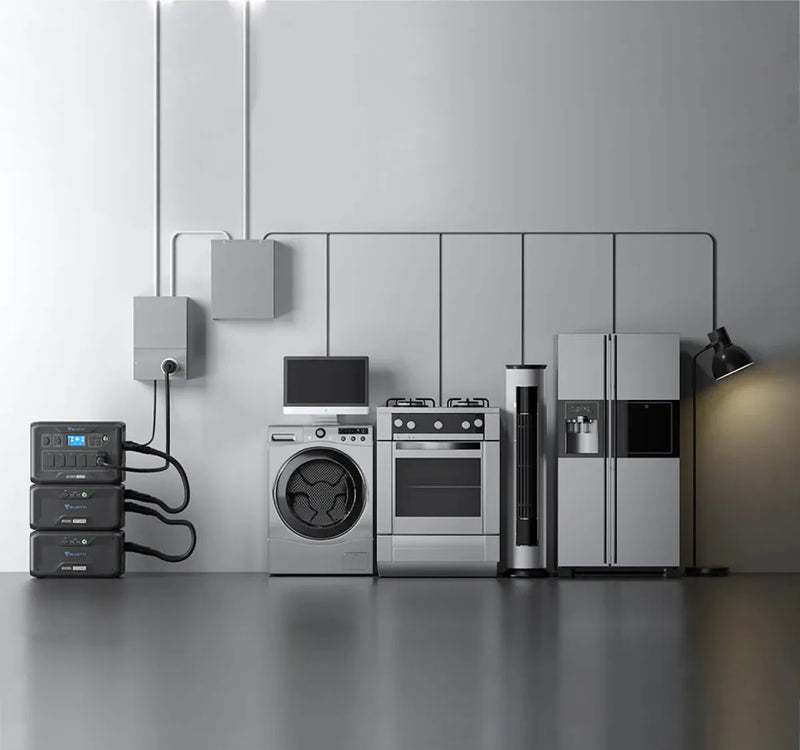

- 🏠 Powering Your Home during Power Outages: When the lights go out, the AC500 steps in to save the day. With 5000W of continuous power output, it can run most household appliances, including lights, refrigerators, and device chargers, keeping your home functioning smoothly during emergencies.
- ⚡ Off-Grid Living: For those living off-grid, the AC500 becomes a lifeline. It offers a reliable power source, providing stability and peace of mind, even when the grid is down.
Features
Modular Solar Power System for All Needs
-
Compatible with B300S and B300 batteries for an expandable power system. The AC500 will definitely change the way you harness solar energy. It's designed to help you go through power outages and stay connected to unlimited energy wherever you are heading.
5000W Pure Sine Wave Inverter
- This inverter delivers quality pure sine wave output and takes up to 10kW surges, ensuring anything you plug in will be running to its full functionality and capacity.

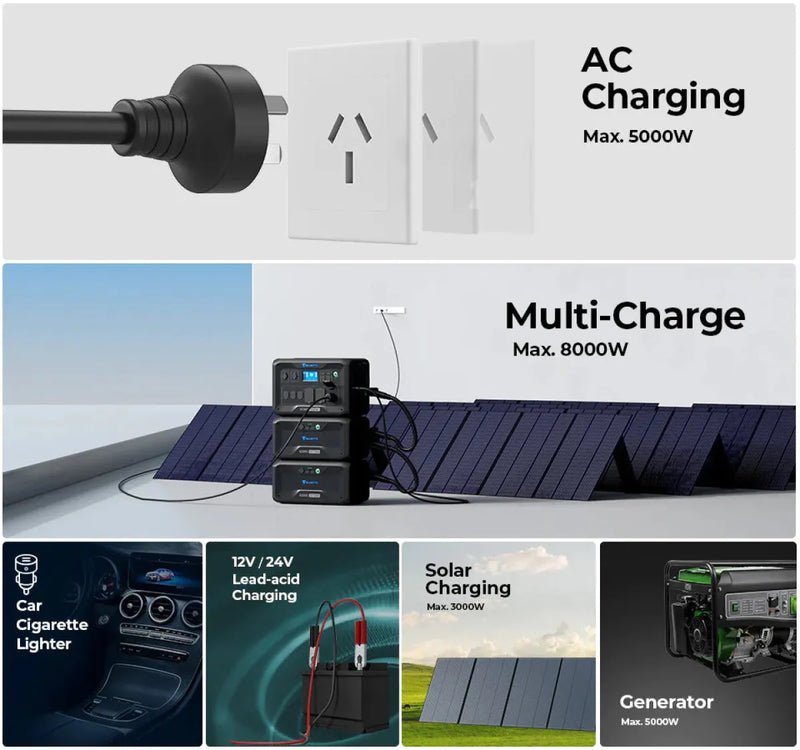

Charge in Any Way You Like
- No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W impressive input rate (At least 2 x B300S packs required). Get the system recharged before you pack up for camping, and your power will be ready when you are.
Power Option for Personalisation
- AC500 is 100% modular and can accept up to 6 x B300S (3,072Wh each) expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS either in daily use or power outages!
Never Run Out of Power
- AC500 powers your devices like a gas generator, but without any fuel costs, noise, and pollution, making it safe enough to use next to you whether you're at home, pitching a tent, or trying an RV road trip.
AC500 Requirements
The AC500 requires the B300 or B300S expansion battery for optimal performance. It can take up to 6 x B300S expansion batteries or 4 x B300 expansion batteries.
What is the difference between the B300 vs. B300S Expansion Batteries?
Both expansion batteries boast a capacity of 3072Wh, ensuring ample energy for your needs. However, there are notable differences that cater to specific requirements.
- 🔋 Current Capacity: The B300S features a robust 130A current capacity, perfect for powering devices with high current demands. On the other hand, the B300 offers a 75A current capacity, ideal for standard power needs.
- ☀️ Solar Input: When it comes to solar charging, the B300S shines bright with a 500W input capacity, enabling faster charging from the sun. Meanwhile, the B300 allows for up to 200W of solar power input.
- 🌡️ Automatic Heating Function: The B300S includes an automatic heating function, a valuable feature that safeguards the battery from freezing during cold weather. The B300, unfortunately, lacks this capability.
| Feature |
Bluetti B300 |
Bluetti B300S |
| Capacity |
3072Wh |
3072Wh |
| Current capacity |
75A |
130A |
| Solar input |
200W |
500W |
| Automatic heating function |
No |
Yes |
Choosing Your Expansion Battery
If you require a high-current battery to match the Bluetti AC500's power-hungry demands, the B300S is your perfect match. Alternatively, if budget is a concern or lower power requirements are your priority, the B300 presents an excellent option.
Select the expansion battery that best suits your needs, and let Bluetti empower your world!
Specifications
OUTPUT
|

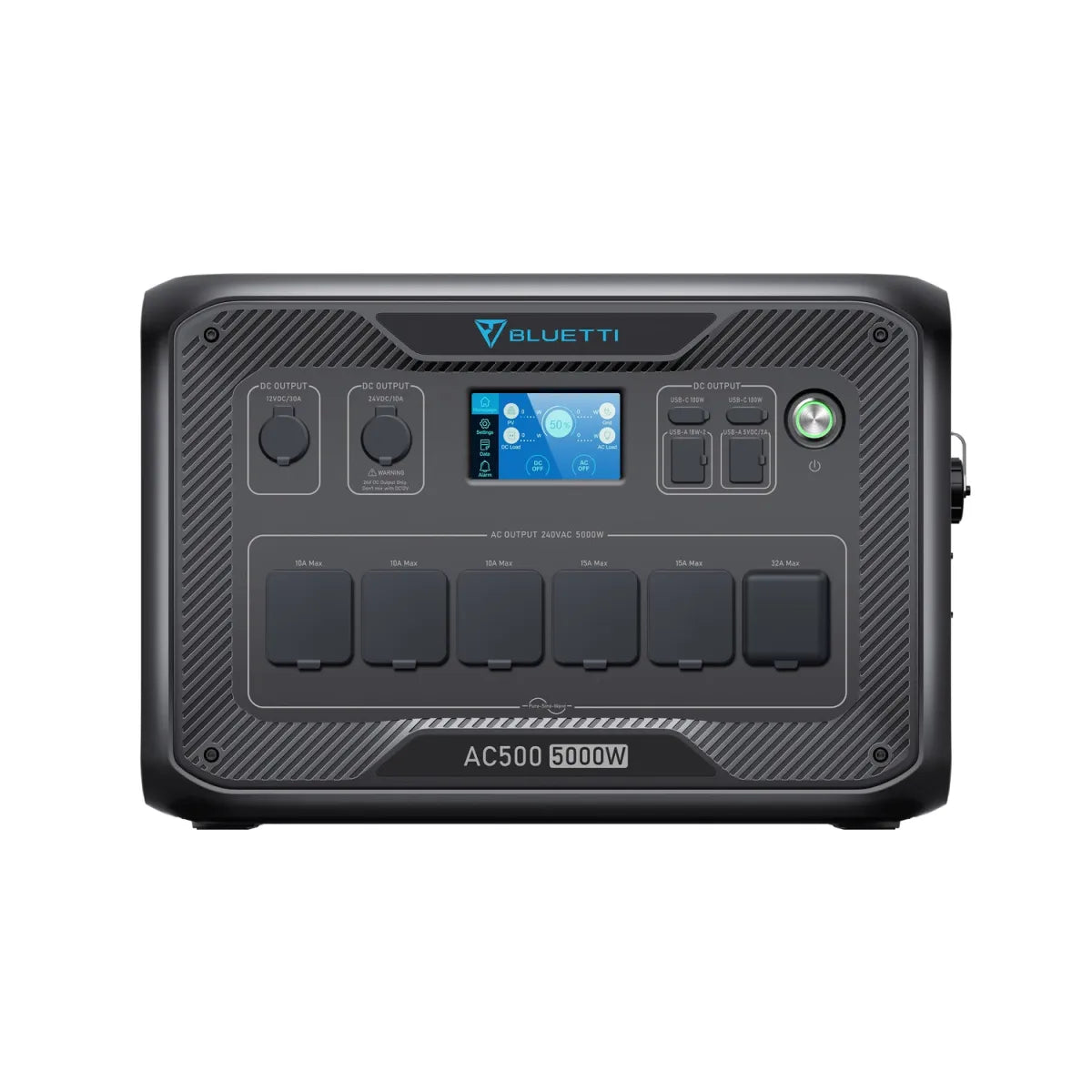

AC Outlets:
|
3 x 240V/10A Outlets
2 x 240V/15A
1 x 240V/32A
5,000W In Total
|
|
Inverter Type:
|
Pure Sine Wave
|
|
Surge Power:
|
10,000W
|
|
USB Port:
|
2 x 5V/3A USB-A
2 x 18W USB-A
2 × USB-C 100W Max.
|
|
DC Outlets:
|
1 x 12V/30A (RV Outlet)
1 x 24V/10A (Car Outlet)
*All regulated.
|
| INPUT |
AC Input:
|
4,500W Max. (W/ 1*B300S),
5,000W Max. (W/ 2 or more B300S). |
|
Solar Input:
|
3,000W Max. VOC 12-150VDC, 15A
|
|
Car Input:
|
12/24V from Vehicle Cigarette Lighter Port
|
|
Maximum Input:
|
4,500W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) AC + Solar Dual Charging
|
GENERAL
|
App Control:
|
Yes, WiFi & Bluetooth Connection
|
|
Scalability:
|
Expandable with 6×B300S or 4×B300
|
|
Simultaneous Charge & Discharge:
|
Yes |
|
Weight:
|
30kg |
|

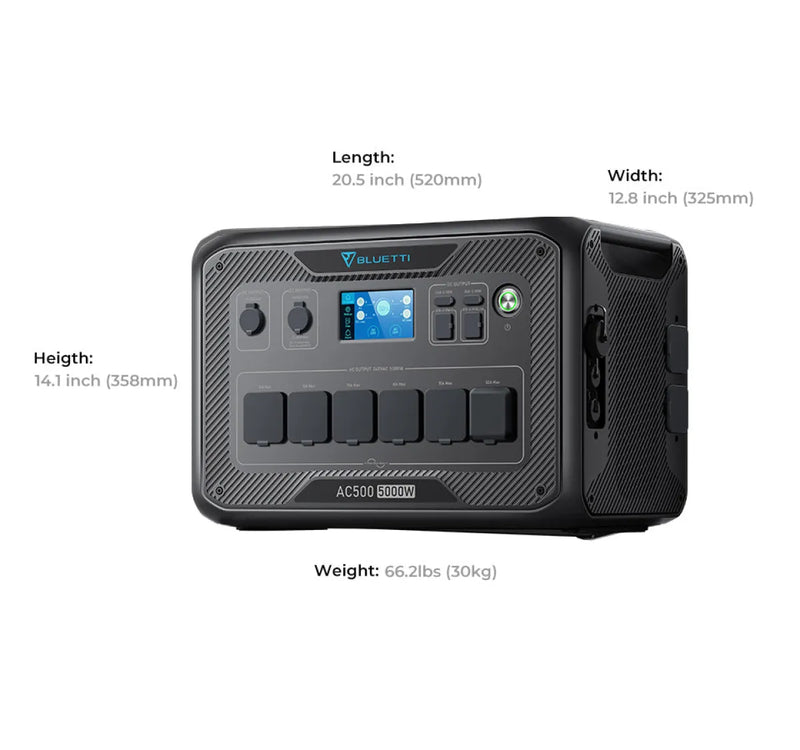

Dimensions (LxWxD):
|
52 x 32.5 x 35.8cm |
|
Operating Temperature:
|
-4℉-104℉ (-20℃-40℃)
|
|
Storage Temperature:
|
-13℉-104℉ (-25℃-40℃)
|
|
Certification:
|
UL2743, UKCA, TELEC, RCM, FCC ID, CE
|
|
Warranty:
|
4 Year Manufacturer Warranty
|
Package Includes
- 1 X AC500 Expandable Power Station
- 1 X 10A AC Charging Cable
- 1 X Solar Charging Cable (MC4 to Aviation Cable)
- 1 X Car Charging Cable (MC4 to Ciggaritte Lighter)
- 1 X Certificate Card
- 1 X User Manual
- 1 X Warranty Card
