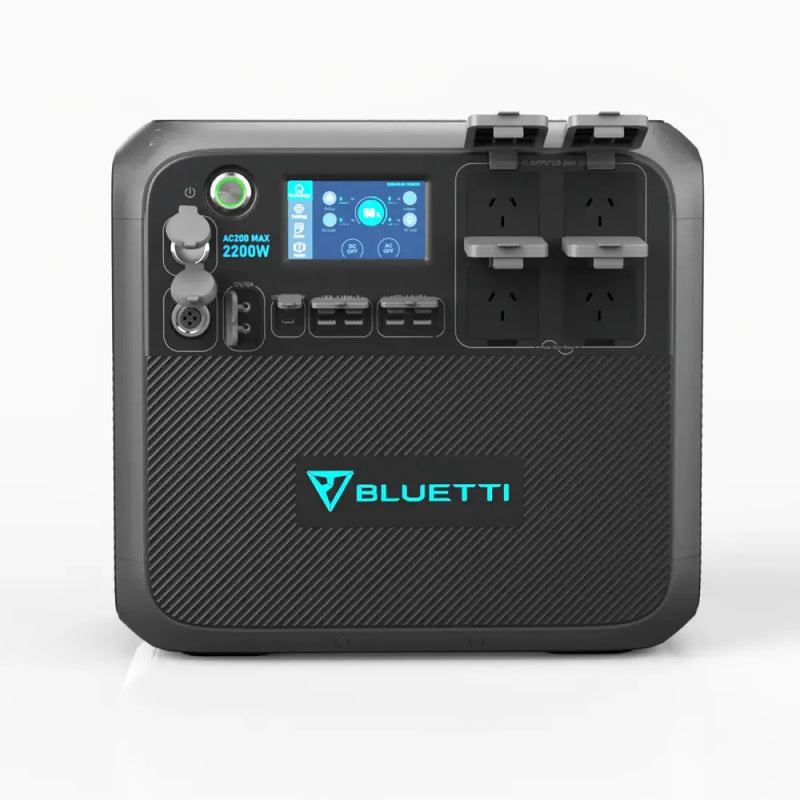

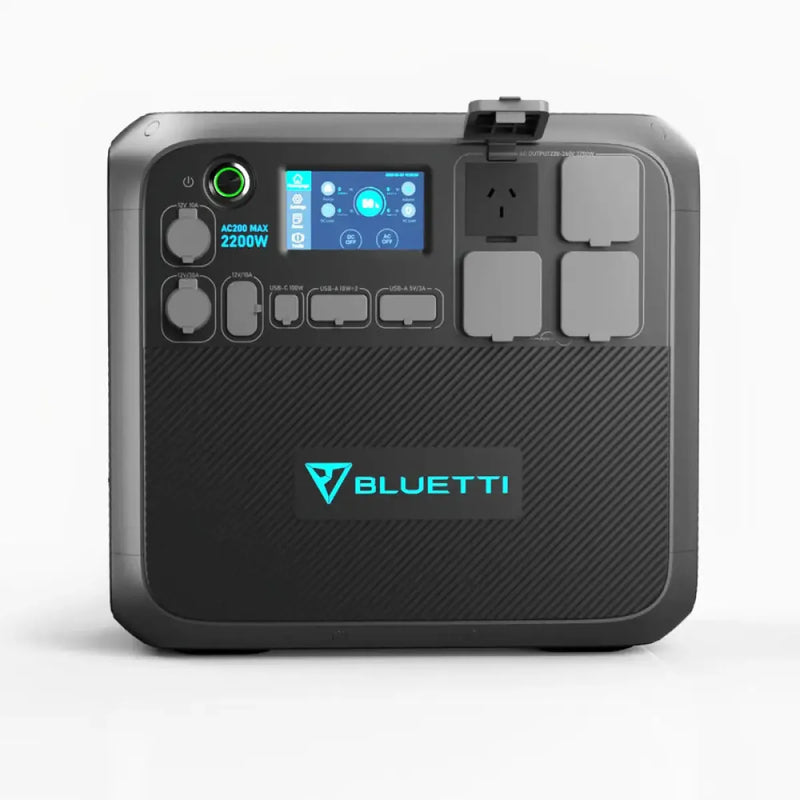

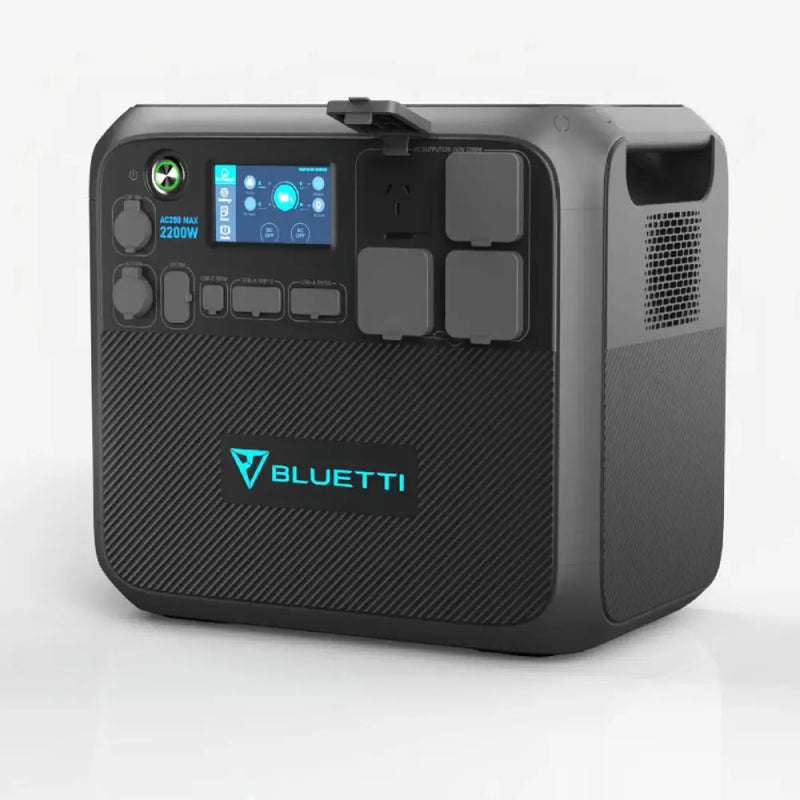

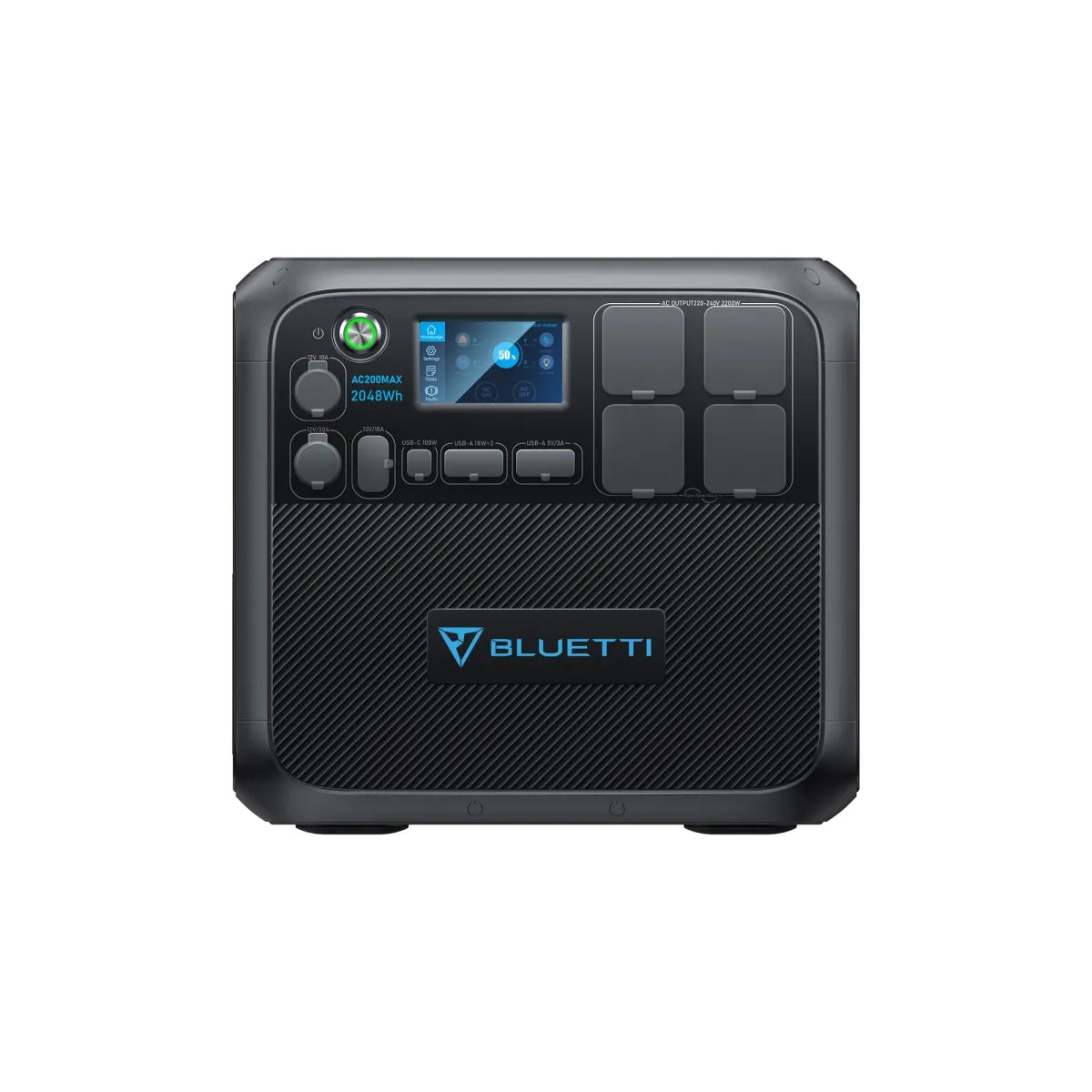

AC200Max - The All-Round Upgraded and Expandable Lithium Power Station from Bluetti
Get ready to experience unparalleled power capabilities with the AC200MAX. Boasting a robust 2,200W AC Pure Sine Wave Inverter (with a jaw-dropping 4,800W Surge), this versatile unit is designed to handle a wide range of power-hungry devices with ease.
Equipped with 2,048Wh of LiFePO₄ Battery Capacity, the AC200MAX promises long-lasting performance. With over 3,500 life cycles to 80%, you can rely on its durability and stability to power your gadgets and appliances.
The AC200MAX is expandable to meet your growing power needs. With 2×B230, you can elevate its capacity to an impressive 6,144Wh, and with 2×B300, you'll soar to an astonishing 8,192Wh! Now that's the flexibility you need for any power-intensive situation.
Recharging the AC200MAX is a breeze with its 7 convenient ways to juice it up: AC, Solar, Car, Generator, Lead Battery, Dual AC, and AC+Solar. Harness up to 900W of Solar Input or go for the 1400W Max. Fast Dual Charging with Solar + AC Adapter to get back in action faster.
Take control of your power with the BLUETTI App, which allows you to smartly monitor and manage your power consumption, giving you full command over your energy usage.
No matter where life takes you, the All-round Upgraded Expandable Power Station from Bluetti—the AC200MAX—is your reliable and efficient mobile power center. Embrace the freedom of limitless energy and elevate your power game like never before!
- 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
- 2,048Wh Capacity
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1400W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
Less To Spend, More To Love: Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!
Get Charged In Anyway You Prefer: The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).
- Wall outlet (AC) - 4 - 4.5 hours (400W Max)
- Petrol Generator - 4 - 4.5 hours (400W Max)
- Car Charging - 6-8 hours
- Solar Charging - 4 hours (900W Max)
If you need to charge your unit quickly, the AC200MAX allows 900W solar and 400W adapter input allowing a 1,300W total charging rate, charging up this power beast in less than two hours!
- 900W Solar + 400W AC Simultaneously - 2 - 2.5 hours
- Dual AC Adaptor 800W (purchased separately) - 3 -3.5 hours
Featuring 15 Outlets for All: The AC200Max's 2200W Inverter allows you to run pretty much anything! Plus charge your smartphones, tablets, lights, GoPros, refrigerators, coolers, projectors etc with another 11 DC Port options.
Ports consist of:
- 4 X AC 240V Sockets (2200W w/ 4800W Surge)
- 2 X Regulated 12V (Car & RV Sockets)
- 1 x USB-C
- 2 x USB-A Fast Charge (100W)
- 2 x USB-A (15W)
- 2 X DC 12V/10A socket (DC 5521 5.5mm Outlet)

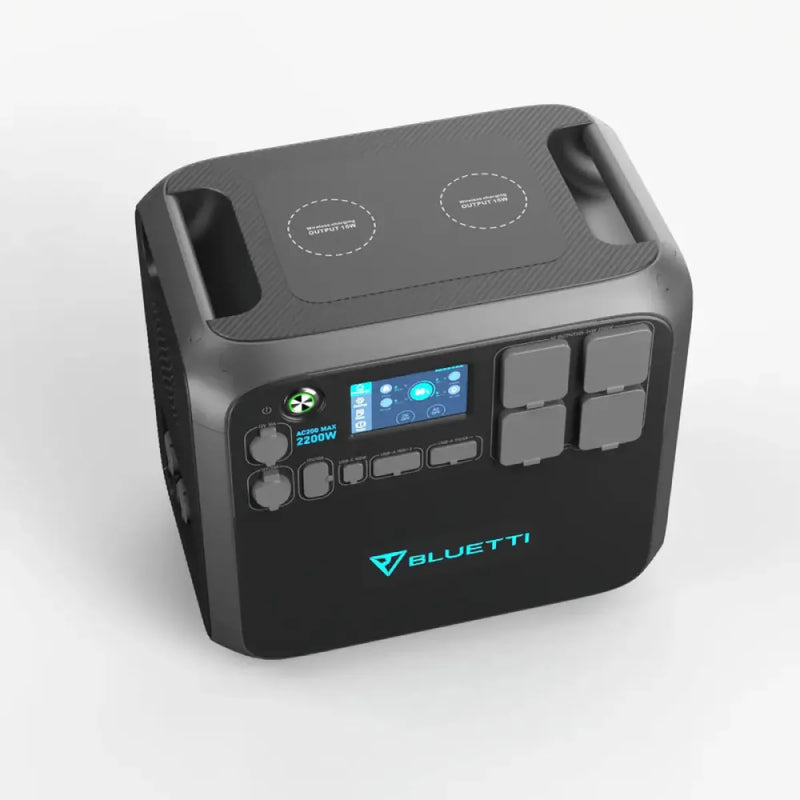

- 2 x Wireless Charging Pad (15W)
||LiFePO4 (Lithium Iron Phosphate)
||3,500+ Cycles to 80% Original Capacity
||Recharge to 80% Every 3-6 Months
||MPPT Controller, BMS, etc
||4 x 220V-240V,2200W In Total
||Pure Sine Wave
||1 x 100W Max.
||2 x 5V/3A USB-A
2 x 18W USB-A
|12V DC Outlets:
1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
|Wireless Charging Pad:
||2 x 15W Max. (For Each)
||AC Adapter Input:
||900W Max.OCV 10-145VDC, 15A
||12/24V from Cigarette Lighter Port
||1,400W, with AC+Solar Input
||AC Adapter (500W):
||≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
|12V/24V Car Outlet (100W/200W):
||≈10 or 20 Hours
|AC Adapter + Solar (1400W):
||≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
|Dual AC Adapters (1000W):
||≈3~3.5 Hours (Extra adapter is REQUIRED)
||Expandable w/ Up to 2 x B230 or 2 x B300
||16.5 x 11 x 15.2 in ( 42 x 28 x 38.65cm)
|Operating Usage Temperature:
||UL2743, UKCA, TELEC, RCM, FCC ID, CE, PSE, NTC

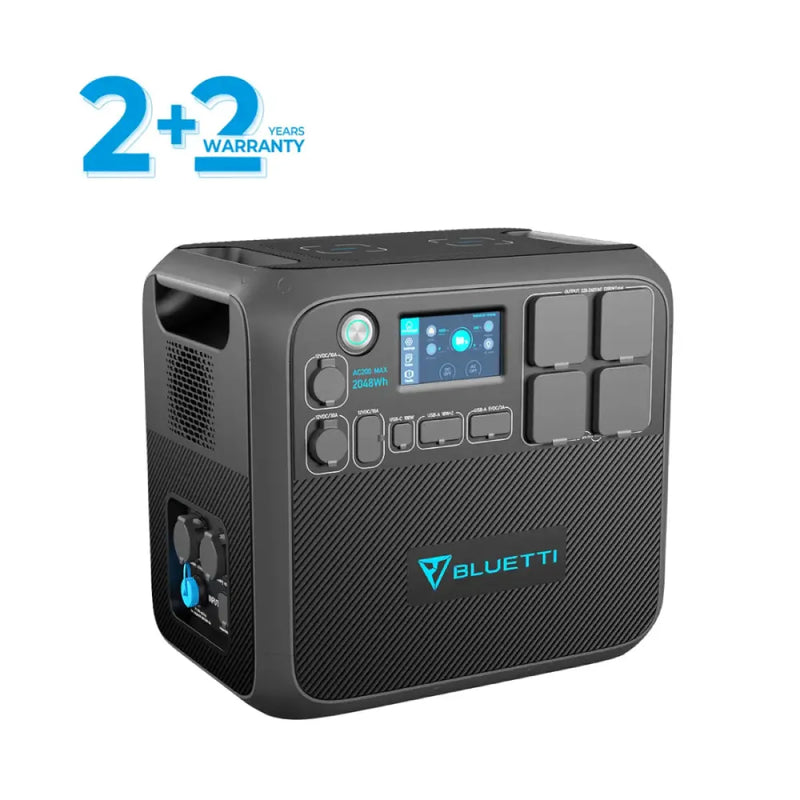

||4 Year Manufacturer Warranty|
- 1 X AC200MAX Power Station
- 1 X T400 AC Adaptor + Charging Cable
- 1 X Car Charging Cable (XT90 - Cigarette Lighter Port)
- 1 X Solar Charging Cable (MC4 - XT90)
- 1 X XT90 to Aviation Plug (Input)
- 1 X User Manual
- 1 X Warranty Card
- 1 x Certificate of QC Pass
