Carbon Offroad 12K 12000lb Winch Installation and Recovery Bundle Kit | Version 3 - Electric Winch

Carbon Offroad 12K 12000lb Winch Installation and Recovery Bundle Kit | Version 3

by Carbon Offroad
SKU CW-12KV3-COMBO2
Save $26.00 Save $26.00
$1,295.00
$1,295.00 - $1,295.00
$1,295.00
$1,269.00
$1,269.00 - $1,269.00
$1,269.00
4x4 Down Under Buy Now Pay Later Options

    WHY SHOP WITH US?
  • ✔ Fast Shipping with Tracking and Insurance
  • ✔ Australian Owned and Operated
  • ✔ 256Bit SSL Website Encryption for Safe and Secure Shopping
  • ✔ Expert Before & After Sales Service
  • ✔ Easy Returns & Full Warranty Support

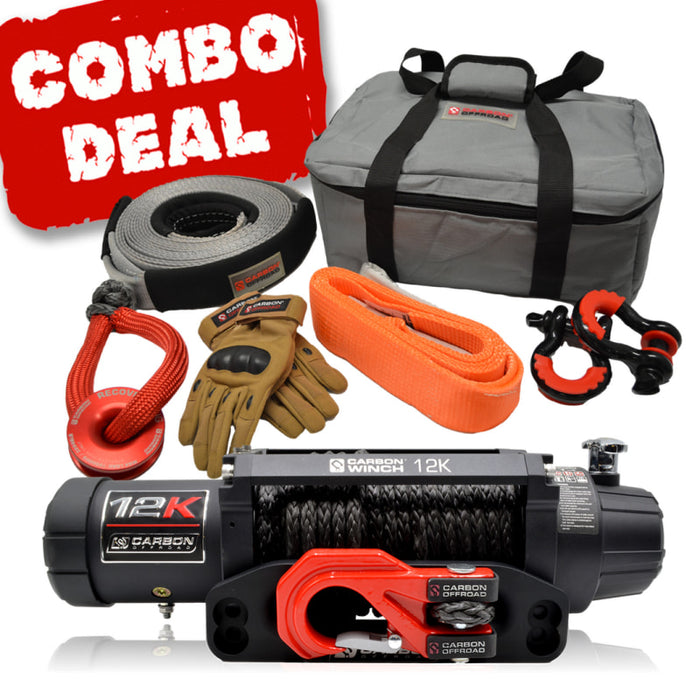

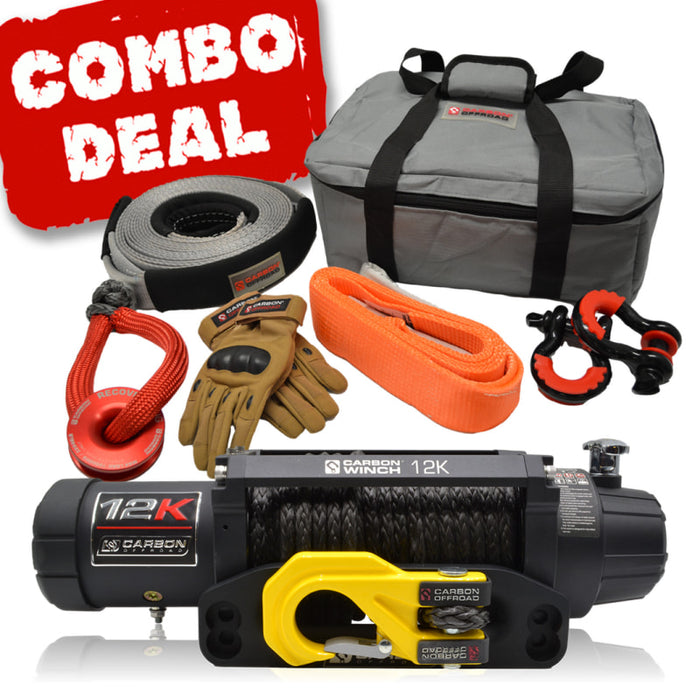

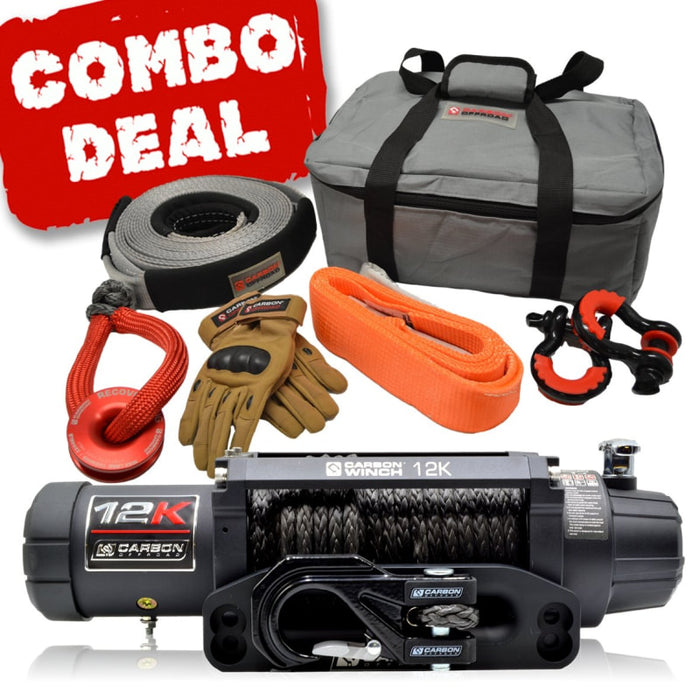

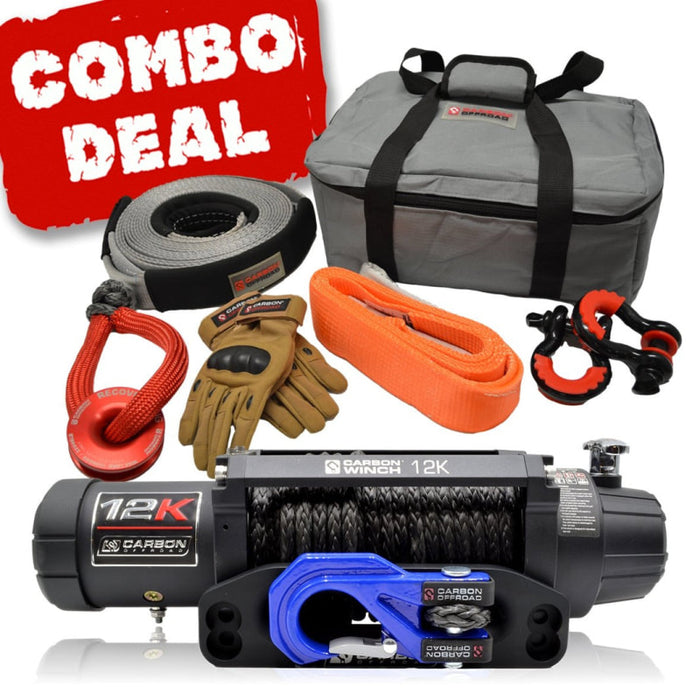

Introducing the Latest Generation (v3) 12k Winch Installation and Recovery Bundle from Carbon Offroad

Take the hassle out of your recovery with a Carbon 12000lb Winch and recovery gear combo deal. Simply just purchasing a winch doesn't mean you'll get yourself out of a sticky situation offroad.

You need an ability to attach the hook to a tree or increase your line pull with a double line pull or simply just pull another 4wder out. With this combo kit you can perform most recoveries

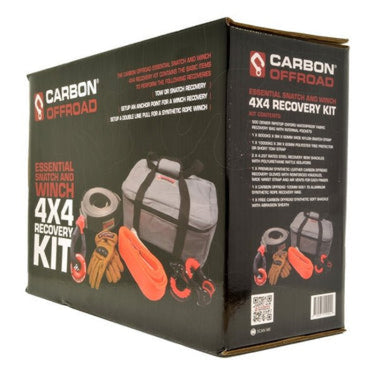

The Carbon Offroad Essential Snatch and Winch 4x4 Recovery Kit is designed for equipping the 4x4 operator with the necessary essential recovery products to safely perform two major tasks in safe vehicle recovery.

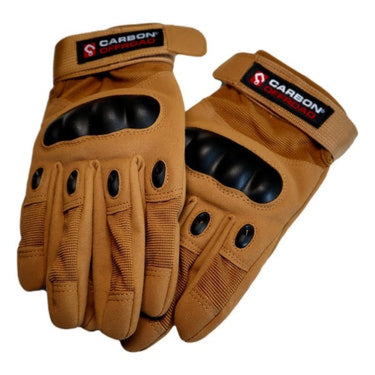

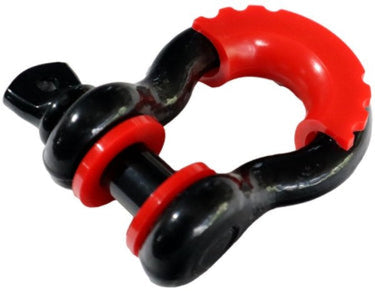

Firstly the snatch or tow recovery, the kit is equipped with a 8000 kg x 9 metre long snatch strap, along with the included steel D shackles and synthetic leather gloves for the user, allows safe connection to the vehicle being recovered and the vehicle conducting the tow recovery.

Secondly a winch recovery, the operator can perform both a single line and a double line pull, safely with the tree trunk protector strap, d-shackles, snatch block and gloves.

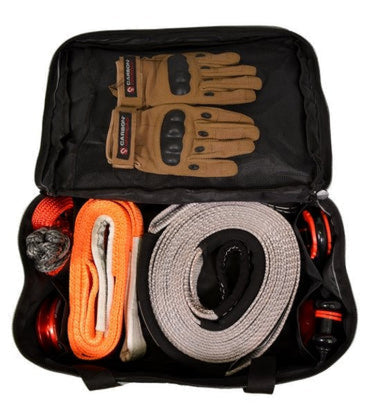

This Product Features

  • 500 denier ripstop oxford canvas material
  • Heavy duty webbing straps
  • Heavy duty zipper closure
  • Internal pockets for snatch block and d-shackles
  • Sleeve under lid for gloves storage

WHY BUY A CARBON WINCH?

  • Designed by an Australian offroad business for the harsh Aussie and international conditions
  • Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. Ver.2 series was upgraded to IP68 ingress protection.
  • 12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
  • 6.2HP series wound 12 volt electric motor (24 volt option)
  • The Battery Isolator Switch supplied with the kit must be installed. Would you have a non-isolated or fused battery cable running to the back of your vehicle for towing or other Auxiliary uses? No. The winch is the same, it's power feed must be isolated to protect you and your car in the event of a multitude of unforeseen circumstances that can occur, such as a frontal accident, an unfused 500 amp cable can catch fire extremely fast when shorted out against a body component.
  • Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
  • The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market.
  • Electroplated planetary gear sets for long life
  • 3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.
  • Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm.
  • All other internals are fully zinc electroplated for corrosion protection.
  • High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts.
  • Smooth ball bearing motor operation with a fully balanced motor armature for superior performance.
  • Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.
  • 4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch

NO FUSS WARRANTY INCLUDES

  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty

MAIN FEATURES INCLUDE

    • 6.2 HP Series wound motor
    • 216:1 ratio 3 stage planetary gearbox
    • Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum (No heat build up in the drum)
    • Rotating ring gear free spool clutch assembly which minimises freespool drag and completely eliminates clutch engagement issues.
    • Power in and power out via a plug in hand remote or a wireless remote controller. The remote controller has 90-second auto-off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
    • 500amp sealed solenoid unit and wired handle remote control and wireless
    • Remote control unit

    Bundle Includes

    • Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
    • 24m x 10mm high strength synthetic winch rope
    • 1 x Carbon winch hook
    • 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
    • 1 x long black battery cable
    • 1 x Isolator switch
    • 1 x battery to isolator switch cable
    • 1 x Wireless remote
    • 1 x Wired remote
    • 1 x Multi-fit CNC Alloy fairlead (offset and standard position)
    • 4 x Mounting bolts
    • 3 x Allen keys
    • 2 x additional longer mounting bolts (fairlead mounting)
    • 2 x additional nuts for remote mounting solenoid box
    • 1 x Hook hand saver strap
    • 1 x Carbon lanyard
    • 1 x Carbon stubby cooler

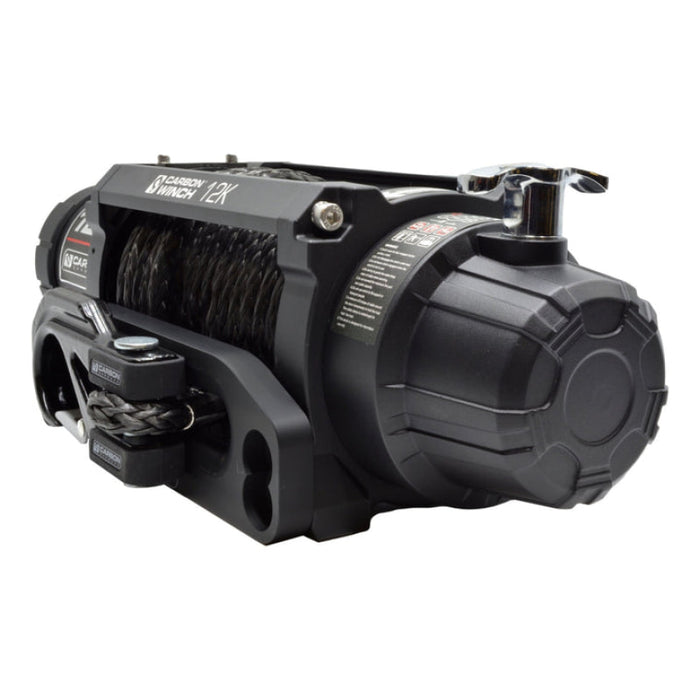

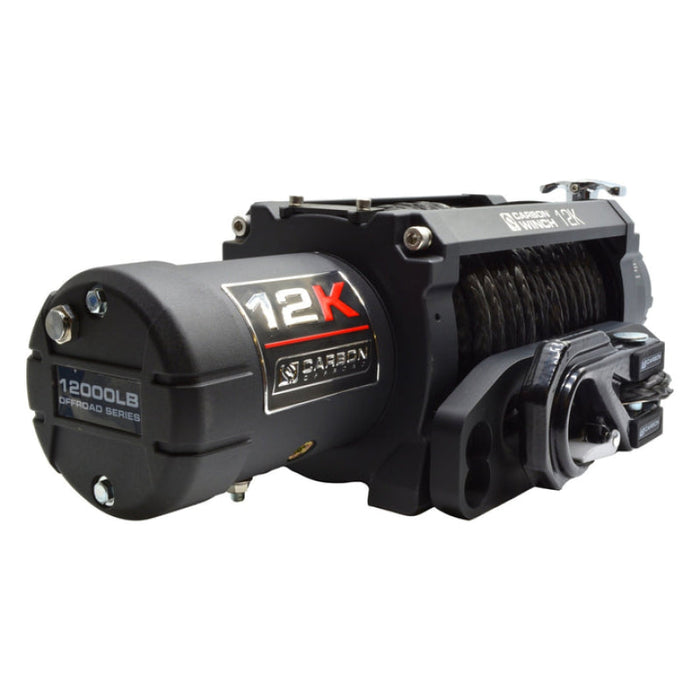

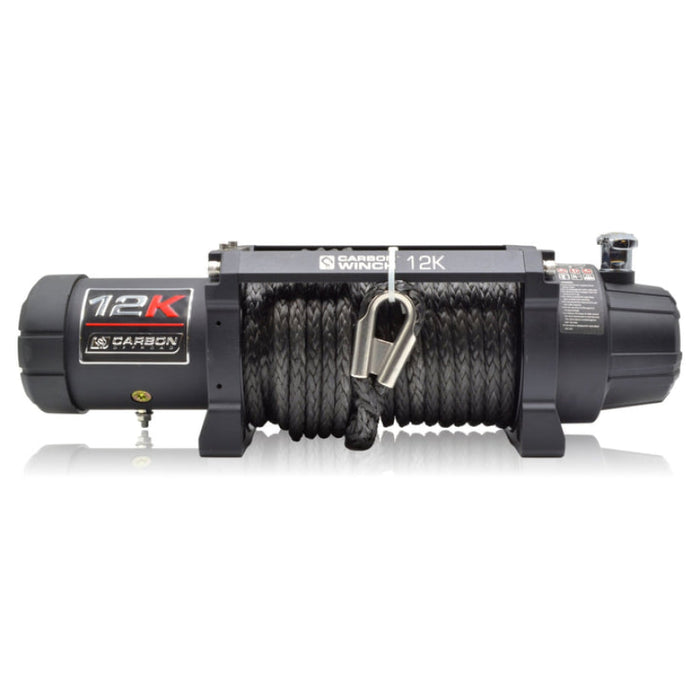

    Carbon Winch 12K Specifications

    • Part number: CW-12K
    • Rated line pull: 12000 lbs, (5450 kg) single-line
    • Motor: 12V DC 6.2HP series wound motor
    • Remote Control: Remote Switch, 12ft (3.7m) lead.
    • Wireless Remote Control: Included
    • Geartrain: 3-Stage Planetary.
    • Gear Ratio: 216:1
    • Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
    • Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
    • Drum Diameter/Length: 64mm x 224mm
    • Synthetic Rope:24m x 10mm diameter
    • Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
    • Recommended Battery: 650 CCA minimum for winching
    • Mounting Bolt Pattern: 254mm x 114.3mm
    • Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
    • Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
    • Winch weight with synthetic rope attached: VERSION 3 - 19.0kg
    • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg

    12V DC performance specs (first layer of drum)

    Line Pull

    Lbs.(Kgs.)

    Line Speed

    FT./min(M/min.)

    Motor

    Current

    Pull by layer

    layer/Lbs(Kgs.)

    0

    43.3(13.2)

    70 amps

    1/12,000 (5450)

    2000 (910)

    11.5 (3.5)

    130 amps

    2/9800 (4450)

    4000 (1810)

    9.2(2.8)

    170 amps

    3/8300 (3770)

    6000 (2720)

    7.9 (2.4)

    220 amps

    4/7200 (3270)

    8000 (3630)

    6.9 (2.1)

    265 amps



    10000 (4540)

    5.6 (1.7)

    320 amps



    12000 (5450)

    4.6 (1.4)

    390 amps

    Carbon Winch 12k – Package contents included in purchase price

    Description Quantity Note
    Carbon Winch CW-12K 1 24m x 10mm Synthetic Rope
    Control box 600amp 1 1pc 600A solenoid and battery cables + wireless remote 1 x long black battery cable
    Hand remote control & Wireless remote control  1 each Plug in and wireless operation
    CNC Billet 6061 T6 Alloy Black Hawse Fairlead  1 Laser Etched Carbon Winches two-position standard/offset fairlead
    Hardware bag 6sets 4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts. Spare nuts to use 6mm bolts in endplate for remote mount of control box on bullbar, allen keys.
    Owners Manual 1pc  Included
    Carbon Winch Hook 1pc  Included
    Red Hook strap 1pc  Included
