Bluetti AC500 Inverter Module Generator and B300S Expansion Battery Bundle Kit

by Bluetti
SKU AC500+B300S
Original price $6,299.00 - Original price $10,398.00
Original price
$6,299.00 - $10,398.00
Current price $6,299.00
Free Metro Shipping! 🚚
4x4 Down Under Buy Now Pay Later Options

  • Fast Shipping with Tracking and Insurance
  • Australian Owned and Operated
  • 256Bit SSL Website Encryption for Safe and Secure Shopping
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

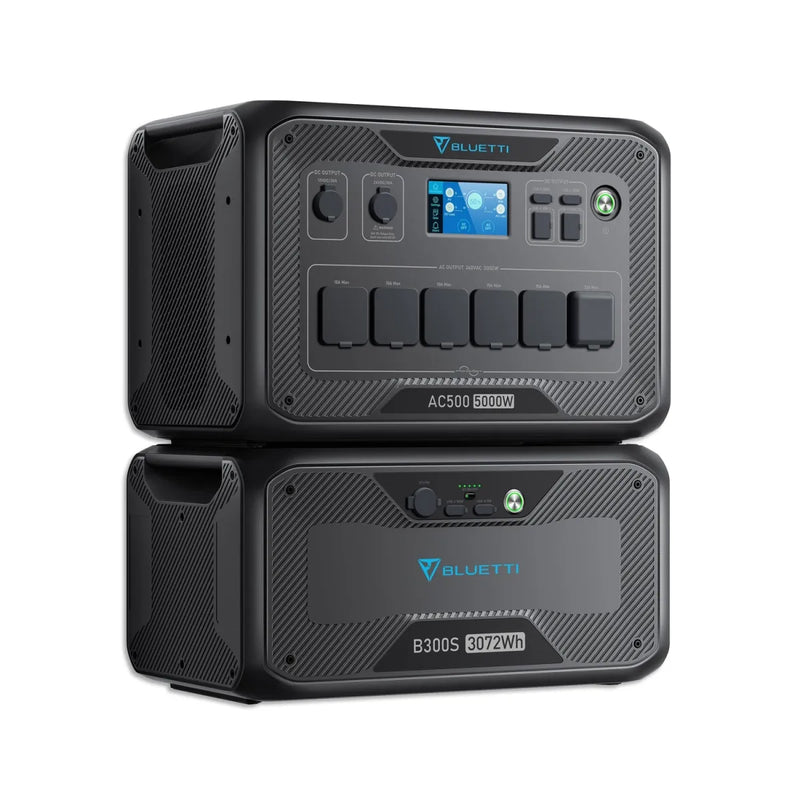

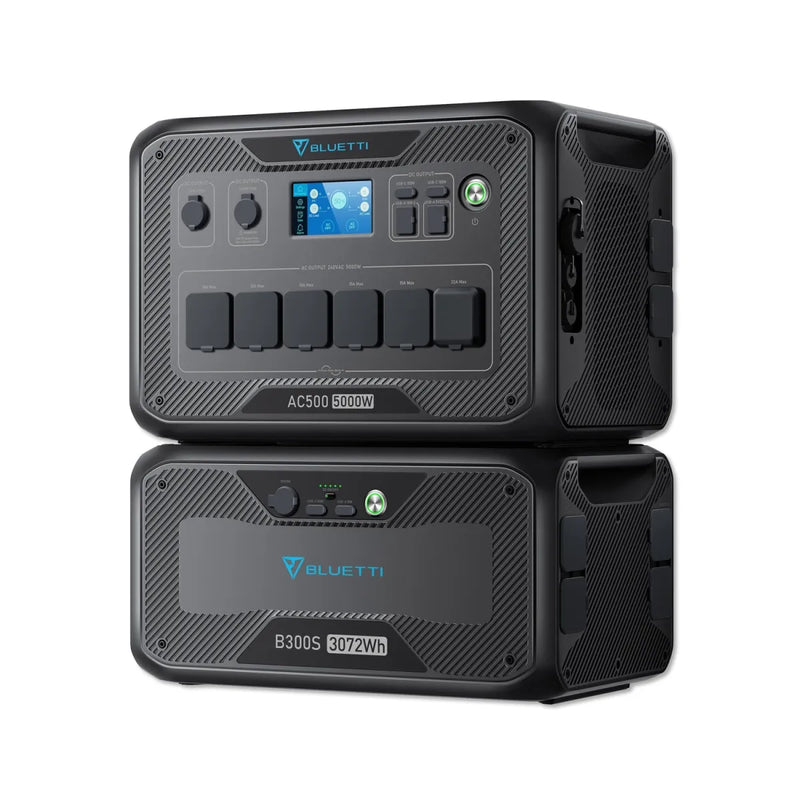

500W Inverter Module Generator and B300S Lithium Expansion Battery Bundle Kit from Bluetti

Unlock the true potential of solar energy with the ultimate Modular Solar Power System: the AC500 Inverter Module Generator and B300S Lithium Expansion Battery Bundle Kit from Bluetti.

Say goodbye to power outages and embrace uninterrupted access to limitless energy, wherever your adventures take you. The AC500 and B300S are your dynamic duo, designed to revolutionise the way you harness solar power and keep you connected in any situation.

With a formidable 5,000W Rated Power (and an impressive 10,000W Surge), this power system is a force to be reckoned with. But that's just the beginning of its capabilities—the expandable capacity ranges from 3,072Wh to a staggering 18,432Wh, empowering you to customise the system to your unique power needs.

The heart of this power system lies in the advanced LiFePO4 Battery, built to withstand over 3,500 life cycles to 80%. This means you can count on reliable and long-lasting performance for all your power requirements.

Take control like a pro with the Smart APP Control, featuring WiFi & Bluetooth Connection. From your fingertips, you can easily monitor and manage your energy consumption, ensuring you make the most of every watt.

With six versatile recharge options—AC, Solar, Car, Generator, Lead-acid battery, and Dual Charging—powering up your system is a breeze, regardless of your location or available resources.

Prepare to be amazed by the extensive range of 16 outlets, compatible with 99% of devices. From small gadgets to power-hungry appliances, the AC500 and B300S have you covered.

Worried about power interruptions at home? Fear not! The AC500 and B300S bundle kit provides a reliable 24/7 UPS Home Backup, ensuring your essential devices and appliances stay powered even during unforeseen outages.

Whether you're exploring the great outdoors, preparing for emergencies, or simply seeking a sustainable power solution, the AC500 Inverter Module Generator and B300S Lithium Expansion Battery Bundle Kit from Bluetti is the answer. Embrace the freedom of solar energy and elevate your power experience to new heights!

  • 5,000W Rated Power (10,000W Surge).
  • Expandable Capacity From 3,072Wh to 18,432Wh.
  • LiFePO4 Battery With 3,500+ Life Cycles to 80%.
  • Smart APP Control (WiFi & Bluetooth Connection).
  • 6 Ways to Recharge (AC/Solar/Car/Generator/Lead-acid battery/Dual charging).
  • 16 Versatile Outlets for 99% Devices.
  • 24/7 UPS Home Backup.


5000W Pure Sine Wave Inverter

  • This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.

Charge in Any Way You Like

  • No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W impressive input rate (At least 2*B300S packs required). Get the system recharged before you pack up for the camping, and your power will be ready when you are.

Bluetti AC500 Inverter Module Generator and B300S Expansion Battery Bundle Kit

Power Option for Personalization

  • AC500 is 100% modular and can accept up to 6×B300S (3,072Wh each) expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS either in daily use or power outages!

Bluetti AC500 Inverter Module Generator and B300S Expansion Battery Bundle Kit

Never Run Out of Power

  • AC500 powers your devices like a gas generator, but without any fuel costs, noise, and pollution, making it safe enough to use next to you. Whether you're at home, pitching a tent, or trying an RV road trip.

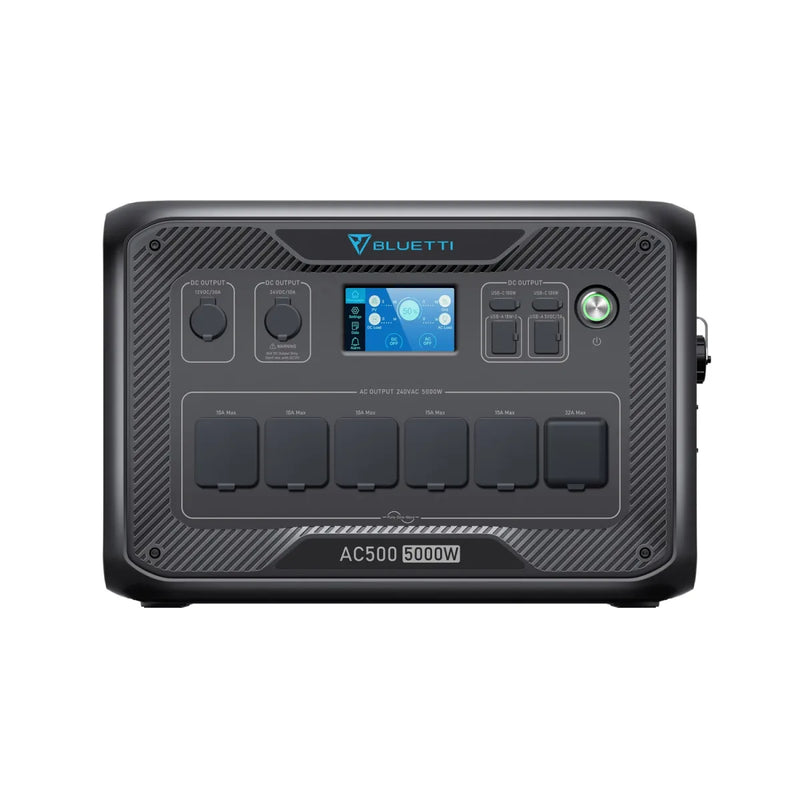

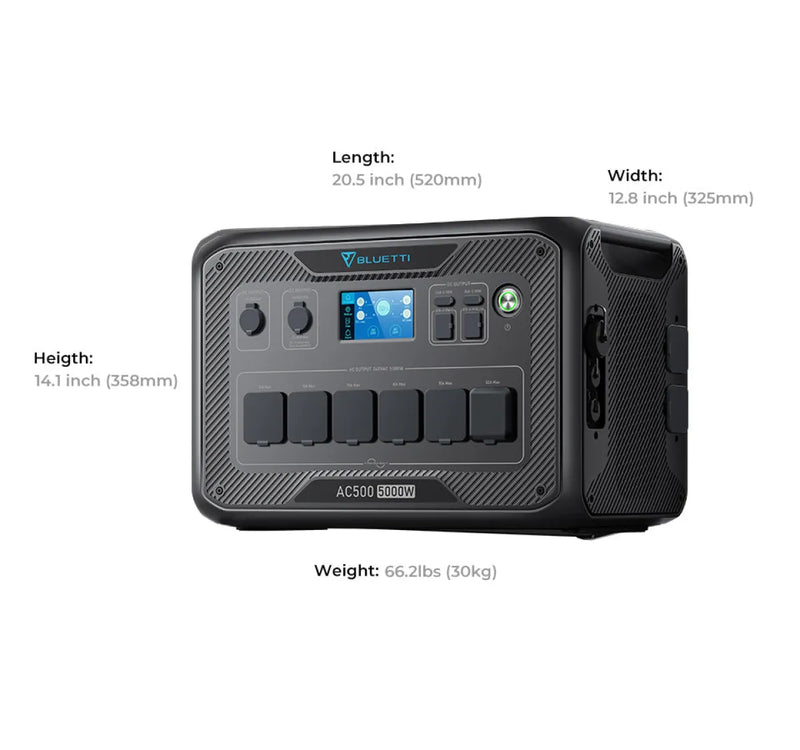

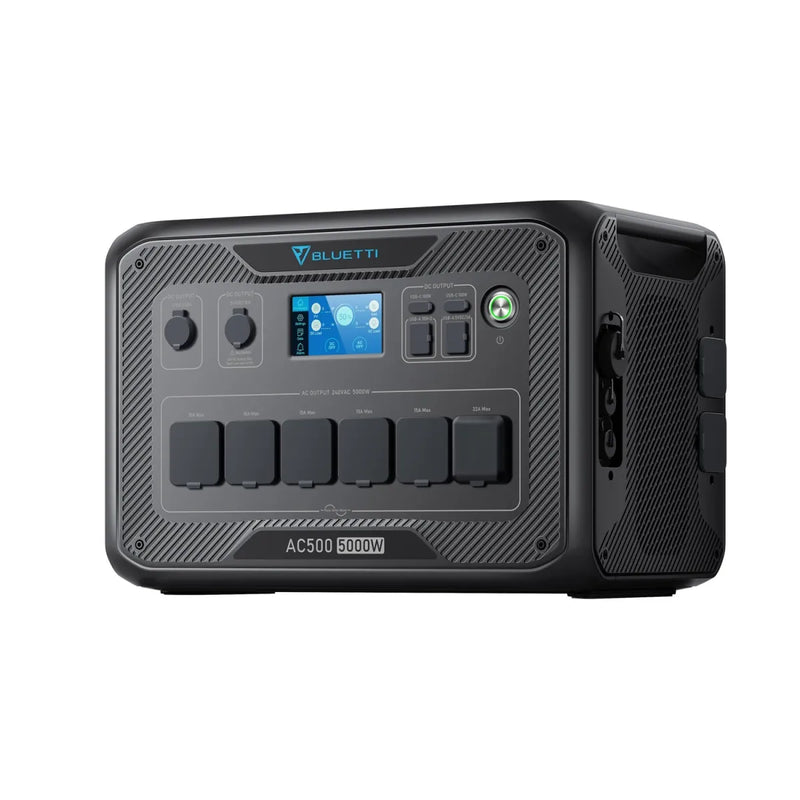

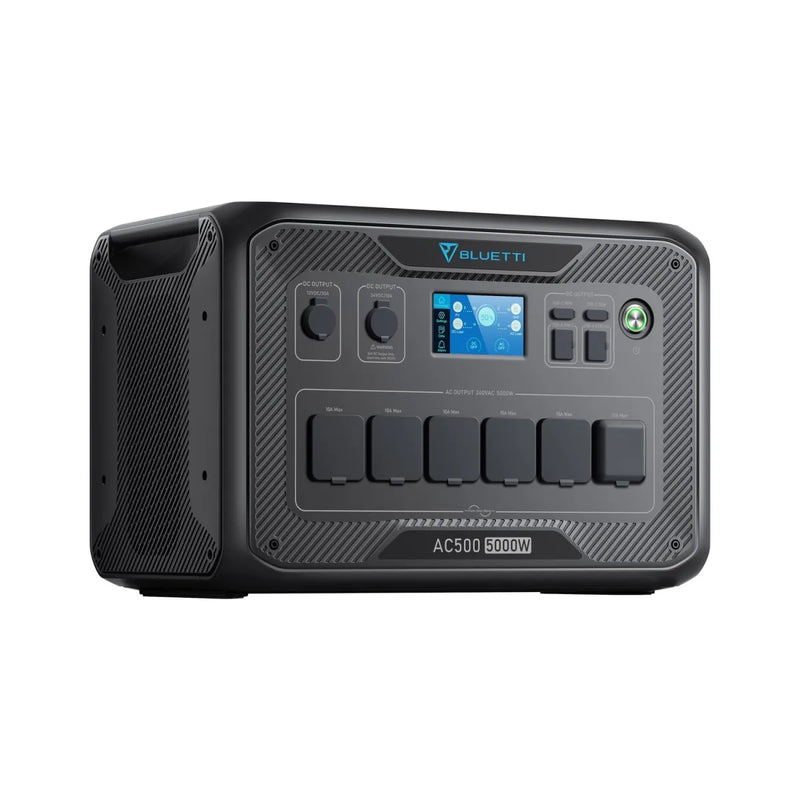

BLUETTI AC500 Inverter Module Generator | 5,000W
OUTPUT AC Outlets:
3 x 240V/10A Outlets
2 x 240V/15A
1 x 240V/32A
5,000W In Total
Inverter Type:
Pure Sine Wave
Surge Power:
USB Port:

2 x 5V/3A USB-A
2 x 18W USB-A
2 × USB-C 100W Max.
DC Outlets:
1 x 12V/30A (RV Outlet)
1 x 24V/10A (Car Outlet)
*All regulated.
Wireless Charging Pad:
2 x 15W Max.
AC Input:
4,500W Max. (W/ 1*B300S),
5,000W Max. (W/ 2 or more B300S).
Solar Input:
3,000W Max. VOC 12-150VDC, 15A
Car Input:
12/24V from Vehicle Cigarette Lighter Port
Maximum Input:
4,500W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) AC + Solar Dual Charging
App Control:
Yes, WiFi & Bluetooth Connection
Expandable with 6×B300S or 4×B300
Simultaneous Charge & Discharge:
Dimensions (LxWxD):
52 x 32.5 x 35.8cm
Operating Temperature:
-4℉-104℉ (-20℃-40℃)
Storage Temperature:
-13℉-104℉ (-25℃-40℃)
4 Year Manufacturer Warranty

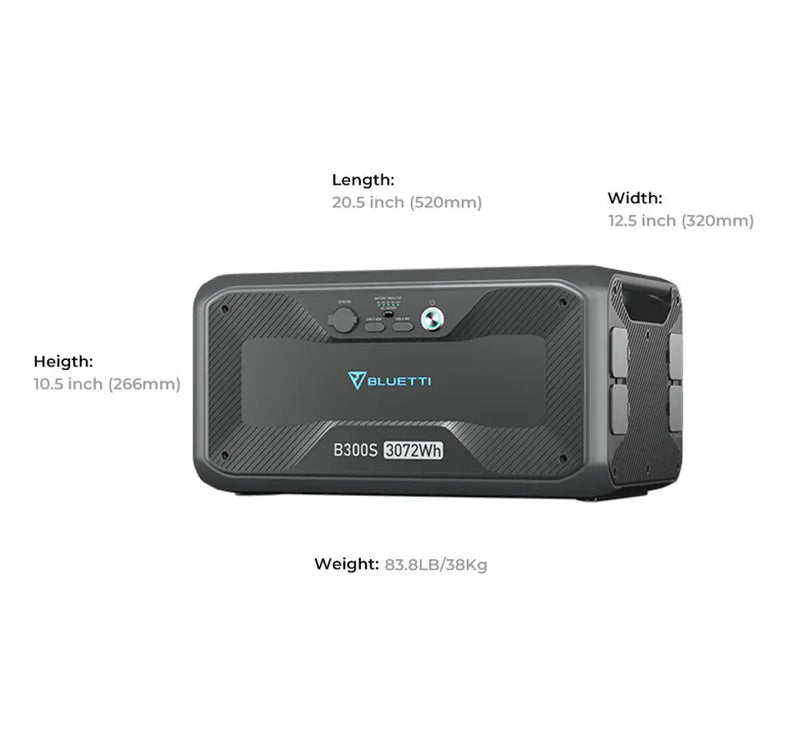

BLUETTI B300S Expansion Battery
3,072Wh (51.2V, 60Ah)
Cell Chemistry:
LiFePO4 (Lithium Iron Phosphate)
Life Cycles:
3,500+ Cycles to 80% Original Capacity
Recharge to 80% Every 3-6 Months
Management System:
MPPT Charge Controller, BMS, etc.
1 x 100W Max.
USB-A Port:
1 x 18W
DC Outlets:

1 x 12V/10A (Car Outlet)
*All regulated.
AC Input:
500W Max.
Solar Input:
500W Max. VOC 12-60VDC, 10A
Car Input:
12/24V from Cigarette Lighter Port
Maximum Input:
1,000W (AC + Solar), with D050S DC Charging Enhancer
GENERAL Simultaneous Charge & Discharge:
Dimensions (LxWxD):
52 x 32 x 26.6cm
Operating Temperature:
-4℉-104℉ (-20℃-40℃)
Storage Temperature:
-4℉-104℉ (-20℃-40℃)
4 Year Manufacturer Warranty

Package Includes

  • 1 X AC300 Power Station
  • 1 X 10AC Charging Cable
  • 1 X Solar Charging Cable (MC4 to Aviation Cable)
  • 1 X Car Charging Cable (MC4 to Cigarette Lighter)
  • 1 X B300 Battery Pack (1-Piece or 2-Pieces)
  • 1 X Battery Expansion Cable (P150D)
  • 1 X Solar Charging Cable (MC4 to XT90)
  • 1 X User Manual
  • 1 X Warranty Card
  • 1 x Certificate of QC Pass

Bluetti AC500 User Manual

Please click here to download the Bluetti AC500 User Manual

Bluetti B300S User Manual

Please click here to download the Bluetti B300S User Manual

Bluetti AC500/B300S Tutorial and User Guide:
