Introducing the ATEM POWER 120W or 200W 12v Shingled Mono Solar Panel Kit, a cutting-edge solution that revolutionises solar power generation. ATEM POWER has integrated the latest shingled solar cell technology into these panels, providing enhanced power output, improved reliability, and a sleek aesthetic appeal.

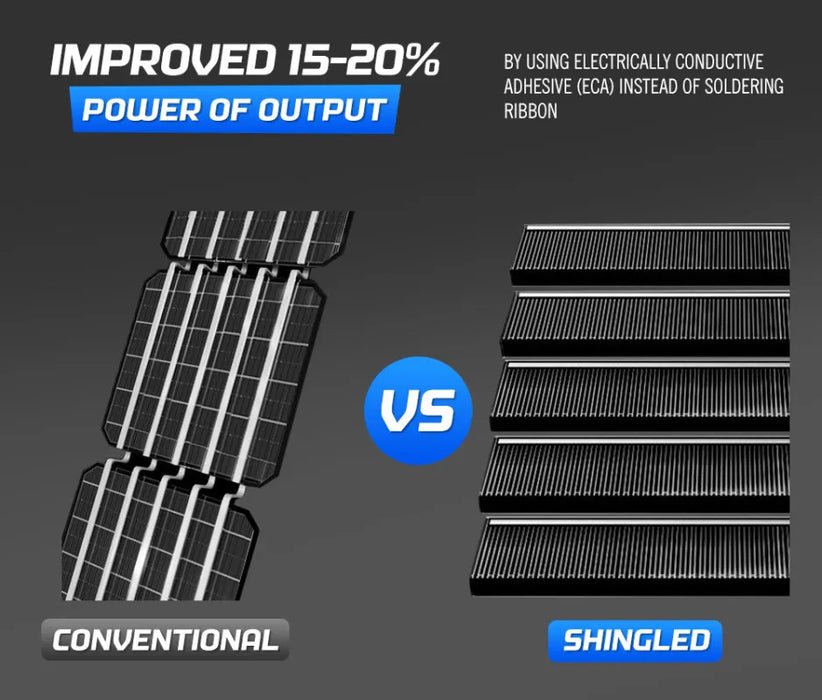

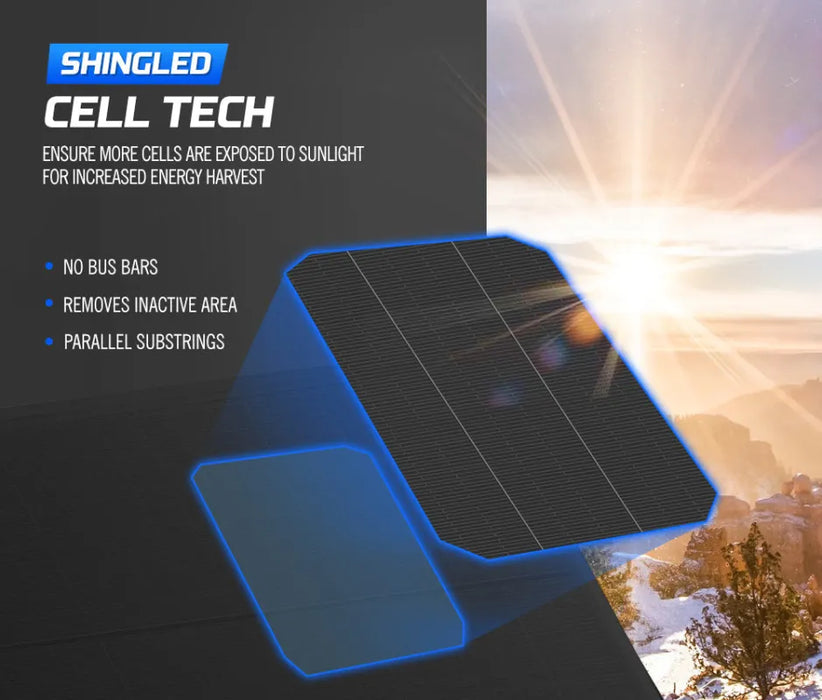

With the ATEM POWER shingled solar panel kit, users benefit from a design that eliminates the need for ribbons, busbars, and soldering processes. The cells are intelligently cut into 5 or 6 strips and seamlessly joined using electrically conductive adhesives (ECA), resulting in pure cell exposure and an impressive 15-20% higher output compared to traditional RV solar panels. This technology ensures efficient capture of solar energy per square meter.

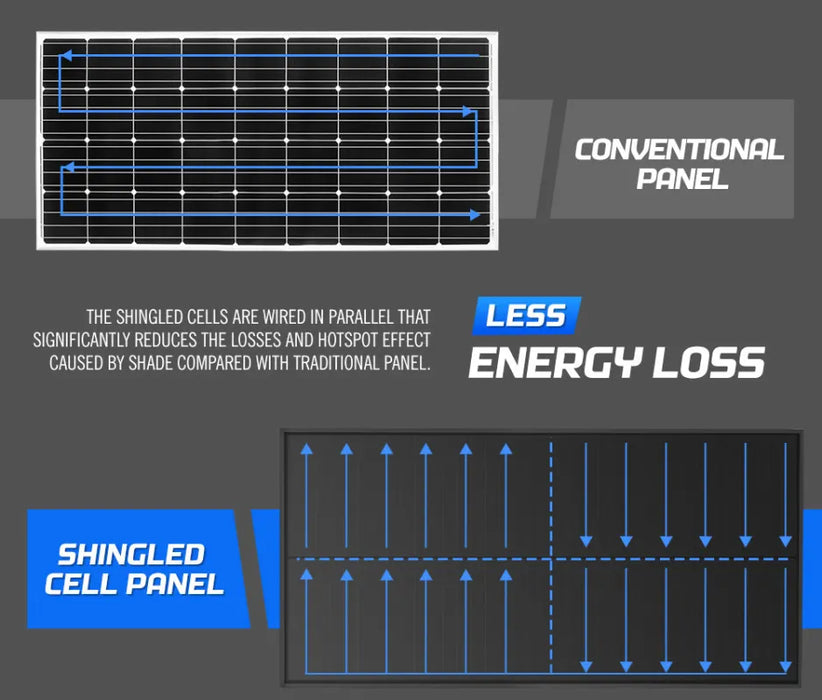

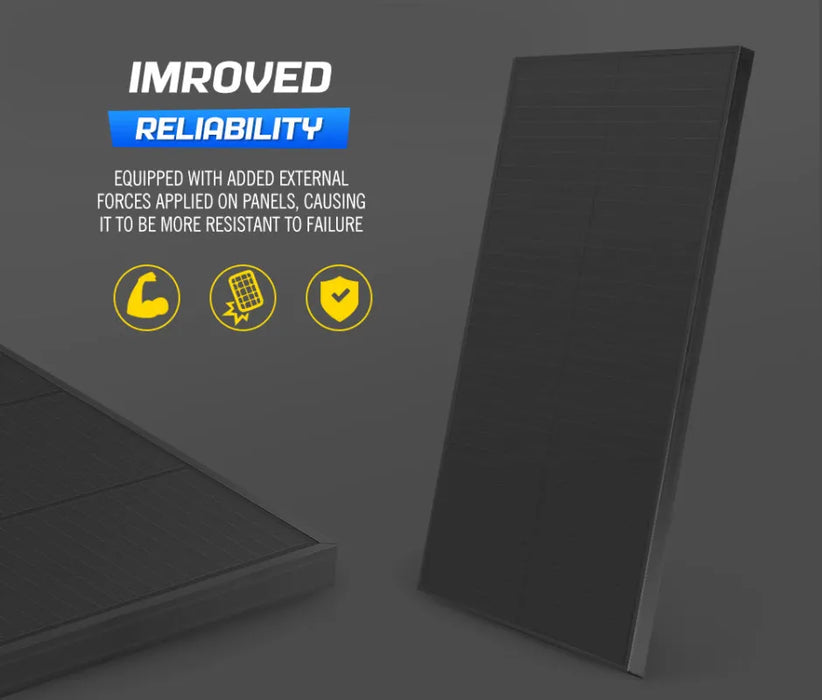

The shingled panel's parallel wiring configuration significantly reduces power losses caused by shading, enhancing overall performance. Whether partially shaded or not, the impact on power output is minimal. With an IP-68 rating, these solar panels are built to withstand harsh conditions while delivering reliable performance. Furthermore, the absence of visible circuitry adds to the panels' sleek and appealing appearance.

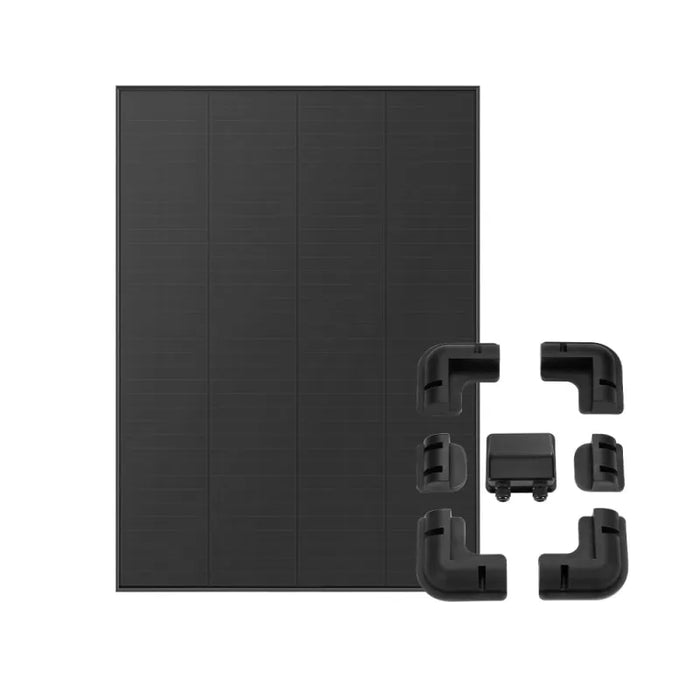

The ATEM POWER 120W or 200W 12v Shingled Mono Solar Panel Kit is available in two power options, catering to different energy needs. Additionally, customers have the flexibility to choose between a kit that includes solar mounting brackets or one without, depending on their installation requirements.
Upgrade your solar power setup with the ATEM POWER 120W or 200W 12v Shingled Mono Solar Panel Kit. Experience enhanced power output, improved reliability, and a visually pleasing design that takes your solar energy generation to new heights.
120W | 200W | |
Material | Shingled Cells |
Shingled Cells |
Maximum Power | 120W |
200W |
Open-Circuit Voltage (VOC) | 23.56V |
22.36V |
Short-Circuit Current (ISC) | 6.47A |
11.37A |
Maximum Power Voltage (VMP) | 19.64V |
18.64V |
Maximum Power Current (IMP) | 6.1A |
10.72A |
Maximum System Voltage | 500V | 500V |
Temperature Range | -40°C~ 80°C |
-20°C~ 80°C |
Power Tolerance | ± 3% |
± 3% |
Colour | Black |
Black |

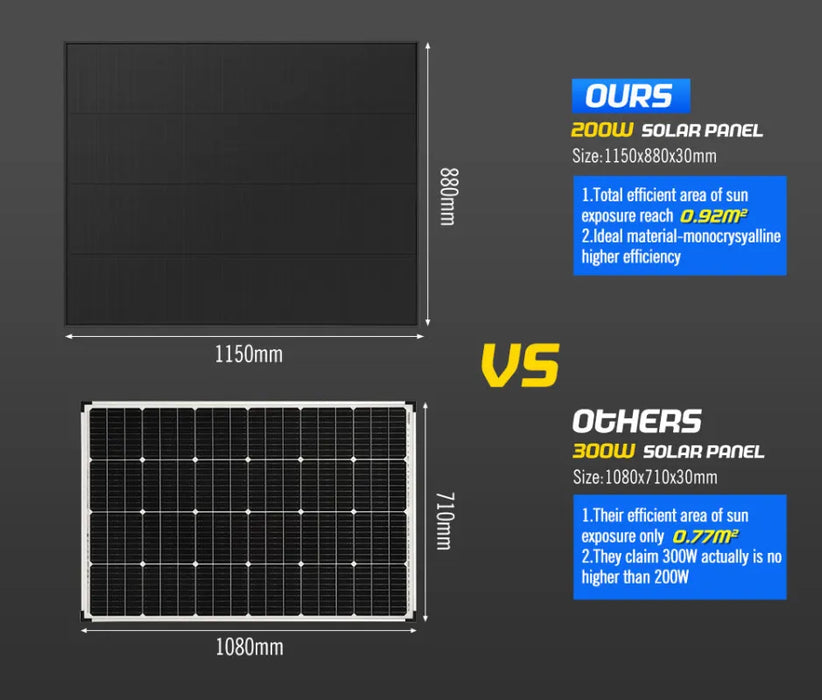

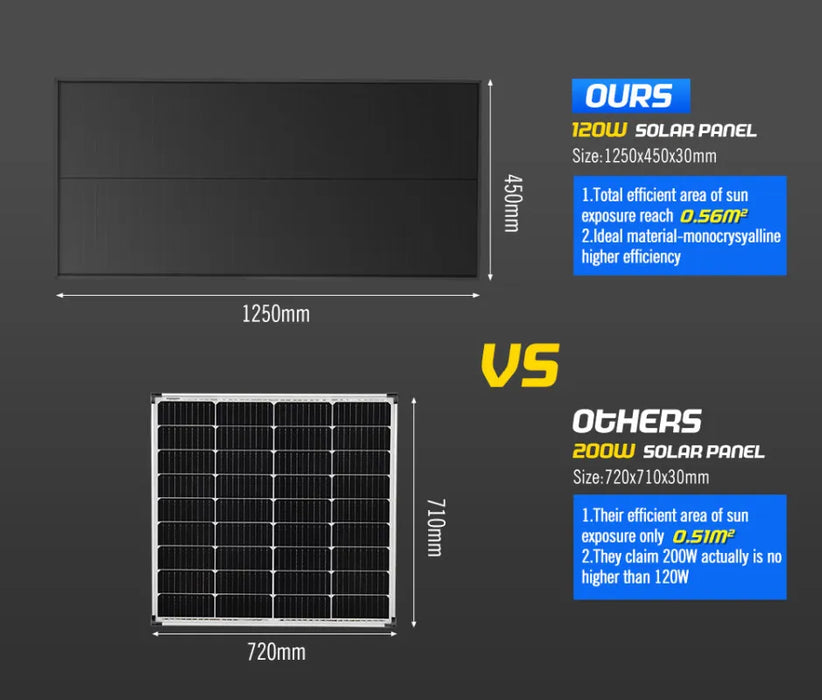

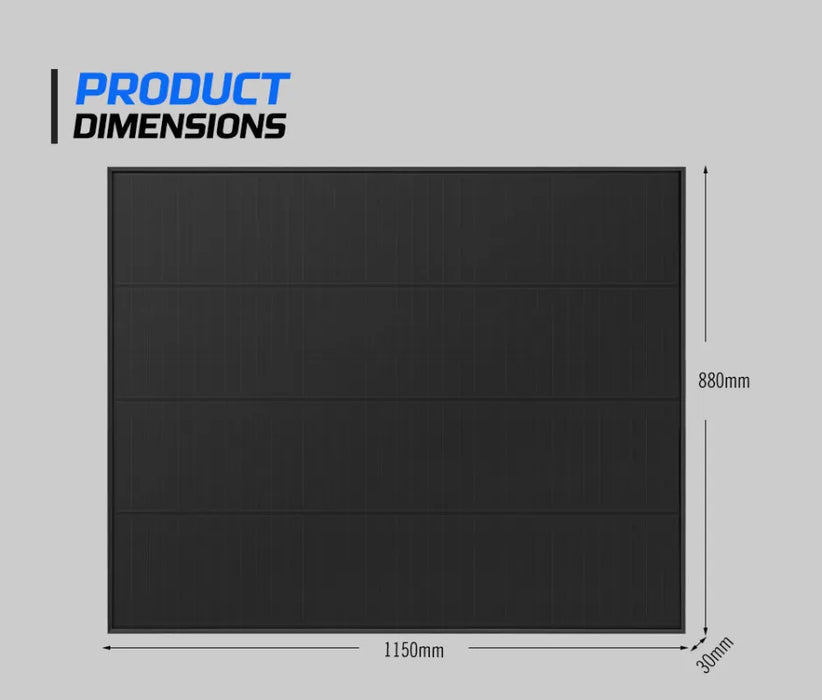

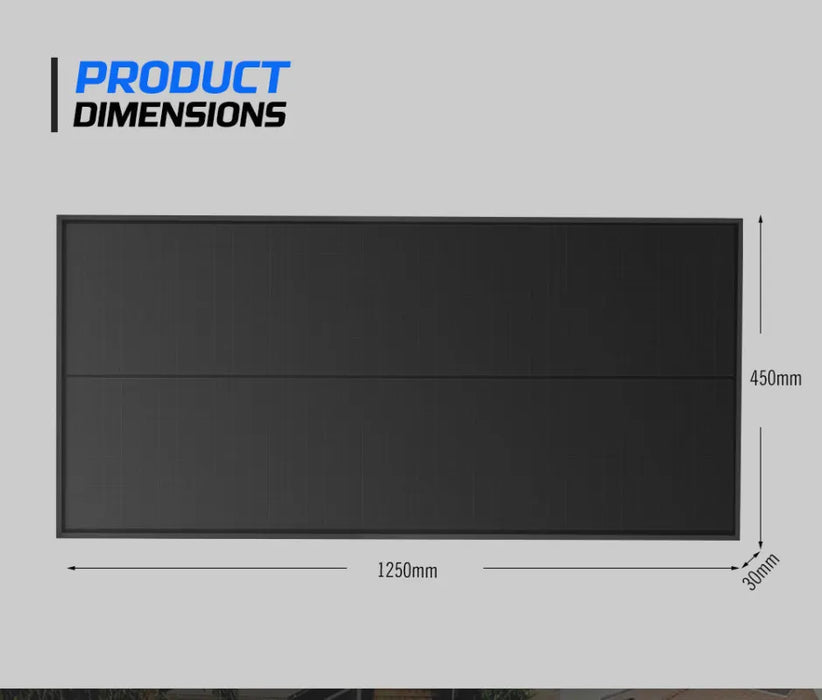

Product Size | 125x45x3cm |
115x88x3cm |
Package Size | 128x47.5x4.5cm |
118x90x4.5cm |
Gross Weight | 7.5kg | 13.1kg |

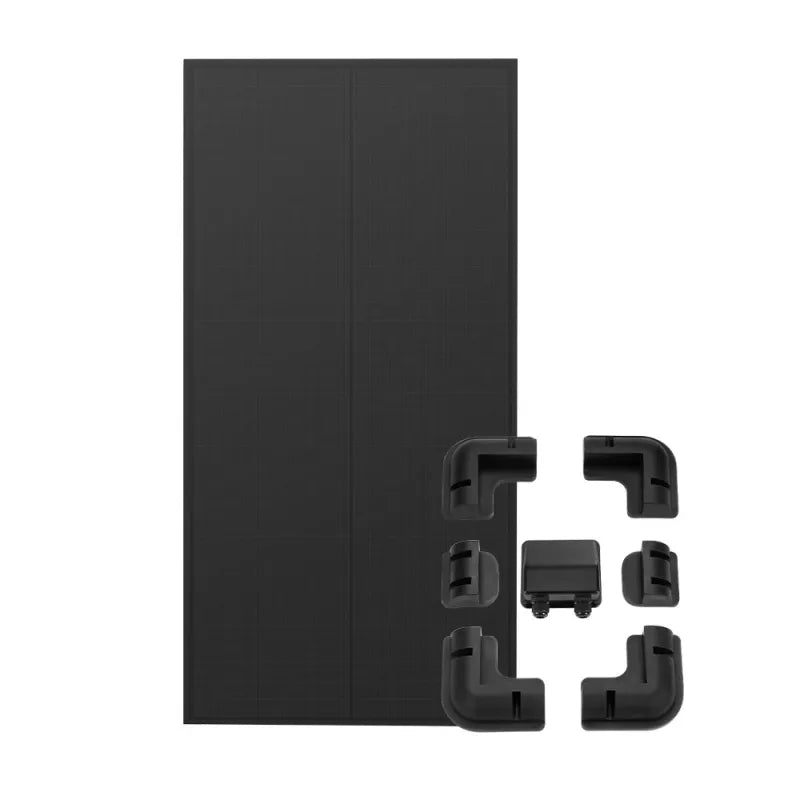

Solar Panel Brackets | |
Material: | ABS |
Cable Entry Housing Waterproof Rating: | IP65 |
Compatibility: | 30W~200W Panels |
Colour: | Black |
Package Size: | 21x13.5x14cm |
Package Weight: | 1.28kg |
