The Radium R88 Winch 12000lb Electric Winch by Carbon Offroad

On a budget?

Need a tough reliable winch?

Well look no further, than the Radium R88 12000lb 4WD Winch, backed by the guys at Carbon Offroad, so you know you are in good hands if you ever need help.

As usual they've done their ground work and this winch has all of the good bits inside to make it super reliable. This winch fits the bill if you just want a backup on your rig for that "what-if" moment, when that bog hole looks too inviting to try and conquer, or when you need to rip some shrubs out of your front garden, or do some emergency fence straining or log dragging, this Winch will tick all of your boxes.

Features

  • Heavy duty series wound motor delivers superior torque output and fast line speeds.
  • 3 stage planetary gearbox delivers reliable and durable performance
  • Hoist style bi-directional brake. No contact with winch drum, brakes through the gear train.
  • Rotating ring gear clutch with lever lift engagement for fool proof clutch engagement
  • Hand remote and wireless remote to control the winch easily.
  • Power in and power out.
  • Mounting bolt kit, control box and battery cables included.
  • Will fit into ANY winch compatible bullbar on the market
  • 12 month warranty on mechanical and electrical components*

Specifications

  • Part number: BR-12
  • Rated line pull:12000lbs(5450kg) single line
  • Motor: 12V DC 6.2hp series wound motor
  • Remote Control: Hand remote control, 12’ (3.7m) lead.
  • Wireless Remote Control: included – receiver is preinstalled inside the control box
  • Geartrain: 3 stage planetary gear set
  • Gear Ratio: 216:1
  • Clutch (freespooling): rotating ring gear lever lift clutch disengagement
  • Brake: Full load automatic brake installed in the motor base – Brakes through geartrain no contact with winch drum.
  • Drum Diameter/Length: 2.5’’/8.8’’ (64mm/224mm)
  • Synthetic Rope: 24m, 10mm diameter
  • Fairlead: CNC billet alloy hawse fairlead
  • Recommended Battery: 650 CCA minimum
  • Mounting Bolt Pattern: 10’’ x 4.5’’ ( 254mm x 114.3 )
  • Winch Dimensions ( L x W x H ):21.6''x6.3''x6.8''(550x160x172mm)
  • Packing Dimensions( L x W x H ):  24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
  • Shipping Weight: 34kg ( 75lbs)

12V DC performance specs (first layer of drum)

Line Pull
Lbs.(Kgs.)

Line Speed
FT./min(M/min.)

Motor
Current

Pull by layer
layer/Lbs(Kgs.)

0

28.5 (8.7)

65 amps

1/12000 (5450)

2000 (910)

11.5 (3.5)

120 amps

2/9800(4450)

4000 (1810)

9.2(2.8)

160 amps

3/8300 (3770)

6000 (2720)

7.9(2.4)

215amps

4/7200 (3270)

10000 (3630)

5.6 (1.7)

310 amps



12000 (4315)

4.6 (1.4)

360 amps

*Warranty does not cover damage from water ingress, submersion from river crossings or mud pits.

Note: Please power cycle your winch in and out the full length of rope a few times if you submerge your winch. This will assist you to have a trouble free experience.

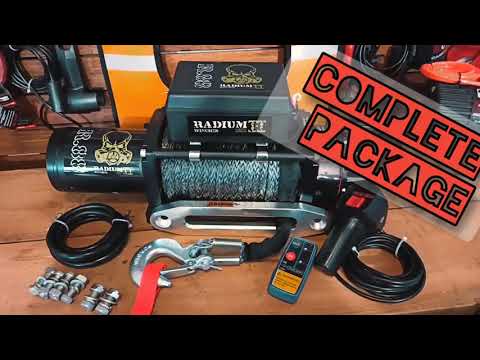

Package Contents

  • Wired & Wireless Remote
  • 24M Synthetic Rope
  • Recovery Hook
  • CNC Billet Fairlead
  • Solenoid Box
  • Mounting Hardware
  • H/D Wires

Packaging Specifications

  • SKU: R88-12K
  • Brand: Carbon Offroad
  • Shipping Weight: 34.0000kg
  • Shipping Width: 0.360m
  • Shipping Height: 0.260m
  • Shipping Length: 0.630m
  • Shipping Cubic: 0.058968000m3
